Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
- 3rd Generation Intel® Xeon® Scalable Processor Family
- 8 to 40 core, depending on processor
- 12 - 60 MB L3, depending on processor
- 16 DIMM slots per socket = 32 Total
- Optional: Intel® Optane™ Persistent Memory for HPE
- Maximum 3 PCIe Gen4, for detail descriptions please see QuickSpecs

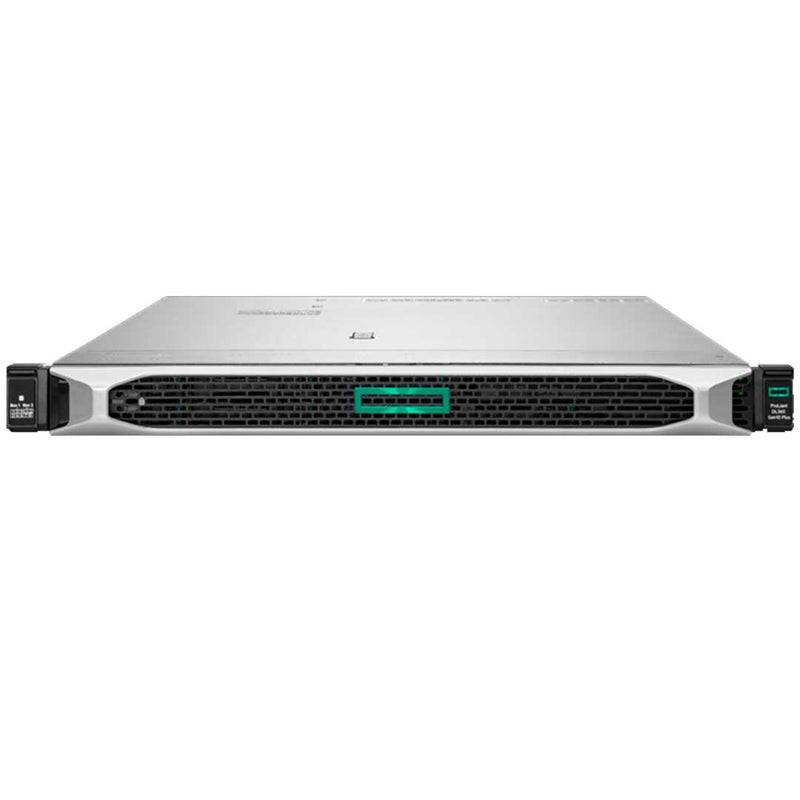

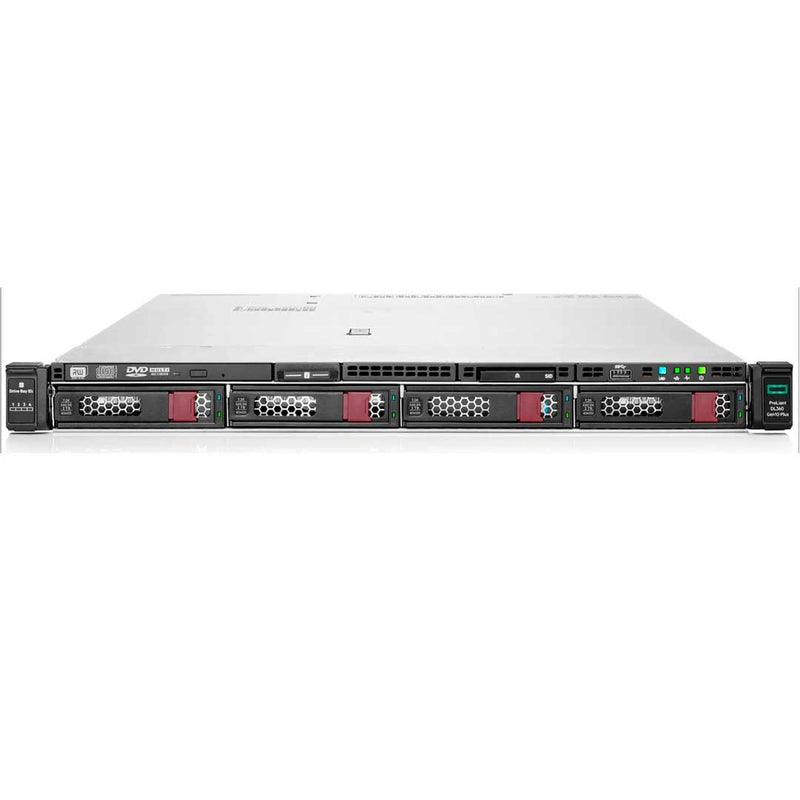

The HPE ProLiant DL360 Gen10 Plus server supports the 3rd Generation Intel® Xeon® Scalable Processors with up to 40 cores, plus 3200 MT/s HPE DDR4 SmartMemory up to 4.0 TB per socket. Introducing PCIe Gen4 and Intel® Software Guard Extensions (SGX) support on the dual-socket segment, the HPE ProLiant DL360 Gen10 Plus server complements Gen10 reach by delivering premium compute, memory, I/O, and security capabilities for customers focused on performance at any cost.
Ideal for:
- Cloud Servers
- Corporate IT
- Database
- Retail Servers
The HPE ProLiant DL360 Gen10 Plus server is powered by 3rd Generation Intel® Xeon® processors and built with foundational intelligence to transform IT with insights that enhance workload performance, placement, and efficiency, delivering better outcomes faster.
HPE ProLiant servers provide real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to adjust to better serve changing business needs.
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Spec Sheet 4
| Technical specifications | HPE ProLiant DL360 Gen10 Plus server |
|---|---|
| Processor name | 3rd Generation Intel® Xeon® Scalable Processor Family |
| Processor family | Intel® Xeon® Scalable 8300 series Intel® Xeon® Scalable 6300 series |
| Processor core available | 4 to 28 core, depending on model |
| Processor cache | 12 - 60 MB L3, depending on processor |
| Processor speed | 3.6 GHz, maximum depending on processor |

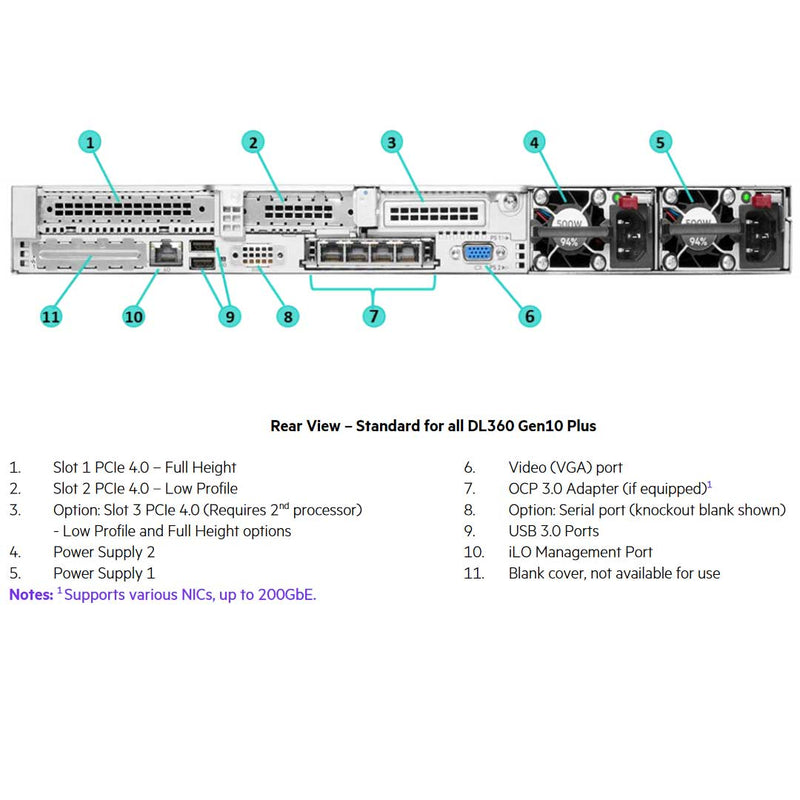

| Expansion slots | Maximum 3 PCIe Gen4, for detail descriptions please see QuickSpecs |
| Maximum memory | 6.0 TB per socket, when populated with 256 GB DDR4 and 512 GB Persistent Memory |
| Memory, standard | 4 TB (16x 256 GB) RDIMM per socket 6 TB (8x 256 GB RDIMM and 8x 512 GB Persistent Memory) per socket, depending on processor model |
| Memory slots | 16 DIMM slots per socket = 32 Total |
| Persistent memory type | Optional: Intel® Optane™ Persistent Memory for HPE |
| Persistent memory media capacity | Optional: 128 to 256 GB |
| Memory type | HPE DDR4 SmartMemory |
| Memory protection features | HPE Fast Fault Tolerant Memory Advanced ECC Memory Online Spare Memory Mirrored Memory |
| Network controller | Wide range of speeds, cabling, chipsets and form factors. Please see QuickSpecs for network card choices |
| Storage controller | Included - Embedded SATA controller (AHCI or SR100i modes) Optional - Variety of protocols -including NVMe-, port count, array utilities, and form factors. Please see QuickSpecs for storage controllers selection |
| Product Dimensions (imperial) | SFF: 1.69 x 17.11 x 30.30 in LFF: 1.69 x 17.11 x 31.50 in |
| Weight | SFF: 28.74 lb to 35.86 lb LFF: 30.36 lb to 37.00 lb |
| Infrastructure management | Included - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires
download) Optional - HPE iLO Advanced, and HPE OneView Advanced |

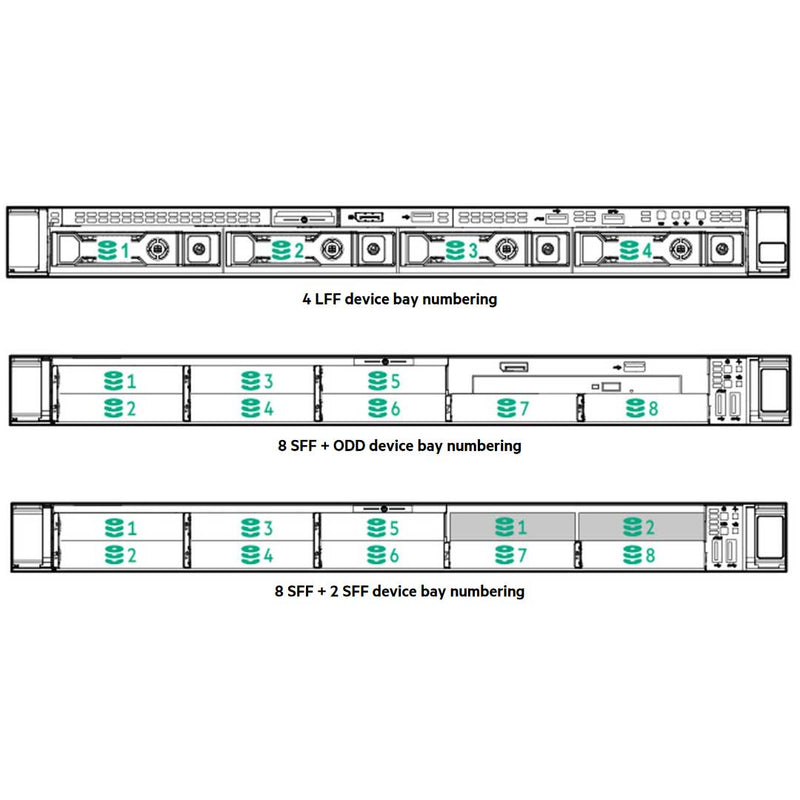

| Drive supported |
|
