Specs
Quick Specs
Form Factor: Double Wide 4U/4N
Processor: N/A
Memory: N/A

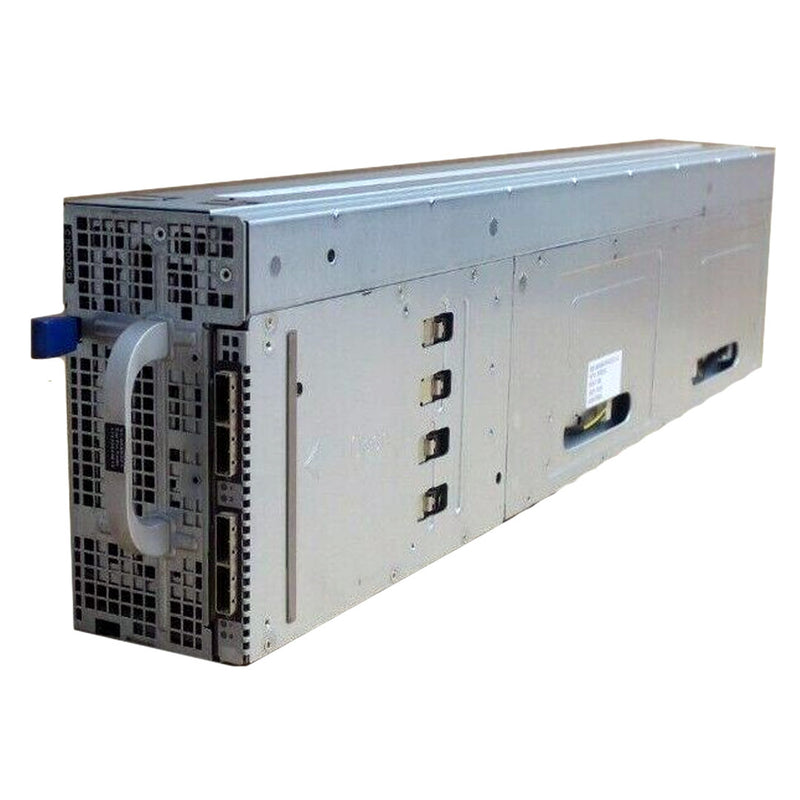

Ports: 4 external mini SAS ports (front)
Controllers:
- LSI® 9202-16e (optional with C8220)
- LSI 9280-8e (optional with C8220X)
- 12 x 3.5” SAS/SATA HDD - Standard
Get big insights fast with up to 48TB of SAS, SATA or SSD storage in a compact double-wide sled designed for the 4U Dell™ PowerEdge™ C8000 chassis.
Tackle big data storage

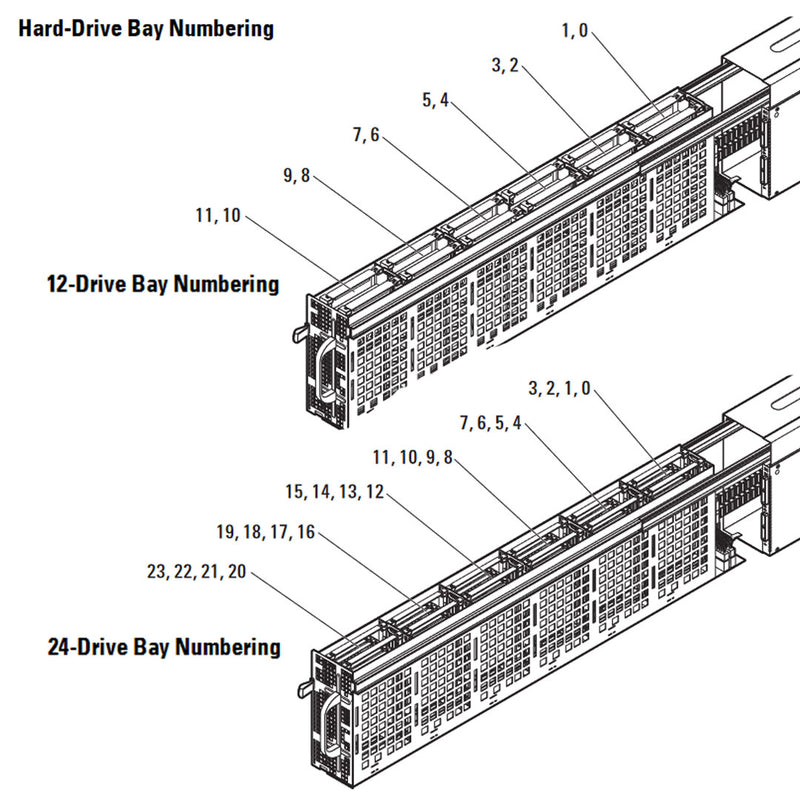

Choose drive size, type, hot-plug/non-hot-plug capabilities and connections to reach up to 48TB per sled, with up to four sleds per chassis for 192TB. The PowerEdge C8000XD storage sled is available with up to 12 x 2.5-inch or 3.5-inch SAS/SATA HDDs or 24 x 2.5” SATA SSDs.
Up to four storage sleds can be cascaded through mini SAS ports to deliver up to 192TB of storage capacity to capacity-hungry applications.
Get big insights fast
When populated with highly reliable SAS drives, the PowerEdge C8000XD is ideally suited for enterprise-level transactional applications such as modeling and simulation. With high-capacity SATA drives, the PowerEdge C8000XD can be optimized for reference and high-bandwidth data applications such as disk-based backup, document imaging and video surveillance. With high‑speed SSDs, the PowerEdge C8000XD can be optimized to meet a high-volume of real-time demands, such as online transaction processes, database queries, hosting and cloud services.
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | PowerEdge C8000XD storage sled technical specifications | |
|---|---|---|
| Chassis | 4U rack mount chassis fits up to 4 double-wide sleds | |
| Primary storage | Maximum internal storage: 48TB | |
| Drives | 12 x 2.5” or 12 x 3.5” SAS/SATA HDDs or 24 x 2.5” SSDs 2.5” SAS 6Gb (10K): 300GB, 600GB, 900GB, 1.2TB 2.5” SAS 6Gb (15K): 146GB, 300GB 2.5” NL SAS 6Gb (7.2K): 500GB, 1TB 2.5” SATA SSD (eMLC): 100GB, 200GB 400GB, 800GB 2.5” SATA SSD (MLC): 120GB, 160GB, 240GB, 300GB, 480GB, 600GB, 800GB 2.5” Enterprise SATA (7.2K): 500GB, 1TB 3.5” SAS 6Gb (15K): 300GB, 600GB 3.5” NL SAS 6GB (7.2K): 2TB, 3TB, 4TB 3.5” Enterprise SATA (7.2K): 500GB, 1TB, 2TB, 3TB, 4TB | |
| Ports | 4 external mini SAS ports (front) | |
| Drive controller | Connection through PowerEdge C8220 single-wide compute sled or C8220X double-wide compute sled LSI® 9202-16e (optional with C8220) | |
| RAID controller | Connection through PowerEdge C8220 single-wide compute sled or C8220X double-wide compute sled LSI 9280-8e (optional with C8220X) | |
| Services | Data Center Consulting Services Rack Integration (U.S. only) Rack Design Verification Configuration Services/CFI Onsite Deployment Online Self Dispatch Basic Support ProSupport for IT | ProSupport for Data Center 4-Hour Support Keep Your Hard Drive Enterprise Wide Contract IT Advisory Service Remote Advisory Service Certified Data Destruction Specialized Onsite Services |
| Dimensions and weight | Height: 85.9 mm (3.38 in) Wide: 171.6 mm (6.76 in) Depth: 682.5 mm (26.87 in) Weight (maximum configuration): 16.33 kg (36 lb) | |
