SKU: K09CJ

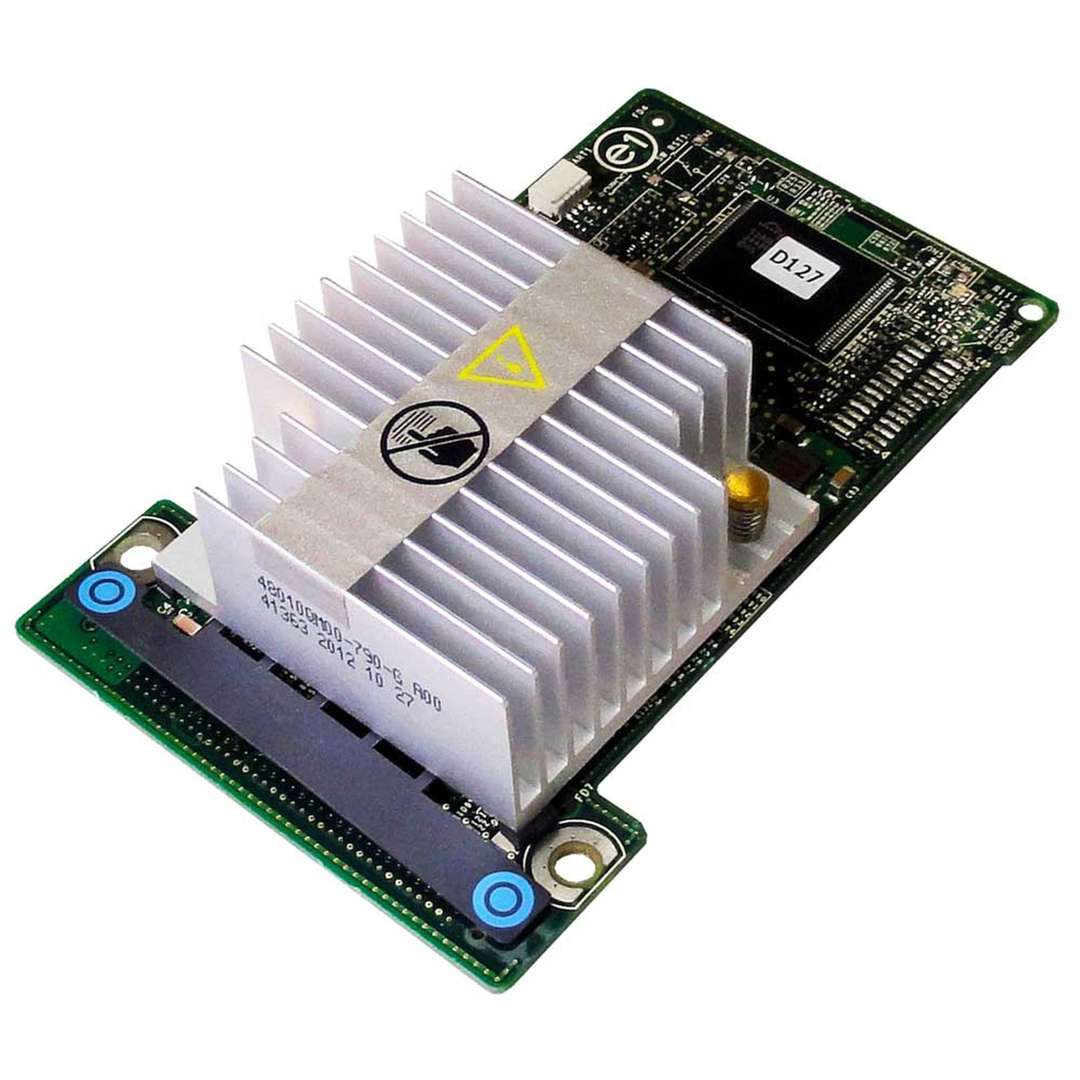

Dell PERC 8 H310 SAS/SATA RAID Controller, Mini Mono | K09CJ

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

ModelsDrive Types

6 Gb/s SAS

PCI Support

PCI-e 2.0 2x4 Internal

SAS ConnectorsCache Memory

N/A

Write Back Cache

FN/A

RAID Levels

0,1,5,10,50

Max Drive Support

16, Non-RAID 32

RAID Support

Hardware

Part Numbers:

  • K09CJ
Summary of RAID levels
Summary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:
  • RAID 0 Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.
  • RAID 1 Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.
  • RAID 5 Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.
  • RAID 6 Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.
  • RAID 10 Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.
  • RAID 50 Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.
  • RAID 60 Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.
Compatible With:
  • Dell R320
  • Dell R720
  • Dell R720xd
  • Dell R820
  • Dell T340
  • Dell T420
  • Dell T620

(Click to View)

Spec Sheet 4

Models Drive Types PCI Support SAS Connectors Cache Memory Write Back Cache RAID Levels Max Drive Support RAID Support
H810 Adapter 6 Gb/s SAS PCI-e 2.0 2x4 External 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 192 Hardware
H710P Adapter 6 Gb/s SAS PCI-e 2.0 2x4 Internal 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H710P Mini Mono 6 Gb/s SAS PCI-e 2.0 2x4 Internal 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H710P Mini Blade 6 Gb/s SAS PCI-e 2.0 2x4 Internal 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 4 Hardware
H710 Adapter 6 Gb/s SAS PCI-e 2.0 2x4 Internal 512 MB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H710 Mini Mono 6 Gb/s SAS PCI-e 2.0 2x4 Internal 512 MB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H710 Mini Blade 6 Gb/s SAS PCI-e 2.0 1x4 Internal 512 MB NV Flash Backed Cache 0,1,5,6,10,50,60 4 Hardware
H310 Adapter 6 Gb/s SAS PCI-e 2.0 2x4 Internal - - 0,1,5,10,50 16, Non-RAID 32 Hardware
H310 Mini Mono 6 Gb/s SAS PCI-e 2.0 2x4 Internal - - 0,1,5,10,50 16, Non-RAID 32 Hardware
H310 Mini Blade 6 Gb/s SAS PCI-e 2.0 1x4 Internal - - 0,1,5,10,50 4 Hardware
S110 3 Gb/s SATA PCI-e 2.0 - - - 0,1,5,10 4 Software - Windows Only
