Adapter Specs
- Models: Drive Types
- Drive Types: 12 Gb/s SAS, 6 Gb/s SAS/SATA, 3 Gb/s SAS/SATA
- PCI Support: PCI-e 3.0
- SAS Connectors: 2x8 External
- Cache Memory: 4 GB NV
- Write Back Cache: Flash Backed Cache
- RAID Levels: 0, 1, 5, 6, 10, 50, 60
- Max Drive Support: 240
- RAID Support: Hardware
Part Number:
- LP: 26H8T
- fPERC: JT47Y
- fPERC: TFKHK

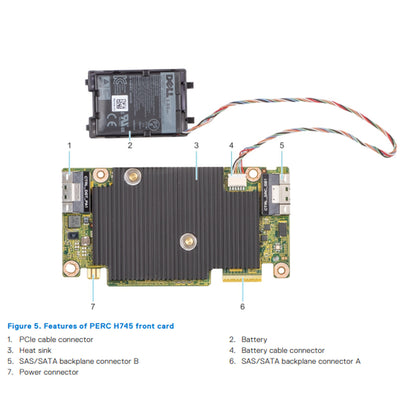

The Dell fPERC 10 H745 12Gb SAS 4GB RAID Controller delivers enterprise-grade storage management with high-speed 12Gb/s SAS and multiple SATA compatibility. Connecting through dual 2x8 external ports and utilizing PCI-e 3.0, it ensures rapid, reliable data transfer for large-scale storage needs.
Equipped with 4 GB of non-volatile cache and flash-backed protection, the H745 supports a wide range of RAID levels, including 0, 1, 5, 6, 10, 50, and 60. With the ability to manage up to 240 drives, it provides robust scalability and data security for demanding enterprise storage deployments.
Compatible With:
- Dell R6525
- Dell R750
- Dell R7525
- Dell T550
