Dell fPERC 11 H755 SAS 12Gb Front RAID Controller | 51P7W

Dell

| Adapter
$950.00

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs
  • Models: Front PERCAdapter
  • Drive Types: Gen3 (8 GT/s) NVMe, Gen4 (16 GT/s) NVMe, 12 Gb/s SAS, 6 Gb/s SAS/SATA, 3Gb/s SAS/SATA
  • PCI Support: Front PCI-e 4.0
  • SAS Connectors: 16 Port 2x8 Internal
  • Cache Memory: 8GB NV
  • Write Back Cache: Flash Backed Cache
  • Max Drive Support: 16/controller, 50 with SAS Expander (Platform limit)
  • RAID Levels: 0, 1, 5, 6, 10, 50, 60
  • RAID Support: Hardware
Part Number:
  • FH: 29XMF
  • fPERC: 3KDWX
  • fPERC: 51P7W
  • MX: XYHRD

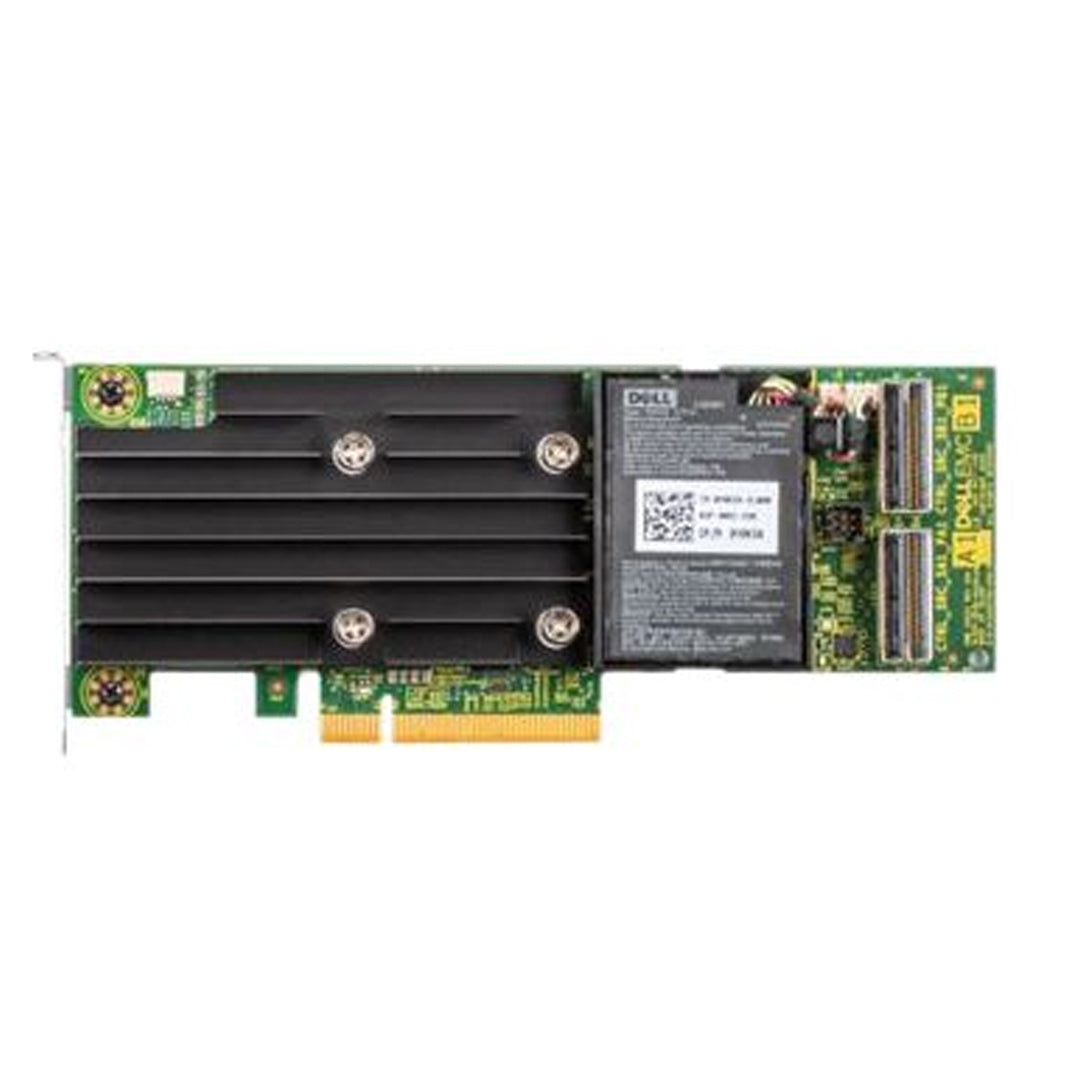

The Dell PERC 11 H755 SAS 12Gb RAID Controller FRONT delivers robust, high-performance RAID capabilities for storage environments using SAS, SATA, and NVMe drives. With PCI-e 4.0 support and a 16 Port 2x8 internal configuration, it ensures excellent scalability and fast data throughput for enterprise servers.
Equipped with 8GB of non-volatile cache and flash-backed cache protection, the H755 Adapter supports RAID levels 0, 1, 5, 6, 10, 50, and 60. It efficiently manages up to 50 drives with a SAS expander, making it ideal for complex, performance-driven server deployments requiring secure and scalable storage solutions.
Summary of RAID levels
Summary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:
  • RAID 0

    Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.

  • RAID 1

    Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.

  • RAID 5

    Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.

  • RAID 6

    Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.

  • RAID 10

    Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.

  • RAID 50

    Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.

  • RAID 60

    Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.

Compatible With:
  • Dell C6620
  • Dell R250
  • Dell R350
  • Dell R450
  • Dell R550
  • Dell R650
  • Dell R650xs
  • Dell R750
  • Dell R750xa
  • Dell R750xs
  • Dell T150
