-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
What's New for ML30 Gen9
- (1) Intel E3-1200 v5 or v6
- (4) DDR4 UDIMM Slots
- Broadcom 5720 Dual-port 1GbE
- 4 PCIe 3.0 slots
- iLO Management (standard),
- Intelligent Provisioning (standard)
- 1 non hot plug, non-redundant
Ideal for:
- Corporate IT
- Database

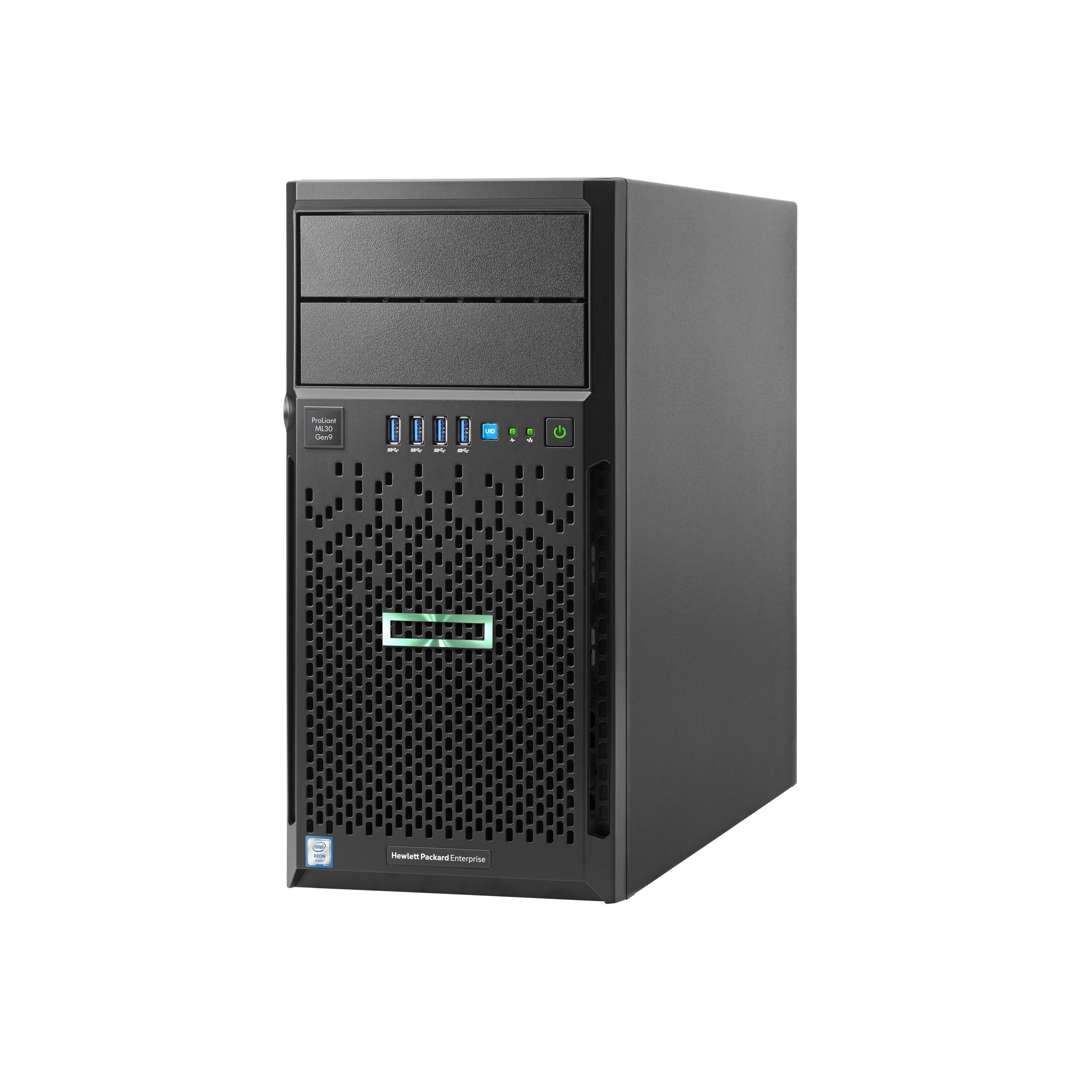

The HPE Tower server ML30 is a high-performance server that comes equipped with one CPU and four DIMMs, providing ample processing power and memory to handle a range of workloads. This server also features support for two form factor drives, allowing you to choose between either four LFF HDDs or eight SFF SSD/HDDs.
This flexibility makes it easy to customize the server to meet your specific storage needs. Additionally, the HPE Tower server ML30 features a compact tower design, making it easy to deploy and manage in a variety of environments. Whether you're running a small business or a larger enterprise, the HPE Tower server ML30 is a versatile and reliable choice for all of your computing needs.
Chassis Options
| [Chassis] | |||
|---|---|---|---|
| HPE ProLiant ML30 Gen9 Non-hot Plug 4LFF Configure-to-order Server | HPE ProLiant ML30 Gen9 Hot Plug 4LFF Configure-to-order Server | HPE ProLiant ML30 Gen9 Hot Plug 8SFF Configure-to-order Server | |
| SKU Number | 823401-B21 | 823402-B21 | 823403-B21 |
| Processor | 1 | ||
| DIMM Slots | 4 DIMM slots for UDIMM DDR4 Memory | ||
| Storage Controller | HPE Dynamic Smart Array B140i with 4 SATA ports support | HPE Dynamic Smart Array B140i with 4 SATA ports support, choice of HPE SAS Controller or Smart HBA | |
| PCIe | 4 PCIe 3.0 slots | ||
| Drive Cage | 4LFF Non Hot Plug | 4LFF Hot Plug | 8SFF Hot Plug |
| Network Controller | Broadcom 5720 Dual-port 1GbE | ||
| Fans | 1 non hot plug, non-redundant | ||
| Management | iLO Management (standard), Intelligent Provisioning (standard) | ||
| USB | 4 front, 4 rear, 2 internal | ||
4 Non Hot-Plug Drive Cage
Controller
HPE Dynamic Smart Array B140i with 4 SATA ports support
Max CapacitySATA | 4 x 4TB = 16TB
4 Hot-Plug Drives Cage / Backplane
Controller
HPE Dynamic Smart Array B140i with 4 SATA ports support, choice of HPE SAS Controller or Smart HBA
Max CapacitySAS | 4 x 12TB = 48TB
SATA | 4 x 12TB = 48TB
SATA | 4 x 1.92GB = 7.68TB
8 Hot-Plug Drives Cage / Backplane
Controller
HPE Dynamic Smart Array B140i with 4 SATA ports support, choice of HPE SAS Controller or Smart HBA
Max CapacitySAS | 8 x 2.4TB = 19.2TB
SATA | 8 x 2TB = 16TB
SATA | 8 x 3.84TB = 30.72TB
Processor Options | (1) Intel® Xeon® E3-1220 v5 or v6
The refurbished HPE ProLiant ML30 Gen9 server is an affordable single-socket tower server that features value performance, expansion, and growth that is ideal for small businesses and remote branch offices.

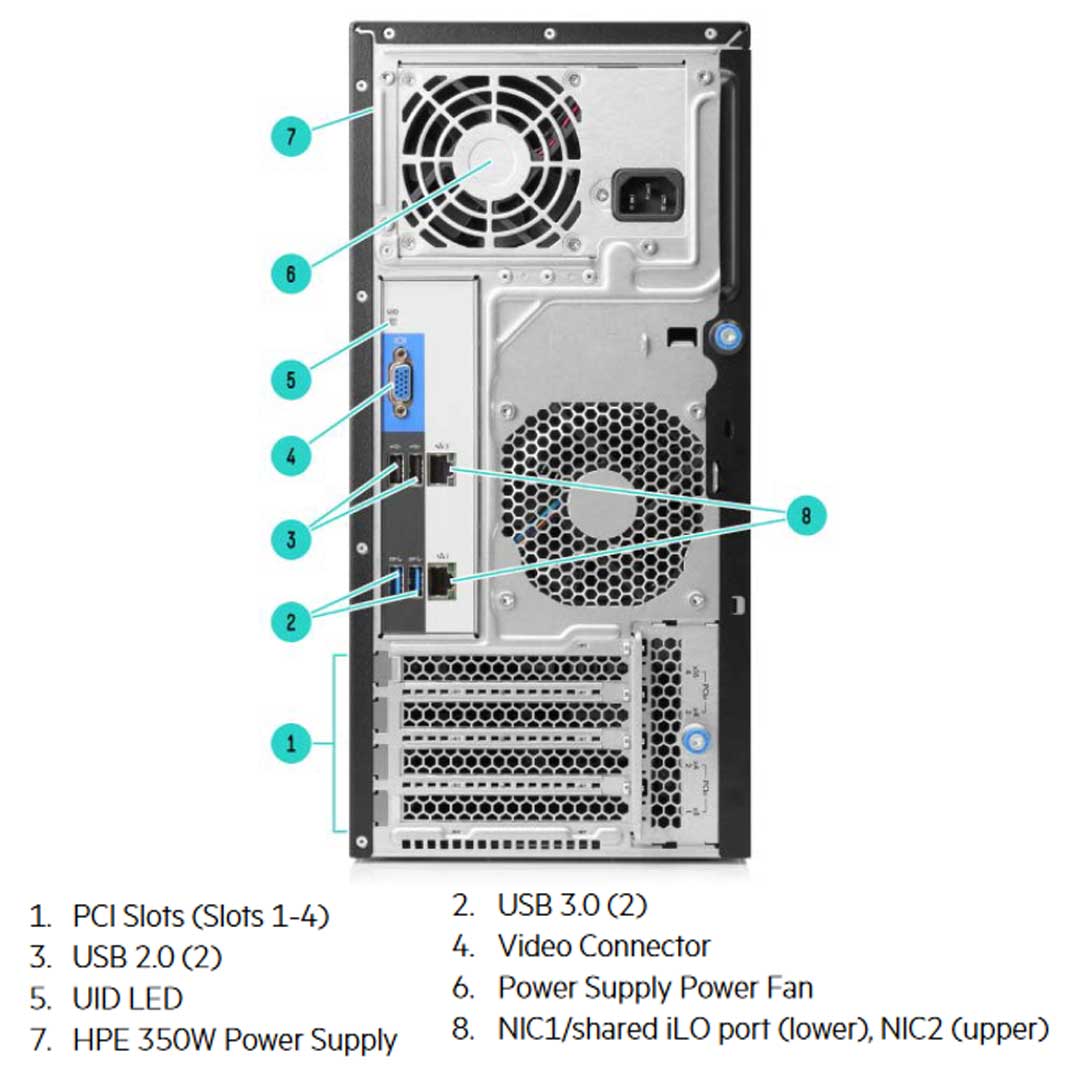

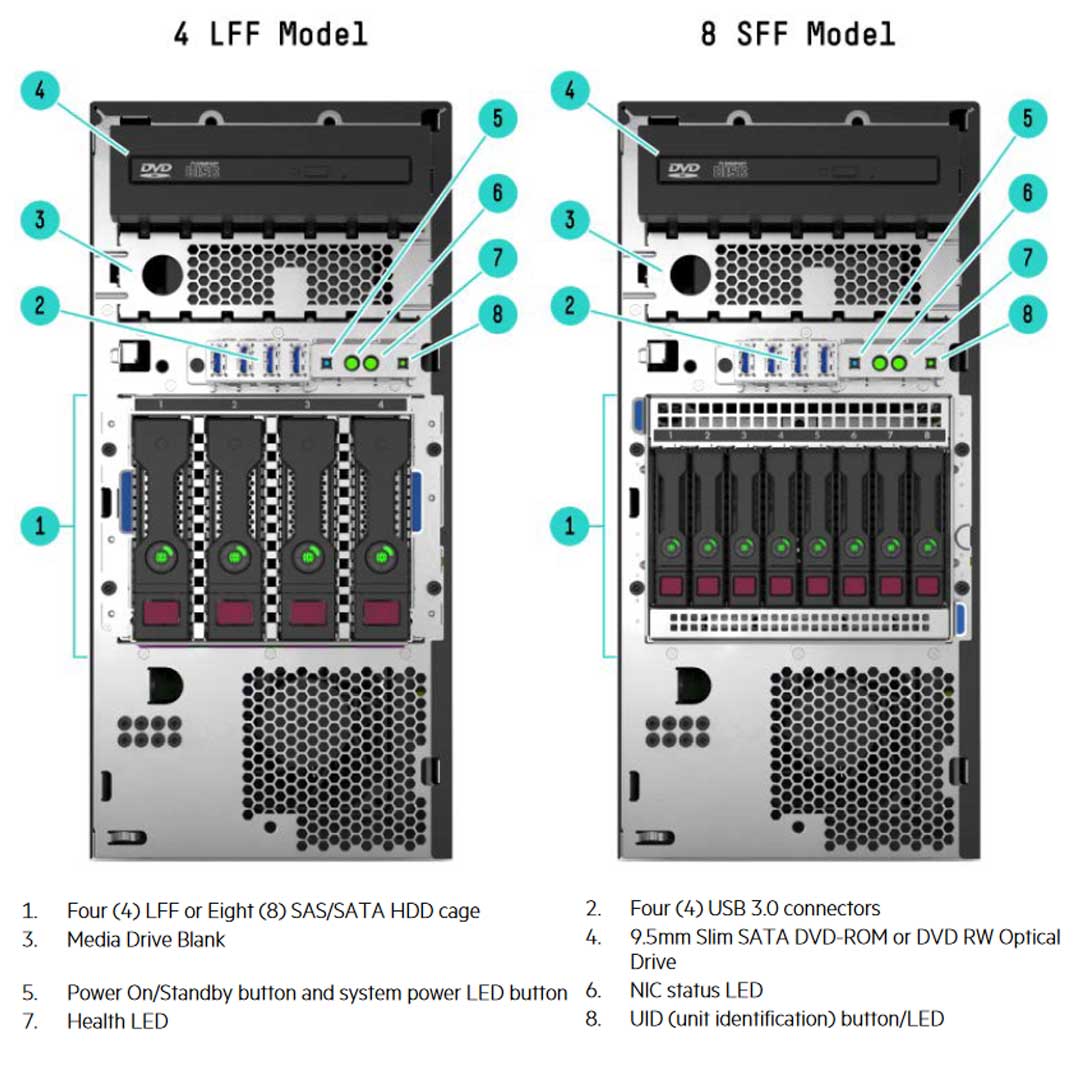

The ML30 Gen 9 HPE Tower Server has a few Drive Options in this 1 Socket configuration. Depending on the Storage controller installed, you can have either 4 SATA/SAS LFF Drives or 8 SATA/SAS HDD/SSD SFF Drives. This Server has 4 PCIe slot in the back of the tower. Please take note as to what card you're installing into what spot. Slot 4 is a x16PCI-e while slot 3/2 are x4PCI-e and slot 1 is a x8PCI-e. All of this is powered by either a Non-Hot Swap 350W (E-star 1.0/2.0) PSU or a redundant configuration with 1 or 2 Hot Swap 460W PSU CS Gold with hot swap PSU backplane. When the Redundant PSU backplane is installed 1 media tray slots can't be installed.
Memory Options | (4) UDIMMs
General Memory Population Rules and Guidelines:
- The HPE ProLiant ML30 Gen9 Server has four memory slots
- There are two channels per server with two DIMM slots per channel
- Memory channel 1 consists of the two (2) DIMMs that are closest to the processor
- Memory channel 2 consists of the two (2) DIMMs that are furthest from the processor
- Support for single/dual-rank 2133 MT/s ECC UDIMM (unbuffered DIMMS)
- The server supports up to 64 GB (4 x 16-GB) for Unbuffered DIMMs
- No support for LRDIMMs; RDIMMs; Non-ECC UDIMMs
- Do not install DIMMs if the processor is not installed
- Populate DIMMs from heaviest load (double-rank) to lightest load (single-rank)
- Non-ECC DIMMs are not supported
- Always use HPE qualified DIMMs
Storage Controllers | Max(1) if selected with another x8 device.

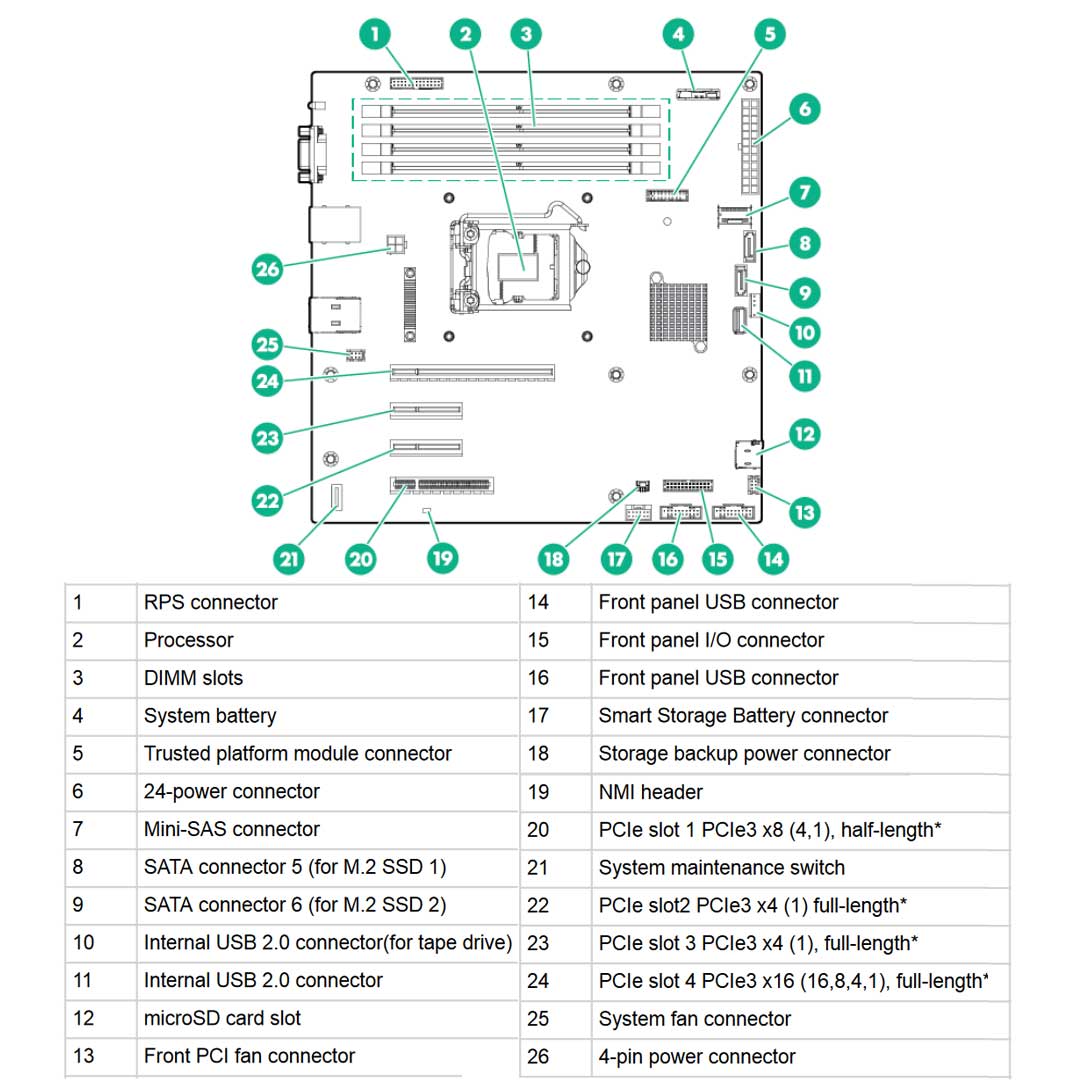

The HPE ML30 has 4 PCIe slots with different PCIe data widths. When installing a Network, Storage controller or the M.2 SSD adapter. Please make sure they are placed in the correct slot.
PCIe Slot Options
- slot 1, PCIe3 x8 (4,1), half-length*
- slot 2, PCIe3 x4 (1), full-length*
- slot 3, PCIe3 x4 (1), full-length*
- slot 4, PCIe3 x16 (16,8,4,1), full-length*
- (Standard) HPE Dynamic Smart Array B140i with 4 SATA ports support
- H240 host bus adapter (HBA) PCI-e 3.0x8 2 Internal ports 12Gb SAS 6Gb SATA - 779134-001
- H241 host bus adapter (HBA) PCI-e 3.0x8 2 Internal ports 12Gb SAS 6Gb SATA- 750054-001
- Smart Array P440 4GB FBWC Internal PCI-e 3.0x8 12Gb SAS 6Gb SATA controller - 749797-001
- Smart Array P441 4GB FBWC External 2 mini-SAS ports PCI-e 3.0x8 12Gb SAS 6Gb SATA controller - 749798-001
- Smart Storage Battery for FBWC support - 871264-001
- Smart Storage Battery holder - 825640-001
Network Controllers | Max(1) if selected with another x8 device.
1 Gigabit Ethernet adapters
- HPE Ethernet 1Gb 4-port 331T Adapter
647594-B21 - 649871-001 - HPE Ethernet 1Gb 4-port 366T Adapter
811546-B21 - 816551-001 - HPE Ethernet 1Gb 2-port 332T Adapter BCM5720
615732-B21 - 616012-001 - HPE Ethernet 1Gb 2-port 361T Adapter
652497-B21 - 656241-001
10 Gigabit Ethernet adapters
- HPE Ethernet 10Gb 2-port 530SFP+ Adapter
652503-B21 - 656244-001 - HPE Ethernet 10Gb 2-port 530T Adapter
656596-B21 - 657128-001 - HPE Ethernet 10Gb 2-port 560SFP+ Adapter
665249-B21 - 669279-001 - HPE Ethernet 10Gb 2-port 561T Adapter
716591-B21 - 717708-001
Power Supply
- (Standard) HPE 350W ATX-Gen9 Power Supply FIO Kit
- 350W E1.0 - 821243-001
- 350W E2.0 - 821244-001
- HPE 460W Redundant Power Supply and parts:
- Redundant 460W CS Gold hot-plug power supply - 511777-001
- Redundant power supply cage - 686665-001
- Redundant power supply backplane - 686744-001
