Maximum Raw Capacity (HA): 420TB
Maximum Disk Drives: 420
Controller Form Factor: 6U
Max Memory: 8GB
Max Cache: 512MB
Disk Type: Fibre Channel, NL-SAS, SATA, SAS
Disk Form Factor: 2.5" & 3.5"
Host Connectivity: 4Gb Fibre Channel (FC), 8Gb Fibre Channel (FC), 1GbE, 10GbE
Storage Protocols Supported: CIFS (NAS), Fibre Channel (FC), Fibre Channel over Ethernet (FCoE), iSCSI (IP SAN), NFS (NAS)
Supported RAID: RAID 4, RAID 6 (RAID-DP)
*Available in Single or Dual Controller ('C' Cluster / 'A' Active-Active / 'HA' High-Availability). Call for Details and Pricing

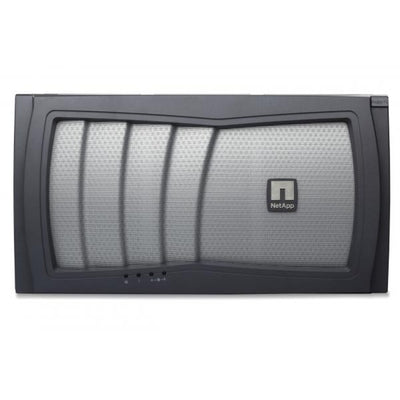

The FAS3140 provides outstanding value. The FAS3140 lets you consolidate diverse data moving through your business onto a unified storage platform that provides simultaneous block and file services for business and technical applications. With the FAS3100 series, you can unlock the full potential of you growing virtualized server environment by enabling virtual machine mobility and offloading the work the work of data protection.
The FAS3140 comes with Snapshot® which reduces backup times to minutes. SnapManager® quickly returns applications to the same point in time as recovered data. NetApp's high-performance RAID 6 (RAID-DP) offers dual parity and better data protection and capacity utilization than RAID 5 and RAID 1+0.
The FAS3140 offers a great mix of value and performance against a wide range of application workloads, file services, OLTP, and messaging and collaboration. It's high-bandwidth, 64-bit controller architecture with large memory cache and the latest I/O technologies, provides data at the rates you need to keep the most demanding business and technical applications running smoothly. The FAS3140 lets you combine high-performance Fibre Channel and large-capacity SATA disk drives in storage tiers for optimal performance and cost. You can also consolidate block and file storage by providing native support of the FCP, iSCSI, FCoE, NFS and CIFS storage protocols via both Fibre Channel and Ethernet interfaces.
The FAS3140 utilizes up to 420 disks and can support a maximum raw capacity of 420TB in a Active-Active configuration. Supports 10GbE, 8Gbps FC, 40x 4Gbps FC ports and all the elite storage networking protocols (FC SAN [FCP], IP SAN [iSCSI, FCoE], NAS [NFS, CIFS]).
| TECHNICAL SPECIFICATIONS FOR SINGLE AND HA CONFIGURATIONS | |
|---|---|
| Maximum Raw Capacity (HA) | 420TB |
| Recommended Min Raw Capacity Array LUNs (GB) | N/A |
| Absolute Min Raw Capacity Array LUNs (GB) | N/A |
| Maximum Storage Devices (HA) | 420 Disks |
| Max DS2246 Shelves (HA) | 18 |
| Max DS4243 Shelves (HA) | 18 |
| Max DS4246 Shelves (HA) | 18 |
| Max DS4486 Shelves (HA) | N/A |
| Max DS14-Class Shelves (HA) | 30 |
| Max Nodes per Cluster (NAS) | Not Supported |
| Max Nodes per Cluster (SAN) | Not Supported |
| Aggregate Size 32 bit (TiB) | 16 |
| Aggregate Size 64 bit (TiB) | 75 |
| Min Size for an Array LUN Aggregate (GB) | N/A |
| Flex Volume Size 32 bit (TiB) | 16 |
| Flex Volume Size 64 bit (TiB) | 50 |
| Max Infinite Volume Data Constituent Size (TiB) | Not Supported |
| Max Volume Count (Single) | 500 |
| Max Array LUN Size (GB) | N/A |
| Min Array LUN Size (GB) | N/A |
| Min Array LUN Size - Root Volume (GB) | N/A |
| Min Root Volume Size (Single/HA) | 134GB / 134GB |
| Spare Core Array LUN Min Size (GB) | N/A |
| Max RAID Groups in an Aggregate | N/A |
| Block Size (Bytes) | N/A |
| Chassis Height | 10.75" |
| Chassis Width | 17.72" |
| Chassis Depth | 23.90" |
| Rack Units (Single/HA) | 6U/6U |
| Operating Temperature Range | 50°F to 104°F |
| Storage Temperature Range | -40° to 149°F |
| Input Power Voltage | 100v to 120v, 200v to 240v |
| Processor (Single) | 1x 64-bit 2-Core 2.40Ghz |
| Memory (Single/HA) | 4GB/8GB |
| NVRAM (Single) | 512MB (Onboard) |
| Ethernet Ports (Single) | 2x RJ45 (1Gbps) |
| Fibre Channel Ports (Single) | 4x SFP (4Gbps) |
| UTA2 Ports (Single) | N/A |
| Expansion Slots (Single) | 4x PCIe |
| SAS Ports (Single) | N/A |
| Max Back-End FC Loops (HA) | 6 |
| Min Version of Data ONTAP 7 | 7.2.5 |
| Min Version of Data ONTAP 8 (both modes) | 8.0, 8.1, 8.2RC1 |
| Max Version of Data ONTAP 8 (both modes) | 8.0.5, 8.1.4, 8.2.4 |
Ask about our NetApp Disk Shelves! We can create custom Turn-Key configurations based on your needs!
Category: FAS3100, fas3100-series, fas3140, netapp, netapp_legacy, single
