10U rack server, air cooled
Processor | Max: 86 Cores per CPU2x Intel Xeon 6 P-core (6th Gen Xeon Scalable)
Memory | Max: 4TB (8TB with 256GB DIMMs)32 DDR5 RDIMM slots, up to 6400 MT/s
GPU:8x NVIDIA HGX B300 288GB (1100W) or
8x NVIDIA HGX B200 180GB (1000W), NVLink
16 x EDSFF E3.S Gen5 NVMe (direct attached)
Boot Options:BOSS-N1 DC-MHS (2 x M.2 NVMe, RAID 1)
Networking Options (NOC):1x OCP 3.0 (x8)
8x OSFP (ConnectX-8) with B300
2x dedicated iDRAC RJ45 ports
iDRAC10
PCIe Slots:B200: 12x Gen5 x16 FHHL
B300: 4x Gen5 x16 FHHL
(Click to View)
- Artificial Intelligence (AI)
- Large Language Model Training
- Deep Learning (DL)
- High-Performance Computing (HPC)
The Dell PowerEdge XE9780 is a 10U, dual-socket, air-cooled AI training server. It pairs two Intel Xeon 6 P-core processors (up to 86 cores each) with an 8-GPU NVIDIA HGX B300 or B200 baseboard linked by NVLink, 32 DDR5 DIMMs, 16 E3.S Gen5 NVMe drives and up to 12 PCIe Gen5 slots for the cluster fabric.
- 16 front EDSFF E3.S Gen5 NVMe bays (x4, direct attached)

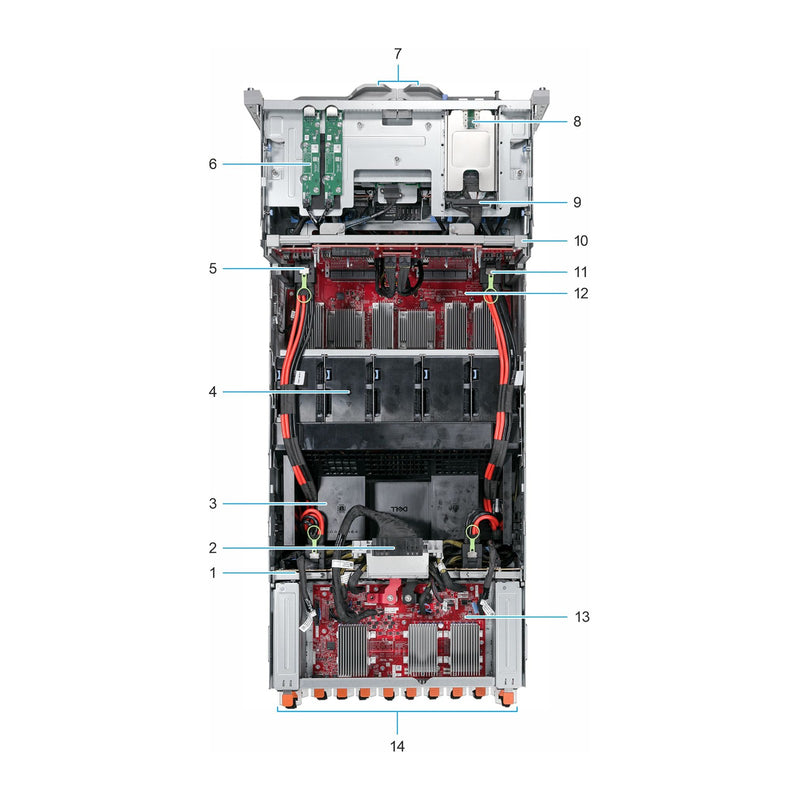

- GPU sled on top, HPM sled (CPUs, memory) slides out the front

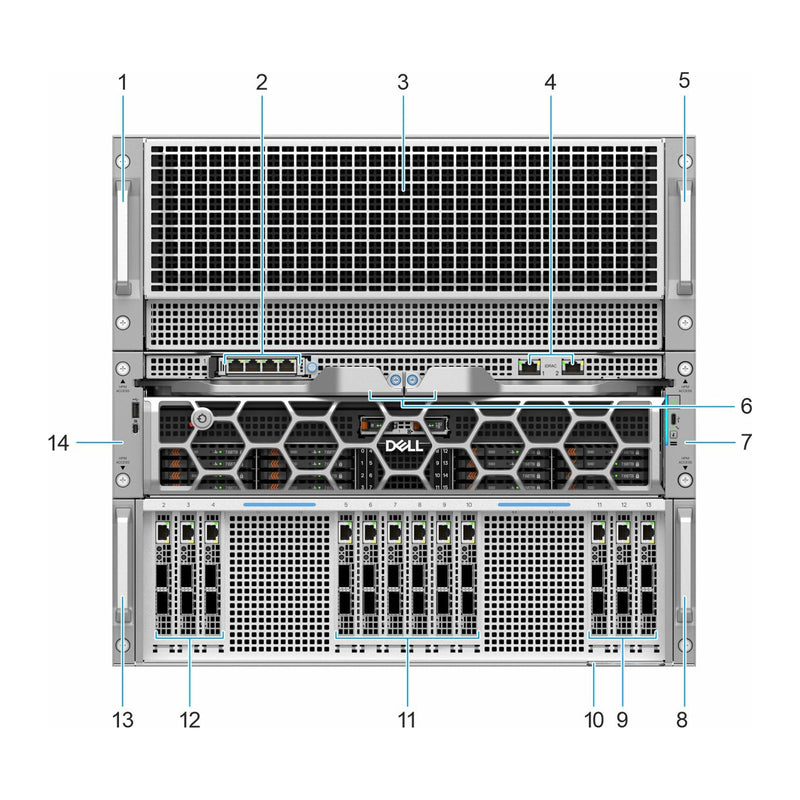

- Front: OCP 3.0, BOSS-N1, 2 x iDRAC RJ45, USB-C iDRAC Direct, USB 2.0, Mini-DP
- NVMe only with software RAID (S160): no PERC, SAS or SATA
- One chassis option for this server; air cooled only
- 1044.7 mm (41.12") deep: check rack depth and rear PDUs
Two Intel Xeon 6 P-core processors (Granite Rapids, LGA4710), up to 86 cores each.
- Up to 86 cores / 172 threads per CPU
- Up to 4 UPI 2.0 links at 24 GT/s
- PCIe Gen5 and CXL 2.0
- 2 processors required; do not mix
- Supported: 6787P, 6767P, 6776P, 6747P
- 330 W to 350 W TDP

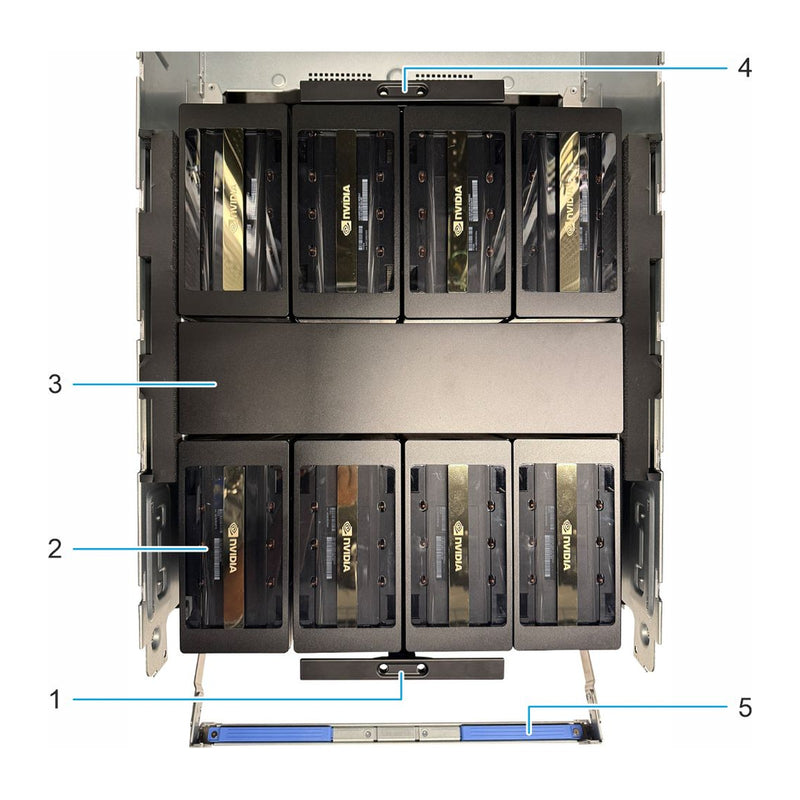

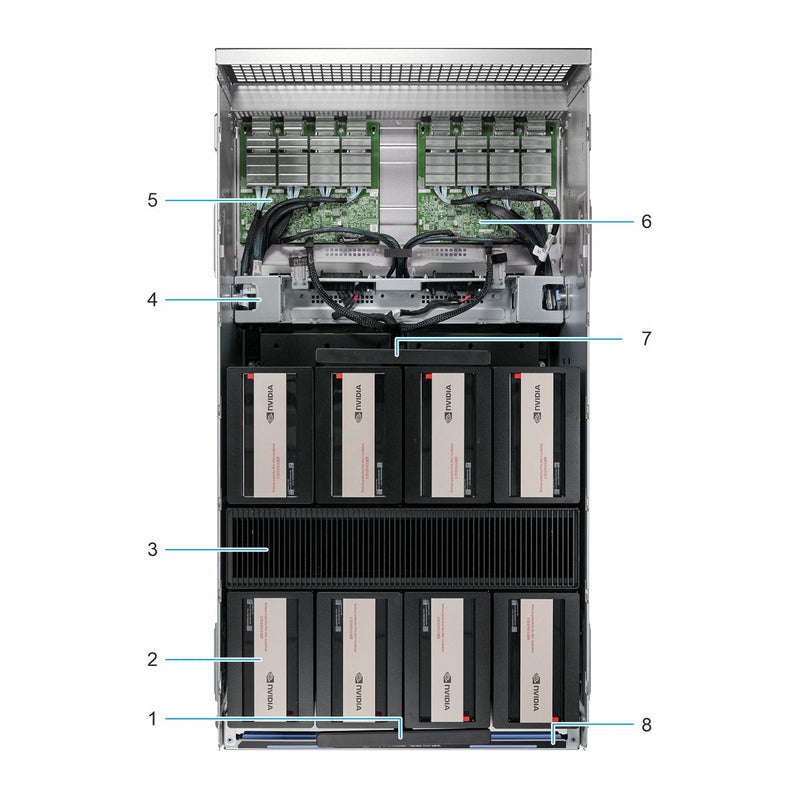

- 8 SXM GPUs on one HGX baseboard, fully linked by NVLink

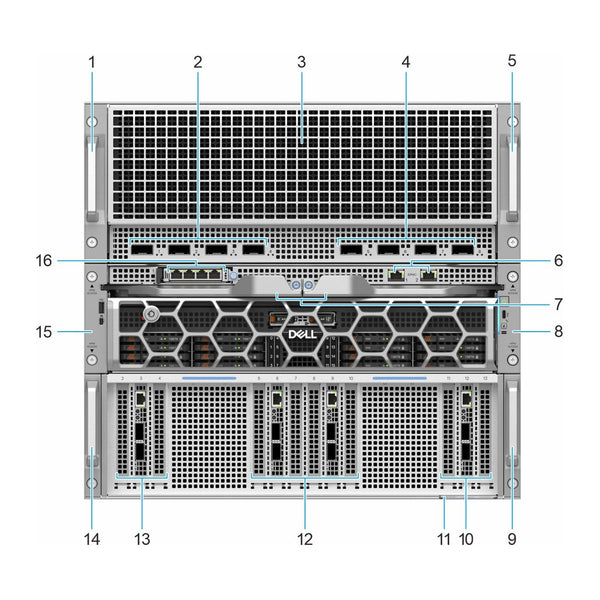

- B300: 8 integrated OSFP ports (ConnectX-8) for the GPU fabric

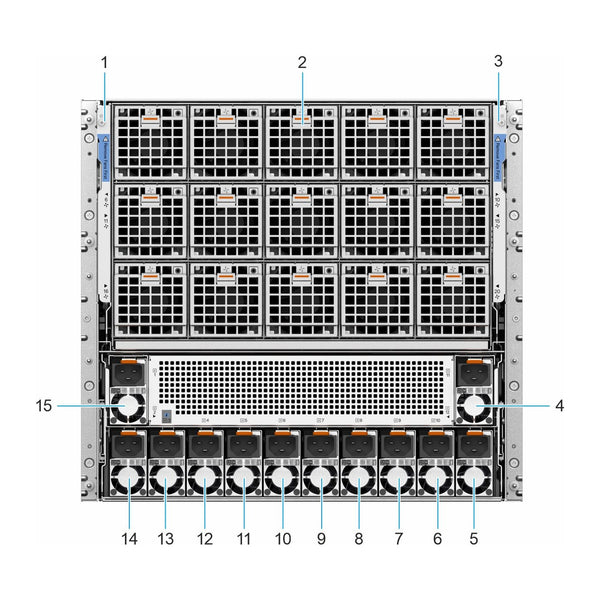

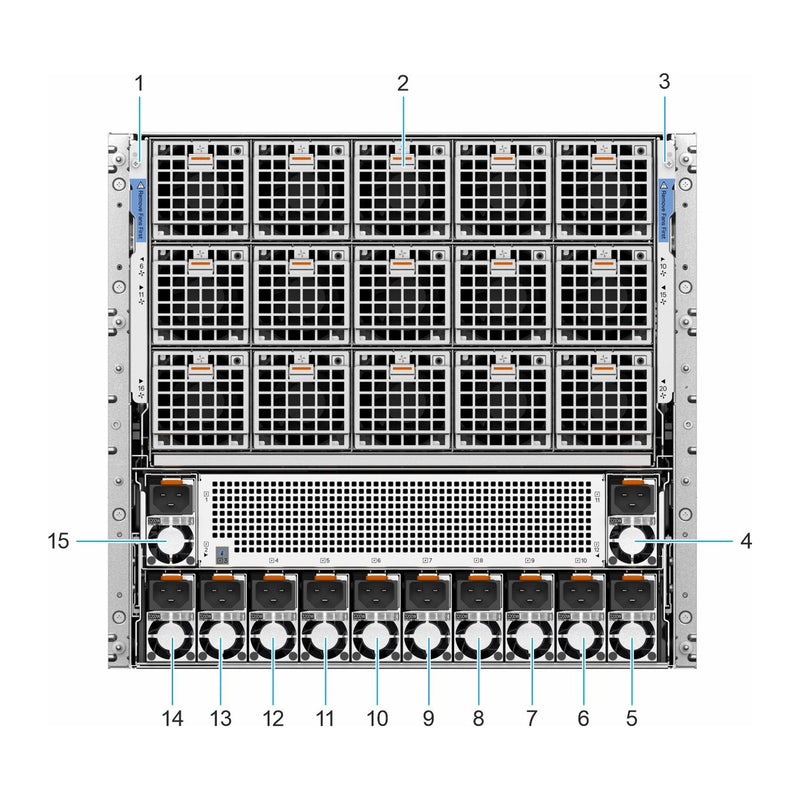

- 15 hot-swap fans at the rear cool the GPU sled
- One 8-GPU baseboard per system; no partial GPU counts
- Memory: at least 1TB with B200, 2TB with B300
- OS: Ubuntu (B300, B200); RHEL (B300 only)
| GPU | Memory per GPU | Power per GPU | PCIe NIC slots |
|---|---|---|---|
| 8x NVIDIA HGX B300 | 288 GB HBM3e | 1100 W | 4 (slots 3, 6, 9, 12) |
| 8x NVIDIA HGX B200 | 180 GB HBM3e | 1000 W | 12 (slots 2-13) |
| DIMM type | Rank | Capacity | Rated speed | Maximum system capacity |
|---|---|---|---|---|
| RDIMM | 2Rx4 | 64 GB | 6400 MT/s (1DPC) 5200 MT/s (2DPC) |
2 TB |
| 2Rx4 | 96 GB | 3 TB | ||
| 2Rx4 | 128 GB | 4 TB | ||
| 8Rx4 | 256 GB | 8 TB |
ⓘ Memory 16 DIMM slots per processor, 1.1 V RDIMM only; do not mix capacities. NVIDIA requires more than 1TB total with B200 and more than 2TB with B300.
- Hardware RAID 1 across 2 x M.2 NVMe SSDs
- M.2 SSDs: 480 GB or 960 GB
- Front-accessible carriers
- 1 x OCP 3.0 SFF slot (x8), front of the system
- 1GbE to 200GbE: Broadcom, Intel, NVIDIA Mellanox
- B200: up to 12 cards, Gen5 x16 FHHL (8 x 75 W, 4 x 150 W)
- B300: up to 4 cards in slots 3, 6, 9, 12
- BlueField-3 B3220 / B3240 DPUs with B300 only
- 1 NIC per GPU recommended for AI clusters
- 15 hot-swap GPU fans in the rear fan sled
- 5 cold-swap CPU fans in the HPM sled
- Dual-rotor fans: runs on with one rotor failed
- Air cooled only; no liquid-cooling option
- 10°C to 35°C ambient; ASHRAE A3/A4 not supported
- iDRAC10 with 2 dedicated RJ45 iDRAC ports
- iDRAC Direct (front USB Type-C)
- iDRAC RESTful API with Redfish
- Soldered-down TPM, Secure Boot, Silicon Root of Trust
- System Lockdown, Secure Erase
- Secured Component Verification
| Form factor | Output | Power cord |
|---|---|---|
| Redundant 73.5 mm (12 PSUs) | 3200 W Titanium mixed mode | C19 |
ⓘ PSU 12 x 3200 W PSUs with 6+6 full redundancy or A/B grid redundancy. Output drops to 2900 W at 200-216 V AC. Do not mix PSU vendors.
- Height: 439.5mm (17.30")
- Width: 448.0mm (17.63"), 482.3mm (18.98") with rack ears
- Depth: 1044.7mm (41.12") with bezel, 1023mm (40.27") without
- Max 163.2 kg (359.04 lbs) with B200, 159.65 kg (351.23 lbs) with B300
- Use a server lift over 54.4 kg (120 lbs)
