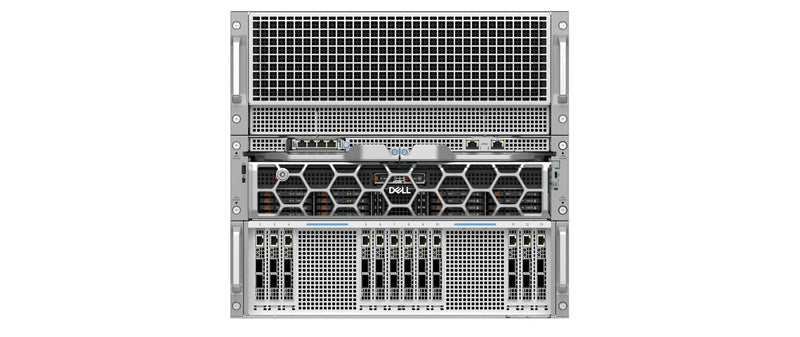

Dell PowerEdge XE9780

The Dell PowerEdge XE9780 is a 10U dual-socket, air-cooled AI server built around an eight-way NVIDIA HGX baseboard, aimed at generative AI training and fine-tuning, large language models and HPC. It takes eight NVIDIA HGX B300 288GB or B200 180GB SXM6 GPUs, fully linked by NVLink, and the B300 build adds eight embedded ConnectX-8 OSFP ports for cluster networking. Two Intel Xeon 6 processors (6th Gen Xeon Scalable, up to 86 cores) drive 32 DDR5 RDIMM slots for up to 4TB at up to 6400 MT/s. Storage is up to 16 E3.S or 10 U.2 Gen5 NVMe SSDs plus BOSS-N1 boot, with up to 12 front PCIe Gen5 x16 slots (B200) or 4 (B300), one OCP 3.0 card, twelve Titanium 3200W PSUs in 6+6 redundancy and iDRAC10. Fully configurable.

Looking to compare generations? See the Gen 16 Dell PowerEdge XE9680, Dell PowerEdge XE9680L, Dell PowerEdge XE9640 and Dell PowerEdge XE8640, or compare Gen 17 models: Dell PowerEdge XE7745 and Dell PowerEdge R770AP.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 10U Rack
  • Processors: Up to 2x Intel Xeon 6 (up to 86 cores)
  • Memory: 32x DDR5 RDIMM slots, up to 4TB
  • Memory Speed: Up to 6400 MT/s (1 DPC)
  • Storage: Up to 16x E3.S or 10x U.2 Gen5 NVMe SSDs
  • Expansion: Up to 12x PCIe Gen5 x16 FHHL (B200) or 4x (B300)
  • GPU Support: 8x NVIDIA HGX B300 or B200 SXM6 GPUs
  • Networking: 8x CX8 OSFP (B300), 1x OCP 3.0 (x8)
  • Management: iDRAC10, 2x dedicated iDRAC ports
  • Cooling: Air, 15 hot-swap GPU fans + 5 CPU fans
  • Power: 12x Titanium 3200W PSUs (6+6)

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  XE9780 →

Customize & Get Pricing

Configure your Dell PowerEdge XE9780 with the exact specs you need

Configure This Server

Dell PowerEdge XE9780 vs XE9680: Specs & Key Differences

Feature PowerEdge XE9780 PowerEdge XE9680
Processors Up to 2x Intel Xeon 6 (6th Gen Xeon Scalable, up to 86 cores) Up to 2x 4th/5th Gen Intel Xeon Scalable (up to 64 cores)
Memory 32x DDR5 RDIMM slots, up to 4TB 32x DDR5 RDIMM slots, up to 4TB
Memory Speed Up to 6400 MT/s Up to 5600 MT/s
Storage Up to 16x E3.S or 10x U.2 Gen5 NVMe SSDs Up to 8x 2.5" SAS/SATA/NVMe or 16x E3.S NVMe SSDs
PCIe Up to 12x PCIe Gen5 x16 (B200) or 4x (B300) Up to 10x PCIe Gen5 x16
GPU Support 8x NVIDIA HGX B300 or B200 SXM6 8x NVIDIA H100/H200/H20 SXM5, AMD MI300X or Intel Gaudi 3
Networking 8x CX8 OSFP (B300), 1x OCP 3.0 (x8), 2x iDRAC ports 2x 1GbE LOM, 1x OCP 3.0 (x8)
Management iDRAC10 iDRAC9
Cooling Air Air
Power 12x Titanium 3200W (6+6) 6x Titanium 2800W or 3200W (5+1 or 3+3)
Form Factor 10U Rack 6U Rack

Frequently Asked Questions

It is built around an eight-way NVIDIA HGX baseboard: eight B300 288GB 1100W or eight B200 180GB 1000W SXM6 GPUs, fully interconnected with NVLink. The B300 version adds eight embedded ConnectX-8 OSFP ports for back-end networking.

Two Intel Xeon 6 processors (6th Gen Xeon Scalable) with up to 86 cores each, and 32 DDR5 RDIMM slots (16 per processor) for up to 4TB at up to 6400 MT/s with one DIMM per channel, or 5200 MT/s with two. NVIDIA guidance calls for more than 1TB of memory with B200 GPUs and more than 2TB with B300.

Up to sixteen E3.S Gen5 NVMe SSDs or ten 2.5-inch U.2 Gen5 NVMe SSDs, all direct attached, plus BOSS-N1 with two M.2 SSDs for boot. The front holds up to twelve PCIe Gen5 x16 FHHL slots with B200 GPUs or four with B300, and one OCP 3.0 NIC. Please specify your capacity needs when you submit your quote configuration.

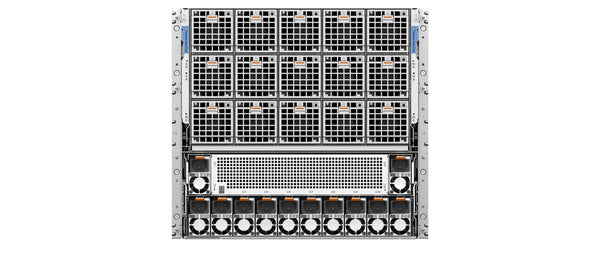

It is fully air cooled, with fifteen hot-swap GPU fans in a rear fan sled and five cold-swap CPU fans on the mid tray. Twelve 3200W Titanium power supplies run in 6+6 full redundancy, and grid A/B redundancy can be set in iDRAC.

The 10U XE9780 moves to NVIDIA HGX B300 or B200 SXM6 GPUs, Intel Xeon 6 with up to 86 cores, DDR5-6400, Gen5 NVMe-only storage, twelve 3200W PSUs and iDRAC10. The 6U Gen 16 XE9680 uses H100, H200, H20, AMD MI300X or Intel Gaudi 3 accelerators on 4th/5th Gen Xeon, with SAS/SATA drive options and iDRAC9.
