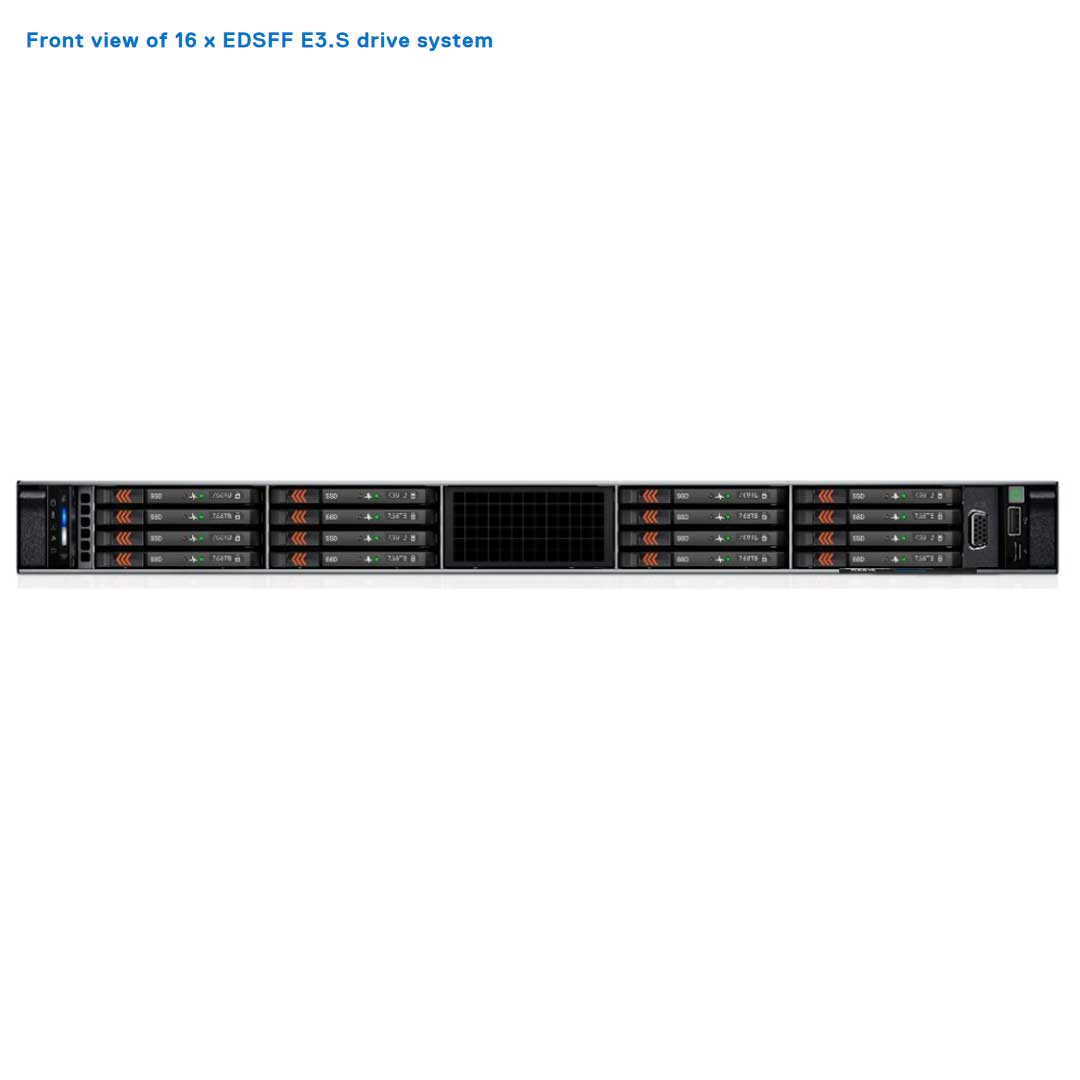

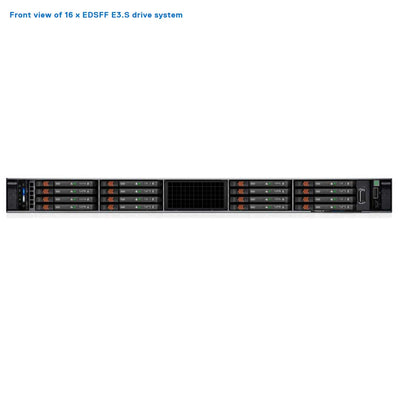

Dell PowerEdge R6615 Rack Server Chassis (16x EDSFF)

Dell PowerEdge R6615 Rack Server Chassis (16x EDSFF)

Price: Request a Quote

Brand:

Dell

MPN:

DPE-R6615-16EDSFF-Chassis

Type:

Chassis

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell PowerEdge R6615 Rack Server Chassis (16x EDSFF)

Quick Specs

Form Factor:

1U rack server

Processor | Max: 128 Cores

1x 4th Gen AMD 9004 Series

Memory | Max: 3TB

12 ECC DDR5 RDIMM 4800Mhz

Storage | Max: 153.6TB

16 EDSFF E3.S Gen 5 NVMe (SSD) | Max: 122.88TB

Rear Drives | Max: 30.72TB

2 SFF SAS/SATA (HDD/SSD) NVMe | Max: 30.72TB
2 EDSFF E3.S Gen5 NVMe (SSD) | Max: 15.36TB

Storage Controller:

S160 (SW RAID)
H965i, H755, H755N, H355, HBA355i, HBA355e, HBA465e, H965e

Boot Options:

BOSS-N1 (hot Swap), USB

Networking Options (NOC):

1 x OCP card 3.0 + 2 x 1 GbE LOM card
Note: The system allows either LOM card or an OCP card or both to be installed in the system.

Remote Management:

iDRAC9 with Lifecycle Controller

PCIe Slots:

2x or 3x PCIe 4.0 & 5.0

GPU:

Up to 2 x 75 W SW

Other Versions:

Ideal for:

Hyper-Converged infrastructure (HCI)
Network Function Virtualization (NFV)
Virtualization

The new Dell PowerEdge R6615 is a 1U, single-socket rack server. Designed to be the best investment per dollar for your data center, this server provides performance and flexible, low-latency storage options in an air or Direct Liquid Cooling (DLC) configuration. Stay ahead of the curve Delivering breakthrough innovation for traditional and emerging workloads, including dense virtualization, hyper-converged infrastructure (HCI), and Network Function Virtualization (NFV) with OpenStack for Telco using the latest performance and density with optional acceleration

Invest wisely in a platform that grows with your business:

Using AMD EPYC 4th generation processor to deliver up to 50% more core count per single socket platform in an innovative air-cooled blueprint.
Enables DDR5 at 4800 MT/s memory and PCIe Gen5 with double the speed of previous Gen4 for faster access and transport of data optimizing application output.
Optional DLC is available to more efficiently cool high-performance processors.

Experience more virtual machine density to support the most demanding applications

Deliver more virtual machines per physical host using increased core count and higher memory footprint than previous generations.
Improve responsiveness or reduce app load time for power users with up to 2 x single-wide half-length GPUs.

Expect increased expandability by storing more data in one server, saving space in your data center.

Deliver more memory density with DDR5 (up to 3TB of RAM) providing greater memory capacity.
Support lower latency higher performance NVMe SSD in a hardware RAID solution helps maximize compute performance

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations

The R6615 is supported by One AMD EPYC 4th Generation 9004 Series with up to 128 cores processor and 12 DIMMS of DDR5 Memory. This system only supports registered ECC DDR5 DIMMs. The system also come with the option to install a Boot Device. The BOSS-N1 boot device supports HWRIAD for 2x M.2 NVMe SSDs.

Chassis Options

There are 5 chassis options in this R6615 server with 2 rear drive bay options.

Front bays:

Up to 4x 3.5" SAS/SATA (HDD/SSD) | Max: 80TB
Up to 8x 2.5" NVMe (SSD) | Max: 122.88TB
Up to 10x 2.5" SAS/SATA/NVMe (HDD/SSD) | Max: 153.6TB
Up to 14x EDSFF E3.S Gen5 NVMe (SSD) | Max: 107.52TB
Up to 16x EDSFF E3.S Gen5 NVMe (SSD) | Max: 122.88TB

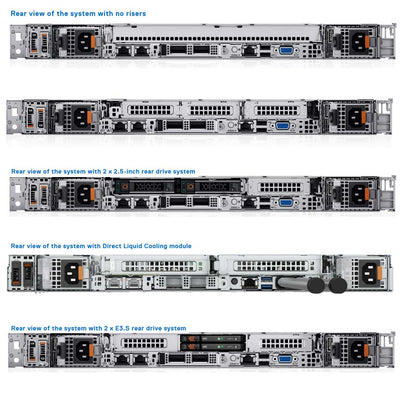

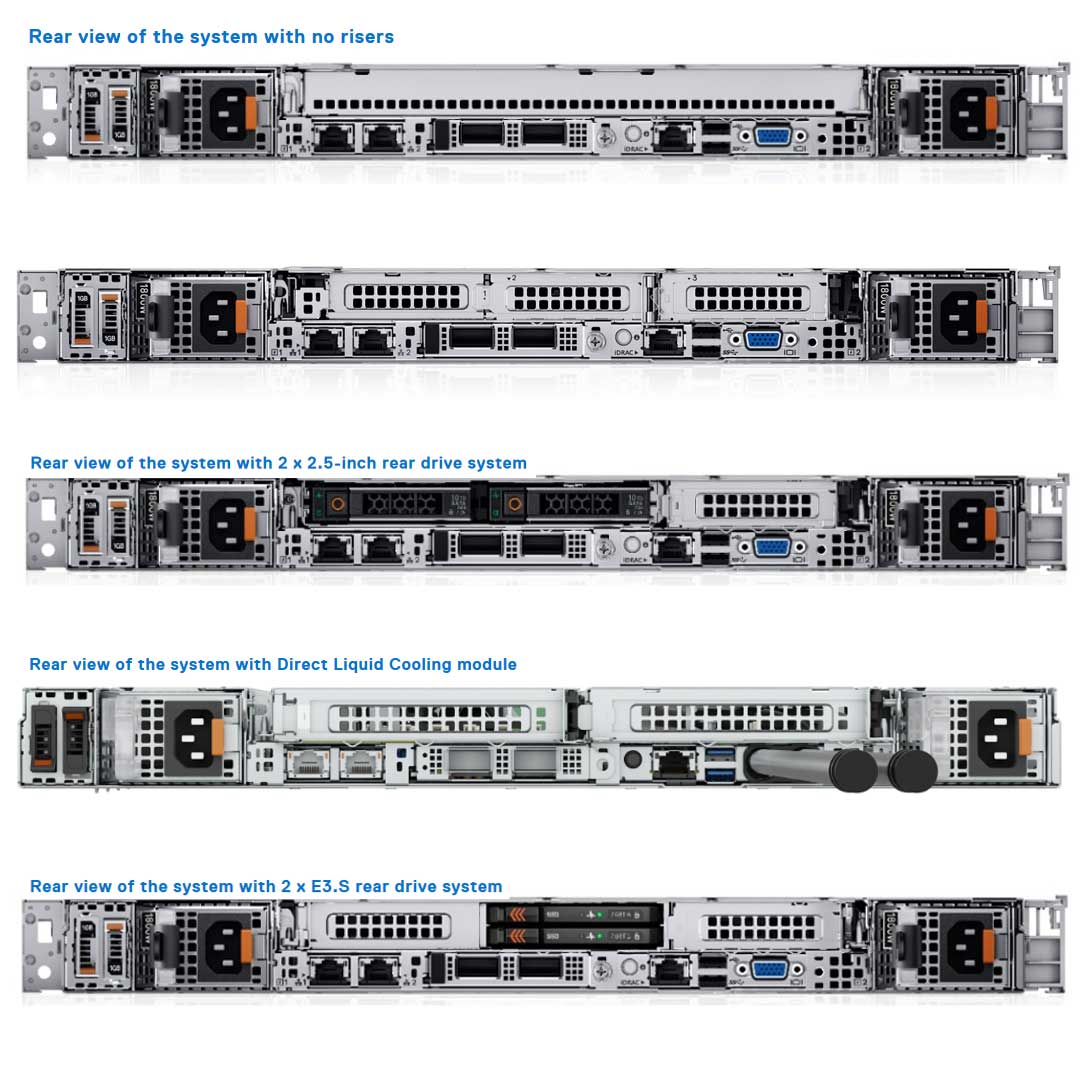

Rear bays:

Up to 2x 2.5" SAS/SATA (HDD/SSD) | Max: 30.72 TB
Up to 2x EDSFF E3.S Gen5 NVMe (SSD) | Max: 15.36 TB

Processor

One AMD® EPYC 4th Generation Genoa (SP5) processor 9004 Series with up to 128 cores processor.

Not all Processors are allowed in every system, the limitations come from the cooling supported for each chassis. Please read the spec manual Thermal Restriction Matrix for more details.

A Image of the 4th Gen AMD Genoa Processor

Cooling Options

Heatsink & Fans

Up to 4 sets (dual fan module) hot plug fans. This sytem supports Direct Liquid Cooling (DLC).

Item	Type	Solution Strategy
Fan	Standard Fan (STD)	All 3.5" HDD x 4 Configurations
	High Performance Gold Fan (HPR Gold)	for Air Cooling	for Liquid Cooling
	High Performance Gold Fan (HPR Gold)	Either one matched in non 3.5-inch Chassis: 2.5-inch x 10 configuration 2.5-inch x 8 and No BP configurations DDR5 RDIMM >128 GB Rear Drives GPU	3.5-inch HDD x 4 config. w/ LC part in QB DDR5 RDIMM >128 GB Rear Drives GPU
CPU HSK	1U EXT. HSK.	All air cooling configurations.
CPU HSK	DLC Module	For all CPU operation at DLC configurations.
Shroud	Air Shroud	All air cooling configurations require an air shroud.
	Air Shroud for 1DPC	New air shroud be required at all air cooling config. w/ 1DPC MB.
	OCP Shroud	System with OCP card but without riser 2 implemented.
Blank	DIMM Blank	When CPU > 240 W installed, except DLC configurations.

Memory Options

12 DDR5 DIMM slots, supports RDIMM 3 TB max, speed up to 4800 MT/s. Supports registered ECC DDR5 DIMMs only.

The R6615 support registered (RDIMMs), allowing for the maximum platform memory capacity. Unbuffered DIMMs (UDIMMs) are not supported.

DIMM type	Rank	Capacity	DIMM rated voltage and speed	Operating Speed
DIMM type	Rank	Capacity	DIMM rated voltage and speed	1 DIMM per channel (DPC)
RDIMM	1R	16 GB	DDR5 (1.1 V), 4800 MT/s	4800 MT/s
	2R	32 GB	DDR5 (1.1 V), 4800 MT/s	4800 MT/s
	2R	64 GB	DDR5 (1.1 V), 4800 MT/s	4800 MT/s
	4R	128 GB	DDR5 (1.1 V), 4800 MT/s	4800 MT/s
	6R	256 GB	DDR5 (1.1 V), 4800 MT/s	4800 MT/s

Expansion Slots Options

With a total of 3 PCIe slots, you have the ability to install many different adapters. This server has the ability to support up to 2x 75W GPU per server.

Config No.	RSR Configuration	# of CPUs	PERC type supported	Rear Storage Possible
0	NO RSR	1	Front PERC	No
1	R2A + R3A	1	Front PERC	Yes
2	R2T + R3P	1	Front PERC	Yes
3	R1Q + R4p	1	Front PERC	No
4	R2T	1	Front PERC	Yes
5	R3P	1	Front PERC	Yes
6	R2A	1	Front PERC	No
7	R2U + R3S	1	Front PERC	Yes
8	R2T + R3A	1	Front PERC	Yes

Riser 1Q

Riser 2A

Riser 2T

Riser 2U

Riser 3A

Riser 3P

Riser 3S

Riser 4P

Networking

Networking Adapters

2 x 1 GbE LOM card (optional) and 1 x OCP card 3.0 (optional). The system allows either LOM card or an OCP card or both to be installed in the system. Max port speed for the OCP is 25Gb/s. The OCP has 4 port while the LOM can only support 2 ports.

Feature	Specifications
LOM card (optional)	1 GB x 2
OCP card (OCP 3.0) (optional)	1 GbE x 4, 10 GbE x 2, 10 GbE x 4, 25 GbE x 2, 25 GbE x 4
NOTE: The system allows either LOM card or an OCP card or both to be installed in the system.
NOTE: On the system board, the supported OCP PCIe width is x8; when x16 PCIe width is installed, it is downgraded to x8.

Storage Controllers

Dell’s RAID controller options offer performance improvements, including the fPERC solution. fPERC provides a base RAID HW controller without consuming a PCIe slot by using a small form factor and high-density connector to the base planar. 16G PERC Controller offerings will be a heavy leverage of 15G PERC family. The Value and Value Performance levels will carry over to 16G from 15G. New to 16G, is the Harpoon-based Premium Performance tier offering. This high-end offering will drive IOPs performance and enhanced SSD performance.

Internal Controllers (RAID):

PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i,

Internal Boot:

Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB

External HBA (non-RAID):

HBA355e, HBA465e, H965e

Software Raid:

S160

Performance Level	Controller and Description
Entry	S160
Value	H355, HBA355 (Internal/External), HBA465 (External)
Premium Performance	H755, H755N, H965 (Internal/External)

Power & Dimensions

Power

Two redundant AC or DC power supply units, 60 mm dimension is the same PSU form factor with 15G on 16G design. Do not mix PSUs.

Dimensions:

Width 482 mm (18.97")
Height 42.8 mm (1.685")
Length w/ bezel 822.89 mm (32.39")
Length w/o bezel 809.05 mm (31.85")

Weight:

With drives 20.2 kg (44.53 lbs)
Without drives and PSU installed 17.4 kg (38.36 lbs)

Looking to Customize?

Need assistance with customization? Our sales experts will help you choose the best setup for your needs.

Start Customizing Today!

Dell PowerEdge R6615 Rack Server Chassis (16x EDSFF) Spec Sheet

Manuals

Base Standard Capabilities

Feature	Technical Specifications
Processors	One AMD EPYC 4th Generation 9004 Series with up to 128 cores
Memory	• 12 DDR5 DIMM slots, supports RDIMM 3 TB max, speed up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only
Storage Controllers:	• Internal Controllers (RAID) PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e • Software Raid: S160
Drive Bays	Front bays: • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB • Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB • Up to 14 x EDSFF E3.S Gen5 NVMe (SSD) max 107.52 TB • Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB • Up to 2 x EDSFF E3.S Gen5 NVMe (SSD) max 15.36 T
Power Supplies	• 1800 W Titanium 200–240 V AC or 240 HVDC, hot swap redundant • 1400 W Platinum 100–240 V AC or 240 HVDC, hot swap redundant • 1100 W Titanium 100–240 V AC or 240 HVDC, hot swap redundant • 1100 W LVDC -48 – -60 VDC hot swap redundant • 800 W Platinum 100–240 V AC or 240 HVDC, hot swap redundant • 700 W Titanium 200–240 V AC or 240 HVDC, hot swap redundant
Cooling Options	• Air cooling • Optional Direct Liquid Cooling (DLC) Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.
Fans	• Standard (STD) fans/High performance GOLD (VHP) fans • Up to 4 sets (dual fan module) hot plug fans
Dimensions	• Height – 42.8 mm (1.685 inches) • Width – 482 mm (18.97 inches) • Depth – 822.89 mm (32.39 inches) with bezel -------809.05 mm (31.85 inches) without bezel
Form Factor	1U rack server
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module
Bezel	Optional LCD bezel or security bezel
OpenManage Software	• OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin • CloudIQ for PowerEdge plug in • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center
Mobility	OpenManage Mobile
OpenManage Integrations	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager
Security	• AMD Secure Encrypted Virtualization (SEV) • AMD Secure Memory Encryption (SME) • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1 GbE LOM card (optional)
Network Options	1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system.
GPU Options	Up to 2 x 75 W SW
Ports	Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA	Rear Ports • 1 x Dedicated iDRAC Ethernet port • 1 x USB 3.0 • 1 x USB 2.0 • 1 x Serial (optional) • 1 x VGA (optional for Direct Liquid Cooling configuration)
Ports	Internal Ports • 1 x USB 3.0 (optional)
PCIe	Up to three PCIe slots: • Slot 1: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length or 1 x8 Gen4 Low profile, Half length • Slot 2: 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length or 1 x8 Gen4 Low profile, Half length • Slot 3: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length
Operating System and Hypervisors	• Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi

Compare Servers

Rack Server	R760	R660	R7625	R6625	R7615	R6615
Key attributes	Provides performance and versatility for demanding applications	Provides performance and versatility for demanding applications	Breakthrough performance	Breakthrough performance	Powerful performance and scalability	Peak performance and excellent TCO
Target workloads	Mixed Workload Standardization Database and Analytics Virtual Desktop Infrastructure	High Density Virtualization, Dense Database Analytics, Mixed Workload Standardization	High Performance Computing (HPC), Virtual Desktop Infrastructure (VDI), Virtualization	High Performance Computing (HPC), Virtual Desktop Infrastructure (VDI), Virtualization	Software-Defined Storage (SDS), Virtualization, Data Analytics	Virtualization, Hyper-Converged Infrastructure (HCI), Network Functions Virtualization (NFV)
Type of processor	2 x 4th Generation Intel® Xeon® Scalable processors; up to 56 cores per processor		2 x AMD EPYC™ 4th Generation 9004 Series Processor, up to 96 cores per processor		1 x AMD EPYC™ 4th Generation 9004 series processor; up to 96 cores
Memory (DDR5 DIMM slots & max)	32 (8 TB)		24 (1.5 TB*)		12 (768 GB*)
Disk drives up to:	12 x 3.5” 8 x 2.5” 16 x 2.5” 24 x 2.5” 2 x 2.5” or 4 x 2.5” (rear)	8 x 2.5” 10 x 2.5” 2 x 2.5” (rear)	8 x 3.5” 12 x 3.5” 8 x 2.5” 16 x 2.5” 24 x 2.5” 2 x 2.5” or 4 x 2.5”(rear)	4 x 3.5” 8 x 2.5” 10 x 2.5” 2 x 2.5” (rear)	8 x 3.5” 12 x 3.5” 8 x 2.5” 16 x 2.5” 24 x 2.5” 2 x 2.5” or 4 x 2.5”(rear)	4 x 3.5” 8 x 2.5” 10 x 2.5” 2 x 2.5” (rear)
NVMe drives up to:	24	10	24	10	24	10
Gen5 PCIe slots up to:	4	2	4	2	4	2
Gen4 PCIe slots up to:	8	3	8	3	4	3
Accelerator support up to:	2 x 350 W DW or 6 x 75 W SW	2** x 75 W SW	2 x 300 W DW or 6 x 75 W SW	3 x 75 W SW	3 x 300 W DW or 6 x 75 W SW	3 x 75 W SW
Rack height (U)	2	1	2	1	2	1
Integrated security	TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ, Cryptographically Signed Firmware, Chassis Intrusion Alert, Secure Boot being standard security, Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter), Data at Rest Encryption (SEDs with local or external key mgmt) Secured Component Verification (Hardware integrity check) and System Erase on all racks.			TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ, Cryptographically Signed Firmware, Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter), AMD Secure Memory Encryption (SME) and AMD Secure Encrypted Virtualization (SEV)
* Future releases will include additional system capacity for DDR5 memory in R7625, R6625, R7615 and R6615. ** Future releases will include additional GPU slots in R660.
