SKU: DPE-C6220-2U-NODE

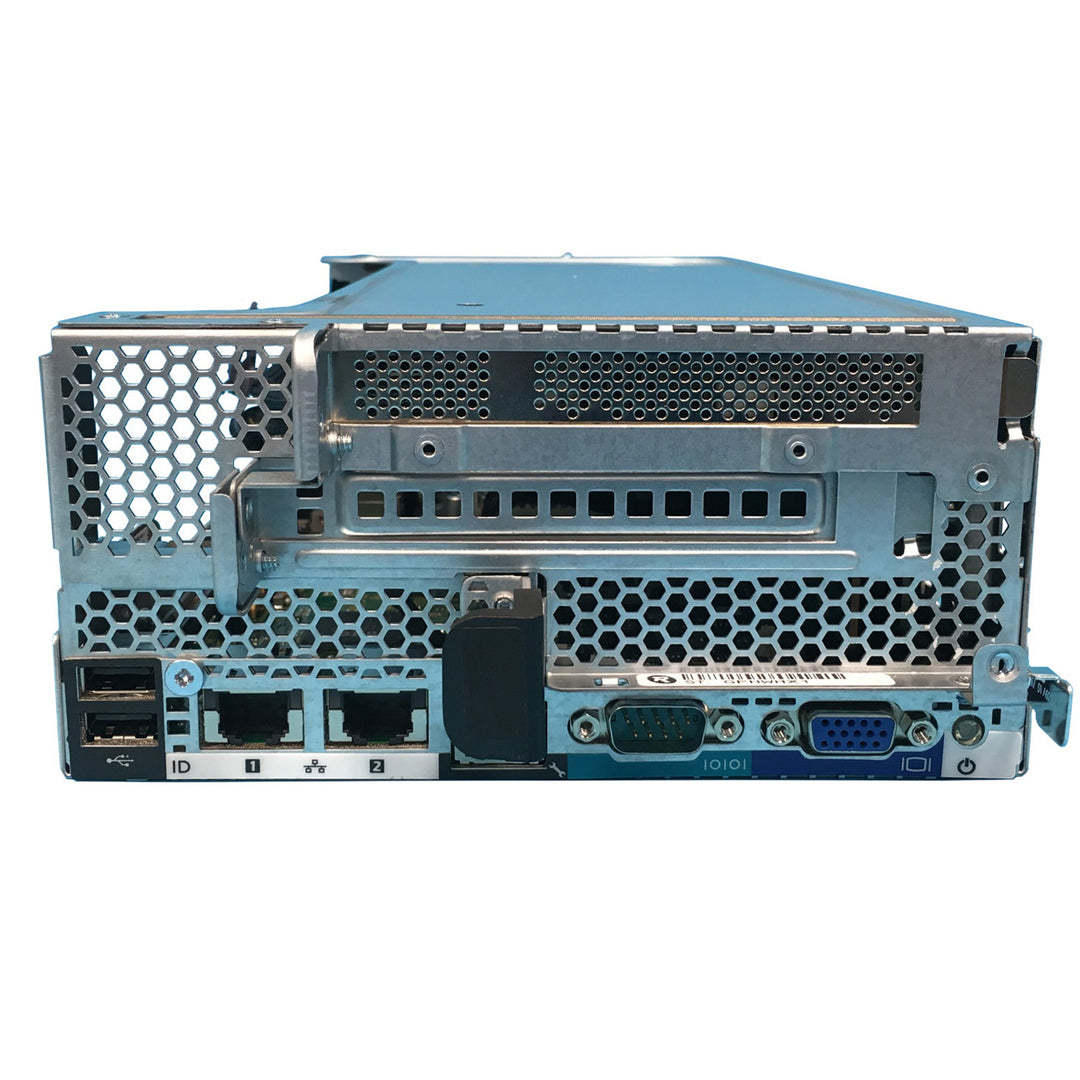

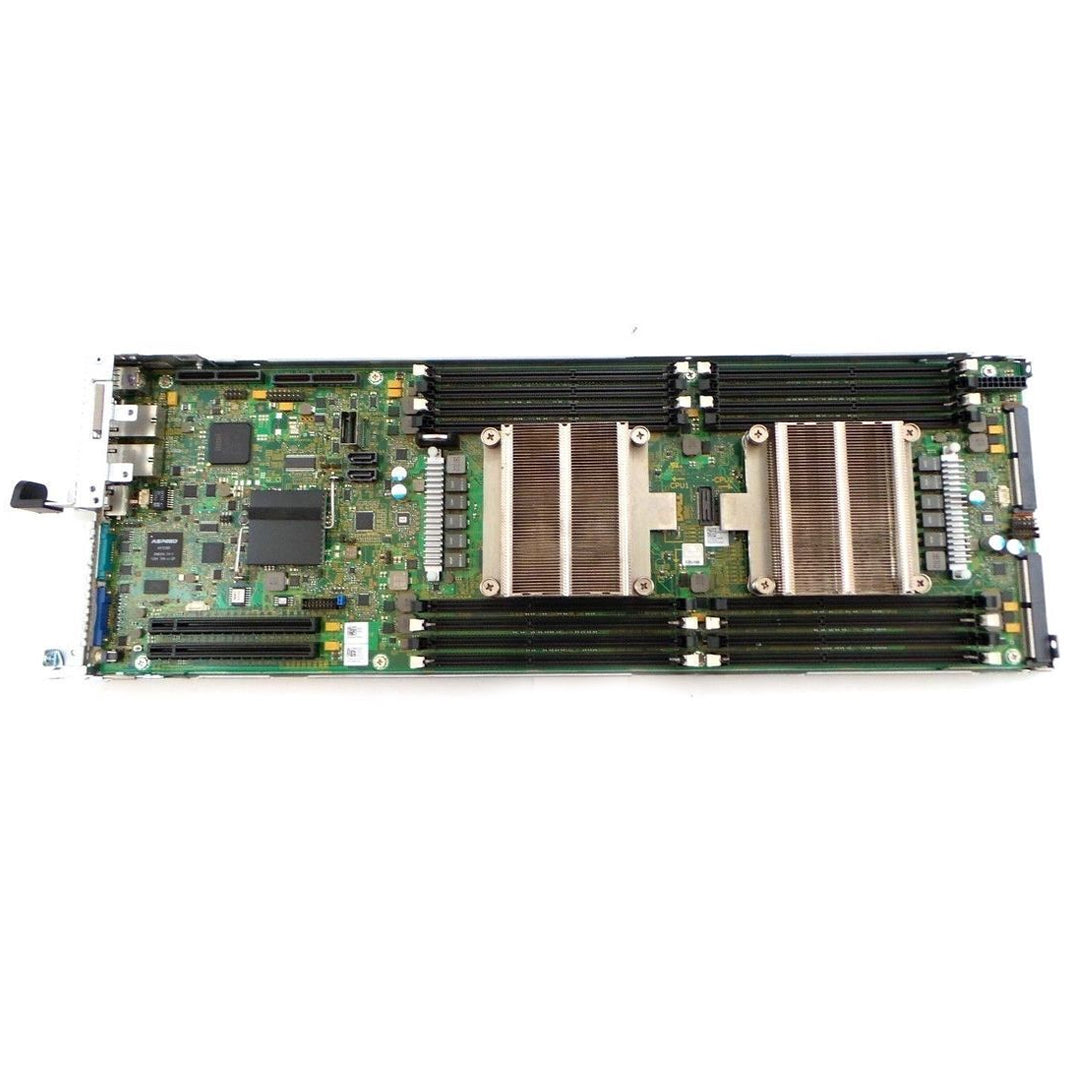

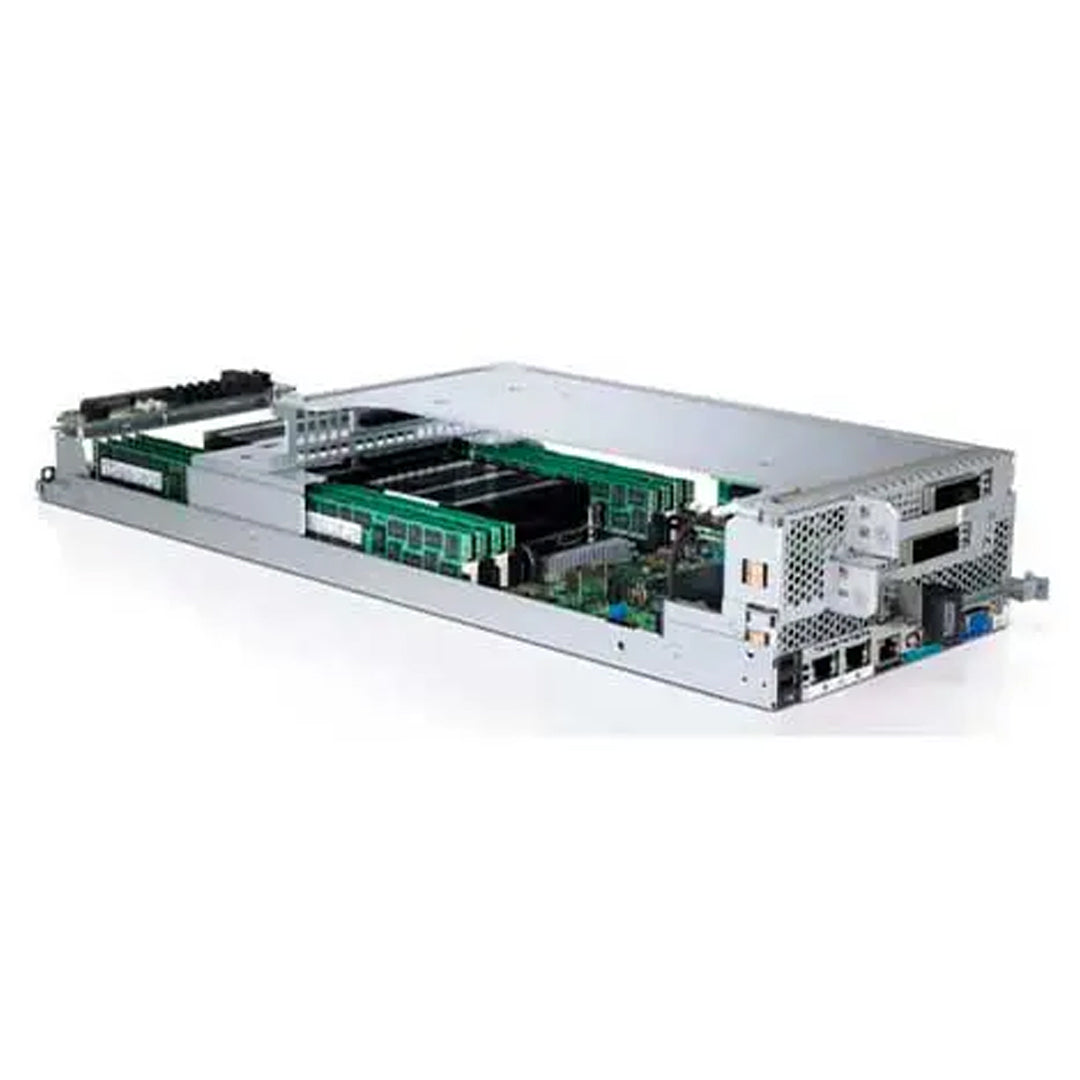

Dell PowerEdge C6220 2U Barebone Node

Name: Dell PowerEdge C6220 2U Barebone Node
Brand: Dell
SKU: DPE-C6220-2U-NODE
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

2U Node Server

Processor | Max: 8 Cores

2x Intel Xeon e5-2600

Memory | Max: 512GB

16 DDR3 RDIMM 1600Mhz

Storage | Max: N/A

Drives are in the C6220 Enclosure

Rear Storage:

None

PCIe Slots:

3x PCIe 3.0

GPU:

GPUs are supported in the PowerEdge C6220 only through the PowerEdge C410x expansion chassis.

Other Versions

Ideal for:

Virtualization

Get >80% more performance with up to four 2-socket Intel Xeon E5-2600 processor-based servers in a smart 2U shared infrastructure chassis that saves more than 100 watts over previous designs.

Features:

Intel Xeon E5-2600 processors boost performance by > 80%
135W processors deliver ~20% more performance over 95W
Memory bandwidth with support for 16 DIMM 1600MT/s DDR3 DIMMs
Smart chassis improvements save more than 100W per chassis
1 x8 Mezzanine card. (Both socket/processors must be used to access the mezzanine)
Intel Ethernet Controller i350, 2 x 1Gb Ethernet;
--1 x 100Mb Ethernet dedicated management port

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	PowerEdge C6220 technical specifications
Chassis	2U rack mount
Processors	Up to four 2-socket servers, 2, 4, 6, or 8 cores per processor Intel Xeon processor E5-2600 product family, with L3 cache: up to 20MB
Memory	16 DIMM slots for up to 512GB per node: 4GB/8GB/16GB/32GB LV DDR3 RDIMM (1333MT/s); 4GB/8GB/16GB (1600MT/s 1.5v/1.35v) DDR3 RDIMM
Chipset	Intel C602 chipset
Video	Integrated AST2300 with up to 16MB video RAM
Primary storage	Maximum internal storage: 48TB SATA or NL 48TB SAS
Drive bays and hard drives	24 x 2.5” or 12 x 3.5” hard drive options 2.5” SAS (15K): 146GB, 300GB 2.5” SAS (10K): 300GB, 600GB, 900GB, 1.2TB 2.5” SATA and NL SAS (7.2K): 500GB, 1TB 2.5” SATA SSD (eMLC): 100GB, 200GB, 400GB, 800GB 2.5” SATA SSD (MLC): 160GB, 300GB, 600GB	3.5” SATA (7.2K): 500GB, 1TB, 2TB, 3TB, 4TB 3.5” SAS (15K): 300GB, 600GB 3.5” NL SAS (7.2K): 1TB, 2TB, 3TB, 4TB
Connectivity	Intel Ethernet Controller i350, 2 x 1Gb Ethernet; 1 x 100Mb Ethernet dedicated management port
USB ports	2 external ports (back)
I/O slots	1U-node version: 1 x8 mezzanine, 1 x 16 half-height (low profile), half-length slot 2U-node version: 1 x8 mezzanine slot; 1 x16 full-height, half-length slot; 1 x16 full-height, full-length slot
I/O adapter options	1Gb Ethernet Intel i350 quad-port 1Gb adapter Intel 82580 ET quad-port 1Gb mezz 10Gb Ethernet Intel 82599 dual-port 10Gb DA/SFP+ mezz Intel X520 dual-port 10Gb DA/SFP+ mezz	InfiniBand QLogic® QLE7340 QDR single-port adapter Mellanox® ConnectX®-2 QDR dual-port mezz Mellanox ConnectX-3 FDR single-port mezz Dell X410 host interface card (HIC) for connection to the C410x
Drive controller	Intel C602: SATA or SSD drives only; LSI® 2008 3Gbs SAS mezzanine or LSI 9265-8i 3Gbs (optional)
RAID controller	LSI 2008 SAS mezzanine (optional) LSI 9210-8i SAS add-in controller (optional) LSI 9265-8i SAS add-in controller (optional)
Power supplies	Dual hot-plug redundant high-efficiency 1200W/1400W power supplies
Fans	Shared cooling with quick-disconnect 4 x 60mm speed fans detectable with PWM control
Operating systems	Novell® SUSE® Linux Enterprise Server 11 SP2 Red Hat® Enterprise Linux® Microsoft® Windows Server® 2012 Microsoft Windows Server 2008 R2 Enterprise x64 SP1 Microsoft Windows® HPC Server 2008 R2 x64 SP1
Server management	Embedded BMC with IPMI 2.0 support with 1 x 10/100 Mbps RJ45 connector Intel Node Manager 2.0 compliant
Hypervisors (optional)	Citrix® XenServer® VMware® vSphere® ESXi™ Microsoft Hyper-V® Server 2008 R2 SP1
Services (Availability varies by region. Please contact your sales representative for details.)	Data Center Consulting Services Rack Integration (U.S. only, not available in China) Rack Design Verification Configuration Services/CFI Onsite Deployment Online Self Dispatch Basic Support ProSupport for IT	ProSupport for Data Center 4-Hour Support Keep Your Hard Drive Enterprise Wide Contract IT Advisory Service Remote Advisory Service Certified Data Destruction Specialized Onsite Services

Spec Sheet 4

Specification	PowerEdge C6100	PowerEdge C6220	PowerEdge R620
Chassis	2U rack	2U rack	1U rack
Processors	Intel Xeon processors 5500 and 5600 product families	Intel Xeon processor E5-2600 product family	Intel Xeon processor E5-2600 product family
Front side bus (FSB)	Intel QuickPath® Interconnect (QPI)	Intel QPI	Intel QPI
Memory (1)	12 x DDR3 RDIMM and UDIMM; up to 192GB	16 x DDR3 RDIMM and UDIMM; up to 512GB	24 x DDR3 RDIMM, UDIMM, and LRDIMM; up to 768GB
Hard drive bays (hot plug)	4-node: up to 6 x 2.5” or 3 x 3.5” hard drives 2-node: up to 12 x 2.5” or 6 x 3.5” hard drives	4-node: up to 6 x 2.5” or 3 x 3.5” hard drives 2-node: up to 12 x 2.5” or 6 x 3.5” hard drives	10 x 2.5” hard drives or 8 x 2.5” hard drives + 2x PCIe SSDs 4 x 2.5” hard drives + 2x PCIe SSDs
External drive bay	None	None	Slimline optical disk drive (8 x 2.5” only)
Embedded hard drive controller	Chipset-based SATA	Chipset-based SATA	Chipset-based SATA
RAID controller	See optional storage controller	See optional storage controller	PERC S110, H310, H710, H810
Optional storage controller	Non-RAID: ICH10R RAID:LSI 1068e Mezzanine, LSI; 2008 Mezzanine, LSI 9260-8i	Non-RAID: Intel C602 RAID: LSI 2008 Mezzanine at 3Gbps, LSI 9210-8i at 3Gbps LSI 9265-8i at 3Gbps	RAID: PERC S110, PERC H310, PERC H710, PERC H710P, PERC H810
Express flash drives	N/A	N/A	Up to two PCIe SSDs
PCIe slots	1 x PCIe x16 2.0 + 1 x PCIe x8 2.0 (mezzanine)	1U sled: 1 x16 PCIe 2.0 (half-height, half-length) + 1 x8 PCIe 3.0 (mezzanine) 2U sled: 2 x16 PCIe 2.0 (full height, full length) + 1 x8 PCIe 3.0 (mezzanine)	3 x PCIe 3.0: 2 PCIe x16 3.0 (half height, half length) + PCIe x8 3.0 (half height, half length), or 2 x PCIe 3.0: 1 PCIe x16 3.0 (full height, 3/4 length) + PCIe V x 16 3.0 (half height, half length)
Embedded NIC	2x Intel 82576 GbE	2x Intel i350 GbE	Network daughter card, minimum configuration 4x 1Gb Broadcom® 5720
Power supplies	Hot-plug, redundant power supply units: 470W/750W/1100W (80+ Gold)	Hot-plug, redundant power supply 495W, 1200W (80+ Platinum); autoranging (100V-240V) Redundant, 1400W (80+ Platinum) (240V)	Hot-plug, redundant, 495W, 750W, 1100W, or 1100W DC (80+ Platinum), (80+ Titanium) Auto Ranging
Fans	4 x 80mm, non-redundant, not hot-pluggable	4 x 60mm, non-redundant, not hot-pluggable	4 x 40mm, redundant, hot-pluggable
Systems management	BMC, IPMI 2,0 compliant; iKVM, virtual media, Intel Node Manager 2.0 compliant	BMC, IPMI 2,0 compliant; iKVM, virtual media, Intel Node Manager 2.0 compliant	Dell OpenManage™ Essentials, OMSA Agent, OpenManage Power Center (requires iDRAC7 Enterprise with Lifecycle Controller), OpenManage Integrations and Connections, iDRAC7 Express with Lifecycle Controller (standard option)
Support for internal GPU	No	No	Yes (available through CFI or field upgrade only)
Power efficiency	Gold	Platinum	Titanium
1 - GB means 1 billion bytes and TB equals 1 trillion bytes; actual capacity varies with preloaded material and operating environment and will be less
