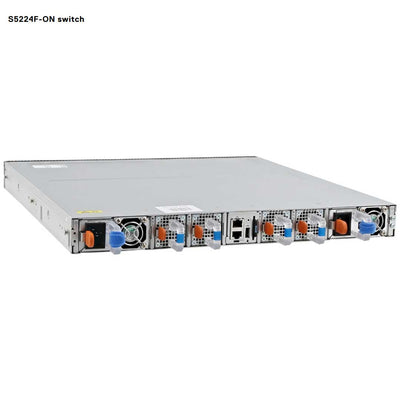

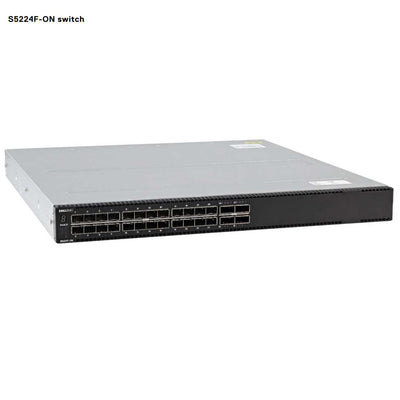

The Dell EMC PowerSwitch S5224F-ON is a high-performance data center switch designed to provide flexible and cost-effective networking solutions for modern workloads. It features 24 x 25GbE SFP28 ports and 4 x 100GbE QSFP28 ports, making it an ideal choice for large-scale enterprise environments.
Like other switches in the Dell EMC PowerSwitch family, the S5224F-ON supports the Open Network Install Environment (ONIE), which enables easy installation and deployment of network operating systems. This means that administrators can choose the operating system that best suits their needs, whether it is a vendor-provided OS or a customized version.
The S5224F-ON is capable of supporting Layer 2 and Layer 3 switching and routing, which makes it a perfect choice for organizations that require high-bandwidth and low-latency connectivity for applications such as cloud computing, virtualization, and big data. The switch provides a range of advanced features such as Virtual Link Trunking (VLT), which enables high availability and resiliency, and Multi-Chassis Link Aggregation (MLAG), which provides active-active redundancy for critical network segments.

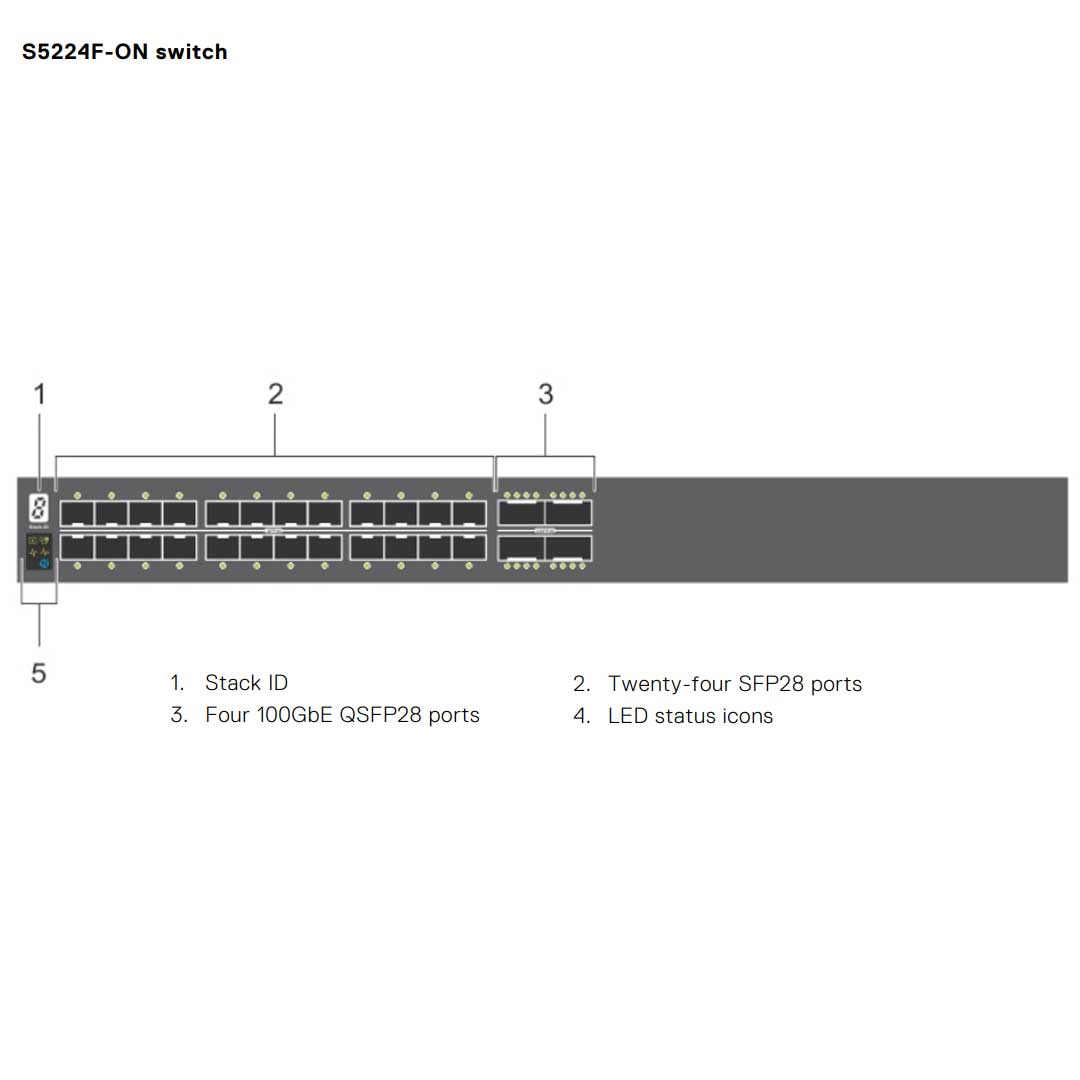

- Open Network Install Environment (ONIE)
- 24 x 25G SFP28
- 4 x 100G QSFP28

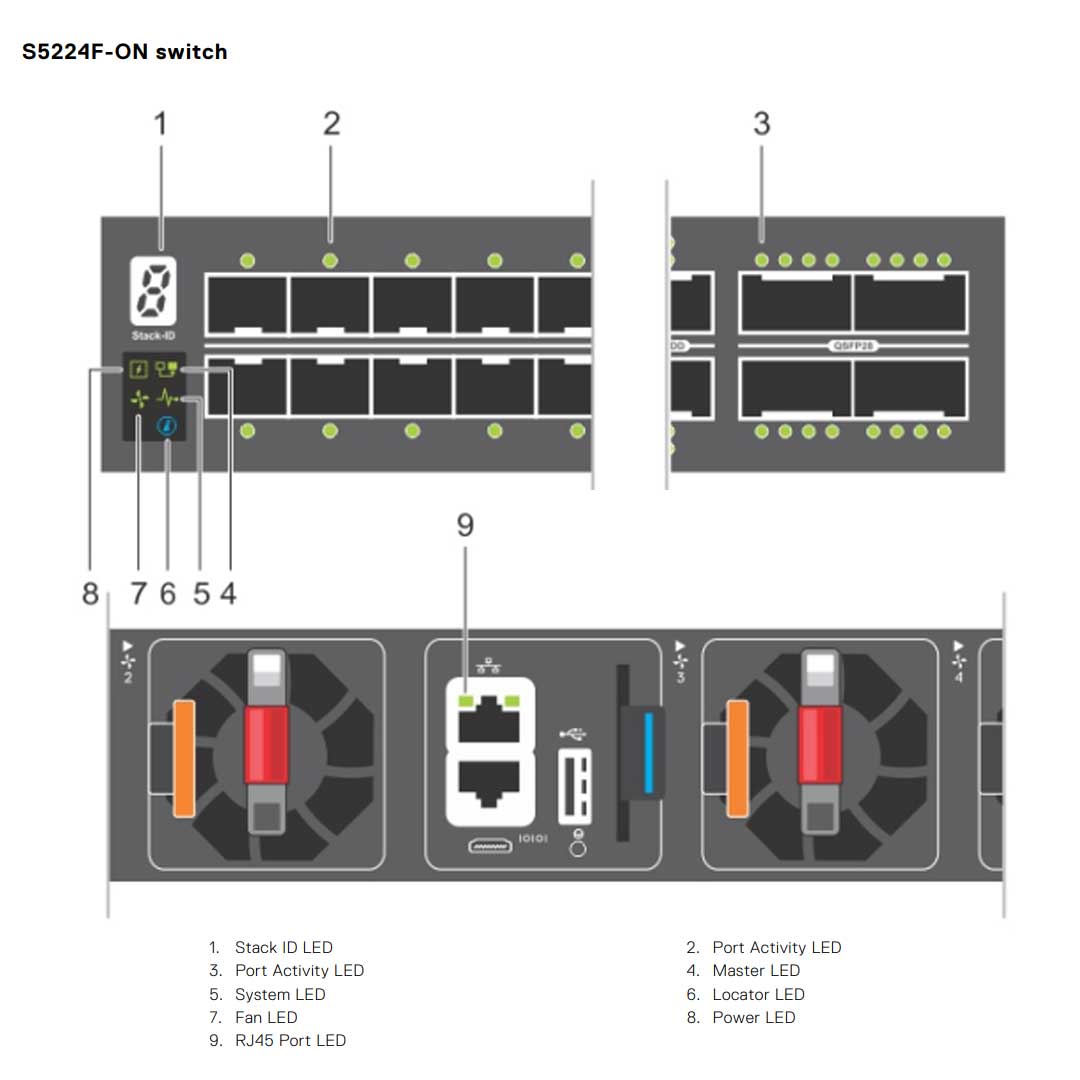

- Seven-segment stacking indicator
- 1 micro-USB-B console port
- 1 USB type-A port
- 455W Max Power Consumption
- 200W Typical Operating Power
- 4 Hot-Swappable Fans
S5224F-ON Configurations:
- 24 x 25GbE
- 24 x 10GbE
S5224F-ON AC or DC Normal airflow

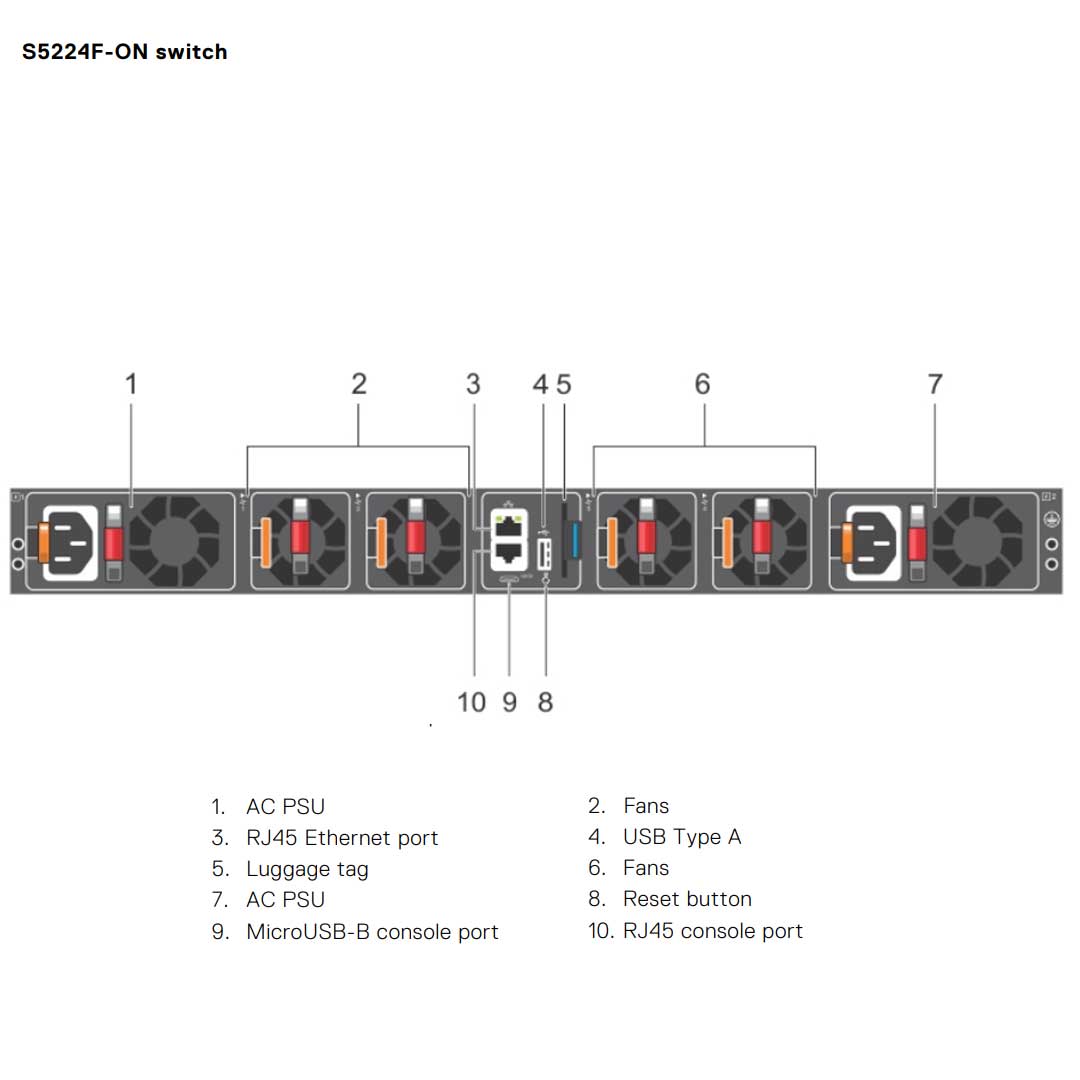

- 4 Hot-Swappable Fans with airflow from the I/O side to the PSU side—normal
- AC power supply with airflow from the I/O side to the PSU side—normal
- DC power supply with airflow from the I/O side to the PSU side—normal
S5224F-ON AC or DC Reverse airflow
- 4 Hot-Swappable Fan with airflow from the PSU side to the I/O side—reverse
- AC power supply with airflow from the PSU side to the I/O side—reverse
- DC power supply with airflow from the PSU side to the I/O side—reverse
- Consistent DevOps framework across compute, storage and networking elements
- Standard networking features, interfaces and scripting functions for legacy network operations integration
- Standards-based switching hardware abstraction via Switch Abstraction Interface (SAI)
- Pervasive, unrestricted developer environment via Control Plane Services (CPS)
- OS10 Enterprise Edition software enables Dell Technologies layer 2 and 3 switching and routing protocols with integrated IP services, quality of service, manageability and automation features
- OS10 supports Precision Time Protocol (PTP, IEEE 1588v2) to synchronize clocks on network devices.
- Leverage common open source tools and best practices (data models, commit rollbacks)
- Increase VM Mobility region by stretching L2 VLAN within or across two DCs with unique VLT capabilities
- Scalable L2 and L3 Ethernet Switching with QoS, ACL and a full complement of standards based IPv4 and IPv6 features including OSPF, BGP and PBR
- Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)
- Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)
- Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV
