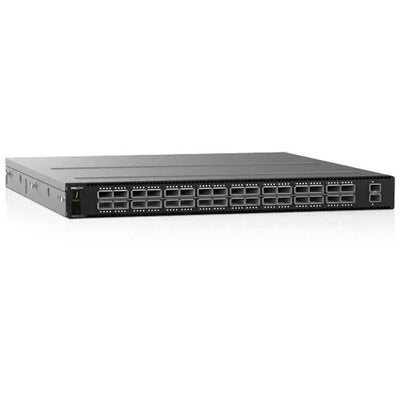

Dell EMC PowerSwitch S5232F-ON 32-Port 750W (ONIE) Switch


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

The S5232F-ON is a highly versatile and powerful network switch designed for high-density deployments and small-scale fabric implementations. With its ability to achieve up to 128 10GbE or 128 25GbE ports using breakout cables, the S5232F-ON is an ideal choice for organizations looking to upgrade their network infrastructure.

The S5232F-ON can be used in spine and leaf configurations along with S5248F-ON 1/10/25GbE ToR switches, providing a cost-effective solution for aggregating 10/25/40/50/100 uplinks. The switch provides line-rate performance via non-blocking switch fabrics, with a capacity of 3.2Tbps (6.4Tbps full-duplex), ensuring that your critical applications and services run smoothly and efficiently.

Featuring 32 quad small form-factor pluggable (QSFP) ports that support 100 Gigabit Ethernet (GbE) connections, and 2 small form-factor pluggable plus (SFP+) ports that support 10 Gigabit Ethernet (GbE) connections, the S5232F-ON delivers lightning-fast network speeds and low latency.

In addition to its powerful networking capabilities, the S5232F-ON also includes a seven-segment stacking indicator that provides clear and concise feedback on the status of switch stacking. The switch also includes a micro-USB-B console port and a USB type-A port, allowing for easy configuration and management of the switch.

With a maximum power consumption of 635W and a typical operating power of 360W, the S5232F-ON is both efficient and environmentally friendly. The switch also features 4 hot-swap fans and power supply, ensuring that it provides reliable and consistent performance, even under heavy workloads.

S5232F-ON:

  • Open Network Install Environment (ONIE)
  • The S5232F -ON switch qualifies as network equipment building system-3 (NEBS-3) compliant.

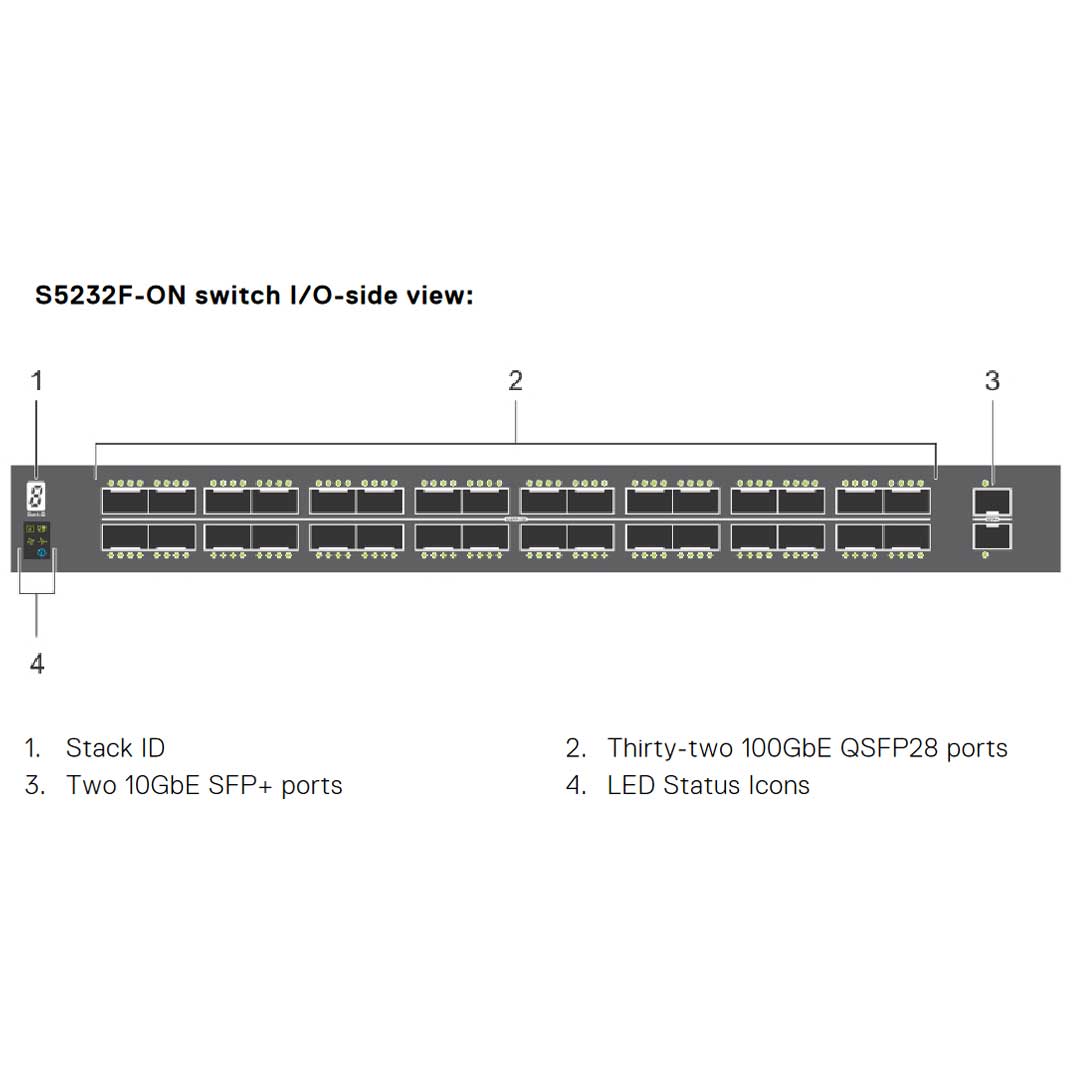

  • 32 x 100GbE QSFP28
  • 2 x 10GbE SFP+

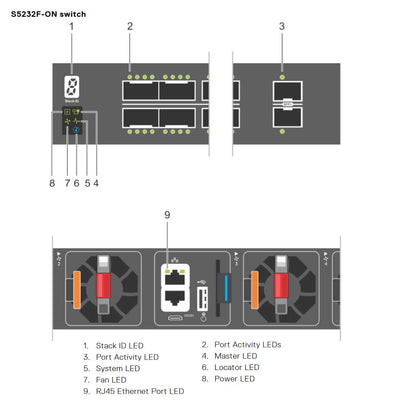

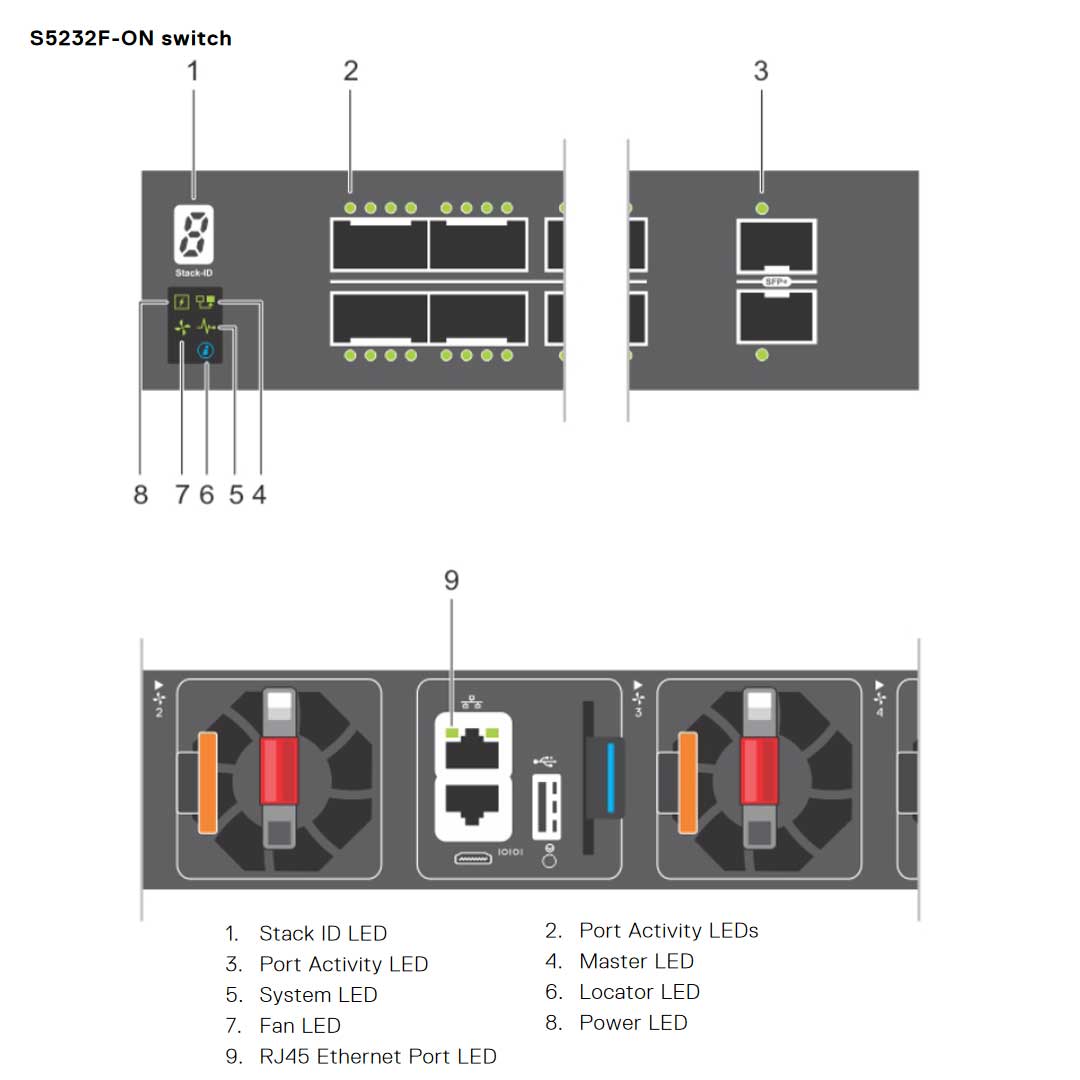

  • Seven-segment stacking indicator

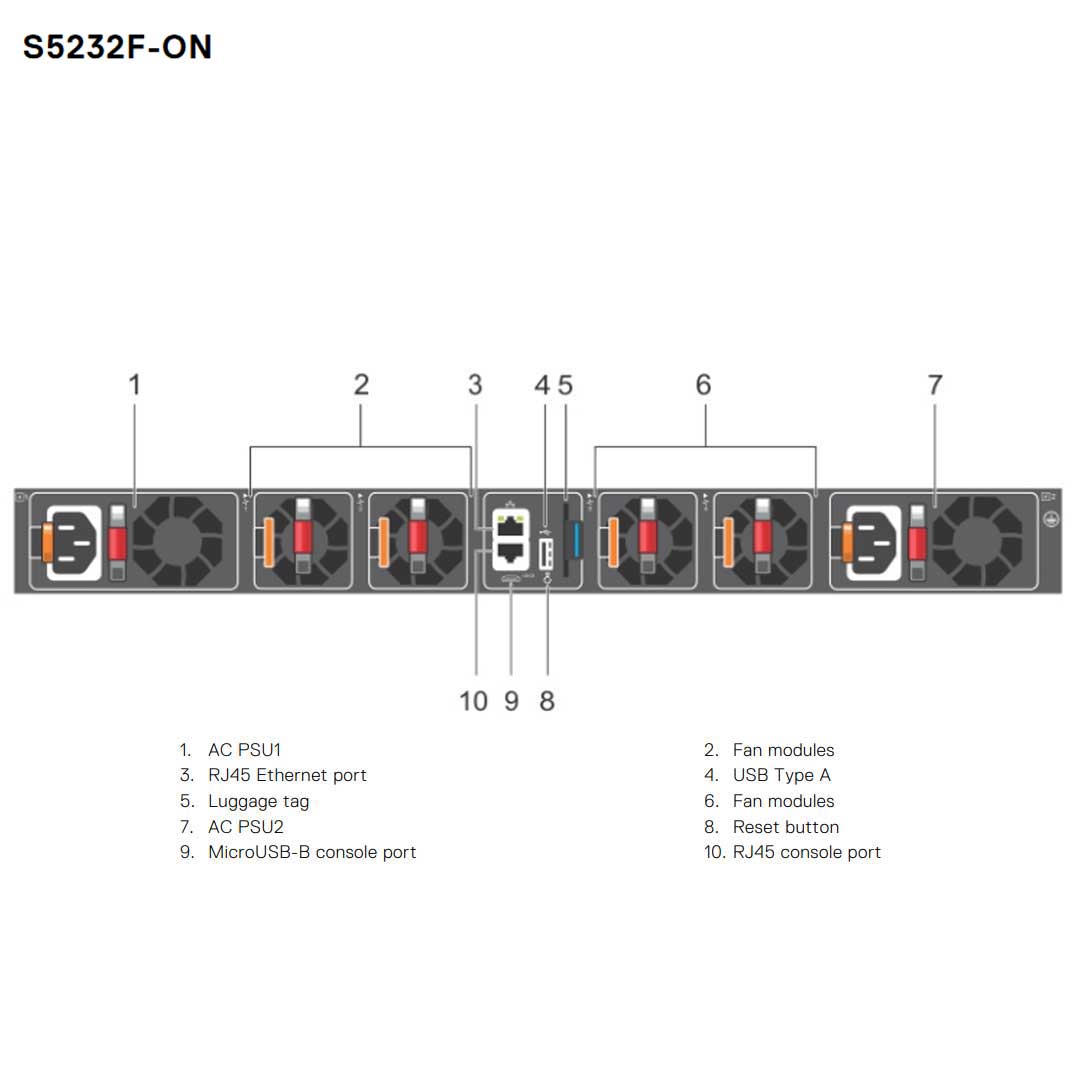

  • 1 micro-USB-B console port
  • 1 USB type-A port
  • 635W Max Power Consumption
  • 360WTypical Operating Power
  • 4 Hot-Swap Fans and Power Supply

S5232F-ON Configurations:

  • 96 x 10GbE + 8 x 100GbE
  • 96 x 25GbE + 8 x 100GbE
  • 128 x 10GbE
  • 128 x 25GbE
  • 64 x 50GbE
  • 32 x 40GbE
  • 32 x 100GbE
  • S5232F , 32x 100 GbE QSFB28 + 2x 10GbE SFP+, 2x AC PSU, Fan modules, I/O Panel to PSU Airflow, Dell EMC SmartFabric OS10
  • S5232F , 32x 100 GbE QSFB28 + 2x 10GbE SFP+, 2x AC PSU, Fan modules, PSU to I/O Panel Airflow, Dell EMC SmartFabric OS10
  • S5232F , 32x 100 GbE QSFB28 + 2x 10GbE SFP+, 2x AC PSU, Fan modules, I/O Panel to PSU Airflow, NO-OS
  • S5232F , 32x 100 GbE QSFB28 + 2x 10GbE SFP+, 2x AC PSU, Fan modules, PSU to I/O Panel Airflow, NO-OS
  • S5232F , 32x 100 GbE QSFB28 + 2x 10GbE SFP+, 2x AC PSU, Fan modules, I/O Panel to PSU Airflow, Dell EMC SmartFabric OS10, TAA
  • S5232F , 32x 100 GbE QSFB28 + 2x 10GbE SFP+, 2x AC PSU, Fan modules, PSU to I/O Panel Airflow, Dell EMC SmartFabric OS10, TAA

    Key Features with Dell EMC SmartFabric OS10

    • Consistent DevOps framework across compute, storage and networking elements
    • Standard networking features, interfaces and scripting functions for legacy network operations integration
    • Standards-based switching hardware abstraction via Switch Abstraction Interface (SAI)
    • Pervasive, unrestricted developer environment via Control Plane Services (CPS)
    • OS10 Enterprise Edition software enables Dell Technologies layer 2 and 3 switching and routing protocols with integrated IP services, quality of service, manageability and automation features
    • OS10 supports Precision Time Protocol (PTP, IEEE 1588v2) to synchronize clocks on network devices.
    • Leverage common open source tools and best practices (data models, commit rollbacks)
    • Increase VM Mobility region by stretching L2 VLAN within or across two DCs with unique VLT capabilities
    • Scalable L2 and L3 Ethernet Switching with QoS, ACL and a full complement of standards based IPv4 and IPv6 features including OSPF, BGP and PBR
    • Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)
    • Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)
    • Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV

    Product Specs for Dell S5232F-ON-noOS-AC-Reverse

    Switch Capabilities


    S5212F-ONS5224F-ONS5248F-ONS5296F-ONS5232F-ON
    Ports12xSFP28
    3xQSFP28
    24xSFP28
    4xQSFP28
    48xSFP28
    2xQSFP28-DD
    4xQSFP28
    96xSFP28
    8xQSFP28
    32xQSFP28
    2xSFP+
    Max 10GbE density12 (SFP28)
    12 (QSFP28 Breakout)
    24 (SFP28)
    16 (QSFP28 breakout)
    48 (SFP28)
    16 (QSFP28-DD breakout)
    16 (QSFP28 breakout)
    96 (SFP28)
    32 (QSFP28 breakout)
    124 (QSFP28 breakout)
    2 (SFP+)
    Max 25GbE density12 (SFP28)
    12 (QSFP28 Breakout)
    24 (SFP28)
    16 (QSFP28 breakout)
    48 (SFP28)
    16 (QSFP28-DD breakout)
    16 (QSFP28 breakout)
    96 (SFP28)
    32 (QSFP28 breakout)
    124 (QSFP28 breakout)
    Max 40GbE density3 (QSFP28)4 (QSFP28)6 (QSFP28)
    4 (QSFP28-DD breakout)
    8 (QSFP28)32 (QSFP28)
    Max 50GbE density6 (QSFP28 breakout)8 (QSFP28 breakout)16 (QSFP28 breakout)16 (QSFP28 breakout)64 (QSFP28 breakout)
    Max 100GbE density3 (QSFP28)4 (QSFP28)4 (QSFP28)
    4 (QSFP28-DD breakout)
    8 (QSFP28)32 (QSFP28)
    Switching capacity1.08 Tbps (2.16 Tbps full duplex)1.08 Tbps (2.16 Tbps full duplex)2.0 Tbps (4.0 Tbps full duplex)3.2 Tbps (6.4 Tbps full duplex)3.2 Tbps (6.4 Tbps full duplex)
    Throughput440 Mpps (880 Mpps full duplex)720 Mpps (1.42 Bpps full duplex)1.5 Bpps (3.0 Bpps full duplex)2.4 Bpps (4.8 Bpps full duplex)2.4 Bpps (4.8 Bpps full duplex)
    Latency (nano sec)906881847850877
    1588v2 PTP timing (hardware)NoYesYesYesYes
    CPU Memory16GB16GB16GB16GB16GB
    SSD64GB64GB64GB64GB64GB
    Packet Buffer32MB32MB32MB32MB32MB
    Maximum power304W455W647W893W635W
    Typical power140W200W310W457W360W
    Maximum current2.8A@110VAC /
    1.4A@220VAC
    4.2A@110VAC /
    2.1A@220VAC
    5.8A@110VAC /
    2.9A@220VAC
    8.2A@110VAC /
    4.1A@220VAC
    5.8A@110VAC /
    2.9A@220VAC
    Fan modulesFixed4444
    Form Factor1RU (half-width)1RU1RU2RU1RU
    Dimensions8.2”Wx19.3”D x1.6”H
    20.9Wx49.0D x4.1H (cm)
    17.1”Wx18.1”D x1.7”H
    43.4Wx46.0D x4.4H (cm)
    17.1”Wx18.1”D x1.7”H
    43.4Wx46.0D x4.4H (cm)
    17.4”Wx20.1”D x3.4”H
    44.2Wx51.1D x8.7H (cm)
    17.1”Wx18.1”D x1.7”H
    43.4Wx46.0D x4.4H (cm)
    Weight4.5kg (10.05lbs)9.7kg (21.4lbs)9.7kg (21.4lbs)15.1kg (33.2lbs)9.8kg (21.6lbs)
    Max thermal output1037 BTU/h1552 BTU/h2208 BTU/h3047 BTU/h2167 BTU/h
