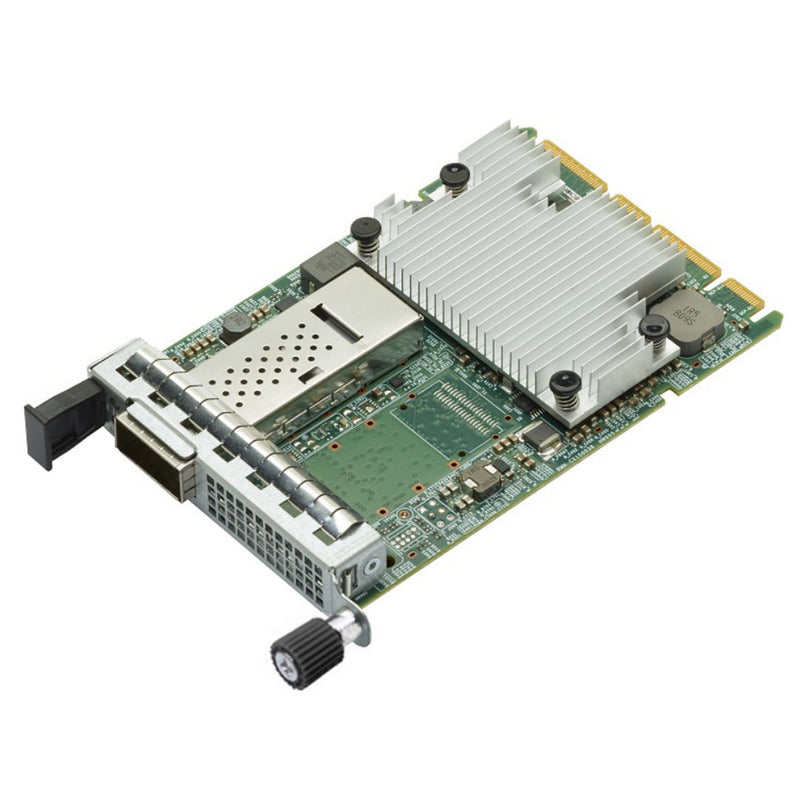

Dell Broadcom Single Port 100GbE QSFP56 OCP 3.0 SFF | BCM957504-N1100G

The Broadcom® BCM957504-N1100G is a single-port 100 Gb/s PCI Express 4.0 x16 network adapter designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with one QSFP56 network connector. The adapter supports QSFP56/QSFP28/QSFP+ optical modules and copper direct-attach cables. The network adapter uses the Broadcom BCM57504 100GbE MAC controller with an integrated single-channel 100GbE SFI transceiver.

The BCM57504 Ethernet controller is configured as a single-port 100 Gb/s interface to the line side and x16 PCI Expressv4.0 interface to the system host.

PCIe is a high-bandwidth serial bus providing a low pin-count interface as an alternative to parallel PCI. It is part of the hostinterface connector. The BCM57504 complies with the PCI Express Base Specification Revision 4.0, and supports a 16-lanePCIe 4.0 interface via the host interface connector.

The BCM57504 Ethernet controller supports the Network Controller Sideband Interface (NC-SI) Specification version 1.1.0.The NC-SI provides a standardized interface between the system baseboard management controller (BMC) and theintegrated NC-SI module of the BCM57504.

The BCM57504 Ethernet Controller SMB0 interface supports serial communications between the BCM57504 and thesystem. The interface allows the Ethernet controller to act as a SMBus host or a client device.

The BCM57504 Ethernet controller requires a non-volatile serial flash memory (NVRAM) to store the device firmware, PCIconfiguration space settings (for example, device ID, and vendor ID), MAC address, and so on. After power-up, the firmwareis downloaded into the device memory and executed by the on-chip processor.

The passive heat sink is attached to the Ethernet controller using four spring-loaded push pins that are inserted into fourmounting holes.

All power is derived from the network adapter host interface connector 12V and 3.3V supply which feeds the onboardregulators that provide the necessary power to the various components on the network adapter. The network adapter hassix switching voltage regulators that power the adapter’s VDDC_AON, VDDC_HOST, +0.8V, +1.2V, +1.8V, and +3.3V loads.

The BCM957504-N1100G integrates one QSFP56 connector to support 50G PAM-4 or 25G/10G NRZ signaling for 100/50/40/25/10 Gb/s on the port. QSFP56 is backward compatible with QSFP28 and QSFP+ when appropriate cables andtransceivers are used.

• Single-port pluggable media interface, which is compatible with a QSFP56/QSFP28/QSFP+ optical transceiver or a copper direct-attach cable.
• Industry’s most secure PCIe adapter solution leveraging Broadcom’s BroadSAFE® technology
• Supports Ethernet 50G PAM-4 and 25G/10G NRZ signaling.
• Multi-Host up to four hosts.
• Fully compliant with the SFF-8402 standard.
• x16 PCI Express 4.0 compliant.
• SR-IOV with up to 1k virtual functions (VFs).
• Function-Level Reset (FLR) support.
• TruFlow™ flow processing engine.
• Virtual Network Termination – VXLAN, NVGRE, Geneve, GRE encap/decap.
• vSwitch Acceleration.
• Tunnel-aware stateless offloads.
• DCB support – PFC, ETS, QCN, DCBx.
• RDMA over Converged Ethernet (RoCE)
• Network Controller Sideband Interface (NC-SI).
• SMBus 2.0.
• MCTP over SMBus.
• Jumbo frames up to 9 KB.
• Advanced congestion avoidance.
• Multiqueue, NetQueue, and VMQ.
• IPv4 and IPv6 offloads.
• TCP, UDP, and IP checksum offloads.
• Large send offload (LSO).
• Large receive offload (LRO).
• TCP segmentation offload (TSO).
• Receive-side scaling (RSS).
• Transmit-side scaling (TSS).
• VLAN insertion/removal.
• Interrupt coalescing.
• Network boot—PXE, UEFI.
• iSCSI boot.
• Wake-on-LAN (WOL).
• MSI and MSI-X.
• OCP 3.0 FRU support.
• Conforms to the OCP 3.0 Design Specification Version 1.00.
