NetApp FAS8060 Single Chassis HA Pair Expansion Storage Array Filer Head (FAS8060A)

NetApp FAS8060 Dual Controller Filer Head (HA)

Price: Request a Quote

Brand:

NetApp

MPN:

FAS8060A

Type:

Filer Head

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp FAS8060 Dual Controller Filer Head (HA)

The NetApp FAS8060 is a high-performance enterprise storage system designed for scalability and reliability. Featuring a single-chassis configuration with a total rack height of 6U, it includes dual controllers in a high-availability (HA) setup for enhanced redundancy. Powered by four 64-bit 8-core 2.10 GHz processors and 128GB of HA memory, the system delivers exceptional performance for demanding workloads. It includes 8x 1Gb RJ45 and 8x 10Gb SFP Ethernet ports, along with 8x UTA2 (10Gb/16Gb SFP+) and 8x QSFP (6Gb SAS) ports for versatile connectivity.

With support for up to 1200 drives and a maximum storage capacity of 15PB, the FAS8060 provides extensive storage flexibility, accommodating MSATA, SATA, NL-SAS, SAS, and SSD drives. The system supports RAID 4, RAID 6 (RAID-DP), and RAID-TEC for enhanced data protection and fault tolerance. It includes 8 PCIe expansion slots, ensuring seamless upgrades and integration with additional hardware as enterprise needs grow.

The chassis is optimized for efficient rack deployment, measuring 10.2 inches in height, 17.6 inches in width, and 28.9 inches in depth with cable management, with a maximum weight of 121.5 lbs. It supports multiple disk shelf models, including DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, and DS460C. With remote management capabilities and a scalable architecture, the NetApp FAS8060 is an ideal storage solution for businesses requiring high availability, performance, and flexibility.

System Config

Model: NetApp FAS8060
Chassis: Single Chassis
Total Rack Height: 6U
Controllers: Dual Controller (HA)
Memory (HA): 128GB
Processor Model: 4x 64-bit 8-core 2.10 Ghz
Ethernet Ports: 8 x RJ45 (1Gb) + 8 x SFP (10Gb)
UTA2 Ports: 8 x SFP+ (10Gb/16Gb)
SAS Ports: 8 x QSFP (6Gb)
PCIe Expansion Slots: 8 x PCIe
Max Drives (total): 1200
Max Capacity: 15,000TB (15PB)
Disk Shelves: DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, DS460C
Filer Heads: N/A

Dimensions & Weight

Chassis Rack Height: 6U
Chassis Heights: 10.2" (25.9 cm)
Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
Chassis Depth w/ Cable Mgmt: 28.9" (73.4 cm)
Chassis Weight: up to 121.5 lb (55.1 kg)

Controller Specs

Max Controllers: 2 (Per Chassis)
PCI Slot (per): 4 x PCIe
Ethernet Ports (per): 4 x RJ45 (1Gb) + 4 x SFP (10Gb)
Fibre Channel Ports (per): N/A
UTA2 Ports (per): 4 x SFP+ (10Gb/16G)
SAS Ports (per): 4 x QSFP (6Gb)
Remote Management: Yes
Processor Model (per): 2x 64-bit 8-core 2.10 Ghz
Memory (Single/HA): 64GB/128GB
NVRAM (Single/HA): 8GB/16GB

Storage

Max Number of Internal Drives: 0
Max Number Drives (total): 1200
Max Capacity: 15,000TB (15PB)
Max # of MSATA Drives: 1200
Max # of SATA Drives: 1200
Max # of NL-SAS Drives: 1200
Max # of SAS Drives: 1200
Max # of SSD Drives: 240
Drive Interface: MSATA, SATA, NL-SAS, SAS, SSD
RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
Max # of DS212C Shelves: 50 external
Max # of DS2246 Shelves: 50 external
Max # of DS224C Shelves: 50 external
Max # of DS4243 Shelves: 50 external
Max # of DS4246 Shelves: 50 external
Max # of DS4448 Shelves: 25 external
Max # of DS460C Shelves: 20 external

FAS8060 Parts Lists

View Adapters

View Transceiver(s

View Data Cables

View Power Cables

View Rail Kits

Ask about our NetApp Disk Shelves!
We can create custom Turn-Key configurations based on your needs!
Click here to view NetApp Disk Shelves

This Product Is Compatible With The Following Systems:

NetApp FAS8060

Storage Limits

Max # of Drives (Total)	Max # of Internal Drives	Max # of MSATA Drives	Max # of NL-SAS Drives	Max # of SAS Drives	Max # of SATA Drives	Max # of NVMe SSD Drives	Max # of SSD Drives	Max # of DS212C Shelves	Max # of DS2246 Shelves	Max # of DS224C Shelves	Max # of DS4243 Shelves	Max # of DS4246 Shelves	Max # of DS4486 Shelves	Max # of DS460C Shelves	Max # of FS424C Shelves	Max # of NS224 Shelves
1200	N/A	1200	1200	1200	1200	-	240	50 external	50 external	50 external	50 external	50 external	25 external	20 external	-	-

Capacity Limits

Marketing Max Raw Capacity - Node	HA Pair	Cluster	Effective Capacity - Node	HA Pair	Cluster
15000000	15000000	-	66577500	66577500	-

Core Cluster Limits

Max SVM's - NAS	Max LIF's - NAS	Max Connections - NAS	Max Flexible Volumes - NAS	Max Flexible Volumes with DPO - NAS	Max Lock Manager Locked Objects	Max Intercluster LIFs - Node	Min Root Aggregate (MiB) - Node	Min Root Aggregate (with core dump device) (MiB)	Min Root Volume (GiB) - Node	Min Root Volume (with core dump device) (GiB)	Max IPsec Policies	Max # of IPspaces	Max Auditing-Enabled SVMs - Cluster
Node:- HA Pair:- Cluster:1024	Node:512 HA Pair:512 Cluster:3072	Node:100000 HA Pair(Non-Scalable):100000	Aggregate (Single data Agg. per Node):- Aggregate (Multiple data Agg. per Node):- Node:1000 HA Pair:2000 Cluster:12000	Node:- HA Pair:- Cluster:-	Node:2400000 HA Pair:2400000 Cluster:12288000	8	441245.29	-	350	-	SVM:256 Cluster:1500	-	50

System Maximums and Limits

Max Nodes per Cluster (NAS / SAN)	Max FabricPool Size	Max FlexGroup Data Constituent Size	Max Infinite Volume Data Constituent Size	Min Root Volume Size	NetApp Volume Encryption
24 / 12	8400 TiB	100 TiB	Not Supported	350 GiB	Supported

Processor

Processor Model	Processor Architecture	Processor Speed	Processor Count (Per Node)	Processor Count (Per Config)	Processor Cores (Per CPU)	Processor Cores (Per Node)	Processor Cores (Per Config)
64-bit 8-core 2.10 Ghz	64 bit	2.10 Ghz	2	4	8	16	32

Memory

NVRAM (Per Node)	NVRAM (Per Config)	NVME (Per Node)	NVME (Per Config)	NVMEM (Per Node)	NVMEM (Per Config)	RAM (Per Node)	RAM (Per Config)
8 GB	16 GB	-	-	-	-	64 GB	128 GB

Onboard Ports

Ethernet Ports	Fibre Channel	Ports UTA2 Ports	Expansion Slots	SAS Ports
8 x RJ45 (1Gb) + 8 x SFP+ (10Gb)	-	8 x SFP+ (10Gb/16Gb) [1]	8 x PCIe3	8 x QSFP (6Gb)

Physical Characteristics

Rack Units	Chassis Height	Chassis Width with Mounting Flanges	Chassis Width without Mounting Flanges	Chassis Depth with Cable Mgmt	Chassis Depth without Cable Mgmt	Chassis Weight
6	10.2" (25.9 cm)	18.94" (48.1 cm)	17.6" (44.7 cm)	28.9" (73.4 cm)	24.29" (61.7 cm)	See Weights by configuration

System Clearance Dimensions

Front Clearance (Cooling)	Front Clearance (Maintenance)	Rear Clearance (Cooling)	Rear Clearance (Maintenance)
5.99" (15.2 cm)	30.02" (76.2 cm)	12.02" (30.5 cm)	36.01" (91.4 cm)

Environmental Requirements

Operating	Storage	Transit	Acoustic Noise	Input Power Voltage
Tempature: 50 to 104 deg F - 10 to 40 deg C Humidity: 20 to 80 % Altitude: 0.0 to 10000.0 ft - 0.0 to 3048.0 m	Tempature: -40 to 158 deg F - -40 to 70 deg C Humidity: 5 to 95 % Altitude: 0.0 to 40000.0 ft - 0.0 to 12192.0 m	Tempature: -40 to 158 deg F - -40 to 70 deg C Humidity: 5 to 95 % Altitude: 0 to 39989.8 ft - 0 to 12192 m	Sound Power: 7.6 bels Sound Pressure: 62.4 dBA	200 to 240

Storage OS Requirements

Full OS Matrix	Recommended Version	Minimum OS	Maximum OS
View Full OS Report Below	9.8P12, 9.8P13	9.8RC1	9.8P13

Storage and Firmware

Full Firmware Matrix	BIOS	BMC
Full Firmware Report Below	9.8*	-

Product Standards Compliance

Full Compliance and Certificates Report	Cert. EMC/EMI	Cert. Safety	Cert. Safety/EMC/EMI	Cert. Safety/EMC/EMI/RoHS	Standard Safety/EMC/EMI	Standard Safety
Compliance and Certificates Report Below	AMCA, FCC, ICES, KC, Morocco, VCCI	BIS, CB, CSA, G_K_U-SoR, IRAM, NOM, NRCS, SONCAP, TBS	EAC, UKRSEPRO	BSMI, CE DoC	CISPR 22, EN55022, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class A, ICES-3	ANSI/UL 60950-1, CNS 14336, CSA 60950, EN60825-1, EN60950-1, IEC60825-1

NFS Cluster Limits

Max Export Policies - Cluster	Max Export Rules - Cluster	Max NFSv4 Access Control Entries	Max Client Objects	Max pNFS objects
24000	200000	1024	Node:100000 HA Pair:100000	Node:1024000 HA Pair:1024000 Cluster:12288000

WAFL Cluster Limits - All Maximums

Size 64-bit Aggregate (TiB)	Size 64-bit Volume (TiB)	File size 64-bit Volume (TiB)	Volume Snapshot Copies	Character length for Snapshot copy names	Hard links - File	inodes/files - Volume	Number of qtrees	Concurrent DataMotion for Volumes ops
400	100	16	Volume:1023 Node:1023000 HA Pair:2046000	255	100000	2000000000	Volume:4995 Node:100000 HA Pair:200000 Cluster:800000	Node:8 HA Pair:16

Quality of Service Cluster Limits

Max Policy Groups - Cluster	Max QoS User Workloads - Cluster
12000	40000

SAN Cluster Limits - All Maximums

# of storage virtual machines (SVMs) - SAN	# of flexible volumes - SAN	# of Flexible Vol with DPO -	# of LUNs	LUN mappings	LUN size (TiB) - LUN	FC queue depth available	# of SAN Hosts (ITNs)	# of LIFS - iSCSI	# of LIFS - FCP	# of igroups	# of Initiators	# of Portsets	# of iSCSI sessions
Node:125 HA Pair:250 Cluster:1000	Single data Aggregate:- Multiple data Aggregates:- Node:1000 HA Pair:2000 Cluster:8000	Node:- HA Pair:- Cluster:-	Valume:1024 Node:12288 HA Pair:24576 Cluster:98304	Node:12288 HA Pair:24576 Cluster:98304	16	2048	Port:512 Node:8192 HA Pair:16384 Cluster:65536	Port:32 Portset:32 Node:512 HA Pair:1024 Cluster:4096	Port:32 Portset:32 Node:512 HA Pair:1024 Cluster:4096	Node:4096 HA Pair:8192 Cluster:32768	igroup:256 Node:4096 HA Pair:8192 Cluster:32768	Node:4096 HA Pair:8192 Cluster:32768	Node:8192 HA Pair:16384 Cluster:65536

CIFS Cluster Limits - All Maximums

# of Connected Shares	# of Regular Shares	# of Open files	# of Local users - Cluster	# of Local groups - Cluster	# of Local group members - Cluster
Node:1000000 HA Pair:1000000	Node:- HA Pair:- Cluster:300000	Connection:65536 Node:1200000 HA Pair:1200000	35000	320000	640000

Data Protection Cluster Limits - All Maximums

NDMP Sessions	Data Protection Mirrors	Load Sharing Mirrors - NAS SVM	Concurrent Snap Mirror / SnapVault transfers - Node	DP Mirror fan-out - Volume	LS Mirror fan-out - NAS SVM	# of Clusters that can be peered - Cluster	Volumes, SnapMirror relationship	SnapMirror Synchronous relationships	# of Consistency Groups in SM-BC relationships	# of Constituent Volumes in SM-BC relationships	Flexible Volumes in SVM DR	SVM Disaster recovery - Cluster	# of Concurrent SVM Migration - Cluster	# of Volumes with SVM Migration - SVM	# of Cluster for SVM Migration - Cluster
Node:36 HA Pair (Non-Scalable):36	Volume:1 Node:1000 HA Pair:2000 Cluster:12000	2	100	8	2	255	FlexGroup:200 FlexGroup-Node:50 Node:500 HA Pair:1000 Cluster:6000	Volume:1 Node:40 HA Pair (Non-Scalable):40	HA Pair (Non-Scalable):-	Consistency group:- HA Pair (Non-Scalable):-	SVM:300 HA Pair:1000	32	-	-	-

FlexCache Cluster Limits - All Maximums Cache

Degree of fan-out - Origin	Origin Volumes	Constituent Volumes	Volumes	Origin ConstituentVolumes
100	Node:100 HA Pair:200	Node:800 HA Pair:1600	Node:100 HA Pair:200	Node:800 HA Pair:1600

S3 Cluster Limits -

Max # of Buckets	Max # of Objects - Bucket	Max # of Users	Max Size of the Bucket (PB) - Vserver
Vserver:12000 Cluster:12000	400000000000	Vserver:4000 Cluster:96000	20

Flex Array Specifications

Third Party Array Compatibility	Array LUN Absolute Min Raw Capacity	Array LUN Block Size	Default Array LUN RAID Group Size	Array LUN Max RAID Groups Per Aggregate	Max Array LUN Size	Max Array LUN Raid Group Size	Min Array LUN Size	Min Array LUN Root Vol Size	Min Array LUN RAID Group Size	Min Array LUN Aggregate Size	Array LUN neighborhood Visible Assigned Devices	Array LUN Recommended Min RAW Capacity	Spare Core Array LUN Min Size
Click here to go to IMT	4,860 GiB	512 bytes	8	150	15,625 GiB	26	1.05 GiB	634 GiB	1	80 GiB	0	8,100 GiB	93 GiB

Footnotes -

Notes ID	Notes Description
[1]	The onboard UTA2 ports can be configured as FC Target/Initiator or CNA (FCoE target/Ethernet). The UTA2 ports are based on a dual port ASIC and both ports on each ASIC must be set to the same mode (enforced by Data ONTAP). Install X6599A-R6 10GbE SFP+ modules or approved copper twinax cables when using in CNA (FCoE target/Ethernet) mode. Install X6596-R6 16Gb FC SFP+ module when using in FC Target/Initiator mode.

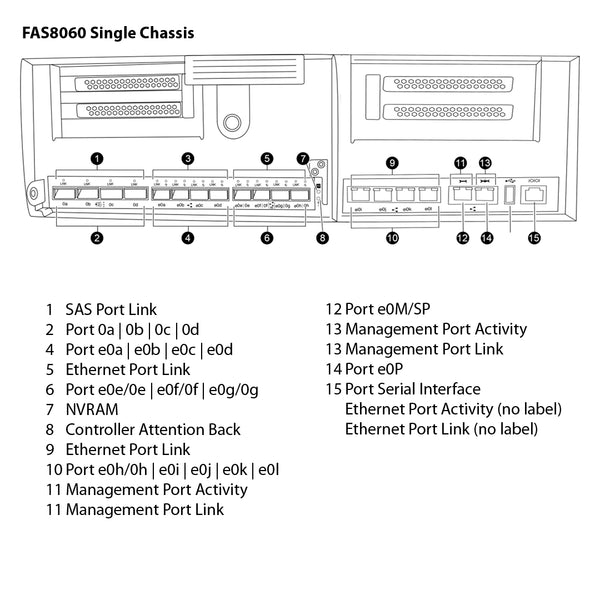

Platform LED for FAS8060 Single Chassis HA Pair

LED Label	LED Name	Type	Status Indicator	Description
1	Chassis Attention LED, front	-	On Amber	The system halted or a fault occurred in the chassis.
-	-	-	Off	The system is operating normally.
2	Chassis Power Config	-	On Green	At least one of the two PSUs is delivering power to the system.
-	-	-	Off	Neither PSU is delivering power to the system.
3	Controller A & B activity piped through to the chassis front	-	Blinking green	Data ONTAP is running on the controller.

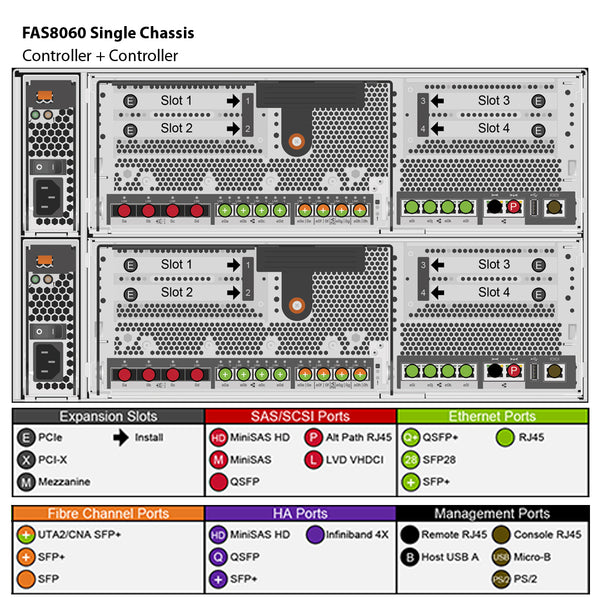

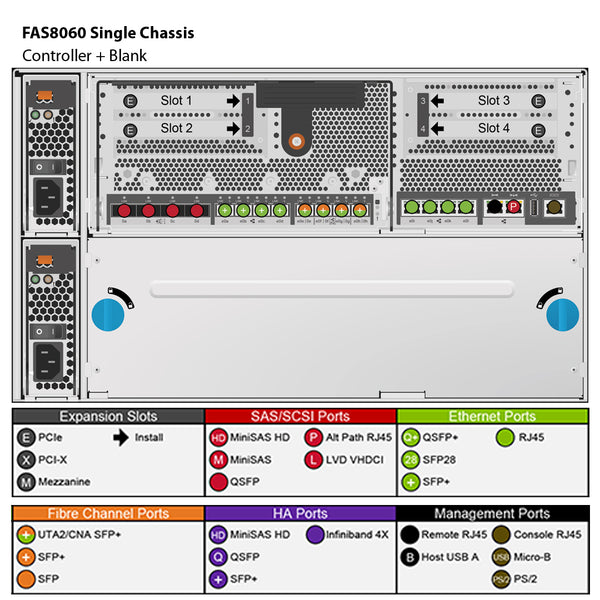

Back View
0a	Port SAS Onboard Config	Link	Green	Link is established on at least one external SAS lane
-	-	-	Off	No link is established on any external SAS lane
0b	Port SAS Onboard Config	Link	Green	Link is established on at least one external SAS lane
-	-	-	Off	No link is established on any external SAS lane
0c	Port SAS Onboard Config	Link	Green	Link is established on at least one external SAS lane
-	-	-	Off	No link is established on any external SAS lane
0d	Port SAS Onboard Config	Link	Green	Link is established on at least one external SAS lane
-	-	-	Off	No link is established on any external SAS lane
e0a	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0b	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0c	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0d	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0e/0e	Port FC (UTA2) Config	Link	Green	A connection is established to the port.
-	-	-	Off	No connection is established to the port.
e0e/0e	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0f/0f	Port FC (UTA2) Config	Link	Green	A connection is established to the port.
-	-	-	Off	No connection is established to the port.
e0f/0f	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0g/0g	Port FC (UTA2) Config	Link	Green	A connection is established to the port.
-	-	-	Off	No connection is established to the port.
e0g/0g	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0h/0h	Port FC (UTA2) Config	Link	Green	A connection is established to the port.
-	-	-	Off	No connection is established to the port.
e0h/0h	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0i	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0j	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0k	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0l	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0M/SP	Port Remote Management Config	-	Blinking amber	Traffic is flowing over the connection.
-	-	-	Green	A link is established between the port and some upstream device.
-	-	-	Off	No link is established.
-	-	-	Off	No traffic is flowing over the connection.
e0P	Port Private management Config	-	Blinking amber	Traffic is flowing over the connection.
-	-	-	Green	A link is established between the port and a downstream disk shelf.
-	-	-	Off	No link is established.

Supported Shelves Drives for FAS8060 Single Chassis HA Pair

Part No.	Capacity	RPM	Drive Type	Encryption	Root-Data Partitioning	Root-Data-Data Partitioning	Storage Pool Partitioning	Max Drive Count	FlexArray
DS212C with IOM12 / IOM12 / IOM12B / IOM12B shelf modules
X302A-R5	1TB	7.2K	SATA	No	Yes	No	No	600	Yes
X306A-R5	2TB	7.2K	SATA	No	Yes	No	No	600	Yes
X308A-R5	3TB	7.2K	SATA	No	Yes	No	No	600	Yes
X315A-R6 [1]	4TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	600	Yes
X317A [1] [2]	6TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	600	Yes
X318A-R6	8TB	7.2K	NL-SAS	No	Yes	No	No	600	Yes
X322A [1]	10TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	600	Yes
X336A-R6	4TB	7.2K	NL-SAS	No	Yes	No	No	600	Yes
X339A	2TB	7.2K	NL-SAS	No	Yes	No	No	600	Yes
X380A	10TB	7.2K	NL-SAS	No	Yes	No	No	600	Yes
X388A	16TB	7.2K	NL-SAS	No	Yes	No	No	600	Yes
X477A-R6	4TB	7.2K	NL-SAS	No	Yes	No	No	600	Yes
X488A-R5	900GB	10K	SAS	No	Yes	No	No	600	Yes
X489A-R6	1.2TB	10K	SAS	No	Yes	No	No	600	Yes
X490A-R6	1.8TB	10K	SAS	No	Yes	No	No	600	Yes
X363A-R6	3.84TB	N/A	SSD	No	No	No	Yes	240	Yes
X364A	3.84TB	N/A	SSD	No	No	No	Yes	240	Yes
X366A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	No	Yes	240	Yes
X374A	960GB	N/A	SSD	No	No	No	Yes	240	Yes
X448A-R6	200GB	N/A	SSD	No	No	No	Yes	240	Yes
X449A-R6	800GB	N/A	SSD	No	No	No	Yes	240	Yes
X575A-R6	400GB	N/A	SSD	No	No	No	Yes	240	Yes
X576A-R6	1.6TB	N/A	SSD	No	No	No	Yes	240	Yes
X577A-R6 [1] [3]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	No	Yes	240	Yes
DS224C with IOM12 / IOM12 / IOM12B / IOM12B shelf modules
X341A-R6	900GB	10K	SAS	No	Yes	No	No	1200	Yes
X342A-R6	1.2TB	10K	SAS	No	Yes	No	No	1200	Yes
X343A-R6	1.8TB	10K	SAS	No	Yes	No	No	1200	Yes
X416A-R5 [1]	600GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	1200	Yes
X417A-R6 [1]	900GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	1200	Yes
X421A-R5	450GB	10K	SAS	No	Yes	No	No	1200	Yes
X422A-R5	600GB	10K	SAS	No	Yes	No	No	1200	Yes
X423A-R5	900GB	10K	SAS	No	Yes	No	No	1200	Yes
X425A-R6	1.2TB	10K	SAS	No	Yes	No	No	1200	Yes
X426A-R6	1.8TB	10K	SAS	No	Yes	No	No	1200	Yes
X427A [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	1200	Yes
X427B-R6 [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	1200	Yes
X319A	7.6TB	N/A	SSD	No	No	Yes	No	240	Yes
X356A-R6	3.84TB	N/A	SSD	No	No	Yes	Yes	240	Yes
X357A	3.84TB	N/A	SSD	No	No	Yes	Yes	240	Yes
X358A [1]	3.84TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	240	Yes
X359A	30.6TB	N/A	SSD	No	No	Yes	No	240	Yes
X365A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	240	Yes
X371A	960GB	N/A	SSD	No	No	Yes	Yes	240	Yes
X386A [1]	960GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	240	Yes
X438A-R6	400GB	N/A	SSD	No	No	Yes	Yes	240	Yes
X439A-R6	1.6TB	N/A	SSD	No	No	Yes	Yes	240	Yes
X440A-R6 [1] [3]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	240	Yes
X440B-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	240	Yes
X446A-R6	200GB	N/A	SSD	No	No	No	Yes	240	Yes
X446B-R6	200GB	N/A	SSD	No	No	No	Yes	240	Yes
X447A-R6	800GB	N/A	SSD	No	No	Yes	Yes	240	Yes
X670A	15.3TB	N/A	SSD	No	No	Yes	No	240	Yes
DS460C with IOM12 / IOM12 / IOM12B / IOM12B shelf modules
X375A	4TB	7.2K	NL-SAS	No	Yes	No	No	1200	Yes
X376A	8TB	7.2K	NL-SAS	No	Yes	No	No	1200	Yes
X377A	10TB	7.2K	NL-SAS	No	Yes	No	No	1200	Yes
X378A [1]	10TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	1200	Yes
X379A	960GB	N/A	SSD	No	No	No	Yes	200	Yes
X387A	16TB	7.2K	NL-SAS	No	Yes	No	No	937	Yes
DS2246 with IOM6 / IOM12 / IOM6 / IOM12 / IOM12B / IOM12B shelf modules
X341A-R6	900GB	10K	SAS	No	Yes	No	No	1200	Yes
X342A-R6	1.2TB	10K	SAS	No	Yes	No	No	1200	Yes
X343A-R6	1.8TB	10K	SAS	No	Yes	No	No	1200	Yes
X416A-R5 [1]	600GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	1200	Yes
X417A-R6 [1]	900GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	1200	Yes
X421A-R5	450GB	10K	SAS	No	Yes	No	No	1200	Yes
X422A-R5	600GB	10K	SAS	No	Yes	No	No	1200	Yes
X423A-R5	900GB	10K	SAS	No	Yes	No	No	1200	Yes
X425A-R6	1.2TB	10K	SAS	No	Yes	No	No	1200	Yes
X426A-R6	1.8TB	10K	SAS	No	Yes	No	No	1200	Yes
X427A [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	1200	Yes
X427B-R6 [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	1200	Yes
X356A-R6	3.84TB	N/A	SSD	No	No	Yes	Yes	240	Yes
X357A	3.84TB	N/A	SSD	No	No	Yes	Yes	240	Yes
X358A [1]	3.84TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	240	Yes
X365A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	240	Yes
X371A	960GB	N/A	SSD	No	No	Yes	Yes	240	Yes
X438A-R6	400GB	N/A	SSD	No	No	Yes	Yes	240	Yes
X439A-R6	1.6TB	N/A	SSD	No	No	Yes	Yes	240	Yes
X440A-R6 [1] [3]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	240	Yes
X440B-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	240	Yes
X446A-R6	200GB	N/A	SSD	No	No	No	Yes	240	Yes
X446B-R6	200GB	N/A	SSD	No	No	No	Yes	240	Yes
X447A-R6	800GB	N/A	SSD	No	No	Yes	Yes	240	Yes
DS4246 with IOM6 / IOM12 / IOM12 / IOM6 / IOM12B / IOM12B shelf modules
X302A-R5	1TB	7.2K	SATA	No	Yes	No	No	1200	Yes
X306A-R5	2TB	7.2K	SATA	No	Yes	No	No	1200	Yes
X308A-R5	3TB	7.2K	SATA	No	Yes	No	No	1200	Yes
X309A-R6 [1] [3]	3TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	1200	Yes
X315A-R6 [1]	4TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	1200	Yes
X316A-R6	6TB	7.2K	NL-SAS	No	Yes	No	No	1200	Yes
X317A [1] [2]	6TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	1200	Yes
X318A-R6	8TB	7.2K	NL-SAS	No	Yes	No	No	1200	Yes
X322A [1]	10TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	1200	Yes
X336A-R6	4TB	7.2K	NL-SAS	No	Yes	No	No	1200	Yes
X380A	10TB	7.2K	NL-SAS	No	Yes	No	No	1200	Yes
X477A-R6	4TB	7.2K	NL-SAS	No	Yes	No	No	1200	Yes
X488A-R5	900GB	10K	SAS	No	Yes	No	No	1200	Yes
X489A-R6	1.2TB	10K	SAS	No	Yes	No	No	1200	Yes
X490A-R6	1.8TB	10K	SAS	No	Yes	No	No	1200	Yes
X363A-R6	3.84TB	N/A	SSD	No	No	No	Yes	240	Yes
X366A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	No	Yes	240	Yes
X374A	960GB	N/A	SSD	No	No	No	Yes	240	Yes
X441A-R5	100GB	N/A	SSD	No	No	No	No	240	Yes
X442A-R5 [4]	100GB	N/A	SSD	No	No	No	No	240	Yes
X448A-R6	200GB	N/A	SSD	No	No	No	Yes	240	Yes
X449A-R6	800GB	N/A	SSD	No	No	No	Yes	240	Yes
X575A-R6	400GB	N/A	SSD	No	No	No	Yes	240	Yes
X576A-R6	1.6TB	N/A	SSD	No	No	No	Yes	240	Yes
X577A-R6 [1] [3]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	No	Yes	240	Yes
DS4486 with IOM6 shelf modules
X381A	10TB	7.2K	MSATA	No	No	No	No	1200	Yes
X478A-R5 [5]	3TB	7.2K	MSATA	No	No	No	No	1200	Yes
X480A-R6 [5]	4TB	7.2K	MSATA	No	No	No	No	1200	Yes
X481A-R6 [5]	6TB	7.2K	MSATA	No	No	No	No	1200	Yes
X483A-R6	8TB	7.2K	MSATA	No	No	No	No	1200	Yes
DS4243 with IOM12 / IOM6 shelf modules
X302A-R5	1TB	7.2K	SATA	No	No	No	No	1200	Yes
X306A-R5	2TB	7.2K	SATA	No	No	No	No	1200	Yes
X308A-R5	3TB	7.2K	SATA	No	No	No	No	1200	Yes
Footnote:
[1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.
[2] Mixing encrypted with unencrypted drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.
[3] In Flash Pool NSE SSD drives can only be used with NSE HDD drives.
[4] This drive does not support the sanitization feature.
[5] SSD drives used for cache in a Flash Pool with DS4486 MSATA HDDs must be configured in a DS2246 shelf.

Supported RAID Configurations - FAS8060 Single Chassis HA Pair

Drive Type	Drive Capacity Min	Drive Capacity Max	Minimum	Default	Maximum
Data Aggregate
RAID4
NL-SAS	0 TB	8 TB	3	7	7
SAS	0 TB	5.999 TB	3	8	14
SATA	0 TB	5.999 TB	3	7	7
SSD	0 TB	30.6 TB	3	8	14
RAID-DP
MSATA	0 TB	5.999 TB	5	14	20
MSATA	6 TB	8 TB	5	14	14
NL-SAS	0 TB	5.999 TB	5	14	20
NL-SAS	6 TB	8 TB	5	14	14
SAS	0 TB	5.999 TB	5	16	28
SATA	0 TB	5.999 TB	5	14	20
SSD	0 TB	30.6 TB	5	24	28
RAID-TEC
MSATA	0 TB	10 TB	7	21	29
NL-SAS	0 TB	16 TB	7	21	29
SAS	0 TB	8 TB	7	24	29
SATA	0 TB	8 TB	7	21	29
SSD	0 TB	30.6 TB	7	25	29
Root Aggregate
RAID4
NL-SAS	0 TB	8 TB	2	-	7
SAS	0 TB	5.999 TB	2	-	14
SATA	0 TB	5.999 TB	2	-	7
SSD	0 TB	30.6 TB	2	-	14
RAID-DP
MSATA	0 TB	5.999 TB	3	-	20
MSATA	6 TB	8 TB	3	-	14
NL-SAS	0 TB	5.999 TB	3	-	20
NL-SAS	6 TB	16 TB	3[1]	-	14
SAS	0 TB	5.999 TB	3[2]	-	28
SATA	0 TB	5.999 TB	3[2]	-	20
SSD	0 TB	30.6 TB	3[2]	-	28
RAID-TEC
MSATA	0 TB	10 TB	7	-	29
NL-SAS	0 TB	16 TB	7	-	29
SAS	0 TB	8 TB	7	-	29
SATA	0 TB	8 TB	7	-	29
SSD	0 TB	30.6 TB	7	-	29
Footnote:
[1] RAID-DP is supported with 10TB NL-SAS drives only if HA pair has 10-14 drives
[2] The minimum number of disks in a RAID-DP group is three: at least one data disk, one regular parity disk, and one double-parity (dParity) disk. However, for non-root aggregates with only one RAID group, you must have at least 5 disks (three data disks and two parity disks).

Supported Adapter Cards - FAS8060 Single Chassis HA Pair

Priority	Category	Bus Type	Mktg Part No.	Mfg Part No	Description	Plug Type	Optical Module Included?	Cables	Supported Protocol(s)	Min ONTAP	Max Qty [1]	Priority Slot Assignment
1	Networking	PCIe	X1117A-R6 [2]	111-01232, 111-00754	2p 10GbE NIC Cu\|Op	111-01232,	2p 10GbE NIC Cu\|Op	SFP+	Ethernet 10Gb	View	Ethernet 10Gb	9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
2	Networking (Target)	PCIe	X1143A-R6 [3]	111-00910	2p 16Gb\|10Gb UTA2 Cu\|Op	111-00910	2p 16Gb\|10Gb UTA2 Cu\|Op	SFP+	Ethernet 10Gb, Fibre Channel 4/8/16 Gb	View	Ethernet 10Gb,	9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
3	Networking	PCIe	X1120A-R6 [4]	111-01688	2p 10GBASE-T NIC Cu	111-01688	2p 10GBASE-T NIC Cu	RJ45	Ethernet 1/10 Gb	View	Ethernet 1/10 Gb	9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
4	Block Access (Target)	PCIe3	X1134A [5]	111-03249	2p 32Gb FC SFP+ Op (Target Only)	111-03249	2p 32Gb FC SFP+ Op (Target Only)	SFP+	Fibre Channel 8/16/32 Gb	View	Fibre Channel 8/16/32 Gb	9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
5	Block Access (Target)	PCIe	X1143A-R6 [3]	111-00910	2p 16Gb\|10Gb UTA2 Cu\|Op	111-00910	2p 16Gb\|10Gb UTA2 Cu\|Op	SFP+	Ethernet 10Gb, Fibre Channel 4/8/16 Gb	View	Ethernet 10Gb,	9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
6	Block Access (Target)	PCIe3	X1133A-R6	111-02451	4p 16Gb FC SFP+ Op	111-02451	4p 16Gb FC SFP+ Op	SFP+	Fibre Channel 4/8/16 Gb	View	Fibre Channel 4/8/16 Gb	9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 8.3, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
7	Block Access (Target)	PCIe	X1132A-R6 [6]	111-00481	4p 8Gb FC Op	111-00481	4p 8Gb FC Op	SFP	Fibre Channel 2/4/8 Gb	View	Fibre Channel 2/4/8 Gb	9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
8	Performance Acceleration	PCIe	X1973A-R6 [7]	111-00902	Flash Cache 2 (512GB)	111-00902	Flash Cache 2 (512GB)			N/A		9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
9	Performance Acceleration	PCIe	X1974A-R6 [7]	111-00903	Flash Cache 2 (1.0TB)	111-00903	Flash Cache 2 (1.0TB)			N/A		9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
10	Performance Acceleration	PCIe	X1975A-R6 [7]	111-00904	Flash Cache 2 (2.0TB)	111-00904	Flash Cache 2 (2.0TB)			N/A		9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
11	Block Access (Target)	PCIe	X1130A-R6	111-00416	4p 4Gb FC Op	111-00416	4p 4Gb FC Op	LC	Fibre Channel 1/2/4 Gb	View	Fibre Channel 1/2/4 Gb	9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
12	Networking	PCIe	X1049C-R6	111-01034	4p 1GbE NIC Cu	111-01034	4p 1GbE NIC Cu	RJ45	Ethernet 10/100/1000 Mb	View	Ethernet 10/100/1000 Mb	9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
13	Networking	PCIe	X1048A-R6	111-00909	4p 1GbE NIC Op	111-00909	4p 1GbE NIC Op	LC	Ethernet 10/100/1000 Mb	View	Ethernet 10/100/1000 Mb	9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
14	Storage (Initiator)	PCIe	X1143A-R6 [3]	111-00910	2p 16Gb\|10Gb UTA2 Cu\|Op	111-00910	2p 16Gb\|10Gb UTA2 Cu\|Op	SFP+	Ethernet 10Gb, Fibre Channel 4/8/16 Gb	View	Ethernet 10Gb,	9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
15	Storage (Initiator)	PCIe3	X1133A-R6	111-02451	4p 16Gb FC SFP+ Op	111-02451	4p 16Gb FC SFP+ Op	SFP+	Fibre Channel 4/8/16 Gb	View	Fibre Channel 4/8/16 Gb	9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
16	Storage (Initiator)	PCIe	X1132A-R6	111-00481	4p 8Gb FC Op	111-00481	4p 8Gb FC Op	SFP	Fibre Channel 2/4/8 Gb	View	Fibre Channel 2/4/8 Gb	9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
17	Storage (Initiator)	PCIe3	X2071A	111-03801	4p 12Gb SAS miniSAS HD Cu\|Op	111-03801	4p 12Gb SAS miniSAS HD Cu\|Op	MiniSAS HD	SAS 6/12 Gb	View	SAS 6/12 Gb	9.1P10, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
18	Storage (Initiator)	PCIe	X2069-R6	111-02026	4p 12Gb SAS Cu\|Op	111-02026	4p 12Gb SAS Cu\|Op	QSFP	SAS 3/6/12 Gb	View	SAS 3/6/12 Gb	9.0RC1, 9.1RC1, 9.2RC1, 8.2.3, 8.3.1RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
19	Storage (Initiator)	PCIe	X2065A-R6 [8]	111-00341	4p 6Gb SAS Cu\|Op	111-00341	4p 6Gb SAS Cu\|Op	QSFP	SAS 3/6 Gb	View	SAS 3/6 Gb	9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
20	Storage (Initiator)	PCIe	X2054A-R6	111-00285	4p 4Gb FC Op	111-00285	4p 4Gb FC Op	LC	Fibre Channel 1/2/4 Gb	View	Fibre Channel 1/2/4 Gb	9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
21	Tape (Initiator)	PCIe	X1143A-R6 [9]	111-00910	2p 16Gb\|10Gb UTA2 Cu\|Op	111-00910	2p 16Gb\|10Gb UTA2 Cu\|Op	SFP+	Ethernet 10Gb, Fibre Channel 4/8/16 Gb	View	Ethernet 10Gb,	9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
22	Tape (Initiator)	PCIe3	X1133A-R6 [10]	111-02451	4p 16Gb FC SFP+ Op	111-02451	4p 16Gb FC SFP+ Op	SFP+	Fibre Channel 4/8/16 Gb	View	Fibre Channel 4/8/16 Gb	9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
23	Tape (Initiator)	PCIe	X1132A-R6	111-00481	4p 8Gb FC Op	111-00481	4p 8Gb FC Op	SFP	Fibre Channel 2/4/8 Gb	View	Fibre Channel 2/4/8 Gb	9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
24	Tape (Initiator)	PCIe3	X2071A	111-03801	4p 12Gb SAS miniSAS HD Cu\|Op	111-03801	4p 12Gb SAS miniSAS HD Cu\|Op	MiniSAS HD	SAS 6/12 Gb	View	SAS 6/12 Gb	9.1P10, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
25	Tape (Initiator)	PCIe	X2069-R6	111-02026	4p 12Gb SAS Cu\|Op	111-02026	4p 12Gb SAS Cu\|Op	QSFP	SAS 3/6/12 Gb	View	SAS 3/6/12 Gb	9.0RC1, 9.1RC1, 9.2RC1, 8.2.3, 8.3.1RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
26	Tape (Initiator)	PCIe	X2065A-R6 [8]	111-00341	4p 6Gb SAS Cu\|Op	111-00341	4p 6Gb SAS Cu\|Op	QSFP	SAS 3/6 Gb	View	SAS 3/6 Gb	9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
27	Tape (Initiator)	PCIe	X2054A-R6	111-00285	4p 4Gb FC Op	111-00285	4p 4Gb FC Op	LC	Fibre Channel 1/2/4 Gb	View	Fibre Channel 1/2/4 Gb	9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
Footnote:
[1] Values shown for max quantity are per controller. HA configurations will support 2x the values shown.
[2] Requires X6569-R6 SFP+ or twinax cable,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.
[3] UTA2 ports can be configured as FC target/initiator or CNA (FCoE arget/Ethernet) mode. Both ports must be configured for the same mode and use same SFP+ type. Refer to the Cables link in this table to view supported SFP+ modules or copper twinax cables used in FC or CNA mode. X1143A cannot be used for cluster interconnect on this platform. UTA2 ports are not supported for connectivity to DS14 shelves. To connect to DS14 shelves, use the X1132A-R6 or X2054A-R6 FC adapters.,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode
[4] X1120A cannot be used for cluster interconnect on this platform
[5] Target mode adapter only. Foreign LUN import (FLI) requires initiator mode.
[6] Ports configurable for target mode
[7] Max qty of Flash Cache adapters is limited by the system cache capacity limit. Please refer to the System Cache Limits in the Controller section for more information.
[8] SAS X2065A-R6 versions 111-00341+Ax through 111-00341+D0 are not supported on FAS8000 systems and need to be replaced with newer SAS HBA cards.
[9] UTA2 ports can be configured as FC target/initiator or CNA (FCoE arget/Ethernet) mode. Both ports must be configured for the same mode and use same SFP+ type. Refer to the Cables link in this table to view supported SFP+ modules or copper twinax cables used in FC or CNA mode. X1143A cannot be used for cluster interconnect on this platform. UTA2 ports are not supported for connectivity to DS14 shelves. To connect to DS14 shelves, use the X1132A-R6 or X2054A-R6 FC adapters. UTA2 ports are not supported with IBM tape devices. Direct connection to tape drives with UTA2 ports are supported on HP, Quantum, and Tandberg tape devices, other non-IBM tape devices require a FC switch between the UTA2 port and tape drive.,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+

Supported Connections for FAS8060 Single Chassis HA Pair

Configuration Type	Port Configuration	Image	Cluster Ports per Node	Switch Ports per Node
Cluster Interconnect

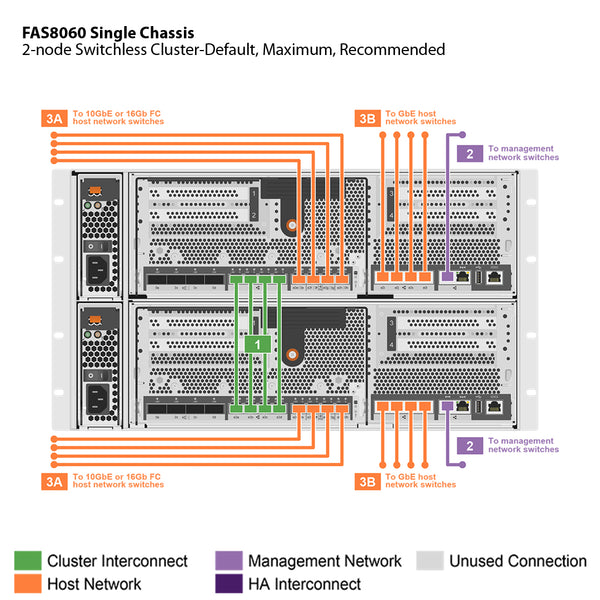

2-node Switchless Cluster	Default, Maximum, Recommended	View Image	4	None

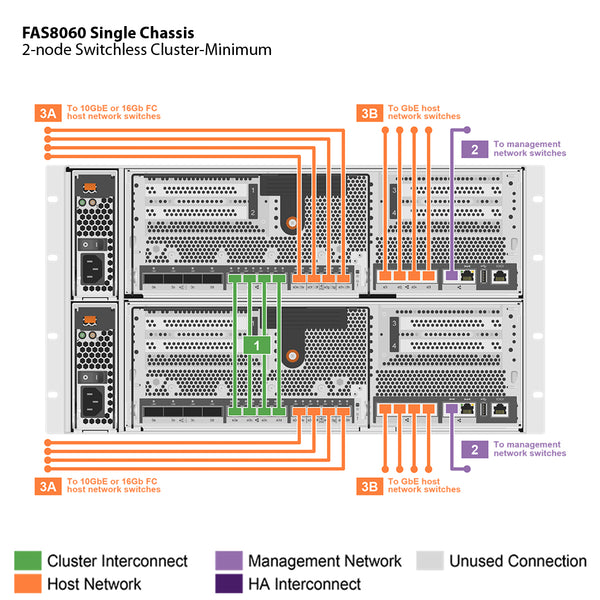

2-node Switchless Cluster	Minimum	View Image	2	None

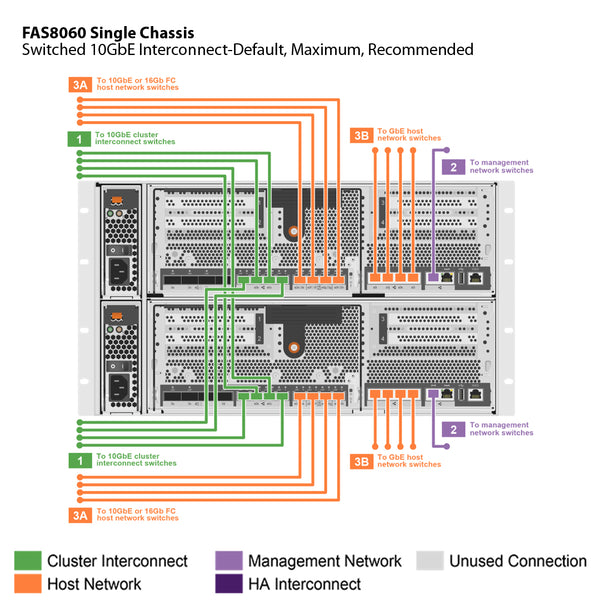

Switched 10GbE Interconnect	Default, Maximum, Recommended	View Image	4	4

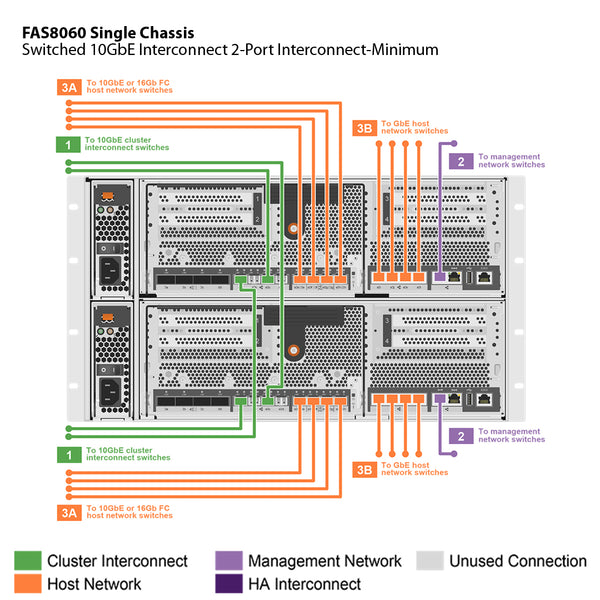

Switched 10GbE Interconnect 2-Port Interconnect	Minimum	View Image	2	2

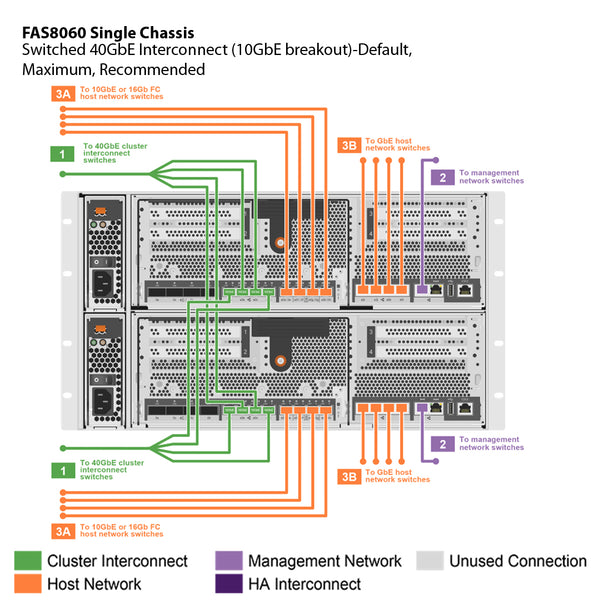

Switched 40GbE Interconnect (10GbE breakout)	Default, Maximum, Recommended	View Image	4	1

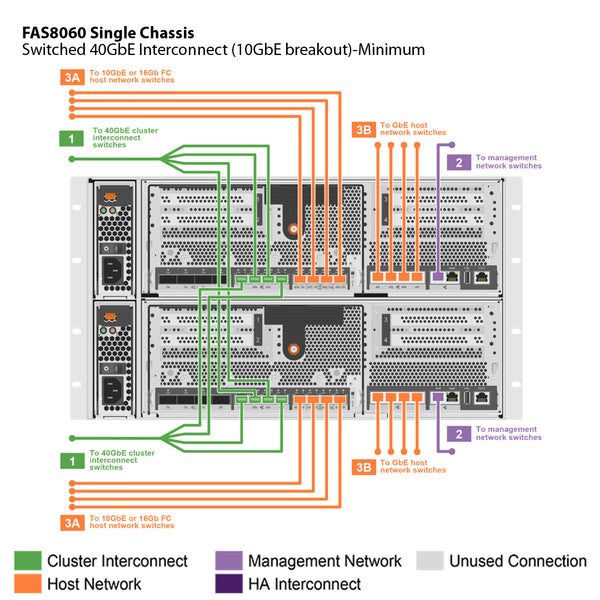

Switched 40GbE Interconnect (10GbE breakout)	Minimum	View Image	2	1

Platform Mixing Rules: FAS8060 Single Chassis HA Pair

Platform Configuration Type	Maximum Nodes (NAS) [1]	Maximum Nodes (SAN) [1]	Min ONTAP Version for Platform Mixing
FAS - Current Configuration(s)
FAS2720A 10GBASE-T	24 Nodes	12 Nodes	9.4RC1
FAS2720A UTA2	24 Nodes	12 Nodes	9.4RC1
FAS2750A 10GBASE-T	24 Nodes	12 Nodes	9.4RC1
FAS2750A UTA2	24 Nodes	12 Nodes	9.4RC1
FAS8060 Single Chassis HA PairA	24 Nodes	12 Nodes	9.8RC1
FAS8300A Ethernet Bundle	24 Nodes	12 Nodes	9.7RC1
FAS8300A FC Bundle	24 Nodes	12 Nodes	9.7RC1
FAS8700A Ethernet Bundle	24 Nodes	12 Nodes	9.7RC1
FAS8700A FC Bundle	24 Nodes	12 Nodes	9.7RC1
FAS9000A	24 Nodes	12 Nodes	9.1RC2
AllFlashFAS - Current Configuration(s)
AFF A250A	24 Nodes	12 Nodes	9.8RC1
AFF A400A Ethernet Bundle	24 Nodes	12 Nodes	9.7RC1
AFF A400A FC Bundle	24 Nodes	12 Nodes	9.7RC1
AFF A700A	24 Nodes	12 Nodes	9.1RC2
AFF A800A	24 Nodes	12 Nodes	9.4RC1
AFF C190A 10GBASE-T	24 Nodes	12 Nodes	9.6RC2
AFF C190A UTA2	24 Nodes	12 Nodes	9.6RC2
FAS - Legacy EOA Configuration(s)
FAS2520HA	8 Nodes	8 Nodes	9.1
FAS2552HA	8 Nodes	8 Nodes	9.1
FAS2554HA	8 Nodes	8 Nodes	9.1
FAS2620A	24 Nodes	12 Nodes	9.1
FAS2650A	24 Nodes	12 Nodes	9.1
FAS8020A	24 Nodes	12 Nodes	9.0RC1
FAS8040A	24 Nodes	12 Nodes	9.0RC1
FAS8060A	24 Nodes	12 Nodes	9.0RC1
FAS8060AE	24 Nodes	12 Nodes	9.0RC1
FAS8080AE EX	24 Nodes	12 Nodes	9.0RC1
FAS8200A	24 Nodes	12 Nodes	9.1RC1
AllFlashFAS - Legacy EOA Configuration(s)
AFF A200A	24 Nodes	12 Nodes	9.1
AFF A220A 10GBASE-T	24 Nodes	12 Nodes	9.4RC1
AFF A220A UTA2	24 Nodes	12 Nodes	9.4RC1
AFF A300A	24 Nodes	12 Nodes	9.1RC1
AFF A320A	24 Nodes	12 Nodes	9.6RC2
AFF A700s	24 Nodes	12 Nodes	9.1
AFF8020A	24 Nodes	12 Nodes	9.0RC1
AFF8040A	24 Nodes	12 Nodes	9.0RC1
AFF8060A	24 Nodes	12 Nodes	9.0RC1
AFF8060AE	24 Nodes	12 Nodes	9.0RC1
AFF8080A EX	24 Nodes	12 Nodes	9.0RC1
AFF8080AE EX	24 Nodes	12 Nodes	9.0RC1
Footnote:
[1] Maximum number of nodes within a cluster is determined by platform which supports the fewest number of nodes

Product Standard Compliance - FAS8060 Single Chassis HA Pair

Standard	Description
Certifications EMC/EMI
AMCA	Australia and New Zealand (EMC covered by ACMA DoC)
FCC	Federal Communications Commission (EMI Declaration of Conformity covering United States and Canada)
ICES	ICES
KC	Korea Communications Commission (EMC certificate for South Korea)
Morocco	Morocco Declaration of Conformity
VCCI	EMI Certificate for Japan
Certifications safety
BIS	Bureau of Indian Standard (Safety cert for India)
CB	Certificate Body issued safety certificate covering International
CSA	Canadian Standards Association issued Safety certificate covering North America
G_K_U-SoR	Safety certificate for Gabon, Kenya and Uganda
IRAM	Instituto Argentino de Normalización y Certificación (safety certificate for Argentina)
NOM	Norma Oficial Mexicana (Safety cert for Mexico)
NRCS	National Regulator for Compulsory Specifications (Safety cert for South Africa)
SONCAP	Standards Organisation of Nigeria Conformity Assessment Programme (Safety cert for Nigeria)
TBS	Tanzanian Bureau of Standards (Safety certificate for Tanzania)
Certifications Safety/EMC/EMI
EAC	Euro Asia Conformity (EMC and Safety Cert) covering (Russia, Kazakhstan, Belarus, Armenia, Kyrgyzstan Countries)
UKRSEPRO	EMC/Safety certificate for Ukraine
Certifications Safety/EMC/EMI/RoHS
BSMI	Certificate for Taiwan
CE DoC	European Union Declaration of Conformity
Standards EMC/EMI
CISPR 22	EMI
EN55022	EMC Standard fo European Union
EN55024	EMC Standard fo European Union
EN61000-3-2	EMC Standard for European Union
EN61000-3-3	EMC Standard for European Union
FCC Part 15 Class A	EMI standard for United States
ICES-3	EMI Stardard for Canada
Standards Safety
ANSI/UL 60950-1	ANSI/UL 60950-1
CNS 14336	Safety Standard for Taiwan
CSA 60950	CSA 60950
EN60825-1	Laser Safety standard for European Union
EN60950-1	EN60950-1
IEC60825-1	Laser Safety Standard for International
Certifications EMC/EMI
AMCA	Australia and New Zealand (EMC covered by ACMA DoC)
FCC	Federal Communications Commission (EMI Declaration of Conformity covering United States and Canada)
ICES	ICES
KC	Korea Communications Commission (EMC certificate for South Korea)
Morocco	Morocco Declaration of Conformity
VCCI	EMI Certificate for Japan
Certifications safety
BIS	Bureau of Indian Standard (Safety cert for India)
CB	Certificate Body issued safety certificate covering International
CSA	Canadian Standards Association issued Safety certificate covering North America
G_K_U-SoR	Safety certificate for Gabon, Kenya and Uganda
IRAM	Instituto Argentino de Normalización y Certificación (safety certificate for Argentina)
NOM	Norma Oficial Mexicana (Safety cert for Mexico)
NRCS	National Regulator for Compulsory Specifications (Safety cert for South Africa)
SONCAP	Standards Organisation of Nigeria Conformity Assessment Programme (Safety cert for Nigeria)
TBS	Tanzanian Bureau of Standards (Safety certificate for Tanzania)
Certifications Safety/EMC/EMI
EAC	Euro Asia Conformity (EMC and Safety Cert) covering (Russia, Kazakhstan, Belarus, Armenia, Kyrgyzstan Countries)
UKRSEPRO	EMC/Safety certificate for Ukraine
Certifications Safety/EMC/EMI/RoHS
BSMI	Certificate for Taiwan
CE DoC	European Union Declaration of Conformity
Standards EMC/EMI
CISPR 22	EMI
EN55022	EMC Standard fo European Union
EN55024	EMC Standard fo European Union
EN61000-3-2	EMC Standard for European Union
EN61000-3-3	EMC Standard for European Union
FCC Part 15 Class A	EMI standard for United States
ICES-3	EMI Stardard for Canada
Standards Safety
ANSI/UL 60950-1	ANSI/UL 60950-1
CNS 14336	Safety Standard for Taiwan
CSA 60950	CSA 60950
EN60825-1	Laser Safety standard for European Union
EN60950-1	EN60950-1
IEC60825-1	Laser Safety Standard for International

Supported OS Version - FAS8060 Single Chassis HA Pair

OS Major Version	Supported OS Version	Supported Milestones	Recommend Version
Currently Supported OS
ONTAP 9.8	9.8P13, 9.8P12, 9.8P11, 9.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4, 9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1	End of Full Support: 31-Dec-2023 End of Limited Support: 31-Dec-2025 End of Self-Service Support: 31-Dec-2028	9.8P13, 9.8P12
ONTAP 9.7	9.7P19, 9.7P18, 9.7P17, 9.7P16, 9.7P15, 9.7P14, 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1	End of Full Support: 31-Jan-2023 End of Limited Support: 31-Jan-2025 End of Self-Service Support: 31-Jan-2028	9.7P19
EOS OS
ONTAP 9.7	9.7P19, 9.7P18, 9.7P17, 9.7P16, 9.7P15, 9.7P14, 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1	End of Full Support: 31-Jan-2023 End of Limited Support: 31-Jan-2025 End of Self-Service Support: 31-Jan-2028	9.7P19
ONTAP 9.6	9.6P18, 9.6P17, 9.6P16, 9.6P15, 9.6P14, 9.6P13, 9.6P12, 9.6P11, 9.6P10, 9.6P9, 9.6P8, 9.6P7, 9.6P6, 9.6P5, 9.6P4, 9.6P3, 9.6P2, 9.6P1, 9.6, 9.6RC2, 9.6RC1	End of Full Support: 30-Jun-2022 End of Limited Support: 30-Jun-2024 End of Self-Service Support: 30-Jun-2027	9.6P18
ONTAP 9.5	9.5P19, 9.5P18, 9.5P17, 9.5P16, 9.5P15, 9.5P14, 9.5P13, 9.5P12, 9.5P11, 9.5P10, 9.5P9, 9.5P8, 9.5P7, 9.5P6, 9.5P5, 9.5P4, 9.5P3, 9.5P2, 9.5P1, 9.5, 9.5RC1	End of Full Support: 31-Jan-2022 End of Limited Support: 31-Jan-2024 End of Self-Service Support: 31-Jan-2027	9.5P19
ONTAP 9.4	9.4P8, 9.4P7, 9.4P6, 9.4P5, 9.4P4, 9.4P3, 9.4P2, 9.4P1, 9.4, 9.4RC1	End of Full Support: 30-Jun-2019 End of Limited Support: 30-Jun-2021 End of Self-Service Support: 30-Jun-2024	9.4P8
Clustered Data ONTAP 8.3	8.3.2P12, 8.3.2P11, 8.3.2P10, 8.3.2P9, 8.3.2P8, 8.3.2P7, 8.3.2P6, 8.3.2P5, 8.3.2P4, 8.3.2P3, 8.3.2P2, 8.3.2P1, 8.3.2, 8.3.2RC2, 8.3.2RC1, 8.3.1P2, 8.3.1P1, 8.3.1, 8.3.1RC1, 8.3P2, 8.3P1, 8.3, 8.3RC2, 8.3RC1	End of Full Support: 31-Oct-2017 End of Limited Support: 30-Apr-2019 End of Self-Service Support: 30-Apr-2022	8.3.2P12
ONTAP 9.3	9.3P21, 9.3P20, 9.3P19, 9.3P18, 9.3P17, 9.3P16, 9.3P15, 9.3P14, 9.3P13, 9.3P12, 9.3P11, 9.3P10, 9.3P9, 9.3P8, 9.3P7, 9.3P6, 9.3P5, 9.3P4, 9.3P3, 9.3P2, 9.3P1, 9.3, 9.3RC1	End of Full Support: 31-Jan-2021 End of Limited Support: 31-Jan-2023 End of Self-Service Support: 31-Jan-2026	9.3P21
Clustered Data ONTAP 8.2	8.2.4P6, 8.2.4P5, 8.2.4P4, 8.2.4P3, 8.2.4P2, 8.2.4P1, 8.2.4, 8.2.3P6, 8.2.3P5, 8.2.3P4, 8.2.3P3, 8.2.3P2, 8.2.3P1, 8.2.3, 8.2.2P2, 8.2.2P1, 8.2.2, 8.2.2RC2, 8.2.2RC1, 8.2.1P3, 8.2.1P2, 8.2.1P1, 8.2.1, 8.2.1RC2	End of Full Support: 31-Jul-2017 End of Limited Support: 31-Jan-2019 End of Self-Service Support: 31-Jan-2022	8.2.4P6
7-Mode 8.2	8.2.5P5, 8.2.5P4, 8.2.5P3, 8.2.5P2, 8.2.5P1, 8.2.5, 8.2.4P6, 8.2.4P5, 8.2.4P4, 8.2.4P3, 8.2.4P2, 8.2.4P1, 8.2.4, 8.2.3P6, 8.2.3P5, 8.2.3P4, 8.2.3P3, 8.2.3P2, 8.2.3P1, 8.2.3, 8.2.2, 8.2.2RC2, 8.2.2RC1, 8.2.1, 8.2.1RC2	End of Full Support: 31-Dec-2020 End of Limited Support: 31-Dec-2022 End of Self-Service Support: 31-Dec-2025	8.2.5P5
ONTAP 9.2	9.2P4, 9.2P3, 9.2P2, 9.2P1, 9.2, 9.2RC1	End of Full Support: 31-Jul-2018 End of Limited Support: 31-Jul-2020 End of Self-Service Support: 31-Jul-2023	9.2P4
ONTAP 9.1	9.1P20, 9.1P19, 9.1P18, 9.1P17, 9.1P16, 9.1P15, 9.1P14, 9.1P13, 9.1P12, 9.1P11, 9.1P10, 9.1P9, 9.1P8, 9.1P7, 9.1P6, 9.1P5, 9.1P3, 9.1P2, 9.1P1, 9.1, 9.1RC2, 9.1RC1	End of Full Support: 31-Jan-2020 End of Limited Support: 31-Jan-2022 End of Self-Service Support: 31-Jan-2025	9.1P20
Definitions:
[1]End of Full Support: The date marking the end of Full Support for a particular feature version of a NetApp system software and the beginning of Limited Support. Abbreviated as EOES.
[2]End of Limited Support: The date marking the end of Limited Support for a particular feature version of a product and transition to Self-Service Support. Abbreviated as EOVS.
[3]End of Self-Service Support: NetApp does not provide support for a version of a software product, but related documentation is still available on the NetApp Support Site. NetApp customers are expected to utilize documentation to resolve issues.

Supported Power Cords for FAS8060 Single Chassis HA Pair

Marketing Part No.	End 1 / End 2	Length	Description
Non-Cabinet Power Cords
X800B-R6	CEE 7/7 (Schuko) / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6	BS1363 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800D-R6	JIS-C-8303 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/125V
X800E-R6	NEMA 5-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/125V
X800F-R6	AS/NZS 3112 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6	SEV 1011 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6	IRAM 2073 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6	GB2099 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6	DHCR107-2-D1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6	SANS 164-1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6	SI32 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6	CEI 23-16 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Italy,10A/250V
X800P-R6	NEMA 6-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/250V
X800T-R6	CNS 10917-3 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V
X800VB-R6	NBR14136 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Brazil,10A/250V
X800W-R6	CNS10917/CNS690 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6	JIS-C-830 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X1558A-R6	IEC60320-C14 / IEC60320-C13	1.20 m	Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35	IEC60320-C14 / IEC60320-C13	0.89 m	Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43	IEC60320-C14 / IEC60320-C13	1.09 m	Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64	IEC60320-C14 / IEC60320-C13	1.63 m	Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6	IEC60320-C14 / IEC60320-C13	0.68 m	Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

Onboard Ports Configuration: FAS8060 Single Chassis HA Pair

Port Address	Description	Supported Protocols	Port Icon	Port Type
0a [1]	Serial-Attached SCSI	SAS 3/6 Gb	SAS	QSFP
0b [1]	Serial-Attached SCSI	SAS 3/6 Gb	SAS	QSFP
0c [1]	Serial-Attached SCSI	SAS 3/6 Gb	SAS	QSFP
0d [1]	Serial-Attached SCSI	SAS 3/6 Gb	SAS	QSFP
e0a [2]	Ethernet	Ethernet 10Gb	Ethernet	SFP+
e0b [2]	Ethernet	Ethernet 10Gb	Ethernet	SFP+
e0c [2]	Ethernet	Ethernet 10Gb	Ethernet	SFP+
e0d [2]	Ethernet	Ethernet 10Gb	Ethernet	SFP+
e0e/0e [3] [4]	Unified Target Adapter 2	Ethernet 10Gb, Fibre Channel 4/8/16 Gb	Ethernet/Fibre Channel	SFP+
e0f/0f [3] [4]	Unified Target Adapter 2	Ethernet 10Gb, Fibre Channel 4/8/16 Gb	Ethernet/Fibre Channel	SFP+
e0g/0g [3] [4]	Unified Target Adapter 2	Ethernet 10Gb, Fibre Channel 4/8/16 Gb	Ethernet/Fibre Channel	SFP+
e0h/0h [3] [4]	Unified Target Adapter 2	Ethernet 10Gb, Fibre Channel 4/8/16 Gb	Ethernet/Fibre Channel	SFP+
e0i	Ethernet	Ethernet 10/100/1000 Mb	Ethernet	RJ45
e0j	Ethernet	Ethernet 10/100/1000 Mb	Ethernet	RJ45
e0k	Ethernet	Ethernet 10/100/1000 Mb	Ethernet	RJ45
e0l	Ethernet	Ethernet 10/100/1000 Mb	Ethernet	RJ45
e0M/SP [5]	Management	Ethernet 10/100/1000 Mb	Wrench	RJ45
e0P [6]	Private Management	Ethernet 10/100 Mb	Wrench w/Padlock	RJ45
Serial Interface	Serial Console	RS-232 9600bps	Serial Interface	RJ45
Footnote:
[1] Supports SAS tape devices.Metrocluster Configuration Notes: Can be used for SAS optical storage connectivity in 7-mode Stretched MetroCluster. Not supported for storage connectivity in a 7-mode Fabric MetroCluster or MetroCluster C-mode (FS.0)
[2] See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements
[3] Connecting tape drives or tape libraries to the FC or UTA2 ports requires the use of a FC switch.
[4] CNA ports 0e,0f,0g,0h can be configured as FC Target/Initiator, or FCoE target. CNA ports e0e, e0f,e0g,e0h can be used as Ethernet. Do not use e0e, e0f, e0g, e0h for cluster interconnect on this platform.Port pairs e0e/0e and e0f/0f have to have the same SFP+ type, 10GbE SFP+ (X6599A-R6) or 16Gb SFP+ (X6596-R6).Port pairs e0g/0g and e0h/0h have to have the same SFP+ type, 10GbE SFP+ (X6599A-R6) or 16Gb SFP+ (X6596-R6).
[5] e0M is default management port
[6] e0P is private management interconnect port

Supported Platform Configurations - FAS8060 Single Chassis HA Pair

Platform Configuration	Description	Chassis Configuration	Chassis Count	Controller Count (per chassis)	IOXM Count (per chassis)	Rack Units (Per System)	Weight (Per Chassis)	Min ONTAP
Stand Alone
FAS8060	FAS8060 Single Node	Cb	1	1	0	6	102.07 lb (46.3 kg)	9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
FAS8060E	FAS8060 Single Node with IO Expansion	CI	1	1	1	6	115.08 lb (52.2 kg)	9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
HA Pair
FAS8060A	FAS8060 Single Chassis HA Pair	CC	1	2	0	6	121.47 lb (55.1 kg)	9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
FAS8060AE	FAS8060 Dual Chassis HA Pair with IO Expansion	CI-HA	2	1	1	12	115.08 lb (52.2 kg)	9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
MetroCluster
FAS8060-2NBSMC	FAS8060 2-Node Stretch MetroCluster, Fiber Bridge	Cb-HA	2	1	0	12	102.07 lb (46.3 kg)	9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
FAS8060-2NDSMC	FAS8060 2-Node Stretch MetroCluster, Optical SAS	Cb-HA	2	1	0	12	102.07 lb (46.3 kg)	9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
FAS8060-2NFMC	FAS8060 2-Node Fabric MetroCluster	Cb-HA	2	1	0	12	102.07 lb (46.3 kg)	9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
FAS8060-4NFMC	FAS8060 4-Node Fabric MetroCluster	CC-CC	2	2	0	12	121.47 lb (55.1 kg)	9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
FAS8060-8NFMC	FAS8060 8-Node Fabric MetroCluster	2x(CC-CC)	4	2	0	24	121.47 lb (55.1 kg)	9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
FAS8060AE-2NFMC	FAS8060 2-Node Fabric MetroCluster with IO Expansion	CI-HA	2	1	1	12	115.08 lb (52.2 kg)	9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
FAS8060AE-4NFMC	FAS8060 4-Node Fabric MetroCluster with IO Expansion	CI-HA-CI-HA	4	1	1	24	115.08 lb (52.2 kg)	9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
FAS8060AE-8NFMC	FAS8060 8-Node Fabric MetroCluster with IO Expansion	2x(CI-HA-CI-HA)	8	1	1	48	115.08 lb (52.2 kg)	9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
FAS8060E-2NBSMC	FAS8060 2-Node Stretch MetroCluster with IO Expansion, Fiber Bridge	CI-HA	2	1	1	12	115.08 lb (52.2 kg)	9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
FAS8060E-2NDSMC	FAS8060 2-Node Stretch MetroCluster with IO Expansion, Optical SAS	CI-HA	2	1	1	12	115.08 lb (52.2 kg)	9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1

Platform Memory Specifications - FAS8060 Single Chassis HA Pair

Part Number	Description	Mfg Part Number	Non-Volatile	Qty	Capacity (GB)	NVRAM/NVMEM Used Capacity (GB)	RAM Used Capacity (GB)
X3213-R6	8GB memory DIMM, DDR3-1333	111-01776	no	16	8	-	128
X3213-R6	8GB memory DIMM, DDR3-1333	111-01776	yes	2	8	16	-

Supported Rail Kit for FAS8060 Single Chassis HA Pair

Marketing Part No.	Manufacturing Part No.	Description
NetApp System Cabinet Rail Kits
X877B-R6	111-00596	Rail Kit II, NetApp Cabinet, R6
X8783A-R6	111-01110	Rail Kit III, NetApp Cabinet, R6
X87880A	111-03887	Rail Kit 4,Cabinet
Third-Party Cabinet Rail Kits
X-02659-00	113-00232	Kit,4-Post,Square or Round-Hole, 24"-32" Rail
X5515A-R6 [1]	111-00232	Kit,2-Post (Round) or 4-Post (Square), 24"-32" Rail
X5525A-R6 [2]	111-00583	Kit,2-Post,Round-Hole
X5526A-R6	111-00593	Kit,4-Post.Square-Hole, 24"-32" Rail
X5529A-R6	111-00310	Kit,4-Post,Swift,Square-Hole, 24"-32" Rail

Field Replacement Unit Parts - FAS8060 Single Chassis HA Pair

Marketing Part No.	Manufacturing Part No.	Description
Adapter Card
X1048A-EN-R6-C	111-00909	NIC 4-Port Optical GbE PCIe,EN,-C
X1048A-R6	111-00909	NIC 4-Port Optical GbE PCIe
X1048A-R6-C	111-00909	NIC 4-Port Optical GbE PCIe,-C
X1049C-R6	111-01034	NIC 4-Port Copper GbE II PCIe
X1049C-R6-C	111-01034	NIC 4-Port Copper GbE II PCIe,-C
X1117A-EN-R6-C [1]	111-00754, 111-01232	NICII 2-Port Bare Cage SFP+ 10GbE PCIe,EN,-C
X1117A-N-C [1]	111-00754, 111-01232	NICII 2-Port Bare Cage SFP+ 10GbE PCIe,-C
X1117A-R6 [1]	111-00754, 111-01232	NICII 2-Port Bare Cage SFP+ 10GbE PCIe
X1117A-R6-C [1]	111-00754, 111-01232	NICII 2-Port Bare Cage SFP+ 10GbE PCIe,-C
X1120A-N-C [2] [3]	111-01688	NIC II 2-Port RJ45 10GBASE-T PCIe,-C
X1120A-R6 [2] [3]	111-01688	NIC II 2-Port RJ45 10GBASE-T PCIe
X1120A-R6-C [2] [3]	111-01688	NIC II 2-Port RJ45 10GBASE-T PCIe,-C
X1130A-EN-R6-C	111-00416	HBA 4-Port FCP Target 4Gb PCIe,EN,-C
X1130A-R6	111-00416	HBA 4-Port FCP Target 4Gb PCIe
X1132A-EN-R6-C [4]	111-00481	ADPT 4-Port FCP 8Gb Target Adapter PCIe,EN,-C
X1132A-R6 [4]	111-00481	ADPT 4-Pt FC 8Gb Target-Init PCIe
X1132A-R6-C [4]	111-00481	ADPT 4-Pt FC 8Gb Target-Init PCIe,-C
X1133A-N-C [5] [6]	111-02451	HBA,4-Port FCP Trgt/Init 16Gb PCIe w/SFP+,-C
X1133A-R6 [5] [6]	111-02451	HBA,4-Port FCP Trgt/Init 16Gb PCIe w/SFP+
X1133A-R6-C [5] [6]	111-02451	HBA,4-Port FCP Trgt/Init 16Gb PCIe w/SFP+,-C
X1134A [7]	111-03249	HBA,2-Port FCP Target 32Gb PCIe w/SFP+
X1134A-C [7]	111-03249	HBA,2-Port FCP Target 32Gb PCIe w/SFP+,-C
X1134A-N-C [7]	111-03249	HBA,2-Port FCP Target 32Gb PCIe w/SFP+,-C
X1143A-N-C [6] [8] [9]	111-00910	ADPT 2-Pt UTA2,10GbE,16Gb FC BareCage SFP+,-C
X1143A-R6 [6] [8] [9]	111-00910	ADPT 2-Pt UTA2,10GbE,16Gb FC BareCage SFP+
X1143A-R6-C [6] [8] [9]	111-00910	ADPT 2-Pt UTA2,10GbE,16Gb FC BareCage SFP+,-C
X1973A-R6 [10]	111-00902	Flash Cache 512GB PCIe Module 2
X1973A-R6-C [10]	111-00902	Flash Cache 512GB PCIe Module 2,-C
X1974A-R6 [10]	111-00903	Flash Cache 1TB PCIe Module 2
X1974A-R6-C [10]	111-00903	Flash Cache 1TB PCIe Module 2,-C
X1975A-R6 [10]	111-00904	Flash Cache 2TB PCIe Module 2
X1975A-R6-C [10]	111-00904	Flash Cache 2TB PCIe Module 2,-C
X2054A-EN-R6-C	111-00285	HBA 4-Port Optical 4Gb Disk PCIe,EN,-C
X2054A-R6	111-00285	HBA 4-Port Optical 4Gb Disk PCIe
X2065A-EN-R6-C [11]	111-00341	HBA SAS 4-Port Copper 3/6 Gb QSFP PCIe,EN,-C
X2065A-R6 [11]	111-00341	HBA SAS 4-Port Copper 3/6 Gb QSFP PCIe
X2069-R6	111-02026	HBA,4-Port SAS 3/6/12Gbps QSFP PCIe
X2069-R6-C	111-02026	HBA,4-Port SAS 3/6/12Gbps QSFP PCIe,-C
X2071A	111-03801	HBA,4-Port HD-miniSAS,12Gb,PCIe
X2071A-C	111-03801	HBA,4-Port HD-miniSAS,12Gb,PCIe,-C
X2071A-N-C	111-03801	HBA,4-Port HD-miniSAS,12Gb,PCIe,-C
Battery
X1834-R6	111-01523	Battery Assembly For NVRAM9,FAS8040/60/80
X1847	271-01847	Lithium System Battery CR2032
X1847-R6	271-01847	Lithium System Battery CR2032,R6
Bezel
X80083-R6	111-01220	Bezel,FAS8040/8060/8080
Boot Media
X1426A-R6	N/A	USB Flash,8GB
Chassis
X6232-R6	111-01207	Chassis,Empty,FAS8040/8060/8080
Data Cable
X-SFP-H10GB-CU1M-R6	112-00210	Cable,10GBase Copper SFP+ 1m
X-SFP-H10GB-CU1M-R6-C	112-00210	Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU1M-R6-N-C	112-00210	Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU3M-R6	112-00211	Cable,10GBase Copper SFP+ 3m
X-SFP-H10GB-CU3M-R6-C	112-00211	Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU3M-R6-N-C	112-00211	Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU5M-R6	112-00212	Cable,10GBase Copper SFP+ 5m
X-SFP-H10GB-CU5M-R6-C	112-00212	Cable,10GBase Copper SFP+ 5m,-C
X-SFP-H10GB-CU5M-R6-N-C	112-00212	Cable,10GBase Copper SFP+ 5m,-C
X1983-1-R6	112-00210	Cable,Twinax CU,SFP+,1M,X1962/X1963/X1967
X1983-3-R6	112-00211	Cable,Twinax CU,SFP+,3M,X1962/X1963/X1967
X1983-5-R6	112-00212	Cable,Twinax CU,SFP+,5M,X1962/X1963/X1967
X6536-R6	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op
X6536-R6-C	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6536-R6-N-C	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6537-R6	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op
X6537-R6-C	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X6537-R6-N-C	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X6546-R6	112-00074	Cable,Cntlr-Shelf/Switch,30m,LC/SC,Op
X6547-R6	112-00073	Cable,Cntlr-Shelf/Switch,5m,LC/SC,Op
X6553-R6	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op
X6553-R6-C	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6553-R6-N-C	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6554-R6	112-00189	Cable,Cntlr-Shelf/Switch,15m,LC/LC,Op
X6554-R6-C	112-00189	Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6
X6554-R6-N-C	112-00189	Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6,-C
X6557-EN-R6-C	112-00176	Cbl,SAS Cntlr-Shelf/Shelf-Shelf/HA,0.5m,EN,-C
X6557-R6	112-00176	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,0.5m
X6557-R6-C	112-00176	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,0.5m,-C
X6558-EN-R6-C	112-00177	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,2m,-C
X6558-R6	112-00177	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,2m
X6558-R6-C	112-00177	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,2m,-C
X6559-EN-R6-C	112-00178	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,5m,-C
X6559-R6	112-00178	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,5m
X6559-R6-C	112-00178	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,5m,-C
X6560-R6	112-00194	Cable,Ethernet,0.5m RJ45 CAT6
X6560-R6-C	112-00194	Cable,Ethernet,0.5m RJ45 CAT6,-C
X6560-R6-N-C	112-00194	Cable,Ethernet,0.5m RJ45 CAT6
X6561-R6	112-00195	Cable,Ethernet,2m RJ45 CAT6
X6561-R6-C	112-00195	Cable,Ethernet,2m RJ45 CAT6,-C
X6561-R6-N-C	112-00195	Cable,Ethernet,2m RJ45 CAT6,-C
X6562-R6	112-00196	Cable,Ethernet,5m RJ45 CAT6
X6562-R6-C	112-00196	Cable,Ethernet,5m RJ45 CAT6,-C
X6562-R6-N-C	112-00196	Cable,Ethernet,5m RJ45 CAT6,-C
X6566-05-R6 [12]	112-00202	Cable,Twinax Copper SFP+ 10G - 0.5M
X6566-05-R6-C [12]	112-00202	Twinax copper for CS1016 - 0.5M -C
X6566-2-R6 [12]	112-00203	Cable,Twinax Copper SFP+ 10G - 2M
X6566-2-R6-C [12]	112-00203	Twinax copper for CS1016 - 2M -C
X6566-3-R6 [12]	112-00204	Cable,Twinax Copper SFP+ 10G - 3M
X6566-3-R6-C [12]	112-00204	Twinax copper for CS1016 - 3M -C
X6566-5-R6 [12]	112-00225	Cable,Twinax Copper SFP+ 10G - 5M
X6566-5-R6-C [12]	112-00225	Twinax copper for CS1016 - 5M -C
X6566B-05-N-C	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-05-R6	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M
X6566B-05-R6-C	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-2-N-C	112-00299	Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-2-R6	112-00299	Cable,Direct Attach CU SFP+ 10G,2M
X6566B-2-R6-C	112-00299	Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-3-N-C	112-00300	Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-3-R6	112-00300	Cable,Direct Attach CU SFP+ 10G,3M
X6566B-3-R6-C	112-00300	Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-5-N-C	112-00301	Cable,Direct Attach CU SFP+ 10G,5M,-C
X6566B-5-R6	112-00301	Cable,Direct Attach CU SFP+ 10G,5M
X6566B-5-R6-C	112-00301	Cable,Direct Attach CU SFP+ 10G,5M,-C
X6577-R6	112-00238	Cable,Ethernet,30m RJ45 CAT6
X6577-R6-C	112-00238	Cable,Ethernet,30m RJ45 CAT6,-C
X6577-R6-N-C	112-00238	Cable,Ethernet,30m RJ45 CAT6,-C
X6584-R6	112-00290	Cable,Ethernet,1m RJ45 CAT6
X6584-R6-C	112-00290	Cable,Ethernet,1m RJ45 CAT6,-C
X6584-R6-N-C	112-00290	Cable,Ethernet,1m RJ45 CAT6,-C
X6585-R6	112-00291	Cable,Ethernet,3m RJ45 CAT6
X6585-R6-C	112-00291	Cable,Ethernet,3m RJ45 CAT6,-C
X6585-R6-N-C	112-00291	Cable,Ethernet,3m RJ45 CAT6,-C
X6590-R6	112-00242	Cable,SAS Cntlr-Shelf/Shelf-Shelf,10m
X6591-R6	112-00243	Cable,SAS Cntlr-Shelf/Shelf-Shelf,20m
X6592-R6	112-00246	Cable,Ethernet,10m RJ45 CAT6
X6592-R6-N-C	112-00246	Cable,Ethernet,10m RJ45 CAT6,-C
X6593-R6	112-00247	Cable,Ethernet,20m RJ45 CAT6
X6593-R6-C	112-00247	Cable,Ethernet,20m RJ45 CAT6,-C
X6593-R6-N-C	112-00247	Cable,Ethernet,20m RJ45 CAT6,-C
X6594-R6	112-00256	Cable,SAS Cntlr-Shelf/Shelf-Shelf,HA,1m
X6594-R6-C	112-00256	Cable,SAS Cntlr-Shelf/Shelf-Shelf,HA,1m,-C
X6595-R6	112-00255	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,3m
X6595-R6-C	112-00255	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,3m,-C
X66000A-R6	112-00265	Cable,Storage,SAS-OM4,6G,QSFP,1m
X66000A-R6-C	112-00265	Cable,Storage,SAS-OM4,6G,QSFP,1m,-C
X66001A-R6	112-00266	Cable,Storage,SAS-OM4,6G,QSFP,2m
X66001A-R6-C	112-00266	Cable,Storage,SAS-OM4,6G,QSFP,2m,-C
X66002A-R6	112-00267	Cable,Storage,SAS-OM4,6G,QSFP,3m
X66002A-R6-C	112-00267	Cable,Storage,SAS-OM4,6G,QSFP,3m,-C
X66003A-R6	112-00268	Cable,Storage,SAS-OM4,6G,QSFP,5m
X66003A-R6-C	112-00268	Cable,Storage,SAS-OM4,6G,QSFP,5m,-C
X66004A-R6	112-00269	Cable,Storage,SAS-OM4,6G,QSFP,7m
X66005A-R6	112-00270	Cable,Storage,SAS-OM4,6G,QSFP,15m
X66006A-R6	112-00271	Cable,Storage,SAS-OM4,6G,QSFP,30m
X66007A-R6	112-00280	Cable,Storage,SAS-OM4,6G,QSFP,50m
X66008A-R6	112-00260	Cable,LT 150m-PatchP,OM4,6G,QSFP,LC,5m
X66008A-R6-C	112-00260	Cable,LT 150m-PatchP,OM4,6G,QSFP,LC,5m,-C
X66009A-R6	112-00261	Cable,LT 150m-PatchP,OM4,6G,QSFP,LC,30m
X66009A-R6-C	112-00261	Cable,LT 150m-PatchP,OM4,6G,QSFP,LC,30m,-C
X66010A-R6	112-00263	Cable,<150m-PatchP,OM4,6G,QSFP,SC,5m
X66011A-R6	112-00264	Cable,<150m-PatchP,OM4,6G,QSFP,SC,30m
X66012A-R6	112-00278	Cable,<150m-PatchP,OM4,6G,QSFP-MTRJ,5m
X66013A-R6	112-00279	Cable,<150m-PatchP,OM4,6G,QSFP-MTRJ,30m
X66014A-R6	112-00272	Cable,LT 500m-PatchP,OS1,6G,QSFP,LC,5m
X66014A-R6-C	112-00272	Cable,LT 500m-PatchP,OS1,6G,QSFP,LC,5m,-C
X66015A-R6	112-00273	Cable,LT 500m-PatchP,OS1,6G,QSFP,LC,30m
X66015A-R6-C	112-00273	Cable,LT 500m-PatchP,OS1,6G,QSFP,LC,30m,-C
X66016A-R6	112-00274	Cable,<500m-PatchP,OS1,6G,QSFP,SC,5m
X66017A-R6	112-00276	Cable,<500m-PatchP,OS1,6G,QSFP,SC,30m
X66018A-R6	112-00281	Cable,<500m-PatchP,OS1,6G,QSFP-MTRJ,5m
X66019A-R6	112-00282	Cable,<500m-PatchP,OS1,6G,QSFP-MTRJ,30m
X66020A-R6	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m
X66020A-R6-C	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C
X66021A-R6	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m
X66021A-R6-C	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C
X66022A-R6	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m
X66022A-R6-C	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C
X66030A	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66030A-K-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66031A	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-C	112-00436	Cable,12Gb,Mini SAS HD,1m,-C
X66031A-K-N	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-N	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-N-C	112-00436	Cable,12Gb,Mini SAS HD,1m,-C
X66032A	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-C	112-00437	Cable,12Gb,Mini SAS HD,2m,-C
X66032A-K-N	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-N	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-N-C	112-00437	Cable,12Gb,Mini SAS HD,2m,-C
X66033A	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-C	112-00438	Cable,12Gb,Mini SAS HD,3m,-C
X66033A-K-N	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-N	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-N-C	112-00438	Cable,12Gb,Mini SAS HD,3m,-C
X66034A	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-C	112-00439	Cable,12Gb,Mini SAS HD,5m,-C
X66034A-K-N	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-N	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-N-C	112-00439	Cable,12Gb,Mini SAS HD,5m,-C
X66040A	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-C	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66040A-K-N	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N-C	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66041A	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-C	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66041A-K-N	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N-C	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66042A	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-C	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66042A-K-N	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N-C	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66043A	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-C	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66043A-K-N	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N-C	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66044A	112-00453	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,15m
X66045A	112-00454	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,30m
X66046A	112-00455	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,50m
X66047A	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m
X66047A-C	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66047A-N-C	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66048A	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m
X66048A-C	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66048A-N-C	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66120-3	112-00545	Cable,Direct Attach CU 40G QSFP/4x10G SFP,3m
X66120-3-C	112-00545	Cable,Dir. Attach CU 40G QSFP/4x10G SFP,3m,-C
X66120-3-N-C	112-00545	Cable,Dir Attach CU 40G QSFP/4x10G SFP,3m,-C
X66120-5	112-00546	Cable,Direct Attach CU 40G QSFP/4x10G SFP,5m
X66120-5-C	112-00546	Cable,Dir. Attach CU 40G QSFP/4x10G SFP,5m,-C
X66120-5-N-C	112-00546	Cable,Dir Attach CU 40G QSFP/4x10G SFP,5m,-C
X66201A-R6	112-00321	Cable,HA,CU,1m
X66201A-R6-C	112-00321	Cable,HA,CU,1m,-C
X66202A-R6	112-00322	Cable,HA,CU,2m
X66202A-R6-C	112-00322	Cable,HA,CU,2m,-C
X66205-30	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m
X66205-30-C	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C
X66205-30-N-C	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C
X66205-5	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m
X66205-5-C	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C
X66205-5-N-C	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C
X66210A-R6	112-00374	Cable,HA,IB,OPT,Active,5m
X66210A-R6-C	112-00374	Cable,HA,IB,OPT,Active,5m,-C
X66230A-R6	112-00375	Cable,HA,IB,OPT,Active,30m
X66230A-R6-C	112-00375	Cable,HA,IB,OPT,Active,30m,-C
X66250-15	112-00346	Cable,LC-LC,OM4,15m
X66250-15-C	112-00346	Cable,LC-LC,OM4,15m,-C
X66250-15-N-C	112-00346	Cable,LC-LC,OM4,15m,-C
X66250-2	112-00342	Cable,LC-LC,OM4,2m
X66250-2-C	112-00342	Cable,LC-LC,OM4,2m,-C
X66250-2-N-C	112-00342	Cable,LC-LC,OM4,2m,-C
X66250-30	112-00347	Cable,LC-LC,OM4,30m
X66250-30-C	112-00347	Cable,LC-LC,OM4,30m,-C
X66250-5-C	112-00344	Cable,LC-LC,OM4,5m,-C
X66250-5-N-C	112-00344	Cable,LC-LC,OM4,5m,-C
X66260-30	112-00354	Cable,LC-LC,OPT,OS2,30M
X66260-30-C	112-00354	Cable,LC-LC,OPT,OS2,30M,-C
X66260-30-N-C	112-00354	Cable,LC-LC,OPT,OS2,30M,-C
X66260-5	112-00353	Cable,LC-LC,OPT,OS2,5M
X66260-5-C	112-00353	Cable,LC-LC,OPT,OS2,5M,-C
X66260-5-N-C	112-00353	Cable,LC-LC,OPT,OS2,5M,-C
Drive
X302A-R5	108-00268	Disk Drive,1.0TB 7.2k,DS424x,FAS2240-4
X306A-R5	108-00270	Disk Drive,2.0TB 7.2k,DS424x,2554/2240-4
X308A-R5	108-00277	Disk Drive,3.0TB 7.2K,DS424x,2554/2240-4
X309A-R6 [13]	108-00301	DSK DRV,3TB 7.2k,NSE,DS424x,FAS2220/2240-4
X315A-R6 [13]	108-00368	DSK DRV,4TB 7.2k,NSE,DS424x,2554/2220/2240-4
X316A-R6	108-00389	Disk Drive,6TB 7.2k,DS4246,FAS2554
X317A [13]	108-00399	DSK DRV,6TB,7.2K,12G,NSE,DS212C
X318A-R6	108-00455	DSK DRV,8TB,7.2K,12G,DS212C
X319A	108-00687	SSD,7.6TB,12G,DS224C
X322A [13]	108-00551	DSK DRV,10TB,7.2K,12G,NSE,DS212C
X336A-R6	108-00427	DSK DRV,4TB,7.2K,12G,DS212C
X339A	108-00426	DSK DRV,2TB,7.2K,12Gb,DS212C,FAS2620
X341A-R6	108-00430	DSK DRV,900GB,10K,12G,DS224C
X342A-R6	108-00432	DSK DRV,1.2TB,10K,12G,DS224C
X343A-R6	108-00433	DSK DRV,1.8TB,10K,12G,DS224C
X356A-R6	108-00468	SSD,3.8TB,DS2246,FAS2552
X357A	108-00572	SSD,3.8TB,12G,DS224C,W/MSW
X358A [13]	108-00575	SSD,3.8TB,12G,NSE,DS224C
X359A	108-00736	SSD,30.6TB,12G,DS224C
X363A-R6	108-00467	SSD,3.8TB,FAS2520/2554
X364A	108-00650	SSD,3.8TB,DS212C,FAS2620,w/MSW
X365A-R6 [13]	108-00477	SSD,1.6TB,NSE,DS2246,FAS2552
X366A-R6 [13]	108-00470	SSD,1.6TB,NSE,DS4246,FAS2554
X371A	108-00546	SSD,960GB,12G,DS224C,W/MSW
X374A	108-00573	SSD,960GB,12G,DS212C,W/MSW
X375A	108-00590	DSK DRV,4TB,7.2K,12G,DS460C
X376A	108-00591	DSK DRV,8TB,7.2K,12G,DS460C
X377A	108-00592	DSK DRV,10TB,7.2K,12G,DS460C
X378A [13]	108-00597	DSK DRV,10TB,7.2K,12G,NSE,DS460C
X379A	108-00598	SSD,960GB,12G,DS460C,W/MSW
X380A	108-00549	DSK DRV,10TB,7.2K,12G,DS212C
X381A	108-00550	Disk Carrier,2x10TB 7.2k,DS4486
X386A [13]	108-00806	SSD,960GB,12G,NSE,DS224C
X387A	108-00886	DSK DRV,16TB,7.2K,12G,DS460C
X388A	108-00885	DSK DRV,16TB,7.2K,12G,DS212C
X416A-R5 [13]	108-00223	Disk Drive,600GB 10k,NSE,DS224x,FAS2240-2
X417A-R6 [13]	108-00246	DSK DRV,900GB,10K,NSE,DS2246,2552/2240-2
X421A-R5	108-00220	Disk Drive,450GB 10k,DS224x,FAS2240-2
X422A-R5	108-00221	Disk Drive,600GB 10k,DS224x,2552/2240-2
X423A-R5	108-00222	DSK DRV,900GB,10K,DS2246,2552/2240-2,R5
X425A-R6	108-00321	DSK DRV,1.2TB,10K,DS2246,2552/2240-2
X426A-R6	108-00424	DSK DRV,1.8TB,10K,DS2246,2552/2240-2
X427A [13]	108-00476	DSK DRV,1.8TB,10k,NSE,DS2246,FAS2552
X427B-R6 [13]	108-00438	DSK DRV,1.8TB,10K,12G,NSE,DS224C
X438A-R6	108-00369	SSD,400GB,DS224x,FAS2552/2240-2
X439A-R6	108-00372	SSD,1.6TB,DS224x,FAS2552/2240-2
X440A-R6 [13]	108-00374	SSD,800GB,NSE,DS224x,FAS2240-2,FAS2552
X440B-R6 [13]	108-00460	SSD,800GB,12G,NSE,DS224C
X441A-R5	108-00278	Solid State Drive,100GB,DS424x
X442A-R5 [14]	108-00249	Solid State Drive,100GB,3Gb,DS4243
X446A-R6	108-00257	SSD,200GB,DS224x,FAS2240-2
X446B-R6	108-00323	SSD,200GB,B,DS224x,FAS2240-2,FAS2552
X447A-R6	108-00260	SSD,800GB,DS224x,FAS2552/2240-2
X448A-R6	108-00253	SSD,200GB,DS4246,FAS2554/2240-4/2220
X449A-R6	108-00319	SSD,800GB,DS4246,FAS2554/2240-4/2220
X477A-R6	108-00315	DSK DRV,4TB 7.2k,DS4246,2554/2220/2240-4
X478A-R5	108-00250	Disk Carrier,2x3TB,DS448x
X480A-R6	108-00302	Disk Carrier,2x4TB 7.2k,DS4486
X481A-R6	108-00398	Disk Carrier,2x6TB 7.2k,DS4486
X483A-R6	108-00456	Disk Carrier,2x8TB 7.2k,DS4486
X488A-R5	108-00298	Disk Drive,900GB 10K,2520/2220
X489A-R6	108-00322	Disk Drive,1.2TB 10K,2520/2220
X490A-R6	108-00425	Disk Drive,1.8TB 10K,FAS2520
X575A-R6	108-00370	SSD,400GB,DS424x,FAS2554/2240-4/2220
X576A-R6	108-00373	SSD,1.6TB,DS424x,FAS2554/2240-4/2220
X577A-R6 [13]	108-00375	SSD,800GB,NSE,DS4246,FAS2554
X670A	108-00530	SSD,15.3TB,12G,DS224C
Fan
X8537A-R6	441-00037	Fan Assembly FAS8040/8060/8080
Memory Module
X3213-R6	111-01776	DIMM,8GB For FAS80X0 Systems
Power Cord
X1558A-R6	N/A	Jumper Crd,In-Cab,48-IN,C13-C14
X1558A-R6-C	N/A	Jumper Crd,In-Cab,48-IN,C13-C14-C
X800-42U-35	N/A	Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-C	N/A	Jumper Crd,In-Cab,C13-C14,35-inch,-C
X800-42U-35-K-N	N/A	Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-N	N/A	Power Cable,In-Cabinet,C13-C14,35-inch
X800-42U-43	N/A	Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-C	N/A	Jumper Crd,In-Cab,C13-C14,43-inch,-C
X800-42U-43-K-N	N/A	Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-N	N/A	Power Cable,In-Cabinet,C13-C14,43-inch
X800-42U-64	N/A	Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-C	N/A	Jumper Crd,In-Cab,C13-C14,64-inch,-C
X800-42U-64-K-N	N/A	Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-N	N/A	Power Cable,In-Cabinet,C13-C14,64-inch
X800-42U-R6	N/A	Jumper Crd,In-Cab,C13-C14
X800-42U-R6-C	N/A	Jumper Crd,In-Cab,C13-C14,-C
X800B-R6	N/A	Power Cable,Continental Europe,R6
X800B-R6-C	N/A	Power Cable,Continental Europe,-C,R6
X800C-R6	N/A	Power Cable,UK and Ireland,R6
X800C-R6-C	N/A	Power Cable,UK and Ireland,-C,R6
X800D-R6	N/A	Power Cable,Japan,R6
X800D-R6-C	N/A	Power Cable,Japan,-C,R6
X800E-R6	N/A	Power Cable,North America,R6
X800E-R6-C	N/A	Power Cable,North America,-C,R6
X800F-R6	N/A	Power Cable,Australia/New Zealand,R6
X800F-R6-C	N/A	Power Cable,Australia/New Zealand,-C,R6
X800G-R6	N/A	Power Cable,Switzerland,R6
X800G-R6-C	N/A	Power Cable,Switzerland,-C,R6
X800H-R6	N/A	Power Cable,Argentina,R6
X800H-R6-C	N/A	Power Cable,Argentina,-C,R6
X800I-R6	N/A	Power Cable,China,R6
X800I-R6-C	N/A	Power Cable,China,-C,R6
X800J-R6	N/A	Power Cable,Denmark,R6
X800J-R6-C	N/A	Power Cable,Denmark,-C,R6
X800K-R6	N/A	Power Cable,India,South Africa,R6
X800K-R6-C	N/A	Power Cable,India,South Africa,-C,R6
X800L-R6	N/A	Power Cable,Israel,R6
X800L-R6-C	N/A	Power Cable,Israel,-C,R6
X800M-R6	N/A	Power Cable,Italy,R6
X800M-R6-C	N/A	Power Cable,Italy,-C,R6
X800P-R6	N/A	Power Cable,North America,250V,R6
X800P-R6-C	N/A	Power Cable,North America,250V,-C,R6
X800T-R6	N/A	Power Cable,Taiwan,BSMI,R6
X800T-R6-C	N/A	Power Cable,Taiwan,BSMI,-C,R6
X800VB-R6	N/A	Power Cable,Brazil,IEC-60906-1-Plug
X800W-R6	N/A	Power Cable,Taiwan,250V,BSMI,R6
X800W-R6-C	N/A	Power Cable,Taiwan,250V,BSMI,-C
X800Y-R6	N/A	Power Cable,Japan,250V/15A
X800Y-R6-C	N/A	Power Cable,Japan,250V/15A,-C
Power Supply Unit
X763-R6	114-00040	Power Supply,1300W AC For 62XX,SA620,80X0
Processor Controller Module (PCM)
X3569-R6	111-01210	PCM,FAS8060 No Memory
Transceiver
X65400A-R6	332-00335	QSFP,MPO,Optical Transceiver,6G,LT 150m,OM4
X6569-R6	332-00299R6	SFP+ for X1117A,Optical,10GbE,R6
X6569-R6-C	332-00299R6	SFP+ for X1117A,Optical,10GbE,R6,-C
X6569-R6-N-C	332-00299R6	SFP+ for X1117A,Optical,10GbE,R6,-C
X6589-N-C	332-00279R6	SFP+Optical 10Gb Shortwave,-C
X6589-R6	332-00279R6	SFP+Optical 10Gb Shortwave
X6589-R6-C	332-00279R6	SFP+ Optical 10Gb Shortwave,-C
X6596-R6	332-00331	SFP+ FC Optical 16Gb
X6596-R6-C	332-00331	SFP+ FC Optical 16Gb,-C
X6596-R6-N-C	332-00331	SFP+ FC Optical 16Gb,-C
X6599A-N-C	332-00363	SFP+ Optical 10Gb Shortwave,-C
X6599A-R6	332-00363	SFP+ Optical 10Gb Shortwave
X6599A-R6-C	332-00363	SFP+ Optical 10Gb Shortwave,-C
X6600A-R6	332-00350	SFP+ Optical,UTA,10GbE Shortwave
X6600A-R6-C	332-00350	SFP+ Optical, UTA, 10GbE Shortwave,-C
X6600A-R6-N-C	332-00350	SFP+ Optical, UTA, 10GbE Shortwave,-C
X6601A-R6 [15]	332-00343	SFP,16Gb FC Longwave SFP+ Optical
X6601A-R6-C [15]	332-00343	SFP,16Gb FC Longwave SFP+ Optical,-C
X6601A-R6-N-C [15]	332-00343	SFP,16Gb FC Longwave SFP+ Optical,-C
X6602A-R6	332-00351	SFP+ Optical,UTA,16Gb FC Shortwave
X6602A-R6-C	332-00351	SFP+ Optical, UTA, 16Gb FC Shortwave,-C
X6602A-R6-N-C	332-00351	SFP+ Optical, UTA, 16Gb FC Shortwave,-C
X6603A	332-00400	SFP+ Optical,32Gb FC Shortwave
X6603A-C	332-00400	SFP+ Optical,32Gb FC Shortwave,-C
X6603A-N-C	332-00400	SFP+ Optical,32Gb FC Shortwave,-C
Footnote:
[1]	Requires X6569-R6 SFP+ or twinax cable,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.
[2]	The X1120A adapter card supports operation at 1Gb and 10Gb speeds. It is also possible to operate ports at different speeds.
[3]	X1120A cannot be used for cluster interconnect on this platform
[4]	Ports configurable for target mode
[5]	By default, the X1133A is shipped with all ports configured in Fibre Channel Target mode. Once installed, X1133A ports can individually be configured as FC Target or FC Initiator mode (Initiator mode available in ONTAP 9.0 or later). If you need to configure ports for initiator mode, see “Configuring FC adapters for initiator mode” in the SAN Administration Guide for your version of Data ONTAP. If you need to configure ports for target mode, see “Configuring FC adapters for target mode” in the SAN Administration Guide for your version of Data ONTAP.
[6]	Connecting tape drives or tape libraries to FC or UTA2 ports requires the use of an FC switch.
[7]	Target mode adapter only. Foreign LUN import (FLI) requires initiator mode.
[8]	UTA2 ports can be configured as FC target/initiator or CNA (FCoE arget/Ethernet) mode. Both ports must be configured for the same mode and use same SFP+ type. Refer to the Cables link in this table to view supported SFP+ modules or copper twinax cables used in FC or CNA mode. X1143A cannot be used for cluster interconnect on this platform. UTA2 ports are not supported for connectivity to DS14 shelves. To connect to DS14 shelves, use the X1132A-R6 or X2054A-R6 FC adapters.,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode
[9]	UTA2 ports can be configured as FC target/initiator or CNA (FCoE arget/Ethernet) mode. Both ports must be configured for the same mode and use same SFP+ type. Refer to the Cables link in this table to view supported SFP+ modules or copper twinax cables used in FC or CNA mode. X1143A cannot be used for cluster interconnect on this platform. UTA2 ports are not supported for connectivity to DS14 shelves. To connect to DS14 shelves, use the X1132A-R6 or X2054A-R6 FC adapters. UTA2 ports are not supported with IBM tape devices. Direct connection to tape drives with UTA2 ports are supported on HP, Quantum, and Tandberg tape devices, other non-IBM tape devices require a FC switch between the UTA2 port and tape drive.,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode
[10]	Max qty of Flash Cache adapters is limited by the system cache capacity limit. Please refer to the System Cache Limits in the Controller section for more information.
[11]	SAS X2065A-R6 versions 111-00341+Ax through 111-00341+D0 are not supported on FAS8000 systems and need to be replaced with newer SAS HBA cards.
[12]	On FAS and AFF platforms, this cable is only supported with the NetApp CN1610 switch or in switchless Clustered Data ONTAP configurations.
[13]	Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.
[14]	This drive does not support the sanitization feature.
[15]	Longwave transceiver requires OS1/OS2 single-mode fiber cable with minimum length of 200m

Supported Firmware Matrix - FAS8060 Single Chassis HA Pair

Major OS Version	OS Version	Firmeware
BIOS
ONTAP 9.8	9.8P13, 9.8P11-P12, 9.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4, 9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1	9.8*
ONTAP 9.7	9.7P19, 9.7P17-P18, 9.7P16, 9.7P15, 9.7P14, 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1	9.8*
ONTAP 9.6	9.6P18, 9.6P17, 9.6P16, 9.6P15, 9.6P13-P14, 9.6P12, 9.6P10-P11, 9.6P9, 9.6P7-P8, 9.6P5-P6, 9.6P4	9.8*
ONTAP 9.6	9.6P3	9.8, 9.7*
ONTAP 9.6	9.6P2, 9.6, 9.6P1, 9.6RC2, 9.6RC1	9.8, 9.7*
ONTAP 9.5	9.5P19, 9.5P18, 9.5P17, 9.5P16, 9.5P15, 9.5P14	9.8*
ONTAP 9.5	9.5P13, 9.5P12, 9.5P10-P11, 9.5P9, 9.5P8, 9.5P7, 9.5P6, 9.5P5, 9.5P4, 9.5P2-P3, 9.5P1, 9.5, 9.5RC1	9.8, 9.7, 9.6*
ONTAP 9.4	9.4P8, 9.4P7, 9.4P6, 9.4P5, 9.4P4, 9.4P3, 9.4P2, 9.4P1, 9.4, 9.4RC1	9.8, 9.7, 9.6*
ONTAP 9.3	9.3P21, 9.3P20, 9.3P18-P19	9.8*
ONTAP 9.3	9.3P16-P17, 9.3P15, 9.3P11-P14, 9.3P10, 9.3P7-P9, 9.3P1-P6, 9.3, 9.3RC1	9.8, 9.7, 9.6*
Clustered Data ONTAP 8.3	8.3.2, 8.3.1	9.4, 9.3, 9.1.1
Clustered Data ONTAP 8.3	8.3.2RC2, 8.3.2RC1, 8.3.1RC1, 8.3, 8.3RC2, 8.3RC1	9.4, 9.3, 9.1.1*
ONTAP 9.2	9.2P2-P4, 9.2P1, 9.2, 9.2RC1	9.8, 9.7, 9.6, 9.5*
Clustered Data ONTAP 8.2	8.2.4, 8.2.3	9.4 (7-Mode), 9.4, 9.3 (7-Mode), 9.3
Clustered Data ONTAP 8.2	8.2.2	9.4 (7-Mode), 9.4, 9.3 (7-Mode), 9.3, 9.1.1 (7-Mode), 9.1.1
Clustered Data ONTAP 8.2	8.2.2RC2	9.3 (7-Mode), 9.3, 9.1.1 (7-Mode), 9.1.1
Clustered Data ONTAP 8.2	8.2.2RC1	9.3 (7-Mode), 9.3, 9.1.1 (7-Mode), 9.1.1, 9.1 (7-Mode), 9.1
Clustered Data ONTAP 8.2	8.2.1	9.4 (7-Mode), 9.4, 9.3 (7-Mode), 9.3, 9.1.1 (7-Mode), 9.1.1, 9.1 (7-Mode), 9.1, 9.0 (7-Mode), 9.0
Clustered Data ONTAP 8.2	8.2.1RC2	9.1.1 (7-Mode), 9.1.1, 9.1 (7-Mode), 9.1, 9.0 (7-Mode), 9.0
7-Mode 8.2	8.2.5P5	9.3 (7-Mode)*
7-Mode 8.2	8.2.5	9.4 (7-Mode), 9.3 (7-Mode)*
7-Mode 8.2	8.2.4, 8.2.3	9.4 (7-Mode), 9.4, 9.3 (7-Mode), 9.3
7-Mode 8.2	8.2.2	9.4 (7-Mode), 9.4, 9.3 (7-Mode), 9.3, 9.1.1 (7-Mode), 9.1.1
7-Mode 8.2	8.2.2RC2	9.3 (7-Mode), 9.3, 9.1.1 (7-Mode), 9.1.1
7-Mode 8.2	8.2.2RC1	9.3 (7-Mode), 9.3, 9.1.1 (7-Mode), 9.1.1, 9.1 (7-Mode), 9.1
7-Mode 8.2	8.2.1	9.4 (7-Mode), 9.4, 9.3 (7-Mode), 9.3, 9.1.1 (7-Mode), 9.1.1, 9.1 (7-Mode), 9.1, 9.0 (7-Mode), 9.0
7-Mode 8.2	8.2.1RC2	9.1.1 (7-Mode), 9.1.1, 9.1 (7-Mode), 9.1, 9.0 (7-Mode), 9.0
ONTAP 9.1	9.1P17-P20, 9.1P13-P16, 9.1P10-P12, 9.1P9, 9.1P8, 9.1P3-P7, 9.1P1-P2, 9.1, 9.1RC2, 9.1RC1	9.8, 9.7, 9.6, 9.5*
ONTAP 9.0	9.0P1-P4, 9.0, 9.0RC2, 9.0RC1	9.8, 9.7, 9.6, 9.5, 9.4*
Footnote:
[1]* Indicates that firmware is bundled with Storage OS Version

Product Certificates - FAS8060 Single Chassis HA Pair

Certificate Name	Geo / Region / Country	Associated Products
Battery Pack safety reports
Lithium Battery Safety Doc- Section II /Section IB Shipments-Inventus Power-Product Model#271-00043	Global	Platforms : FAS8040, FAS8060, FAS8080 EX
EMI and Safety certificates
Lithium Battery Safety Doc- Section II /Section IB Shipments-Inventus Power-Product Model#271-00043	Global	Platforms : FAS8040, FAS8060, FAS8080 EX
Declaraion of Similarity NAF-1302	Global	Platforms : AVA400, AVA800, FAS8040, FAS8060
NAF-1302 G-K-U-SoR	Gabon,Kenya,SaudiArabia,Uganda	Platforms : AVA400, AVA800, FAS8040, FAS8060
NAF-1302 (Jabil Mexico) BIS	BIS - India	Platforms : AVA400, AVA800, FAS8040, FAS8060
NAF-1302 (Jabil Singapore) BIS	BIS - India	Platforms : AVA400, AVA800, FAS8040, FAS8060
NAF-1302 ACMA	ACMA - Australia, New Zealand	Platforms : AVA400, AVA800, FAS8040, FAS8060
NAF-1302 BSMI	BSMI - Taiwan	Platforms : AVA400, AVA800, FAS8040, FAS8060
NAF-1302 CB	CB - International	Platforms : AVA400, AVA800, FAS8040, FAS8060
NAF-1302 CE	CE - European Union DoC	Platforms : AVA400, AVA800, FAS8040, FAS8060
NAF-1302 CSA	CSA - United States, Canada	Platforms : AVA400, AVA800, FAS8040, FAS8060
NAF-1302 EAC	EAC - Armenia, Belarus, Kazakhstan, Kyrgyzstan, Russia	Platforms : AVA400, AVA800, FAS8040, FAS8060
NAF-1302 IRAM	IRAM - Argentina	Platforms : AVA400, AVA800, FAS8040, FAS8060
NAF-1302 KC	KC - South Korea	Platforms : AVA400, AVA800, FAS8040, FAS8060
NAF-1302 Morocco	Morocco	Platforms : AVA400, AVA800, FAS8040, FAS8060
NAF-1302 NOM	NOM - Mexico	Platforms : AVA400, AVA800, FAS8040, FAS8060
NAF-1302 NRCS	NRCS - South Africa (Safety)	Platforms : AVA400, AVA800, FAS8040, FAS8060
NAF-1302 VCCI	VCCI - Japan	Platforms : AVA400, AVA800, FAS8040, FAS8060
NAF-1302 SONCAP	SONCAP - Nigeria	Platforms : AVA400, AVA800, FAS8040, FAS8060
NAF-1302 TBS	TBS - Tanzania	Platforms : AVA400, AVA800, FAS8040, FAS8060
Voluntary Product Accessibility Template
NAF-1302 TBS	TBS - Tanzania	Platforms : AVA400, AVA800, FAS8040, FAS8060

Size, Weight, Acoustic, Power FAS8060 Single Chassis HA Pair

Associated Part No.	Configuration	Rack Units	Weight	Sound Power	Sound Pressure	Line Voltage Actual (Min to Max)	Amps Typical	Amps Worst	Watts Typical	Watts Worst	BTU / Hr Typical	BTU / Hr Worst
FAS8060
FAS8060	FAS8060 1 CNTRL	6	102.1 lb (46.3 kg)	7.6 Bels	62.4 dBA	100 (100 to 120)	4	5.07	400	507	1364	1729
FAS8060	FAS8060 1 CNTRL	6	102.1 lb (46.3 kg)	7.6 Bels	62.4 dBA	200 (200 to 240)	1.99	2.51	397	501	1354	1708
FAS8060A	FAS8060 2 CNTRL	6	121.5 lb (55.1 kg)	7.6 Bels	62.4 dBA	200 (200 to 240)	3.76	5.04	752	1007	2564	3434
FAS8060AE	FAS8060 with IOXM	6	115.1 lb (52.2 kg)	7.6 Bels	62.4 dBA	100 (100 to 120)	6	9.29	608	929	2075	3167
FAS8060AE	FAS8060 with IOXM	6	115.1 lb (52.2 kg)	7.6 Bels	62.4 dBA	200 (200 to 240)	3	4.5	601	904	2051	3084
FAS8060E	FAS8060 with IOXM	6	115.1 lb (52.2 kg)	7.6 Bels	62.4 dBA	100 (100 to 120)	6	9.29	608	929	2075	3167
FAS8060E	FAS8060 with IOXM	6	115.1 lb (52.2 kg)	7.6 Bels	62.4 dBA	200 (200 to 240)	3	4.5	601	904	2051	3084

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground
- Shipping time: 2-7 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-10 business days
- Excludes weekends, holidays or weather delays.
3 Business Days
- Shipping time: 3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 3-6 business days
- Excludes weekends, holidays or weather delays.
2 Business Days
- Shipping time: 2 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-5 business days
- Excludes weekends, holidays or weather delays.
Overnight / Next Business Day
- Shipping time: 1 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 1-4 business days
- Excludes weekends, holidays or weather delays.

International Shipments

International Economy
- Shipping time: 4-6 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 5-9 business days
- Excludes weekends, holidays or weather delays.
International Priority
- Shipping time: 1-3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-6 business days
- Excludes weekends, holidays or weather delays.
