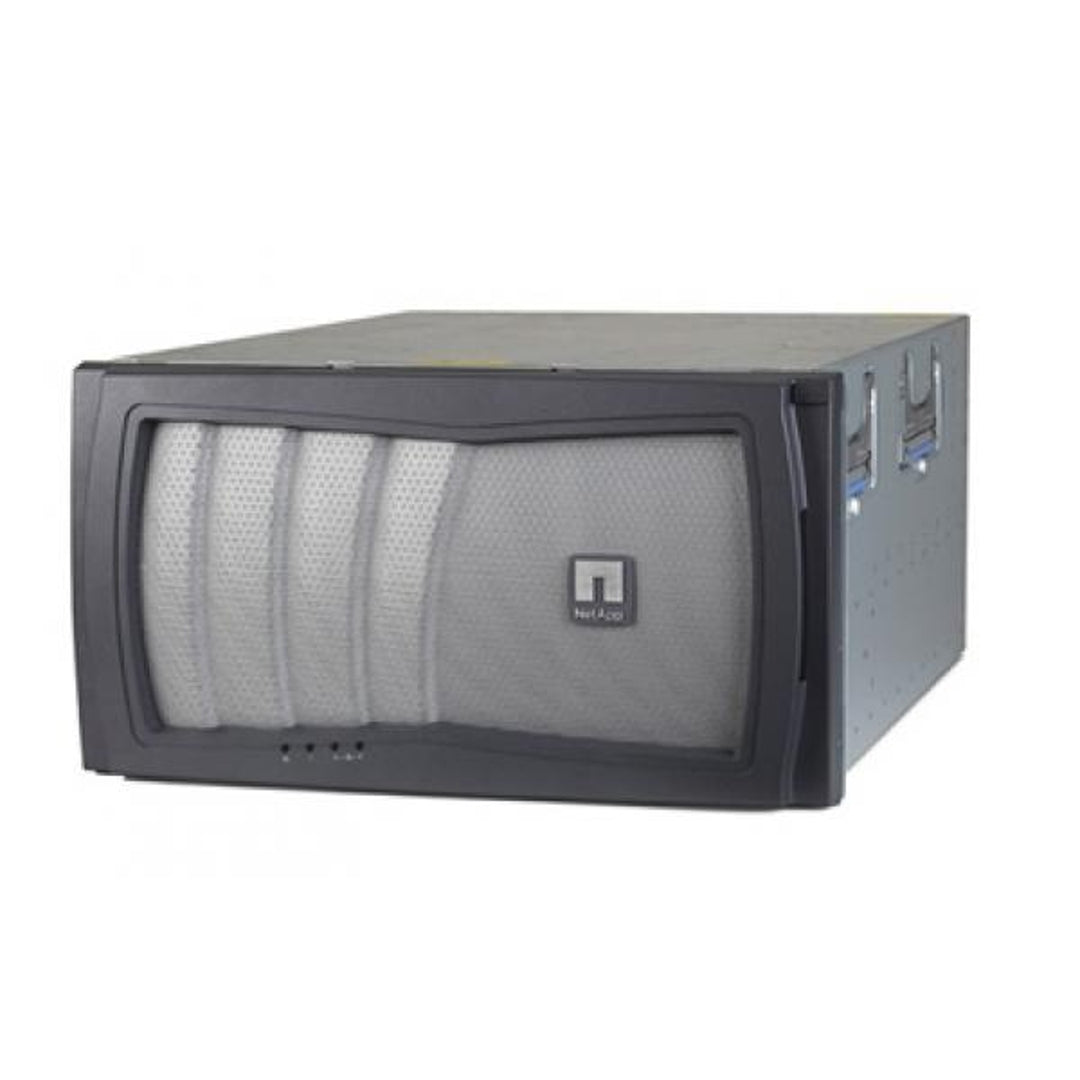

NetApp FAS6240 Single Controller Filer Head w/IOXM (Stand Alone)

Quick Specs

The NetApp FAS6240 is a powerful enterprise storage solution designed for scalability and efficiency. Featuring a single chassis configuration with a total rack height of 6U, it operates with a standalone single controller and IOXM for optimized performance. Powered by two 64-bit 4-core 2.56 GHz processors and 48GB of memory, the system is well-suited for demanding data environments. Its connectivity includes 2x 1Gb RJ45 and 4x 10Gb SFP Ethernet ports, along with 4x 8Gb Fibre Channel ports, ensuring high-speed data transfer.

Supporting up to 1440 drives with a maximum storage capacity of 14.99PB, the FAS6240 provides flexible storage options, accommodating MSATA, SATA, NL-SAS, SAS, and SSD drives. The system supports RAID 4, RAID 6 (RAID-DP), and RAID-TEC for enhanced data protection and redundancy. With 15 PCIe expansion slots, it allows for future scalability and seamless hardware integration, making it ideal for enterprises requiring adaptable storage infrastructure.

Designed for efficient deployment, the chassis measures 10.18 inches in height, 17.59 inches in width, and 29 inches in depth with cable management, weighing up to 125.4 lbs. It supports various disk shelf models, including DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, and DS460C. Equipped with remote management capabilities and a highly scalable architecture, the NetApp FAS6240 delivers reliable performance and flexibility for modern data center environments.

System Config

• Model: NetApp FAS6240
• Chassis: Single Chassis
• Total Rack Height: 6U
• Controllers: Single Controller (Stand Alone) w/ IOXM
• Memory (HA): 48GB
• Processor Model: 2x 64-bit 4-core 2.56 Ghz
• Ethernet Ports: 2 x RJ45 (1Gb) + 4 x SFP (10Gb)
• Fibre Channel Ports: 4 x SFP (8Gb)
• PCIe Expansion Slots: 15 x PCIe
• Max Drives (total): 1440
• Max Capacity: 14,992TB (14.99PB)
• Disk Shelves: DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, DS460C
• Filer Heads: N/A

Dimensions & Weight

• Chassis Rack Height: 6U
• Chassis Heights: 10.18" (25.86 cm)
• Chassis Width w/o Mounting Flanges: 17.59" (44.68 cm)
• Chassis Depth w/ Cable Mgmt: 29" (73.66 cm)
• Chassis Weight: up to 125.4 lb (56.9 kg)

---

Controller Specs

• Max Controllers: 1 (Per Chassis)
• PCI Slot (per): 15 x PCIe
• Ethernet Ports (per): 2 x RJ45 (1Gb) + 4 x SFP (10Gb)
• Fibre Channel Ports (per): 4 x SFP (4Gb)
• UTA2 Ports (per): N/A
• SAS Ports (per): N/A
• Remote Management: Yes
• Processor Model (per): 2x 64-bit 4-core 2.56 Ghz
• Memory (Single/HA): 48GB/96GB
• NVRAM (Single/HA): 4GB/8GB

Storage

• Max Number of Internal Drives: 0
• Max Number Drives (total): 1440
• Max Capacity: 14,992TB (14.99PB)
• Max # of MSATA Drives: 1440
• Max # of SATA Drives: 1440
• Max # of NL-SAS Drives: 1440
• Max # of SAS Drives: 1440
• Max # of SSD Drives: 240
• Drive Interface: MSATA, SATA, NL-SAS, SAS, SSD
• RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
• Max # of DS212C Shelves: 60 external
• Max # of DS2246 Shelves: 60 external
• Max # of DS224C Shelves: 60 external
• Max # of DS4243 Shelves: 60 external
• Max # of DS4246 Shelves: 60 external
• Max # of DS4448 Shelves: 30 external
• Max # of DS460C Shelves: 24 external

---
