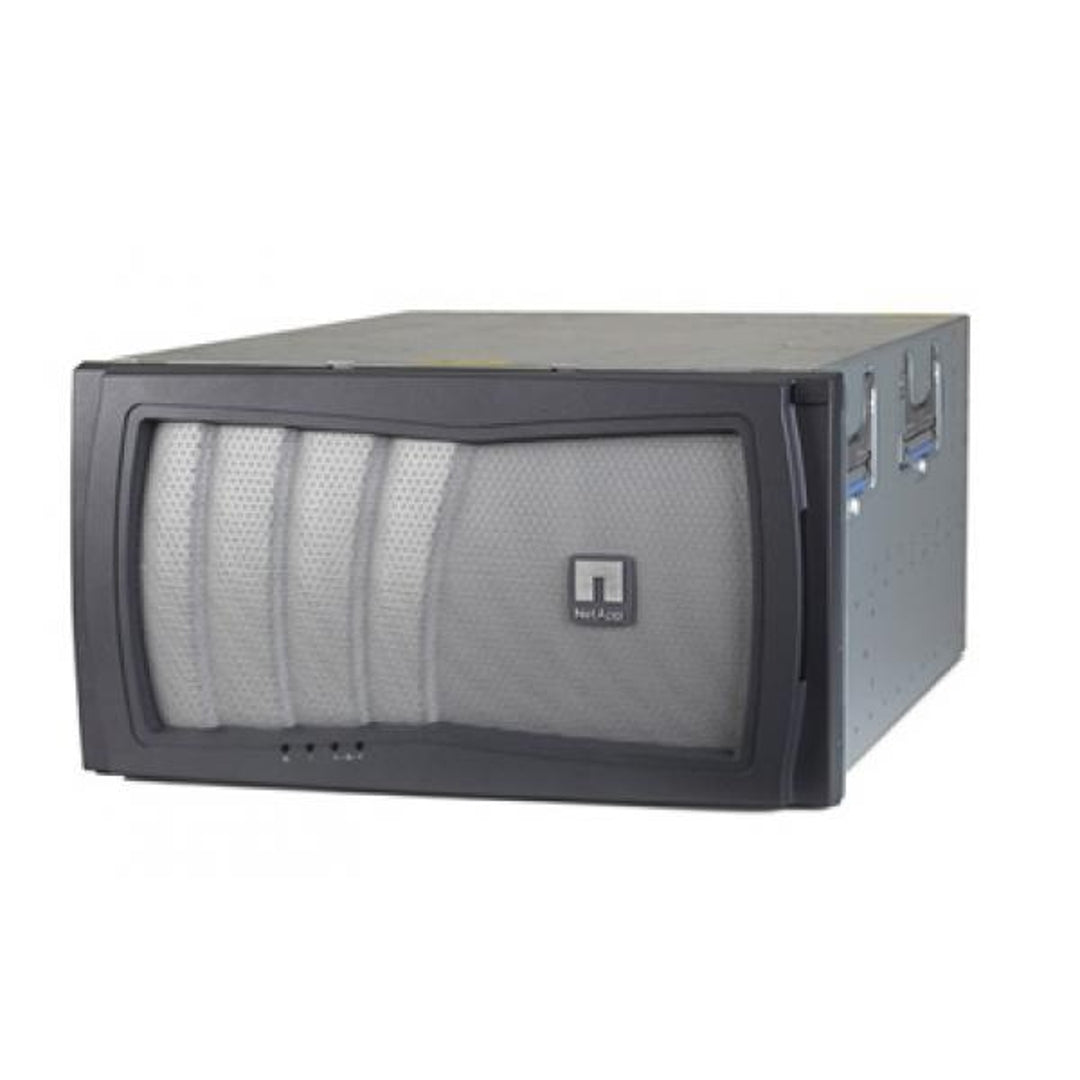

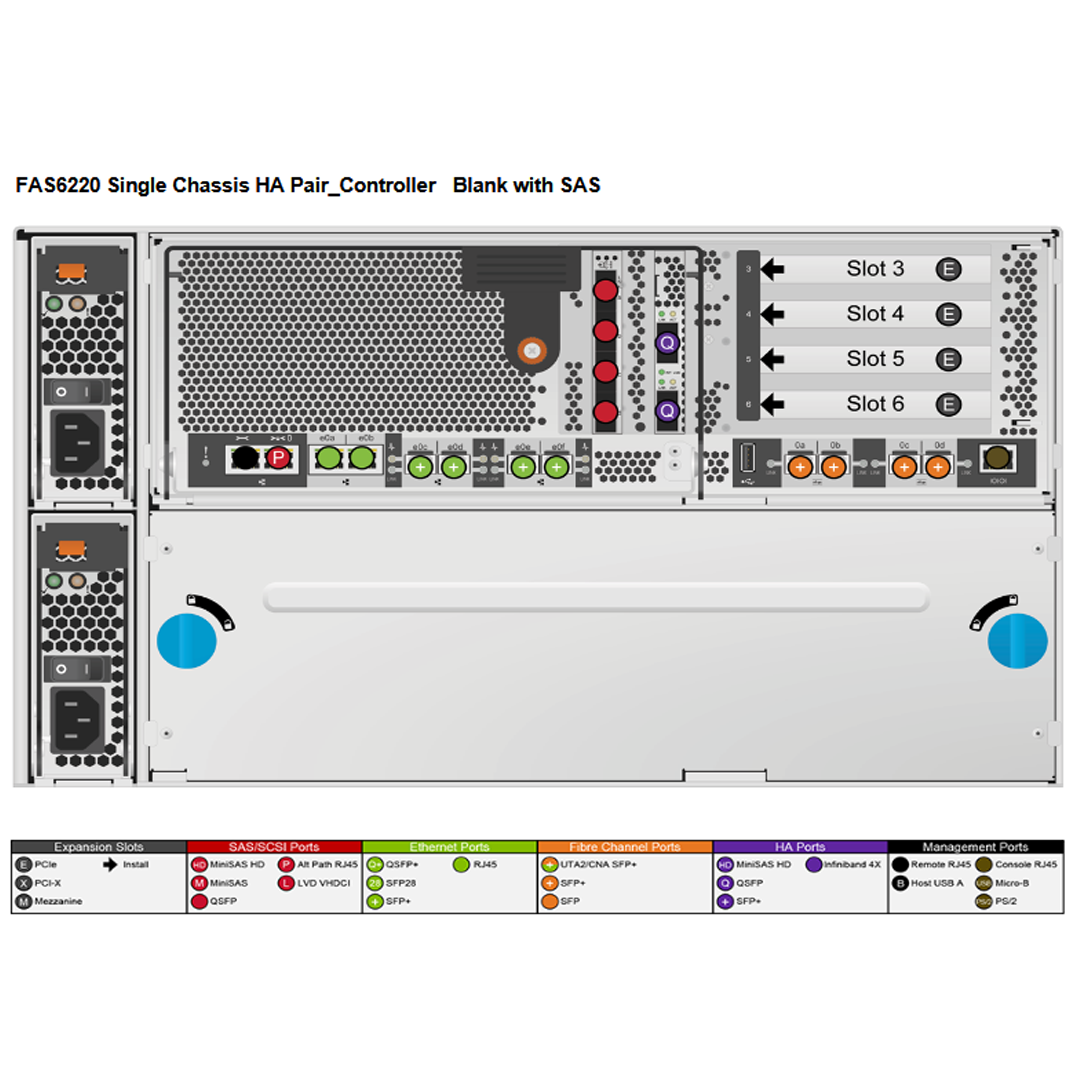

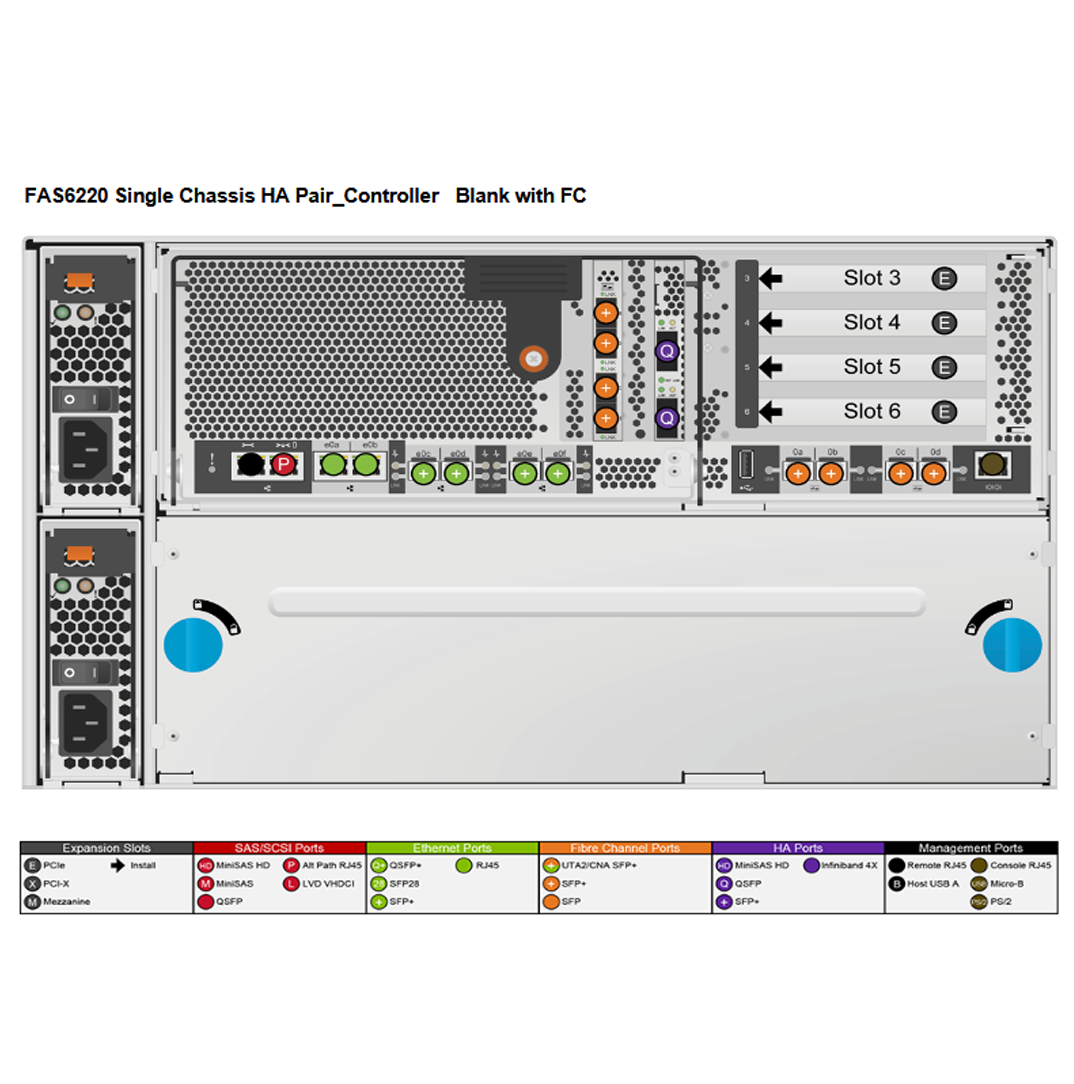

NetApp FAS6220 Single Controller Filer Head (Stand Alone)

Quick Specs

The NetApp FAS6220 is a scalable enterprise storage system designed for reliability and performance. Featuring a single chassis configuration with a total rack height of 6U, it comes with a standalone single controller setup. The system is powered by two 64-bit 4-core 2.26 GHz processors and 48GB of memory, ensuring smooth operation for demanding workloads. Its connectivity options include 2x 1Gb RJ45 and 4x 10Gb SFP Ethernet ports, along with 4x 8Gb Fibre Channel ports.

With support for up to 1200 drives and a maximum storage capacity of 9.6PB, the FAS6220 is optimized for high-volume data storage. It accommodates various drive types, including FC, MSATA, SATA, NL-SAS, SAS, and SSD, while RAID 4 and RAID 6 (RAID-DP) configurations provide robust data protection. The system also includes 5 PCIe expansion slots, allowing for future scalability and integration with additional components.

The chassis is built for efficient data center deployment, measuring 10.18 inches in height, 17.59 inches in width, and 29 inches in depth with cable management. Weighing up to 128.5 lbs, it supports multiple disk shelf models, including DS14-Mk2-AT, DS14-Mk4-FC, DS2246, DS4243, DS4246, and DS4486. With remote management capabilities and high scalability, the NetApp FAS6220 delivers enterprise-grade performance in a compact and flexible design.

System Config

• Model: NetApp FAS6220
• Chassis: Single Chassis
• Total Rack Height: 6U
• Controllers: Single Controller (Stand Alone)
• Memory (HA): 48GB
• Processor Model: 2x 64-bit 4-core 2.26 Ghz
• Ethernet Ports: 2 x RJ45 (1Gb) + 4 x SFP (10Gb)
• Fibre Channel Ports: 4 x SFP (8Gb)
• PCIe Expansion Slots: 5 x PCIe
• Max Drives (total): 1200
• Max Capacity: 9,600TB (9.6PB)
• Disk Shelves: DS14-Mk2-AT, DS14-Mk4-FC, DS2246, DS4243, DS4246, DS4486
• Filer Heads: N/A

Dimensions & Weight

• Chassis Rack Height: 6U
• Chassis Heights: 10.18" (25.86 cm)
• Chassis Width w/o Mounting Flanges: 17.59" (44.68 cm)
• Chassis Depth w/ Cable Mgmt: 29" (73.66 cm)
• Chassis Weight: up to 128.5 lb (58.3 kg)

---

Controller Specs

• Max Controllers: 2 (Per Chassis)
• PCI Slot (per): 5 x PCIe
• Ethernet Ports (per): 2 x RJ45 (1Gb) + 4 x SFP (10Gb)
• Fibre Channel Ports (per): 4 x SFP (4Gb)
• UTA2 Ports (per): N/A
• SAS Ports (per): N/A
• Remote Management: Yes
• Processor Model (per): 2x 64-bit 4-core 2.26 Ghz
• Memory (Single/HA): 48GB/96GB
• NVRAM (Single/HA): 4GB/8GB

Storage

• Max Number of Internal Drives: 0
• Max Number Drives (total): 1200
• Max Capacity: 9,600TB (9.6PB)
• Max # of FC Drives: 1008
• Max # of MSATA Drives: 1008
• Max # of SATA Drives: 1008
• Max # of NL-SAS Drives: 1008
• Max # of SAS Drives: 1008
• Max # of SSD Drives: 240
• Drive Interface: FC, MSATA, SATA, NL-SAS, SAS, SSD
• RAID: RAID 4, RAID 6 (RAID-DP)
• Max # of DS14-Mk2-AT Shelves: 72 external
• Max # of DS14-Mk4-FC Shelves: 72 external
• Max # of DS2246 Shelves: 50 external
• Max # of DS4243 Shelves: 50 external
• Max # of DS4246 Shelves: 50 external
• Max # of DS4448 Shelves: 25 external

---
