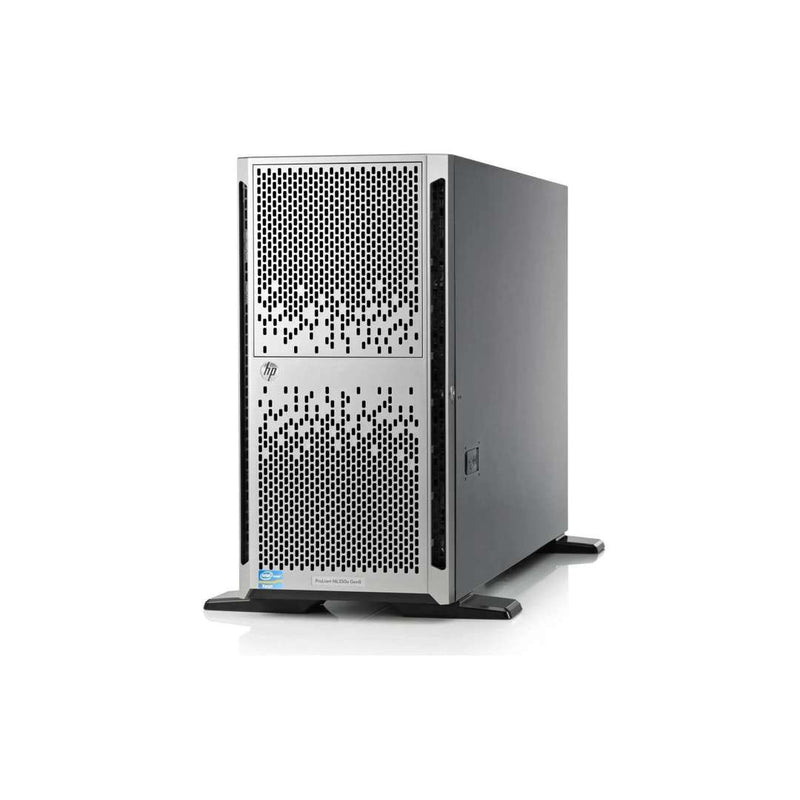

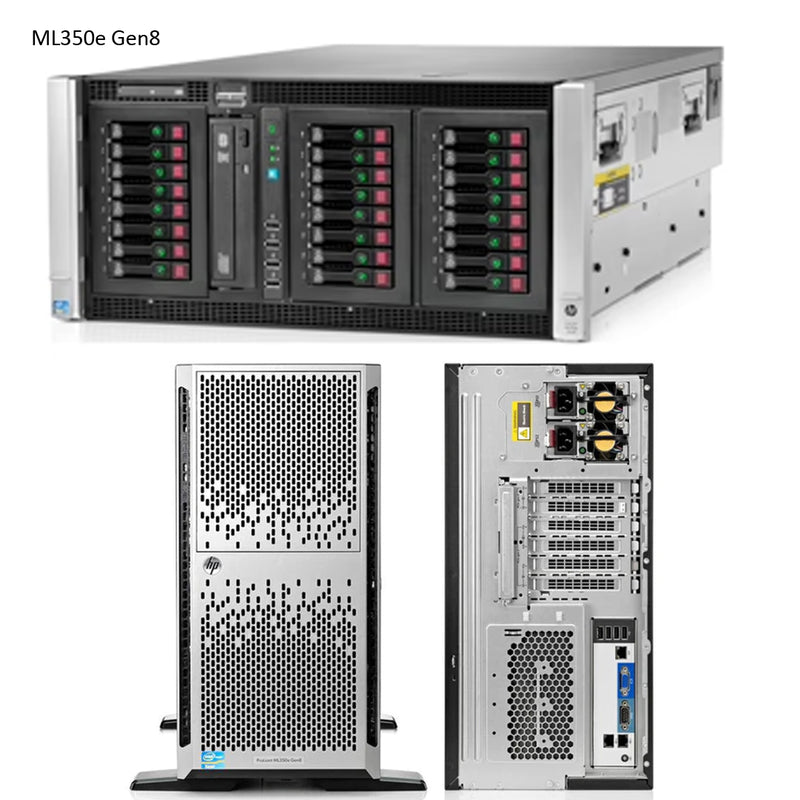

HPE ProLiant ML350e Tower Server (G8) CTO
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
- Support for 12G SAS High Endurance Hot Plug SFF (2.5-inch) Enterprise Performance and Enterprise Mainstream SSD Drives
- Support for an Intel® Xeon® E5-2400 Processor Family
- Up to 12 DIMM slots available for higher memory capacity
- Up to 24 SFF hard drives or 18 LFF hard drives for expanded storage
- 4 PCIe 3.0 and 2 PCIe 2.0 I/O slots
- HP iLO (Firmware: HP iLO4)
The refurbished HPE ProLiant ML350e Gen8 is a dual processor tower platform, which is built on the latest Intel Xeon E5-2400 processors to create unique system architecture. The HPE ProLiant ML350e Gen8 delivers the industry's most powerful embedded management technology with HPE integrated Lights-Out 4 (iLO4), which allows businesses to manage the servers anytime and from anywhere.
Ideal for:
- Cloud Servers
- Corporate IT
- Database
CTO Configuration Support
Up to 2 processors supported. Mixing different processor models is not supported. If one processor is installed, only 6 DIMM slots are available. When populating with two processors 12 DIMM slots are available.
System Fans Two (2) Non-hot plug, non-redundant fans ship standard (support up to 4 fans).
NOTE: Redundant Enablement Kit (part # 664046-B21) is required when redundant fans are needed.
If one processor is installed, only 6 DIMM slots are available. When populating with two processors 12 DIMM slots are available.
Redundant Enablement Kit (part # 664046-B21) is required when Registered DIMM is purchased.
- Maximum (RDIMM) 192 GB (12 x 16 GB) RDIMMM
- Maximum (UDIMM) 96 GB (12 x 8 GB) UDIMM
Default Controller HP Ethernet 1Gb 2-port 361i Adapter.
Up to 6 PCIe slots, 4 PCIe 3.0 and 2 PCIe 2.0 I/O slots. The HPE ML350e Tower / Rack Server can handle up to 10Gb on Dual ports.
Read the manuals below for all the options this server can support.
Default Controller HP Dynamic Smart Array B120i SATA Controller (RAID 0/1/10) and can support up to 4 SATA drives.
A SAS controller is required to support more than 4 drives and support SAS drives.
Hot Plug 6LFF CTO Server Only (P/N 664044-B21)
HP Hot-Plug 4LFF Shield Metal FIO Kit must be selected if a SAS controller is not in the order. This FIO kit enables to use 6LFF hot plug chassis as 4LFF hot plug with embedded SATA controller. Shield metal kit must be selected if SAS controller is not required in case of 6LFF hot-plug chassis.
(659485-B21) - 1 or 2 additional LFF cages can be added to bring the total drive count to 12 or 18, respectively. A Smart Array Controller is required for each additional drive cage and must be purchased as well.
(659484-B21) - 1 or 2 additional SFF cages can be added to bring the total drive count to 16 or 24, respectively. A Smart Array Controller is required for each additional drive cage and must be purchased as well.
Inches: 18.19 x 8.58 x 29.13 in
Centimeter: 46.2 x 21.8 x 74.0 cm
Maximum: (all hard drives, power supplies, and processors installed) 96.67 lb (43.85 kg)
Minimum: Minimum (one hard drive, power supply, and processor installed) 57.21lb (25.95 kg)
