Base Standard Capabilities
| Feature | Technical specification | |
|---|---|---|
| Form factor | Full-height blade with up to 8 nodes in a 10U M1000e chassis; up to two nodes in a VRTX chassis | |
| Processor | Intel® Xeon® processor E5-4600 v4 product family | |
| Processor sockets | 4 | |
| Dimensions | H: 39.52 cm (15.56 in), W: 5.03 cm (1.98 in), D: 54.5 cm (21.45 in) | |
| Cache | 2.5MB per core; core options: 6, 10, 12, 14, 16, 18, 22 | |
| Chipset | Intel C610 series chipset | |
| Memory | Up to 3TB (48 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s | |
| RAID controllers | Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P | |
| Primary storage | Hot-plug hard drive options: PowerEdge Express Flash NVMe PCIe SSD, SATA HDD/SSD or SAS HDD/SSD 12 x 1.8" SSD, 4 x 2.5" SATA HDD/SSD or SAS HDD/SSD, 2 x 2.5" PCIe SSD and 2 x 2.5" SATA HDD/SSD or SAS HDD SSD | |

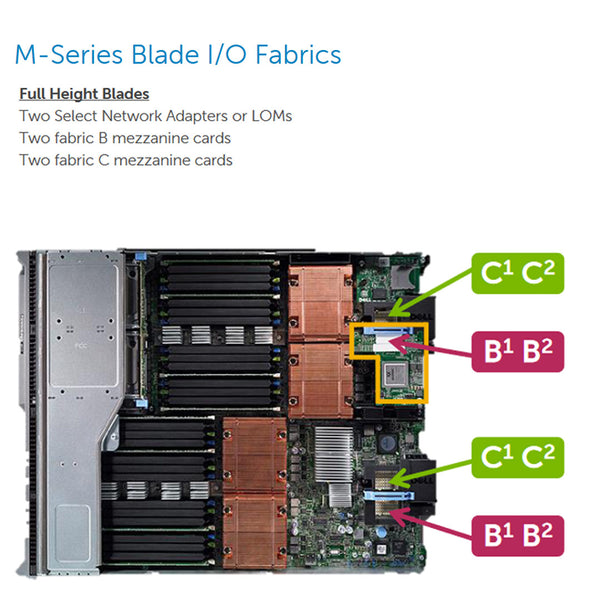

| On-board network adapters | 2 x PCIe 3.0 (x8) Dell Select Network Adapters Select Network Adapter options: Broadcom 5720 1GB Quad Port KR Blade Network Daughter Card Emulex OneConnect OCm14102B-N6-D 2-port 10GBE bNDC NIC Emulex OneConnect OCm14102B-U4-D 2-port 10GBE bNDC CNA Emulex OneConnect OCm14102-N6-D 2-port 10GBE KR NIC, Blade Network Daughter Card | Emulex OneConnect OCm14102-U4-D, Dual Port 10GBE, KR CNA Network Daughter Card Intel i350 Quad Port 1 Gigabit, KR Blade Network Daughter Card Intel Quad Port 10-Gigabit, KR Blade Network Daughter Card Intel x520-k Dual Port 10GB KR Blade Network Daughter Card Intel X710 Dual Port, 10GB KR Blade Network Daughter Card QLogic 57810-k Dual port 10GB KR CNA Blade Network Daughter Card QLogic 57840S 10GB Quad Port KR CNA Blade Network Daughter Card |
| I/O expansion options | Broadcom 5719 Quad port 1GBE Mezzanine Card Emulex LPE1205-M 8GBps Dual Port Fibre Channel I/O Mezzanine Card Emulex LPM16002 16GBps Dual Port Fibre Channel I/O Mezzanine Card Emulex OCm14104-U3-D, Dual Port 10GBE, KR Mezzanine Converged Network Adapter Emulex OneConnect OCm14102B-N5-D 2-port 10GBE Mezzanine NIC | Emulex OneConnect OCm14102B-U5-D 2-port 10GBE Mezzanine CNA Emulex OneConnect OCm14102-N5-D 2-port 10GBE Mezzanine NIC Intel i350 Quad Port 1GB Serdes Mezzanine Card Intel X520-x/k 10GB Dual Port I/O Mezzanine Card Mellanox Connect X3 FDR10 IB Mezzanine Card Mellanox ConnectX-3 Dual Port 10GB KR Mezzanine Card Mellanox ConnectX-3 Pro Dual Port 10 GBE KR Mezzanine Card Qlogic QME2572 8GBps Fibre Channel I/O Mezzanine Card QLogic QME2662 16GBps Fibre Channel I/O Mezzanine Card |
| Power supplies | Chassis level – M1000e 2700W Platinum and 3000W Titanium PSU options | |
| Video card | Video Type: Integrated Integrated Matrox G200 with iDRAC8 Video Memory: 16 MB shared with iDRAC8 application memory | |
| Systems management | Systems management: IPMI 2.0 compliant; Dell OpenManage Essentials; Dell OpenManage Mobile; Dell OpenManage Power Center Remote management: iDRAC8 with Lifecycle Controller; iDRAC8 Express (default); iDRAC8 Enterprise (upgrade); 8GB vFlash media (upgrade); 16GB vFlash media (upgrade) | Dell OpenManage integrations: Dell OpenManage Integration Suite forMicrosoft® System Center; Dell OpenManage Integration for VMware® vCenter™ Dell OpenManage Connections: HP Operations Manager; IBM Tivoli® Netcool® and CA Network and Systems Management; Dell OpenManage Plug-in for Oracle® Database Manager |
| Operating system | Microsoft Windows Server® 2008/2012 R2 (with Hyper-V® enabled) Microsoft Windows Server 2012 (with Hyper-V enabled) Microsoft Windows Server 2008/2012 Datacenter (with Hyper-V enabled) Microsoft Windows Server 2008 R2 SP1 (with Hyper-V enabled) Microsoft Windows Server 2008 R2 SP2 x64/x86 (with Hyper-V enabled) | Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux Optional hypervisors: Citrix® XenServer®; VMware vSphere® ESXi™; For more information on the specific versions and additions, visit Dell.com/Ossupport |
