Quick Specs
1U rack server
Processor | Max: 22 Cores2 x Intel Xeon E5-2600v4
Memory | Max: 1.5TB24 DDR4 RDIMM 2400Mhz
Storage | Max: 23TB8 2.5" SAS/NL-SAS/SATA (HDD/SSD) 14TB
10 2.5" SAS/NL-SAS/SATA (HDD/SSD) NVMe 18TB
24x 1.8" SATA (SSD) 23TB
S130 (SW RAID)
H330, H730, H730P
H830, 12 Gb/s SAS HBA
Broadcom 5720 BASE-T (default) 4 x 1Gb
Options: 4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb
3x PCIe 3.0 +
dedicated PERC Slot +
Mezzanine Slot (rNDC)
None
Boot Options:IDSDM
Internal USB
iDRAC8 with Lifecycle Controller
Ideal for:
- Database
- High-Performance Computing (HPC)
- Virtual Desktop Interface (VDI)
- Virtualization

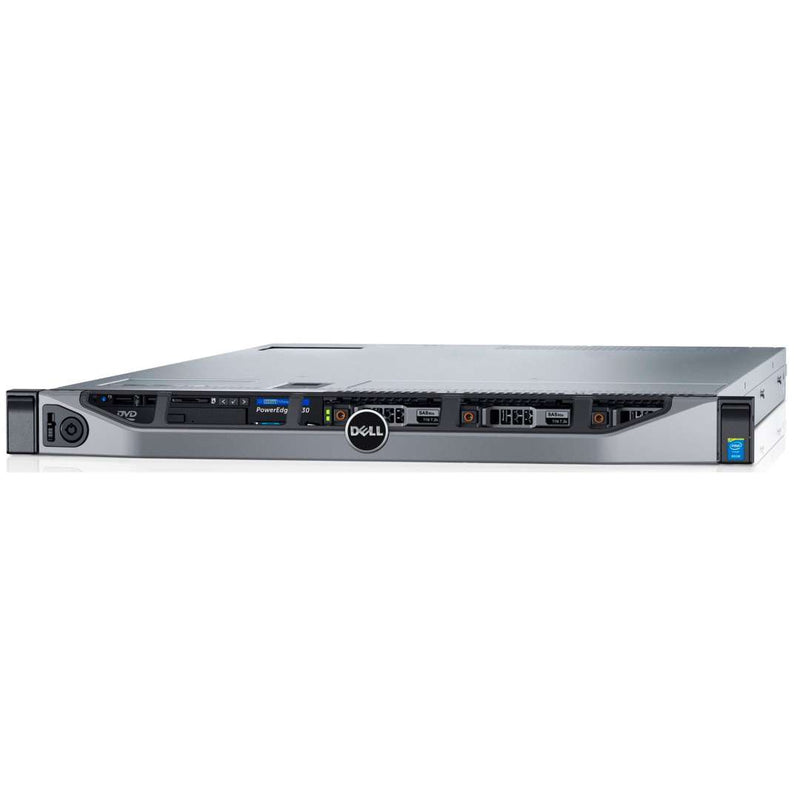

With computing capability previously only seen in 2U servers, the ultra-dense PowerEdge R630 two-socket 1U rack server delivers an impressive solution for virtualization environments, large business applications or transactional databases.
The Dell PowerEdge R630 is a two-socket rack server that is highly versatile and can be configured for a variety of solutions. It features the latest Intel Xeon processor E5-2600 v4 product family, up to 24 DIMMs of high-performance DDR4 memory, and a broad range of local storage options. The R630 can be configured with up to 24 x 1.8-inch hard drives, 10 x 2.5-inch hard drives, 8 x 2.5-inch hard drives, or up to 4 Express Flash NVMe PCIe SSDs. It also has up to 3 PCIe 3.0 expansion slots, two AC or DC redundant power supply units, and can deliver peak performance.
Deliver peak performance
The R630 can be configured with an all-flash drive configuration of 24 x 1.8" SSDs, making it ideal for blazingly fast transactional databases. It can also provide a dense, resource-rich midsize virtualization environment to drive business intelligence applications, from customer relationship management (CRM) to enterprise resource planning (ERP), while saving space, energy, and capital costs.
Discover greater versatility
The R630 is highly versatile and can be used for a variety of solutions, such as large-scale transactional and analytical processing solutions like Oracle and SQL, in-memory online analytical processing (OLAP), and online transaction processing (OLTP) databases. It can also be used for Exchange and SharePoint applications, improving IO performance, and virtual machine (VM) performance.
The R630 is a reliable, general-purpose server for business-critical applications, with automated management and high-availability features like redundant power supply units (PSUs), hot-plug and swappable PSUs, HDDs, and fans, and a dual SD card option for failsafe hypervisors.

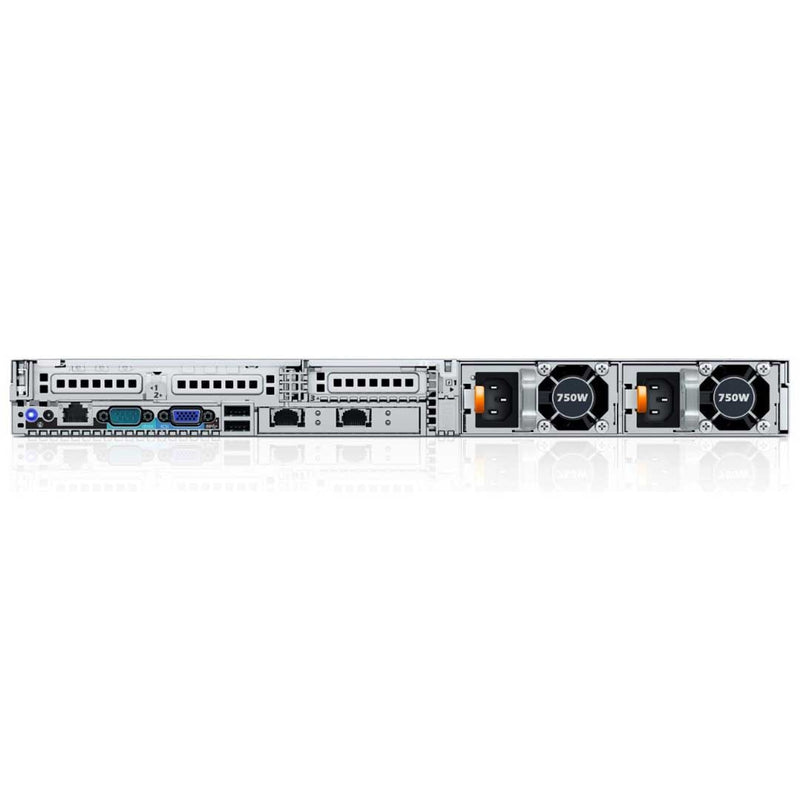

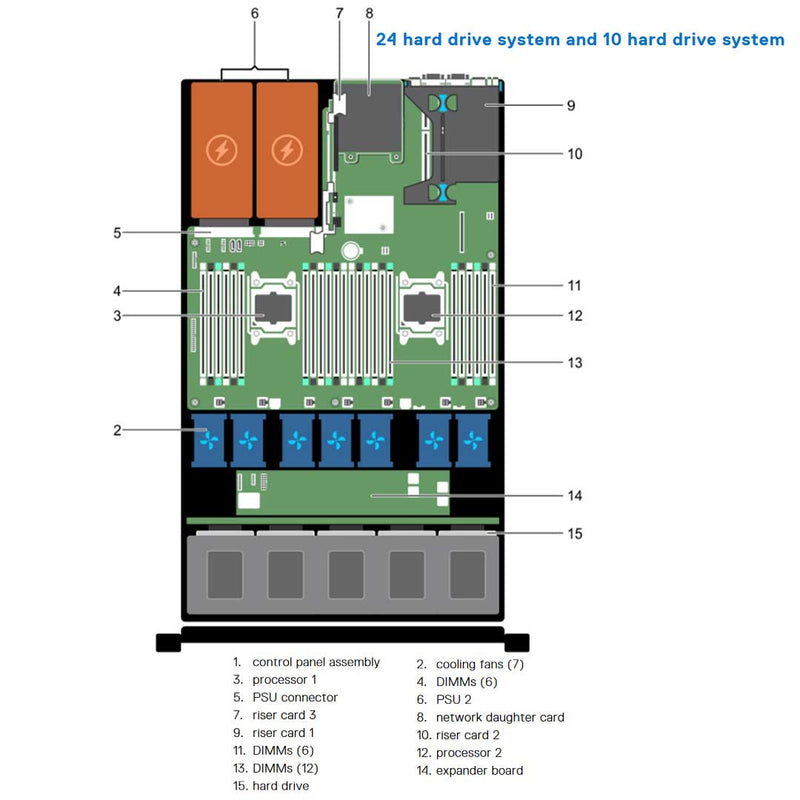

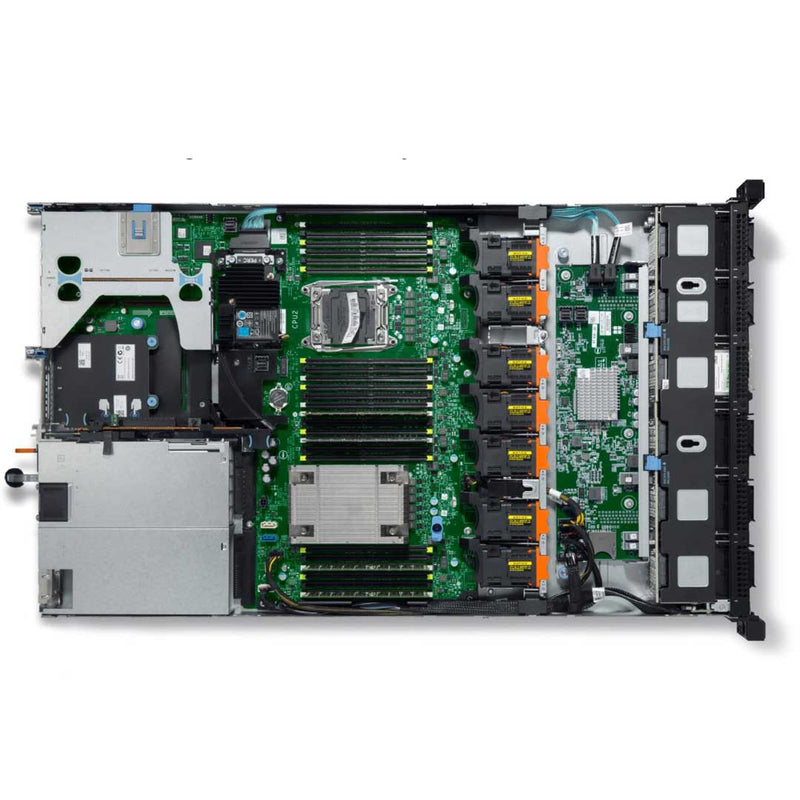

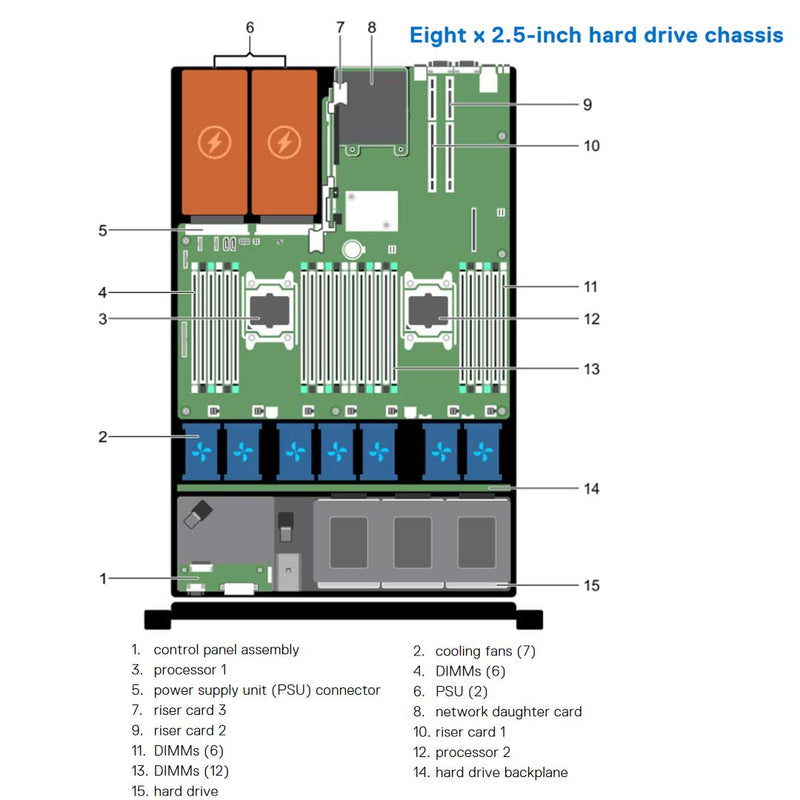

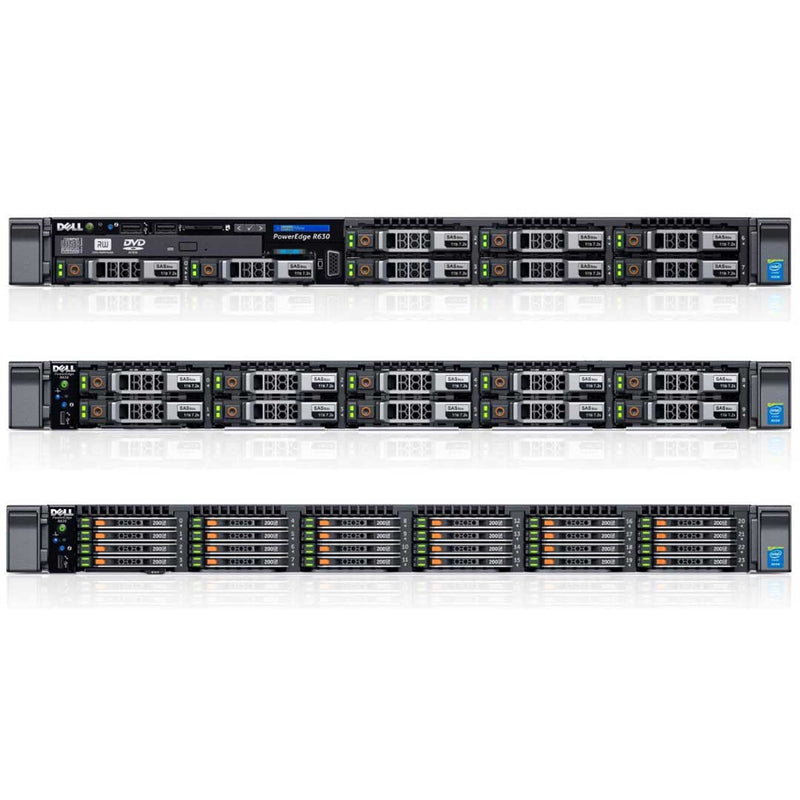

With the 8-drive bay, 10-drive bay or 24-drive bay chassis options, the R630 supports five internal storage options.
The PowerEdge R630 has an option to support up to four 2.5”, hot-plug Express Flash PCIe SSDs in the 10 x 2.5” chassis.
| Storage option | Storage controller and quantity |
|---|---|
| Up to 8 x 2.5” SAS, NL-SAS, SATA HDDs or SAS, SATA SSDs (2 PCIe slots) | 1 x PERC S130, H330, H730, H730P |
| 8 x 2.5” SAS, NL-SAS, SATA HDDs or SAS, SATA SSDs (3 PCIe slots) | 1 x PERC S130, H330, H730, H730P |
| Up to 10 x 2.5” SAS, NL-SAS, SATA HDD or SAS, SATA SSDs | 1 x PERC H330, H730, H730P |
| Up to 10 x 2.5” SAS, NL-SAS, SATA HDDs with up to 4 NVMe PCIe SSDs | 1 x PERC H330, H730, H730P |
| Up to 24 x 1.8” SATA SSDs | 1 or 2 x PERC H330, H730, H730P |
| Note: A backplane cannot be upgraded or reconfigured after point of purchase. | |
The R630 server supports flexible memory configurations ranging from capacities of 4GB to 768GB. The system supports up to 12 DIMMs per processor (up to 24 DIMMs in a dual-processor configuration). The R630 has four memory channels per processor, with each channel supporting up to three DIMMs.
| DIMM capacity | DIMM speed | DIMM type | Ranks per DIMM | Data width | SDDC support | Voltage |
|---|---|---|---|---|---|---|
| 4 | 2133 | RDIMM | 1 | x8 | Advanced ECC | 1.2 |
| 8 | 2133 | RDIMM | 2 | x8 | Advanced ECC | 1.2 |
| 16 | 2133 | RDIMM | 2 | x4 | All modes | 1.2 |
| 32 | 2133 | LRIMM | 4 | x4 | All modes | 1.2 |
PCIe connectivity is integrated with the processor in that the number of processors in a system impacts the number of PCIe 3.0 slots and the bandwidth of each PCIe slot.
2 Slot PCIe Configurations - 8 Bay Only
| Riser | PCIe slot | Processor Connection | Height | Length | Link Width | Slot Width |
|---|---|---|---|---|---|---|
| 2 | 1 | Processor 1 | Low Profile | Half Length | x8 | x16 |
| Processor 2 | Low Profile | Half Length | x16 | x16 | ||
| 3 | 2 | Processor 1 | Full Height | Half Length | x16 | x16 |
| Riser | PCIe slot | Processor Connection | Height | Length | Link Width | Slot Width |
|---|---|---|---|---|---|---|
| 1 | 1 | Processor 2 | Low Profile | Half Length | x16 | x16 |
| 1 | 2 | Processor 2 | Low Profile | Half Length | x8 | x16 |
| 3 | 3 | Processor 1 | Full Height | Half Length | x16 | x16 |
The Dell R630 Rack Server can support two PERC on the 24-bay Chassis. The main PERC slot is a dedicated spot on the system board for the Mini-PERC Form Factor. The second PERC will have to be a PCIe Adapter PERC. Please check the PCIe slots details above for more information on which slot is ideal for the PERC Adapter.
| Controller | Features | RAID modes supported | Form factor | Solution |
|---|---|---|---|---|
| PERC H830 |
|
0, 1, 10, 5, 50, 6, 60 | Adapter | Performancehungry external storage environments |
| PERC H730P |
|
0, 1, 10, 5, 50, 6, 60 | Mini and Adapter | Premium performance for significant performance gains |
| PERC H730 |
|
0, 1, 10, 5, 50, 6, 60 | Mini and Adapter | Value/performance RAID and nonRAID for highdensity servers and workstations |
| PERC H330 |
|
0, 1, 10, 5, 50 | Mini and Adapter | Low cost, entry RAID and nonRAID for highdensity servers and workstations |
| PERC S130 |
|
0, 1, 5, 10 | System boardembedded SATA | Software |
| PSU | Class | Heat dissipation (maximum) | Frequency | Voltage |
|---|---|---|---|---|
| 495 W AC | Platinum | 1908 BTU/hr | 50/60 Hz | 100–240 V AC, autoranging |
| 750 W AC | Platinum | 2891 BTU/hr | 50/60 Hz | 100–240 V AC, autoranging |
| 750 W AC | Titanium | 2843 BTU/hr | 50/60 Hz | 200–240 V AC, autoranging |
| 1100 W AC | Platinum | 4100 BTU/hr | 50/60 Hz | 100–240 V AC, autoranging |
| 1100 W DC | - | 4416 BTU/hr | - | –(48–60) V DC |
- Depth: 752.1 mm (29.6")
- Width: 482.4 mm (19")
- Height: 42.8 mm (1.6")
- Weight:
- 8 Bay: 16.9 kg (37.26 lb)
- 10 Bay: 18.5 kg (40.79 lb)
- 24 Bay: 17.4 kg (38.36 lb)
