Quick Specs
- (2) Intel Xeon 1st and 2nd Scalable Processors
- (24) 2400MT/s DDR4 DIMMs
- Support for Intel® Optane™ Persistent Memory (PMem)
- (10) SFF SATA/SAS Drives
- 12Gbps SAS Drives Supported
- (2) PCIe 3.0 Slots
- (2) GPUs Supported
- Dedicated mLOM Slot
- Embedded 2 x 1 GbE LAN-on-motherboard (LOM)
- (7) Hot Swap Fans

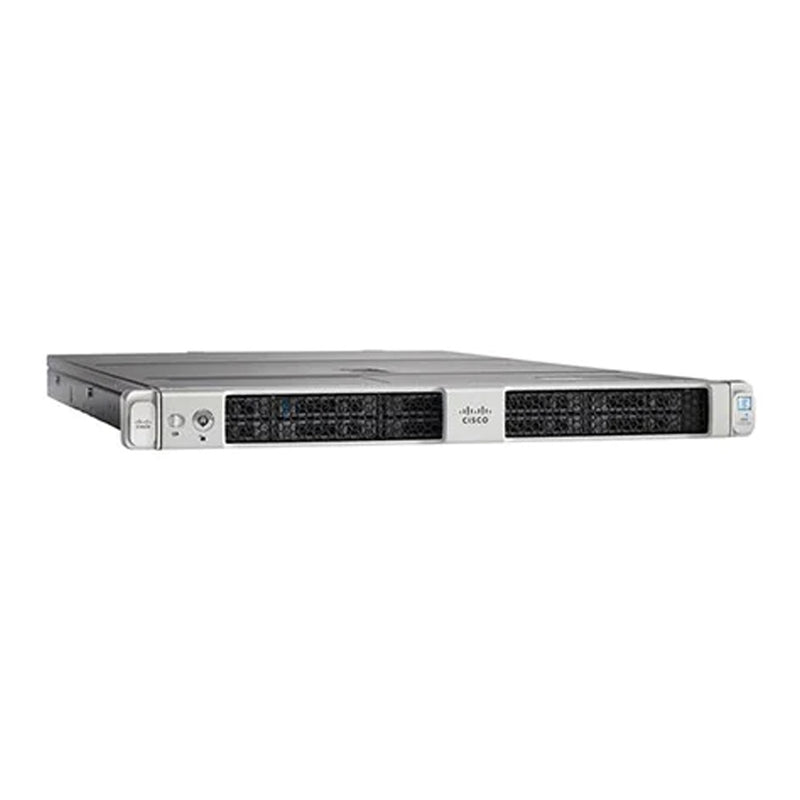

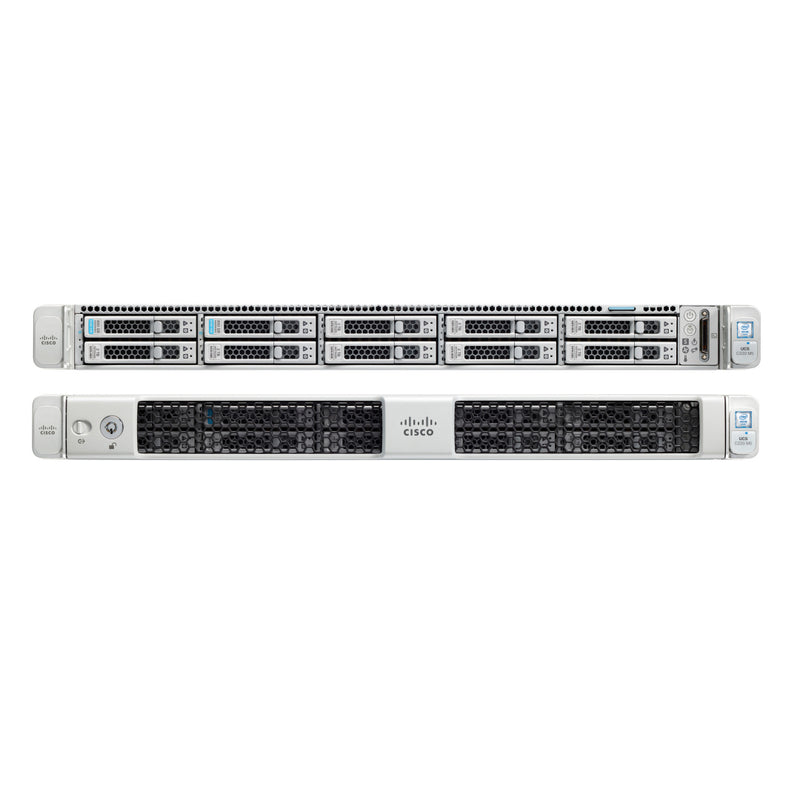

The Cisco UCS C220 M5 SFF chassis is optimized for high-density storage and performance-driven workloads. Supporting up to 10 SAS/SATA HDDs or SSDs, with the flexibility to include up to two NVMe PCIe SSDs in specific bays, this chassis is ideal for applications requiring low-latency storage, such as AI/ML, big data processing, and virtualization. Its compact design, combined with support for Intel Xeon Scalable processors and high-speed DDR4 memory, makes it suitable for cloud computing, VDI environments, and enterprise-level data analytics, where a mix of performance and scalability is needed.
- Cisco C220 M4 | M5 | M6 | M7
- Cisco C240 M4 | M5 | M6
Ideal for:
- Artificial Intelligence (AI)
- Big Data Analytics
- Cloud Servers
- Corporate IT
- Data Analytics
- Database
- Deep Learning (DL)
- Edge Servers
- High-Performance Computing (HPC)
- Hyper-Converged infrastructure (HCI)
- Machine Learning (ML)
- Virtual Desktop Interface (VDI)
- Virtualization
- Web Tech
- Anything as a service (Xaas)
CTO Configuration Support
Need help with the configuration? Contact us today!
The UCS C220 M5 SFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the the 2nd Generation Intel® Xeon® Scalable Processors, DDR4-3200MHz memory, and the new 512GB Intel® Optane™ Persistent Memory Modules (PMem). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMem), two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The C220 M5 server includes one dedicated internal modular LAN on motherboard (mLOM) connector for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture, enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
