Quick Specs
- (2) Intel Xeon 1st and 2nd Scalable Processors
- (24) 2400MT/s DDR4 DIMMs
- Support for Intel® Optane™ Persistent Memory (PMem)
- (4) LFF SATA/SAS Drives
- 12Gbps SAS Drives Supported
- (2) PCIe 3.0 Slots
- (2) GPUs Supported
- Dedicated 12G SAS storage controller Slot
- Dedicated (mLOM)
- Embedded 2 x 1 GbE LAN-on-motherboard (LOM)
- (7) Hot Swap Fans

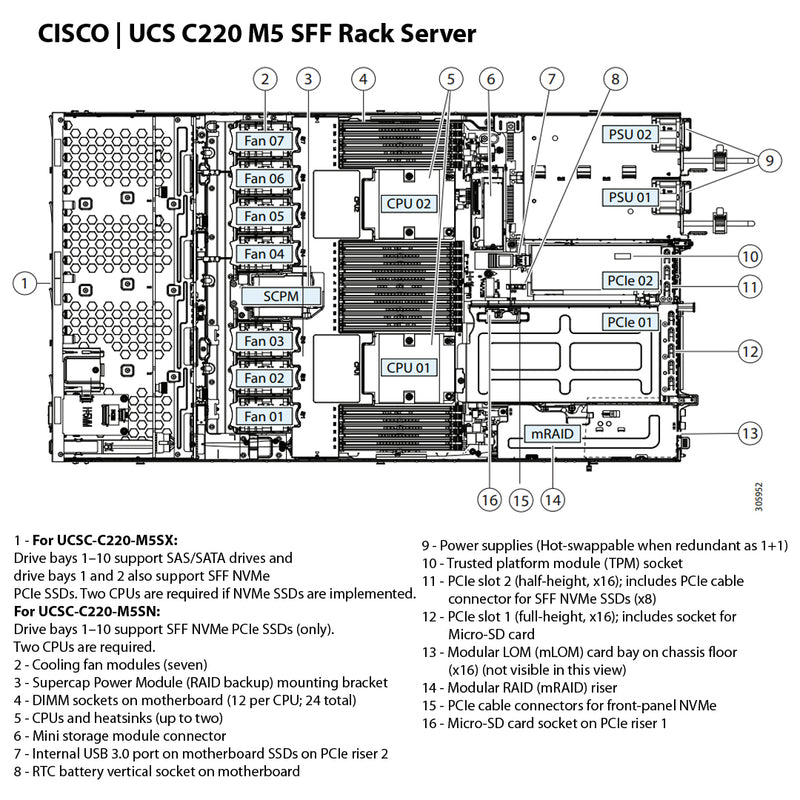

The Cisco UCS C220 M5 SFF chassis is optimized for high-density storage and performance-driven workloads. Supporting up to 10 SAS/SATA HDDs or SSDs, with the flexibility to include up to two NVMe PCIe SSDs in specific bays, this chassis is ideal for applications requiring low-latency storage, such as AI/ML, big data processing, and virtualization. Its compact design, combined with support for Intel Xeon Scalable processors and high-speed DDR4 memory, makes it suitable for cloud computing, VDI environments, and enterprise-level data analytics, where a mix of performance and scalability is needed.
- Cisco C220 M4 | M5 | M6 | M7
- Cisco C240 M4 | M5 | M6
Ideal for:
- Artificial Intelligence (AI)
- Big Data Analytics
- Cloud Servers
- Corporate IT
- Data Analytics
- Database
- Deep Learning (DL)
- Edge Servers
- High-Performance Computing (HPC)
- Hyper-Converged infrastructure (HCI)
- Machine Learning (ML)
- Virtual Desktop Interface (VDI)
- Virtualization
- Web Tech
- Anything as a service (Xaas)
CTO Configuration Support
Need help with the configuration? Contact us today!

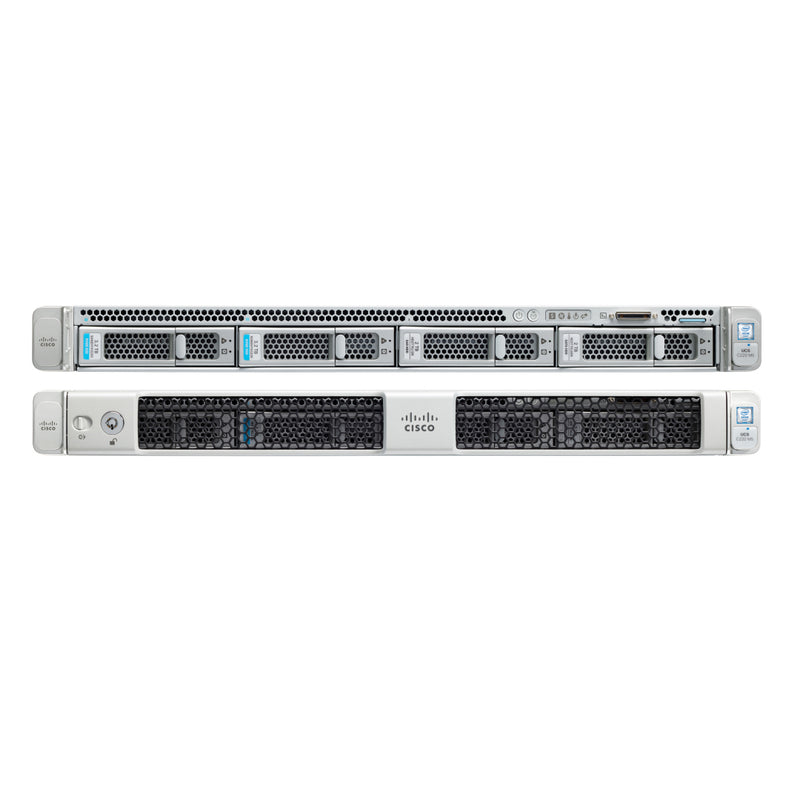

The UCS C220 M5 LFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the addition of the 2nd Generation Intel® Xeon® Scalable Processors, DDR4-3200MHz memory, and the new 512GB Intel® Optane™ Persistent Memory (PMem). With this combination of features, up to 9 TB of memory is possible (12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMem), two 2 PCI Express (PCIe) 3.0 slots, up to four SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs), and one dedicated internal slot for a 12G SAS storage controller card.

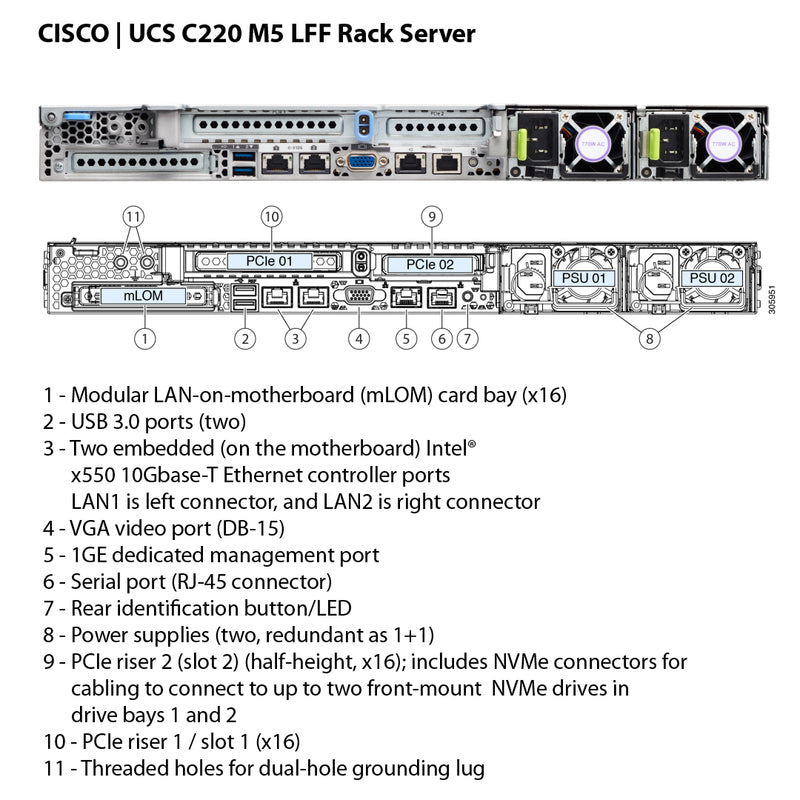

The C220 M5 LFF server includes a dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 10 Gbase-T Intel® x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture, enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Capability/Feature | Description | |
|---|---|---|
| Chassis | One rack unit (1RU) chassis | |
| CPU | One or two 2nd Generation Intel® Xeon® scalable family CPUs | |
| Chipset | Intel® C621 series chipset | |
| Memory | 24 slots for registered DIMMs (RDIMMs), load-reduced DIMMs (LRDIMMs), or through silicon via (TSV) DIMMs and support for Intel® Optane™ Persistent Memory (PMem) | |
| Multi-bit Error Protection | This server supports multi-bit error protection. | |
| Video | The Cisco Integrated Management Controller (CIMC) provides video using the Matrox G200e video/graphics controller:
| |
| SATA Interposer Board | An optional SATA interposer board provides for up to eight SATA-only drives. | |
| Power subsystem | Up to two of the following hot-swappable power supplies:
| |

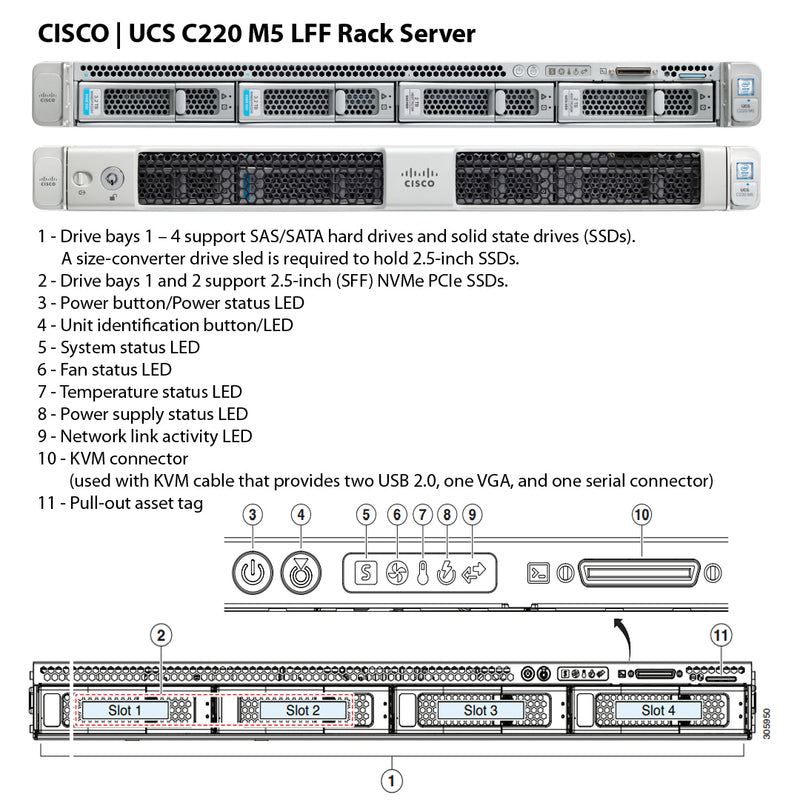

| Front Panel | A front panel controller provides status indications and control buttons | |
| ACPI | This server supports the advanced configuration and power interface (ACPI) 6.2 standard. | |
| Fans | Seven hot-swappable fans for front-to-rear cooling | |
| Infiniband | The InfiniBand architecture is supported by the PCI slots. | |
| Expansion slots |
| |
| Interfaces |
| |
| Internal storage devices | Drive storage: Drives are installed into front-panel drive bays that provide hot-swappable access for SAS/SATA drives. The server accommodates up to 4 x 3.5-inch SAS and SATA HDDs and SSDs and up to 2 NVMe PCIe drives
| |
| NOTE: SD cards and M.2 SSDs cannot be mixed. See details for RAID functionality in the M.2 SATA SSDs (Optional) section. | ||
| Integrated management processor | Baseboard Management Controller (BMC) running Cisco Integrated Management Controller (CIMC) firmware. Depending on your CIMC settings, the CIMC can be accessed through the 1GE dedicated management port, the 1GE/10GE LOM ports, or a Cisco virtual interface card (VIC). CIMC manages certain components within the server, such as the Cisco 12G SAS HBA. | |
| Storage controller |
| |
| Modular LAN on Motherboard (mLOM) slot | The dedicated mLOM slot on the motherboard can flexibly accommodate the following cards:
| |
| NOTE: The four Intel i350 ports are provided on an optional card that plugs into the mLOM slot, and are separate from the two embedded (on the motherboard) LAN ports | ||
| UCSM | Unified Computing System Manager (UCSM) runs in the Fabric Interconnect and automatically discovers and provisions some of the server components. | |
