Please Upgrade Server
*This Configure to Order has not been created.
*You can still
Contact Us
for a quote on this server.
*Thank you.
The request has been sent.
Thank you.
Price as Configured:
$0
Quick Specs
Form Factor:
1U rack server
Processor | Max: 8 Cores2 x Intel Xeon E5-2600 or E5-2600v2
Memory | Max: 768GB24 DDR3 RDIMM 1866Mhz
Storage | Max: 10TB4 or 8 or 10 SFF SAS/NL-SAS/SATA (HDD/SSD)
Express Flash Drives:Up to 2 Express Flash PCIe SSDs
RAID Controller:PERC S110, H310, H710, H710P, H810
NIC/LOM:Broadcom® 5720 4x1Gb Base-T (default)
Remote Management:iDRAC7 with Lifecycle Controller
PCIe Slots:2x or 3x PCIe 3.0
GPU:Yes (available through CFI or field upgrade only)
Ideal for:
- High-Performance Computing (HPC)
- Virtual Desktop Interface (VDI)
- Virtualization

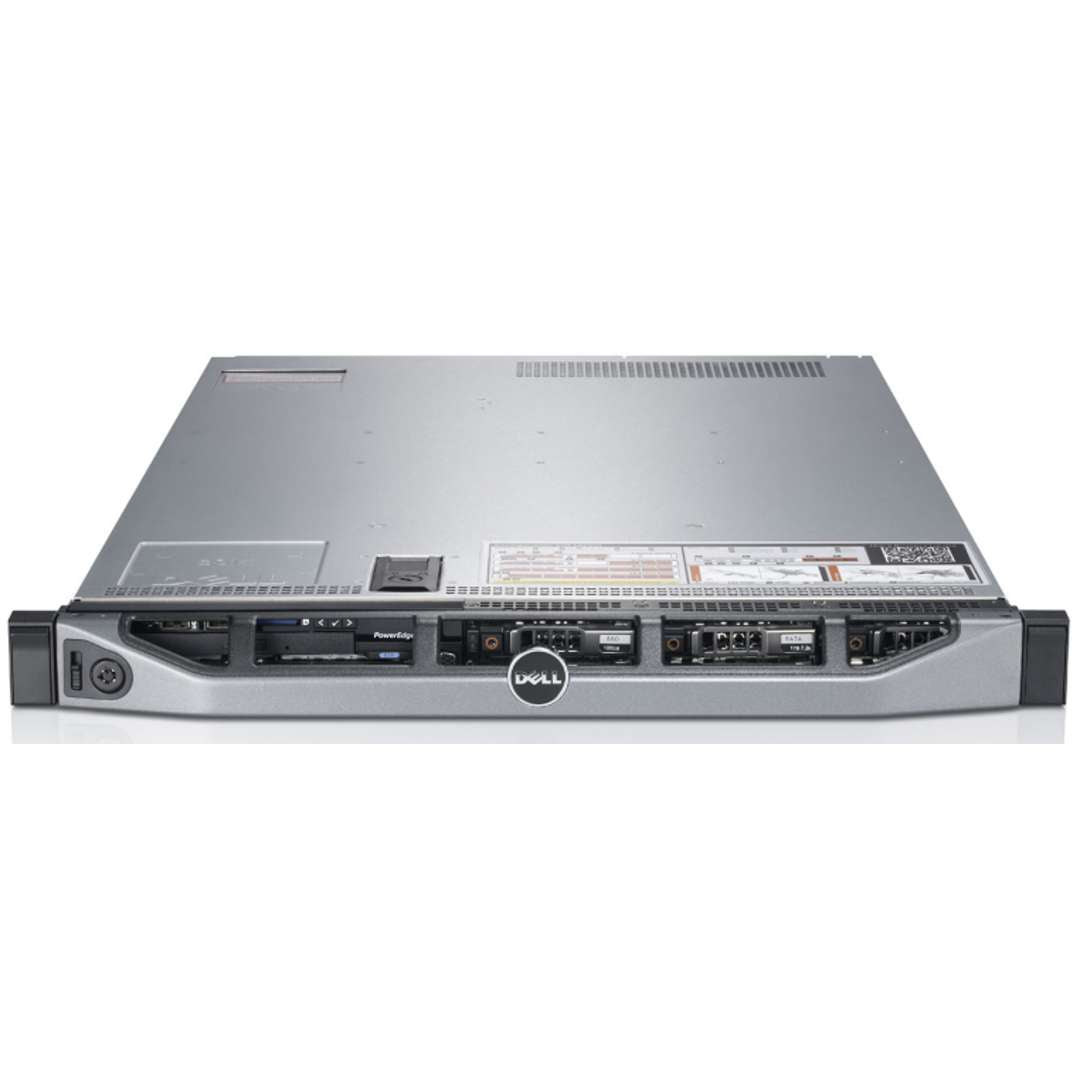

A hyper-dense 2-socket, 1U rack server, the Dell PowerEdge R620 has a large memory footprint and impressive I/O options that make it an exceptional platform for space-sensitive environments.
Designed for exceptional performance on a wide range of applications, the Dell PowerEdge R620 rack server is an impressive general purpose platform that is perfect for data centers with space constraints. With its hyper-dense memory (up to 768GB in a 1U form factor) and powered by Intel Xeon E5-2600 processors, the R620 really shines when handling virtualization, high performance computing (HPC), and workgroup collaboration applications
Accomplish more
Pack more computing power into a space-challenged data center with the PowerEdge R620, which offers an exceptionally large memory footprint along with balanced, scalable I/O capabilities, including integrated PCI Express 3.0-capable expansion slots. With reliability, availability and serviceability (RAS) features like hot-pluggable fans, disks, power-supply units (PSUs) and even redundant failsafe hypervisors, the R620 keeps your data center running with rock-steady reliability.
Dense design for demanding workloads
Virtualization environments demand high memory capacity to maximize the number of virtual machines per server, and the PowerEdge R620 was designed specifically with these environments in mind. It also offers outstanding computational density for HPC application clusters by providing powerful processing capabilities in a compact form factor.
Tailor your network fabric
The R620’s network features allow you to tailor your network throughput to match your application needs, enabling added I/O performance. Dell Select Network Adapters, our flexible NIC technology, let you choose the right network fabric without using up a valuable PCI slot. You can pick speed, technology, vendor and other options, like switch independent partitioning, which lets you share and manage bandwidth on 10GbE connections.
Performance-packed computing
Dramatically boost application performance with the latest Intel Xeon processor E5-2600 product family and up to 24 dual in-line memory modules (DIMMs). Built with 22-nanometer process technology and up to 12 cores per processor, it enables super-fast processing for compute-intensive tasks.
Processing density
Rely on the exceptional combination of a hyper-dense 2-socket, 1U rack design and the latest generation server processing technology to provide outstanding productivity for space-sensitive environments.
Impressive I/O capabilities
Take advantage of balanced, scalable I/O features that include integrated PCIe 3.0-capable expansion slots.
Flexible and scalable networking
Tailor your network throughput to match your application needs with features that allow you to take full advantage of your additional I/O performance.
Powerful systems management
Experience easy lifecycle manageability with intelligent hardware-driven systems administration, extensive power management and other innovative management tools.
Exceptional operational efficiency
Ensure maximum uptime and low-risk maintenance with next-generation reliability, availability and serviceability (RAS) features within the R620 infrastructure.
Versatile storage capacity
Maximize the utility of your rack space with internal storage features that enable a variety of different configurations, including Express Flash PCIe technology.
Security features
| Security feature | Description |
|---|---|
| Cover latch | A tooled latch is integrated in the side cover to secure it to the rack chassis. |
| Bezel | An option metal bezel is mounted to the chassis front to provide the Dell ID. A lock on the bezel is used to protect un-authorized access to hard drives. System status is viewable on the LCD screen when the bezel is installed. |
| TPM | The Trusted Platform Module (TPM) is used to generate/store keys, protect/authenticate passwords, and create/store digital certificates. It also supports the Intel Xeon TXT functionality. TPM can also be used to enable the BitLocker™ hard drive encryption feature in Windows Server 2008. TPM 1.2 is supported. No TPM version is available for China or Russia. |
| Power-off security | BIOS has the ability to disable the power button function. |
| Intrusion alert | An internal switch is used to detect chassis intrusion |
| Secure mode | BIOS has the ability to enter a secure boot mode through system setup. This mode includes the option to lock out the power and NMI switches on the control panel or set up a system password. |
GPU support
The R620 supports graphics processing unit (GPU) technology, which can provide accelerated performance for a variety of applications, including virtual desktop infrastructure (VDI) and HPC implementations.
Internal GPU supportThe R620 supports a 75W GPU card. The GPU card can support up to 1GB of dedicated GDDR5 memory and is actively cooled. An internal GPU is available through certified factory installation (CFI) or field upgrade only.
| GPU card | Width | Power consumption |
|---|---|---|
| NVIDIA® Quadro® 2000 | Single | 62W |
| NVIDIA Quadro 600 | Single | 39W |
| ATI™ FirePro™ V5800 | Single | 75W |
With an internal GPU or a ¾ length PCIe card, the R620 cannot support a 10Gb Dell Select Network Adapter (NDC) or any mini-type PERC. An adapter-type PERC is required with an internal GPU configuration.
