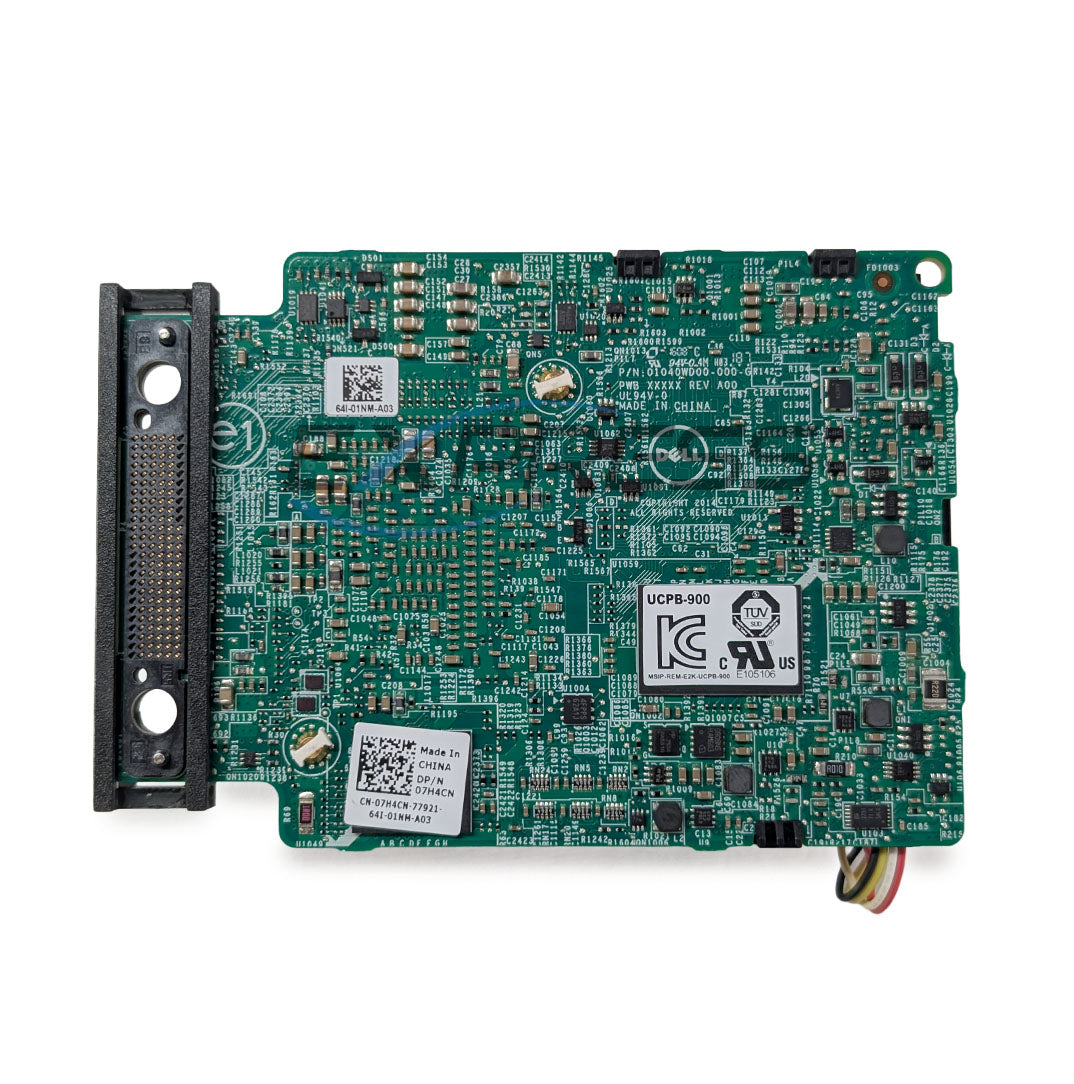

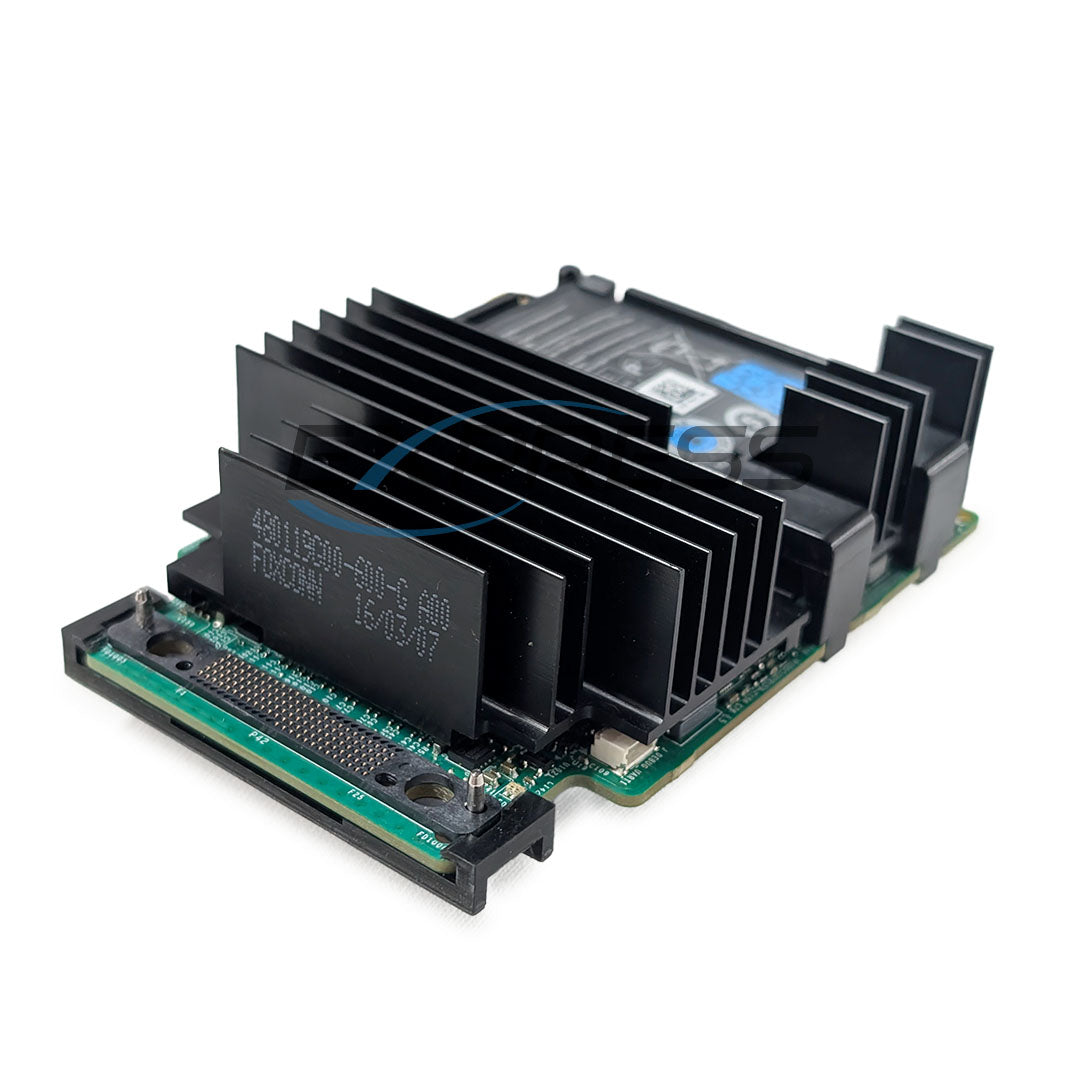

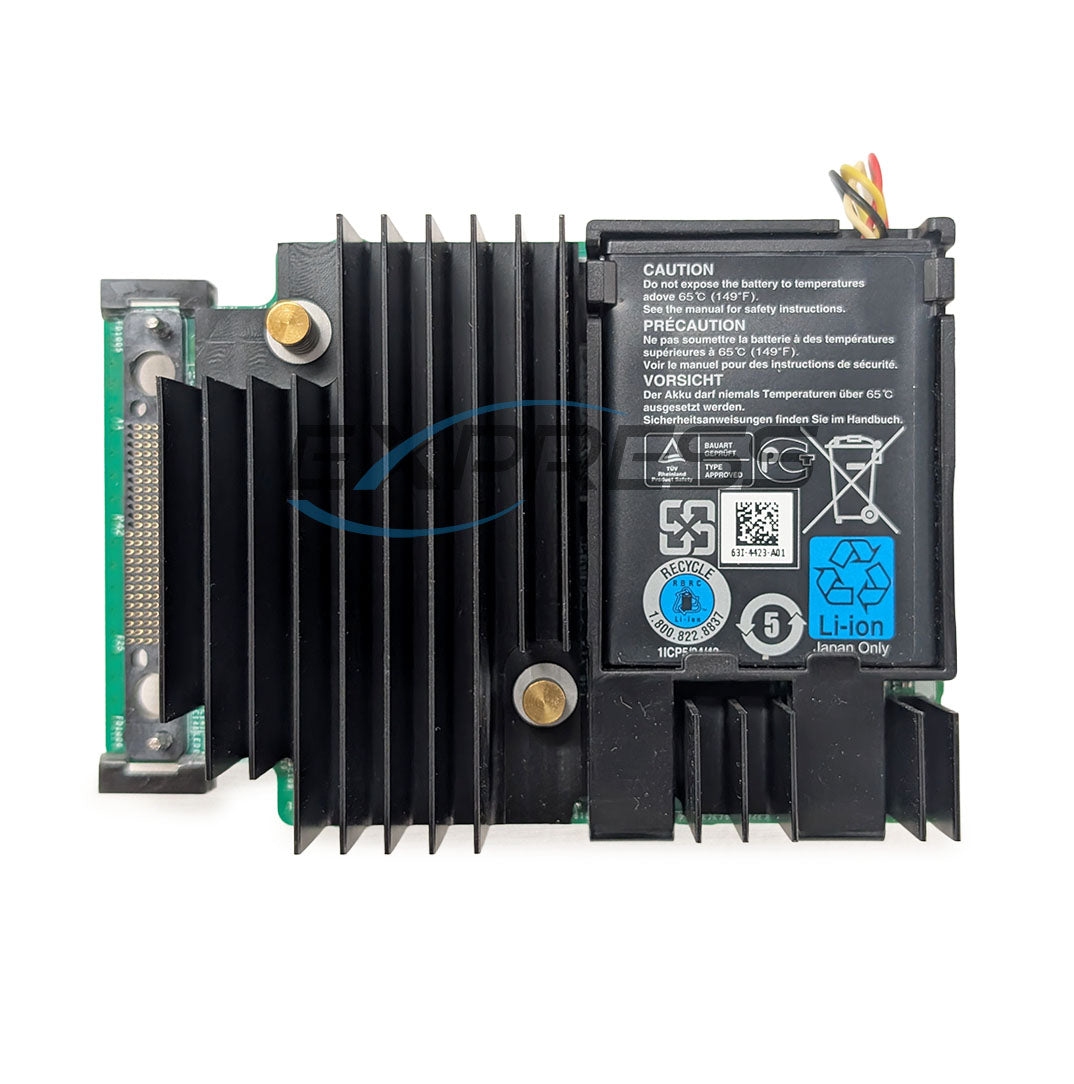

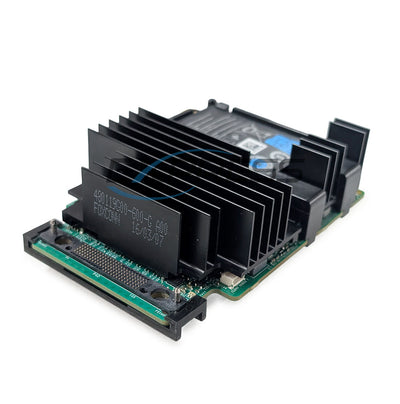

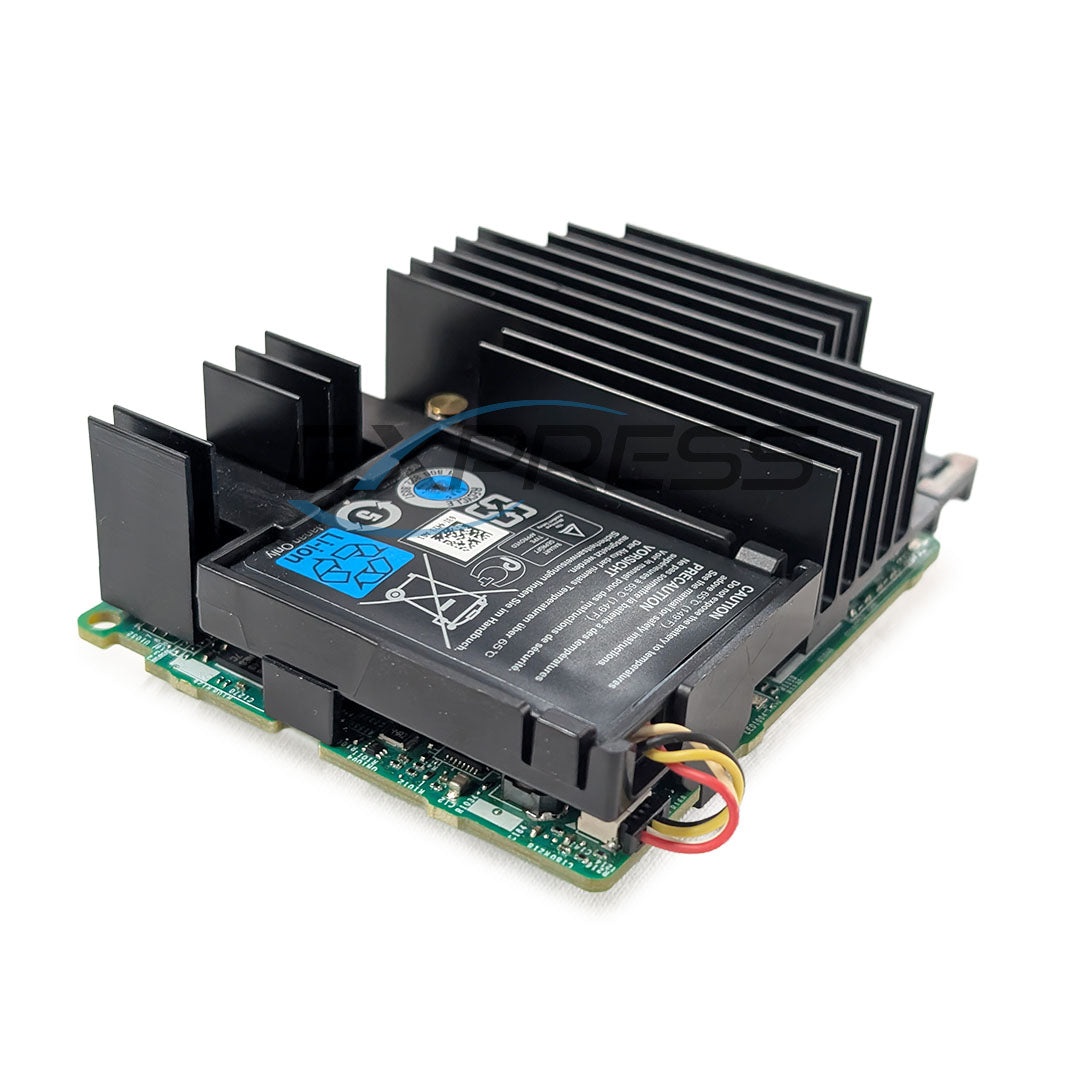

Dell PERC 9 H730P 12Gb SAS 2GB Mini Mono RAID Controller | 7H4CN

Dell PERC 9 H730P 12Gb SAS 2GB Mini Mono RAID Controller | 7H4CN

Stock: 2
Price: $95.00

Brand:

Dell

MPN:

7H4CN

Type:

Storage Controllers

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

Total:- $95.00

Add to Cart

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell PERC 9 H730P 12Gb SAS 2GB Mini Mono RAID Controller | 7H4CN

Quick Specs

Type: Mini Mono RAID Controller
Model: H730P Mini Mono
Drive Types: 12Gb/s SAS, 6Gb/s SATA
Interface: PCI Express 3.0
SAS Connectors: 2 x 4 External
Cache Memory: 2GB Non-Volatile (NV)
Write Back Cache: Flash Backed Cache
RAID Levels: 0, 1, 5, 6, 10, 50, 60
Max Drive Support: 32
RAID Support: Hardware

Part Number:

Mini Mono: 7H4CN
Mini Mono: 3V42G
Mini Mono: 7XTY8
Mini Mono: YRPP6
Full-Height: XYHWN
Blade MX: 2RFJJ

The Dell PERC H730P Mini Mono RAID Controller (7H4CN) offers robust reliability and enterprise-grade performance for storage environments. It features 2GB of flash-backed cache, supports both SAS and SATA drives, and utilizes a PCIe 3.0 interface for fast throughput.

Built to handle critical applications, the H730P Mini Mono supports up to 32 drives and advanced RAID configurations including RAID 60. Validated and supported by Dell, it ensures dependable operation within Dell PowerEdge systems, making it a key component for maximizing storage resilience and performance.

This Product Is Compatible With The Following Systems:

Dell PERC 9 H730P 12Gb SAS 2GB Mini Mono RAID Controller | 7H4CN Spec Sheet

Manuals

Base Standard Capabilities

Table 1. PERC cards The table below lists and describes the different PERC cards that comprise the PERC 9 series and their specifications.
Feature	PERC H330	PERC H730	PERC H730P	PERC H730P MX	PERC H830	PERC FD33xD/FD33xS
RAID Levels	0, 1, 5, 10, 50	0, 1, 5, 6, 10, 50, 60	0, 1, 5, 6, 10, 50, 60	0, 1, 5, 6, 10, 50, 60	0, 1, 5, 6, 10, 50, 60	0, 1, 5, 6, 10, 50, 60
Enclosures per port	Not applicable	Not applicable	Not applicable	Not applicable	8 (4 per port)	Not applicable
Processor	Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3008 chipset	Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset	Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset	Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset	Dell Adapter SAS RAID-on-Chip, 8- port with LSI 3108 chipset	Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset
Battery Backup Unit	No	Yes	Yes	Yes	Yes	Yes
Non-Volatile cache	None	Yes	Yes	Yes	Yes	Yes
Cache policy	No	1 GB DDR3 1333 Mhz cache	2 GB DDR3 1866 Mhz cache	2 GB DDR3 1866 Mhz cache	2 GB DDR3 1866 Mhz cache	2 GB DDR3 1866 Mhz cache
	NOTE: H330 does not support caching, which affects performance in RAID 5 and RAID 50 arrays. For performance sensitive solutions, caching is recommended.
Cache function	Write Through and No Read Ahead	Write Back, Write Through, No Read Ahead, and Read Ahead	Write Back, Write Through, No Read Ahead, and Read Ahead	Write Back, Write Through, No Read Ahead, and Read Ahead	Write Back, Write Through, No Read Ahead, and Read Ahead	Write Back, Write Through, No Read Ahead, and Read Ahead
Maximum number of virtual disks	16	64	64	64	240	64
Maximum number of virtual disks per disk group	16	16	16	16	16	16
Hot swap devices supported	Yes	Yes	Yes	Yes	Yes	Yes
Hardware XOR Engine	No	Yes	Yes	Yes	Yes	Yes
Online capacity expansion	Yes	Yes	Yes	Yes	Yes	Yes
Dedicated and global hot spare	Yes	Yes	Yes	Yes	Yes	Yes
Drives Types	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS	6 Gbps SAS, and 12 Gbps SAS	3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS
PCIe Support	Gen 3	Gen 3	Gen 3	Gen 3	Gen 3	Gen 3
Non-RAID or pass through mode	Yes	Yes	Yes	Yes	Yes	Yes
Queue Depth	895	928	928	928	928	928

Spec Sheet 4

Models	Drive Types	PCI Support	SAS Connectors	Cache Memory	Write Back Cache	RAID Levels	Max Drive Support	RAID Support
H830 Adapter	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	2 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	255	Hardware
H730P Adapter FH - X4TTX	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	2 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H730P Adapter LP - J14DC
H730P Adapter No Bracket - C9Y6K
H730P MX	12 Gb/s SAS 6 Gb/s SATA/SAS 3 Gb/s SATA	PCI-e 3.0	2x4 External	2 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	-	Hardware
H730P Mini Mono	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	2 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H730P Mini Blade - 3X31R	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	2 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H730P Mini Blade - GD07N
H730P Mini Blade - YRPP6
H730 Adapter FH	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	1 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H730 Adapter LP
H730 Adapter No Bracket
H730 Mini Mono	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	1 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H730 Mini Blade	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	1x4 External	1 GB NV	Flash Backed Cache	0,1,5,6,10,50,60	32	Hardware
H330 Adapter FH	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	No Cache	No Cache	0,1,5,10,50	16 RAID, 32 Non-RAID	Hardware
H330 Adapter LP	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	No Cache	No Cache	0,1,5,10,50	16 RAID, 32 Non-RAID	Hardware
H330 Mini Mono	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	No Cache	No Cache	0,1,5,10,50	16 RAID, 32 Non-RAID	Hardware
H330 Mini Blade	12 Gb/s SAS 6 Gb/s SATA	PCI-e 3.0	2x4 External	No Cache	No Cache	0,1,5,10,50	8	Hardware
S130 Software RAID	6 Gb/s SATA	N/A	N/A	No Cache	No Cache	0,1,5,10	10	Software - Windows and Linux
12 Gbps SAS Ext. HBA FH	12 Gb/s SAS	PCI-e 3.0	2x4 External	No Cache	No Cache	No RAID Pass-Thru Only	255	No RAID Pass-Thru Only
12 Gbps SAS Ext. HBA LP	12 Gb/s SAS	PCI-e 3.0	2x4 External	No Cache	No Cache	No RAID Pass-Thru Only	255	No RAID Pass-Thru Only
More HBA Gen 9 Controllers
	FD33XD Dual HBA (Split Host)	FD33XD Dual HBA (Dual Host)	FD33XD Dual PERC (Split Host)	FD33XD Dual PERC (Dual Host)	FD33XS Single HBA (Joined Mode)	FD33XS Single PERC (Joined Mode)	HBA330 + 12Gb SAS HBA	HBA330 MX 12Gb SAS Non-RAID
