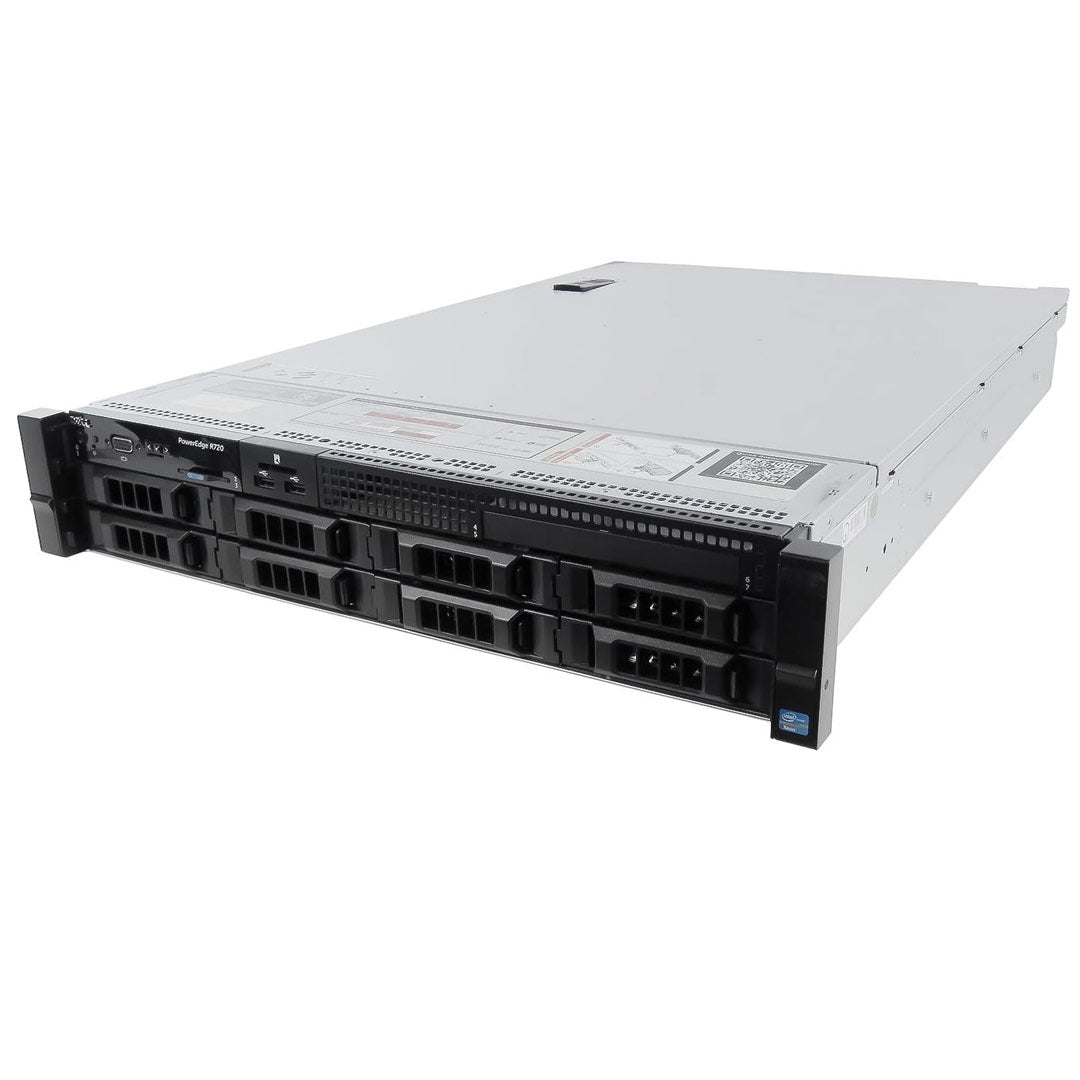

Dell PowerEdge R720 Rack Server Chassis (8x3.5")

SKU: DPE-R720-8X3.5

Dell PowerEdge R720 Rack Server Chassis (8x3.5")

Name: Dell PowerEdge R720 Rack Server Chassis (8x3.5")
Brand: Dell
SKU: DPE-R720-8X3.5
Availability: OutOfStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

2U rack server

Processor Max: 8 Cores

2 x Intel Xeon E5-2600

Memory Max: 768GB

24 ECC DDR3 UDIMM/RDIMM/LRDIMM 1866Mhz

Storage Max: 32TB

8 LFF SAS/NL-SAS/SATA (HDD/SSD)

RAID Controller:

S110 (SW RAID), H310, H710, H710P, H810, 6Gbps SAS HBA

NIC/LOM:

4x 1GbE Broadcom 5720 BASE-T

Remote Management:

iDRAC7 Express (default) with Lifecycle Controller

PCIe Slots:

7 PCIe 3.0 slots:
One x16 full-length, full-height
Three x8 full-length, full-height
Three x8 half-length, half-height

GPU:

2 x 300W (double wide) or
4 x 150W (single wide)

Ideal for:

Database
High-Performance Computing (HPC)
Retail Servers
Virtualization

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Features	PowerEdge R720 technical specification
Form factor	2U rack
Processors	Intel Xeon processor E5-2600 product family
Processor sockets	2
Internal interconnect	2 x Intel QuickPath Interconnect (QPI) links; 6.4 GT/s; 7.2 GT/s; 8.0 GT/s
Cache	2.5MB per core; core options: 2, 4, 6, 8 Chipset Intel C600
Memory	Up to 768GB (24 DIMM Slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s
I/O slots	7 PCIe slots: One x16 full-length, full-height Three x8 full-length, full-height Three x8 half-length, half-height
RAID controller	Internal controllers: PERC S110 (SW RAID) PERC H310 PERC H710 PERC H710P	External HBAs (RAID): PERC H810 External HBAs (non-RAID): 6Gbps SAS HBA
Drive bays	Up to eight 3.5 drives or up to sixteen 2.5 drives
Maximum internal storage	32TB
Hard drives	Hot-plug hard drive options: 2.5 PCIe SSD, SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K) 3.5 SAS (15K), nearline SAS (7.2K), SATA (7.2K) Self-encrypting drives available
Embedded NIC	Broadcom 5720 Quad Port 1GbE BASE-T (no TOE or iSCSI offload) Intel I350 Quad Port 1GbE BASE-T (no TOE or iSCSI offload) Intel X540 Dual Port 10GbE BASE-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports) Broadcom 57800S Dual Port 10GbE Base-T with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports Broadcom 57800S Dual Port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports
Power supply	Auto-ranging Titanium efficiency, hot-plug redundant 750W AC power supply; Auto-ranging Platinum efficiency, hot-plug redundant 495W, 750W or 1100W AC power supply; 1100W DC power supply
Availability	High-efficiency, hot-plug, redundant power supplies; hot-plug drive bays; TPM; dual internal SD support; hot-plug, redundant fan; optional bezel; information tag; ECC memory, interactive LCD screen; extended thermal support; ENERGY STAR compliant; switch independent partitioning
Remote management	iDRAC7 with Lifecycle Controller iDRAC7 Express (default), iDRAC7 Enterprise (upgrade option) 8GB vFlash media (upgrade option), 16GB vFlash media (upgrade optional)
Systems management	IPMI 2.0 compliant Dell OpenManage Essentials and Dell Management Console Dell OpenManage Power Center Dell OpenManage Connections: Dell OpenManage Integration Suite for Microsoft System Center Dell plug-in for VMware vCenter HP Operations Manager, IBM Tivoli Netcool , and CA Network and Systems Management
Rack support	ReadyRails II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks
Operating systems	Microsoft Windows Server 2012 Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V v2) Microsoft Windows Small Business Server 2011 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux	Virtualization options: Citrix XenServer VMware vSphere including ESX and ESXi Red Hat Enterprise Virtualization For more information on the specific versions and additions, visit Dell.com/OSsupport.

Spec Sheet 4

Feature	PowerEdge R710	PowerEdge R720	PowerEdge R720xd
Chassis	2U rack	2U rack	2U rack
Processors	Intel Xeon processors 5500 and 5600 series	Intel Xeon processor E5- 2600 or E5-2600 v2 product families	Intel Xeon processor E5- 2600 or E5-2600 v2 product families
Internal interconnect	Intel QuickPath Interconnect	Intel QuickPath Interconnect	Intel QuickPath Interconnect
Memory	18 DDR3 RDIMM and UDIMM Up to 288GB	24 x DDR3 RDIMM, UDIMM and LRDIMM Up to 768GB	24 x DDR3 RDIMM, UDIMM and LRDIMM Up to 768GB
Hard drive bays (hot plug)	Up to eight 2.5” or six 3.5”	Up to 16 2.5“ or eight 3.5”	Up to 24 2.5“+ two 2.5” or 12 3.5” + two 2.5”
RAID controllers	PERC 6/i, SAS 6/iR, PERC 6/E, H200, H700, H800	PERC S110, H310, H710, H710P, H810 (external); supports multiple (2) internal RAID controllers	PERC H310, H710, H710P, H810 (external)
PCIe slots	4 PCIe 2.0	6 PCIe 3.0	6 PCIe 3.0
Express Flash drives	Not supported	Up to 4	Not supported
Embedded NICs	4 1GbE with optional TOE	Select Network Adapter: minimum configuration of 4 1Gb Optional: 2 x 10GbE	Select Network Adapter: minimum configuration of 4 1Gb Optional: 2 x 10GbE
Power supplies	Hot-plug, redundant power supply units: 570W or 870W	Hot-plug, redundant power supply units: 495W, 750W, 1100W, 1100W DC	Hot-plug, redundant power supply units: 495W, 750W, 1100W, or 1100W DC
Power efficiency	Gold	Titanium	Titanium
Dell OpenManage systems management	Dell OpenManage Lifecycle Controller 1.x iDRAC6 (Express or Enterprise) with Lifecycle Controller 1.x	OpenManage Essentials OMSA Agent OpenManage Power Center (requires iDRAC7 Enterprise with Lifecycle Controller) OpenManage Integrations and Connections iDRAC7 Express with Lifecycle Controller (standard option)	OpenManage Essentials OMSA Agent OpenManage Power Center (requires iDRAC7 Enterprise with Lifecycle Controller) OpenManage Integrations and Connections iDRAC7 Express with Lifecycle Controller (standard option)
Internal GPU	Not supported	2 x 300W (double wide) or 4 x 150W (single wide)	Not supported
Availability	Hot-plug drives Hot-plug redundant cooling Hot-plug redundant PSUs	Hot-plug drives Hot-plug redundant cooling Hot-plug redundant PSUs Internal dual SD module	Hot-plug drives Hot-plug redundant cooling Hot-plug redundant PSUs Internal dual SD module
