    Dell PowerEdge R340 CTO Rack Server

    Brand:
    Type:
    CTO Servers
    Condition:
    ECS Refurbished & Tested
    -PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
    -SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

    READ ME

    • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
    • “Submit for Quote” items can be added to your cart and sent to us via the cart page
    • Click the blue bar to close/open a section from view after choosing your options

    Server Chassis

    Processors

    Intel Xeon E-2100

    Supports (1) processor

    Intel Xeon E-2200

    Supports (1) processor

    Bezel (Optional)

    Memory

    Supports up to 4 UDIMMs
    Up to 64 GB of UDIMM memory (4 x 16GB UDIMM)

    RAID Controllers (Optional)

    Embedded S140 software RAID installed by default

    Boot Optimized Storage Subsystem (BOSS) (Optional)

    Supports up to (2) M.2 SSD Drives

    LFF (3.5") Drives (Optional)

    Supports up to (4) Drives

    SFF (2.5") Drives (Optional)

    Supports up to (4) Drives
    2.5" drives in the 4x HDD Chassis will be installed with a 3.5" Drive Carrier.

    Riser Options (Optional)

    LP SLOT 1 Half Height Half Length x4 x8
    FH SLOT 2 Full Height Half Length x8 x16

    Internal Dual SD Module (IDSDM) (Optional)

    Optical Drive (Optional)

    Rail Kits (Optional)

    Trusted Platform Module (Optional)

    iDRAC9 (Optional)

    Default iDRAC9 Express

    Power Supplies

    Supports (2) Hot-Swap PSU

    Select Warranty

    Helpful Tip: Once desired configuration is selected click "Add to Cart". From the cart page you can submit a submit a quote request for best pricing

    Quick Specs

    Form Factor:

    1U rack server

    Processor | Max: N/A

    1x Intel® Xeon® E-2200 product family

    Memory | Max: 64GB

    4 DDR4 UDIMM 2666Mhz
    Supports ECC

    Storage | Max N/A:

    8x 2.5" hot-plug SATA, SAS or SSD
    4x 3.5 hot-plug SATA, SAS or SSD

    Rear Storage:

    None

    PCIe Slots:

    2x PCIe 4.0
    One x8 slot LP, HL with x4 slot width
    One x16 slot (LP or FH), HL with x8 bandwith

    Boot Options:

    BOSS
    IDSDM w/ vFlash
    Internal USB

    Networking Options:

    2x 1GbE

    Storage Controller:

    S140 (SW RAID)
    PERC H730P, H330, HBA330, HBA355e, 12Gbps SAS HBA

    Remote Management:

    iDRAC9 with Lifecycle Controller & vFlash

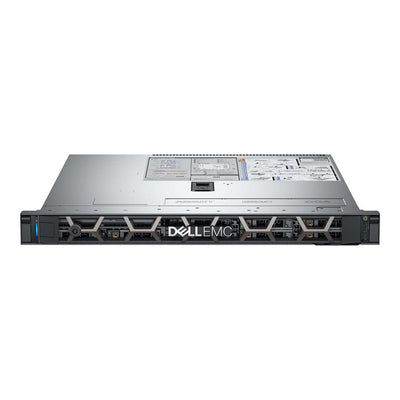

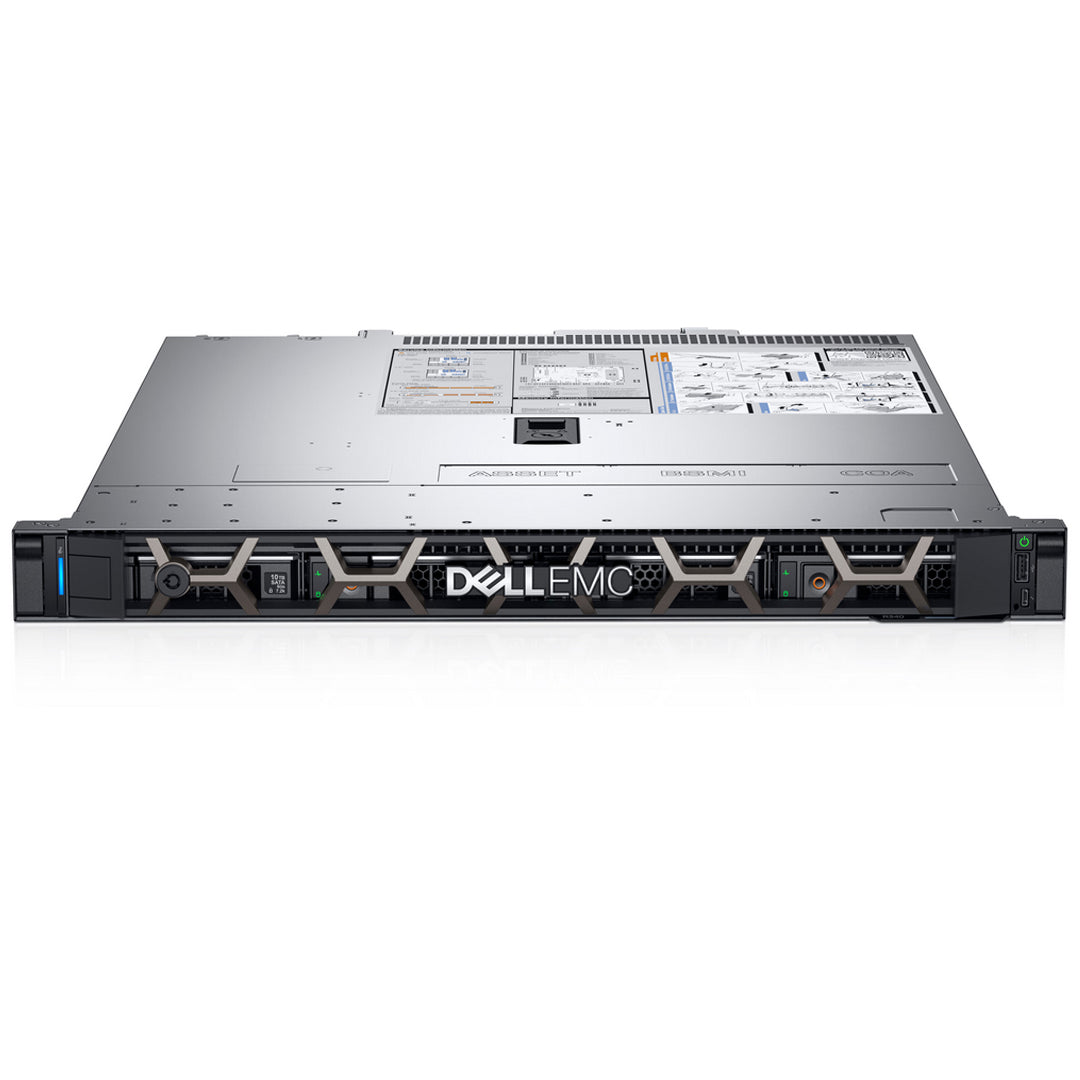

    The Dell EMC PowerEdge R340 is a single-socket 1U rack server designed for productivity and data intensive applications for remote office/branch offices.


    PowerEdge R340
    • Improved performance due to 100% more cores
    • Scale with 17% more storage capacity
    • Protect your server from malicious malware with iDRAC9 Enterprise Server Lockdown mode

    Boost your business productivity

    The Dell EMC PowerEdge R340 boosts business productivity, provides the flexibility to scale, and automates daily tasks. It is the ideal solution that allows you to focus on what matters: Accelerate your business growth. The Dell EMC PowerEdge R340 offers features to support your demanding and growing business needs.

    • Accelerate your business with improved performance due to 100% more cores with Intel® Xeon® E-2200 processors, 11% increase in memory speed, and 20% more PCIe lanes.1

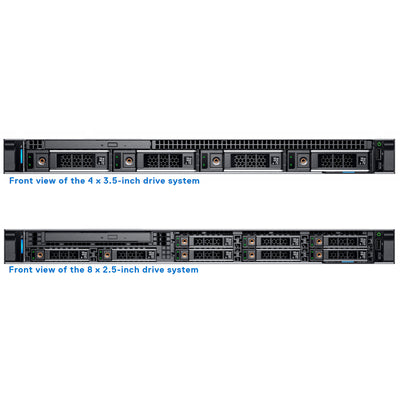

    • Harness data growth with up to 8 x internal 2.5” or 4 x 3.5” hot-plug hard drives.
    • Manage operational costs with Multi-Vector cooling which automatically calculates and delivers the proper airflow needed for optimal cooling.

    Simplify your IT infrastructure

    The Dell OpenManage portfolio offers innovations that simplifies management tasks, making IT operations efficient and cost-effective throughout the server lifecycle.

    • The embedded iDRAC9 with Lifecycle Controller, server deployment, configuration and updates are fast and worry-free.
    • Access your servers anywhere, anytime from your mobile device with OpenManage Mobile (requires OpenManage Enterprise).
    • Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and SupportAssist.

    Keep your data safe

    Every PowerEdge server is made with a cyber-resilient architecture, building security into the server’s entire life cycle. Dell EMC is laser-focused on security (from design to end-of-life) to ensure trust and deliver worry-free, secure servers.

    • Keep your data safe with software RAID.
    • Maintain data safety with cryptographically-signed firmware packages and Secure Boot.
    • Protect your server from malicious malware with iDRAC9 Server Lockdown mode (requires Enterprise and Datacenter license).
    • Wipe all data from storage media quickly and securely with System Erase

    Scale your IT on your own terms

    The Dell EMC PowerEdge R340 delivers the flexibility to increase compute, storage, and memory capacity.

    • Increase compute performance and the ability to run multiple applications at the same time, by choosing either a 4-, 6-, or 8-core Intel Xeon E-2200 processor
    • Harness data growth with up to eight internal 2.5" hot plug HDDs or four 3.5" hot plug HDDs
    • Address data sets with up to four DDR4 DIMMs and with a maximum of 64GB of RAM
    Memory Options
    DIMM type DIMM rank DIMM capacity Minimum RAM Maximum RAM
    UDIMM Single rank 8 GB 8 GB 32 GB
    16 GB 16 GB 64 GB
    Dual rank 8 GB 8 GB 32 GB
    16 GB 16 GB 64 GB
    Storage Controllers
    Internal controllers External controllers
    • PERC H730P
    • PERC H330
    • S140
    • HBA330
    • 12 Gb/s Ext SAS HBA
    • HBA355e
    Note:

    The Storage Controller is installed under the Butterfly PCIe Riser directly from the system board. The Controller has its own dedicated PCIe slot.

    Image of the Storage Controller Placement in the Dell R340 Rack Server
    Boot Options
    Image of the IDSDM with vFlash Placement in the Dell R340 Rack Server.
    IDSDM

    The Internal Dual SD Module (IDSDM) holds 2 SD Card and 1 vFlash card. The cFlash is for the remote management iDRAC8 when you upgrade to the enterprise version. The IDSDM is perfect to load the OS for the hypervisor when supporting virtualization. The IDSDM can not load a full OS for the system. That is what the BOSS card is for.

    Image of a BOSS PCIe Adapter
    BOSS Card

    The Boot Optimized Sub-System (BOSS) is the perfect way to load the OS onto any system without allocating a drive for this operation. The BOSS card can hold 2 M.2 Drives and loads the full OS.

    Image of the Internal USB Placement
    Internal USB

    The Internal USB slot is located under the butterfly riser embedded on the system board. This USB can load the OS for you or other management software.

    PCIe Expansion Options
    PCIe slot Riser PCIe slot height PCIe slot length Link width Slot width
    Slot 1 x8 PCIe Low-profile Half-length x4 x8
    Slot 2 x16 PCIe Low-profile/Full-height Half-length x8 x16
    Internal PERC x8 PCIe Low-profile Half-length x8 x8
    Image of the butterfly riser for the Dell R340 Rack Server
    Power Supply Unit (PSU)
    PSU Class Heat dissipation (maximum) Frequency Voltage AC Current
    High line 100–240 V Low line 100–120 V
    350 W AC Platinum Redundant - 1356 BTU/hr 50/60 Hz 100–240 V AC, autoranging 350 W NA 4.8 A–2.4 A
    550 W AC Platinum 2107 BTU/hr 50/60 Hz 100–240 V AC, autoranging 550 W NA 7.4 A–3.7 A
