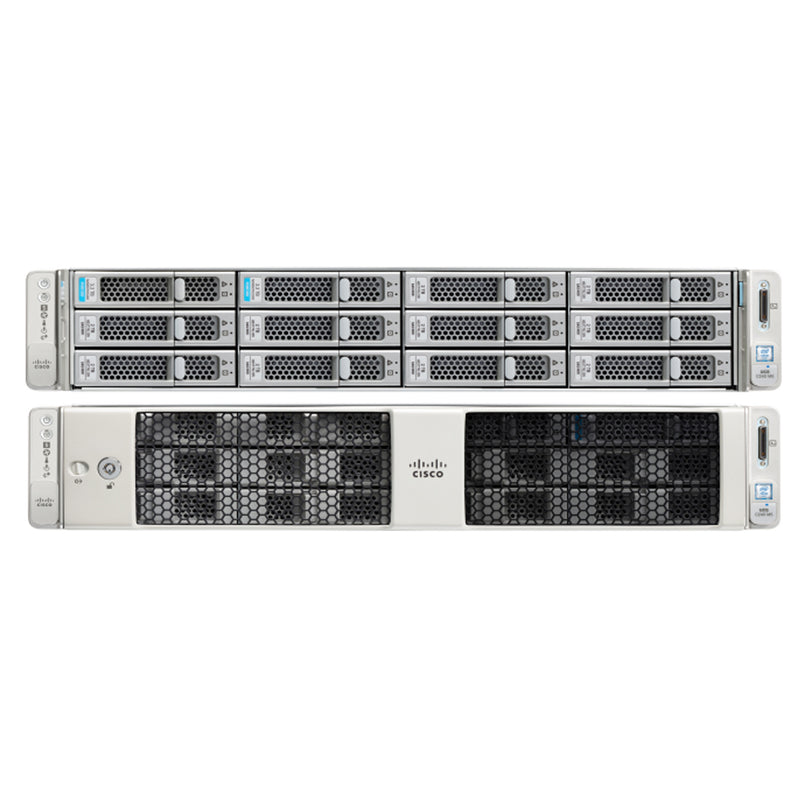

Cisco Ucs C240 M5 12X 3.5" Rack Server Chassis | UCSC-C240-M5L

Cisco

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

What's New for Cisco C240 M5 LFF Chassis
  • (2) Intel Xeon 2nd Gen Scalable Processors
  • (24) 2933MT/s DDR4 DIMMs
  • Support for Intel® Optane™ Persistent Memory (PMem)
  • (12) LFF SATA/SAS Drives
  • (2) Rear Drives SAS/SATA/NVMe
  • (6) PCIe 3.0 Slots
  • (6 SW, 2 DW) GPU Support
  • Dedicated mLOM Slot
  • Dedicated Cisco 12G SAS Modular RAID controller Slot
  • Embedded 2 x 10GBASE-T LAN-on-motherboard (LOM)
  • (6) Hot Swap Fans
Other Versions:

(Click to View)

Ideal for:

  • Artificial Intelligence (AI)
  • Big Data Analytics
  • Data Analytics
  • Database
  • Deep Learning (DL)
  • High-Performance Computing (HPC)
  • Machine Learning (ML)

The UCS C240 M5 LFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 2U form factor with the addition of the 2nd Generation Intel® Xeon® Scalable Processors, 2933-MHz DDR4 memory, and the new 512GB Intel® Optane™ Persistent Memory (PMem). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMem), up to 6 PCI Express (PCIe) 3.0 slots, and up to 12 front-facing internal LFF drives. The C240 M5 LFF server also includes one dedicated internal slot for a 12G SAS storage controller card.

The C240 M5 server includes a dedicated modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot, in addition to 2 x 10 Intel x550 10Gbase-T embedded (on the motherboard) LOM ports.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Capability/FeatureDescription
ChassisOne rack unit (1RU) chassis
CPUOne or two 2nd Generation Intel® Xeon® scalable family CPUs
ChipsetIntel® C621 series chipset
Memory24 slots for registered DIMMs (RDIMMs), load-reduced DIMMs (LRDIMMs), or through silicon via (TSV) DIMMs and support for Intel® Optane™ Persistent Memory (PMem)
Multi-bit Error ProtectionThis server supports multi-bit error protection.
VideoThe Cisco Integrated Management Controller (CIMC) provides video using the Matrox G200e video/graphics controller:
  • ■ Integrated 2D graphics core with hardware acceleration
  • ■ 512MB total DDR4 memory, with 16MB dedicated to Matrox video memory
  • ■ Supports display resolutions up to 1920 x 1200 16bpp @ 60Hz
  • ■ High-speed integrated 24-bit RAMDAC
  • ■ Single lane PCI-Express host interface running at Gen 1 speed
SATA Interposer BoardAn optional SATA interposer board provides for up to eight SATA-only drives.
Power subsystemUp to two of the following hot-swappable power supplies:
  • ■ 770 W (AC)
  • ■ 1050 W (AC)
  • ■ 1050 W (DC)
  • ■ 1600 W (AC)
  • ■ 1050ELV (AC)
One power supply is mandatory; one more can be added for 1 + 1 redundancy.
Front PanelA front panel controller provides status indications and control buttons
ACPIThis server supports the advanced configuration and power interface (ACPI) 6.2 standard.
FansSeven hot-swappable fans for front-to-rear cooling
InfinibandThe InfiniBand architecture is supported by the PCI slots.
Expansion slots

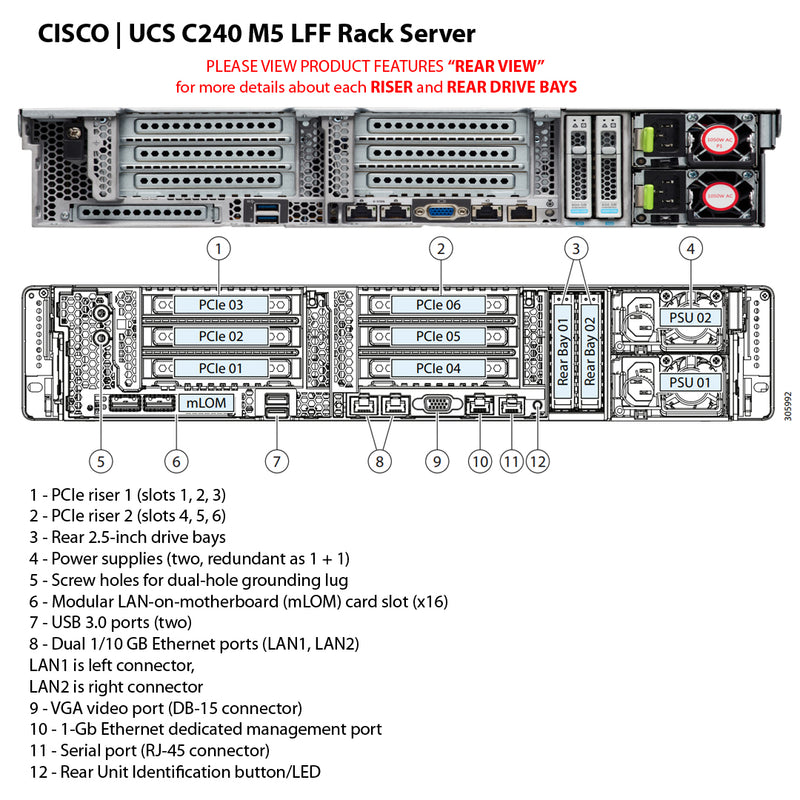

  • ■ Riser 1 (controlled by CPU 1):
    • • One full-height profile, 3/4-length slot with x24 connector and x16 lane.
  • ■ Riser 2 (controlled by CPU 2):
    • • One half-height profile, half-length slot with x24 connector and x16 lane.
  • ■ Dedicated RAID controller slot
    • • An internal slot is reserved for use by the Cisco 12G SAS RAID controller or the Cisco 12G SAS HBA.
Interfaces
  • Rear panel
    • • One 1Gbase-T RJ-45 management port (Marvell 88E6176)
    • • Two 10Gbase-T LOM ports (Intel X550 controller embedded on the motherboard)
    • • One RS-232 serial port (RJ45 connector)
    • • One DB15 VGA connector
    • • Two USB 3.0 port connectors
    • • One flexible modular LAN on motherboard (mLOM) slot that can accommodate various interface cards

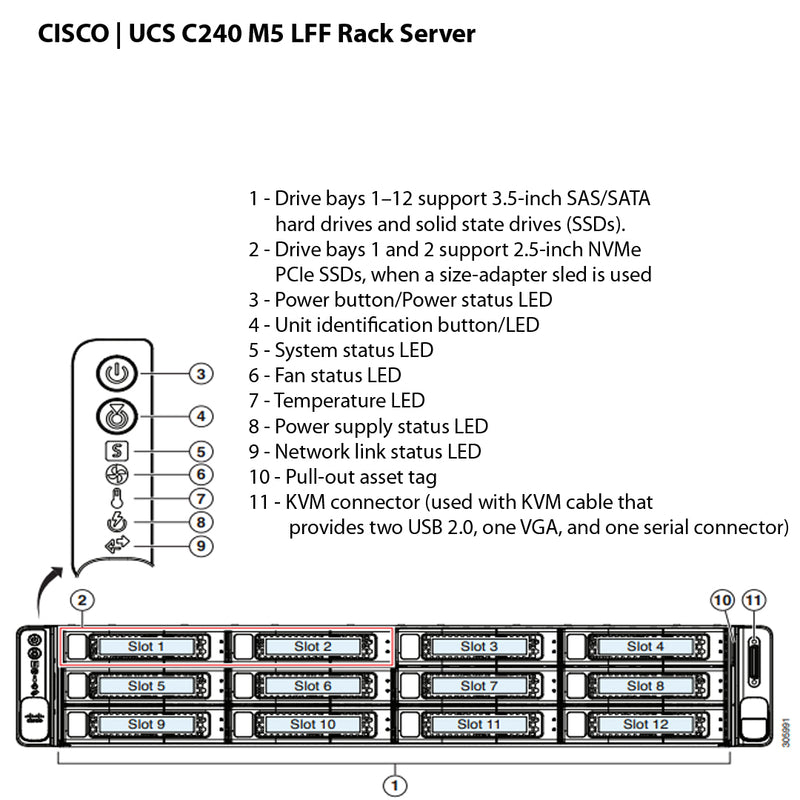

  • Front panel
    • • One KVM console connector (supplies two USB 2.0 connectors, one VGA DB15 video connector, and one serial port (RS232) RJ45 connector)
Internal storage devicesDrive storage:
Drives are installed into front-panel drive bays that provide hot-swappable access for SAS/SATA drives. The server accommodates up to 4 x 3.5-inch SAS and SATA HDDs and SSDs and up to 2 NVMe PCIe drives
  • Other storage:
  • One internal USB 3.0 port on the motherboard that you can use with an optional 16 GB USB thumb drive for additional storage.
  • A mini-storage module connector on the motherboard supports either:
    • • An SD card module with two SD card slots. Mixing different capacity SD cards is not supported.
    • • An M.2 module with two SATA M.2 SSD slots. Mixing different capacity M.2 modules is not supported.
  • One socket for a micro-SD card on PCIe riser 1. The micro-SD card serves as a dedicated local resource for utilities such as HUU. Images can be pulled from a file share (NFS/CIFS) and uploaded to the cards for future use.
NOTE: SD cards and M.2 SSDs cannot be mixed. See details for RAID functionality in the M.2 SATA SSDs (Optional) section.
Integrated management processorBaseboard Management Controller (BMC) running Cisco Integrated Management Controller (CIMC) firmware.
Depending on your CIMC settings, the CIMC can be accessed through the 1GE dedicated management port, the 1GE/10GE LOM ports, or a Cisco virtual interface card (VIC).
CIMC manages certain components within the server, such as the Cisco 12G SAS HBA.
Storage controller
  • Embedded RAID (software RAID)
    • • Supports up to eight SATA-only drives
    • • Requires a SATA interposer board
  • Cisco 12G SAS RAID controller card with internal SAS connectivity.
    • • Supports up to 10 internal SAS/SATA drives
    • • Plugs into a dedicated RAID controller slot
    • • Supports RAID 0, 1, 5, 6, 10, 50, 60 and JBOD mode
  • Cisco 12G 9400-8e SAS HBA
    • • Supports external JBOD attach
    • • Plugs into an appropriate riser slot (up to two supported)
    • • No RAID support
Modular LAN on Motherboard (mLOM) slotThe dedicated mLOM slot on the motherboard can flexibly accommodate the following cards:
  • Cisco Virtual Interface Cards
  • Quad Port Intel i350 1GbE RJ45 Network Interface Card (NIC)
NOTE: Dedicated mLOM slot that can flexibly accommodate 1-, 10-, 25-, 40-, and 100-Gbps adapters
NOTE: The four Intel i350 ports are provided on an optional card that plugs into the mLOM slot, and are separate from the two embedded (on the motherboard) LAN ports
UCSMUnified Computing System Manager (UCSM) runs in the Fabric Interconnect and automatically discovers and provisions some of the server components.
