Cisco UCS C220 M6 Rack Server CTO

Name: Cisco UCS C220 M6 Rack Server CTO
Brand: Cisco
SKU: UCSB-C220-M6-CTO
Availability: InStock

Cisco

| CTO Servers |

UCSB-C220-M6-CTO

.price-ui--loading { display: block !important; opacity: 1 !important; }

Configure for Pricing

READ ME

Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
“Quote” items can be added to your cart and sent to us via the cart page
Click the blue bar to close/open a section from view after choosing your options

Select Chassis

Two Chassis to choose from, one can support mulitple drive type and the second can only support NVME direct attached.

Cisco UCS C220 M6 10 SFF UCSC-C220-M6S Quote Cisco UCS C220 M6 10 SFF NVMe UCSC-C220-M6N Quote

Select Processor Intel 3rd Gen Xeon

Platinum Series Gold Series Silver Series

Platinum Series

Supports up to 2 CPUs

Cisco Intel® Xeon® Platinum 8380 (2.3GHz / 40 Core / 60MB) | UCS-CPU-I8380 Quote Cisco Intel® Xeon® Platinum 8368 (2.4Ghz / 38 Core / 57MB / 270W) Processor | UCS-CPU-I8368 Quote Cisco Intel® Xeon® Platinum 8362 (2.8Ghz / 32 Core / 48MB / 265W) Processor | UCS-CPU-I8362 Quote Cisco Intel® Xeon® Platinum 8360Y (2.4Ghz / 36 Core / 54MB / 250W) Processor | UCS-CPU-I8360Y Quote Cisco Intel® Xeon® Platinum 8358P (2.6Ghz / 32 Core / 48MB / 240W) Processor | UCS-CPU-I8358P Quote Cisco Intel® Xeon® Platinum 8358 (2.6Ghz / 32 Core / 48MB / 250W) Processor | UCS-CPU-I8358 Quote Cisco Intel® Xeon® Platinum 8352M (2.3Ghz / 32 Core / 48MB / 185W) Processor | UCS-CPU-I8352M Quote Cisco Intel® Xeon® Platinum 8352Y (2.2Ghz / 32 Core / 48MB / 205W) Processor | UCS-CPU-I8352Y Quote Cisco Intel® Xeon® Platinum 8352V (2.1Ghz / 36 Core / 54MB / 195W) Processor | UCS-CPU-I8352V Quote Cisco Intel® Xeon® Platinum 8352S (2.2Ghz / 32 Core / 48MB / 205W) Processor | UCS-CPU-I8352S Quote Cisco Intel® Xeon® Platinum 8351N3 (2.4Ghz / 36 Core / 54MB / 225W) Processor | UCS-CPU-I8351N Quote

Gold Series

Supports up to 2 CPUs

Cisco Intel® Xeon® Gold 6354 (3Ghz / 18 Core / 39MB / 205W) Processor | UCS-CPU-I6354 Quote Cisco Intel® Xeon® Gold 6348 (2.6Ghz / 28 Core / 42MB / 235W) Processor | UCS-CPU-I6348 Quote Cisco Intel® Xeon® Gold 6346 (3.1Ghz / 16 Core / 36MB / 205W) Processor | UCS-CPU-I6346 Quote Cisco Intel® Xeon® Gold 6342 (2.8Ghz / 24 Core / 36MB / 230W) Processor | UCS-CPU-I6342 Quote Cisco Intel® Xeon® Gold 6338T (2.1Ghz / 24 Core / 36MB / 165W) Processor | UCS-CPU-I6338T Quote Cisco Intel® Xeon® Gold 6338N (2.2Ghz / 32 Core / 48MB / 185W) Processor | UCS-CPU-I6338N Quote Cisco Intel® Xeon® Gold 6338 (2Ghz / 32 Core / 48MB / 205W) Processor | UCS-CPU-I6338 Quote Cisco Intel® Xeon® Gold 6336Y (2.4Ghz / 24 Core / 36MB / 185W) Processor | UCS-CPU-I6336Y Quote Cisco Intel® Xeon® Gold 6334 (3.6Ghz / 8 Core / 18MB / 165W) Processor | UCS-CPU-I6334 Quote Cisco Intel® Xeon® Gold 6330N (2.2Ghz / 28 Core / 42MB / 165W) Processor | UCS-CPU-I6330N Quote Cisco Intel® Xeon® Gold 6330 (2Ghz / 28 Core / 42MB / 205W) Processor | UCS-CPU-I6330 Quote Cisco Intel® Xeon® Gold 6326 (2.9Ghz / 16 Core / 24MB / 185W) Processor | UCS-CPU-I6326 Quote Cisco Intel® Xeon® Gold 6314U4 (2.3Ghz / 32 Core / 48MB / 205W) Processor | UCS-CPU-I6314U Quote Cisco Intel® Xeon® Gold 6312U5 (2.4Ghz / 24 Core / 36MB / 185W) Processor | UCS-CPU-I6312U Quote Cisco Intel® Xeon® Gold 5320T (2.3Ghz / 20 Core / 30MB / 150W) Processor | UCS-CPU-I5320T Quote Cisco Intel® Xeon® Gold 5320 (2.2Ghz / 26 Core / 39MB / 185W) Processor | UCS-CPU-I5320 Quote Cisco Intel® Xeon® Gold 538N (2.1Ghz / 24 Core / 36MB / 150W) Processor | UCS-CPU-I5318N Quote Cisco Intel® Xeon® Gold 538S (2.1Ghz / 24 Core / 36MB / 165W) Processor | UCS-CPU-I5318S Quote Cisco Intel® Xeon® Gold 538Y (2.1Ghz / 24 Core / 36MB / 165W) Processor | UCS-CPU-I5318Y Quote Cisco Intel® Xeon® Gold 5317 (3Ghz / 12 Core / 18MB / 150W) Processor | UCS-CPU-I5317 $1,450.00 Cisco Intel® Xeon® Gold 5315Y (3.2Ghz / 8 Core / 12MB / 140W) Processor | UCS-CPU-I5315Y Quote

Silver Series

Supports up to 2 CPUs

Cisco Intel® Xeon® Silver 4316 (2.3Ghz / 20 Core / 30MB / 150W) Processor | UCS-CPU-I4316 Quote Cisco Intel® Xeon® Silver 4314 (2.4Ghz / 16 Core / 24MB / 135W) Processor | UCS-CPU-I4314 Quote Cisco Intel® Xeon® Silver 4310T (2.3Ghz / 10 Core / 15MB / 105W) Processor | UCS-CPU-I4310T Quote Cisco Intel® Xeon® Silver 4310 (2.1Ghz / 12 Core / 18MB / 120W) Processor | UCS-CPU-I4310 Quote Cisco Intel® Xeon® Silver 4309Y (2.8Ghz / 8 Core / 12MB / 105W) Processor | UCS-CPU-I4309Y Quote

Select Memory (Optional)

Up to 32 DIMM on a 2 Socket configuration

Cisco 16GB 3200MHz 1Rx4 DDR4 RDIMM Memory | UCS-MR-X16G1RW Quote Cisco 32GB 3200MHz 1Rx4 DDR3 RDIMM Memory | UCS-MR-X32G1RW Quote Cisco 32GB 3200MHz 2Rx4 DDR4 RDIMM Memory | UCS-MR-X32G2RW Quote Cisco 64GB 3200MHz 2Rx4 DDR4 RDIMM Memory | UCS-MR-X64G2RW Quote Cisco 128GB 3200MHz 4Rx4 DDR4 LRDIMM Memory | UCS-ML-128G4RW Quote

Memory Pmem (Optional)

All 3rd Generation Intel® Xeon® Scalable Processors (Ice Lake) support PMem products, except 4309Y, 4310, 4310T, and 4316 processor.

Cisco 128GB 3200MHz Memory (Optane™ Persistent) | UCS-MP-128GS-B0 Quote Cisco 256GB 3200MHz Memory (Optane™ Persistent) | UCS-MP-256GS-B0 Quote Cisco 512GB 3200MHz Memory (Optane™ Persistent) | UCS-MP-512GS-B0 Quote

Memory Extras (Optional)

DIMM Blank and Memory Options

UCS DIMM Blanks Spare Part | UCS-DIMM-BLK Quote Memory Mode Intel® Optane™ Persistent Memory Memory Mode | UCS-DCPMM-MM Quote Memory Mode Intel® Optane™ Persistent Memory App Direct Mode | UCS-DCPMM-AD Quote Memory Mirroring Options | N01-MMIRROR Quote

Cisco C220 M6 Drive Options (Optional)

Default is the AHCI 8 SATA-only drive setup (8 internal drives in drive bays 1-8 and 2 SATA M.2 drives)
The AHCI requiers the HWRAID component.
Note that if the following Cisco 12G SAS RAID controller or Cisco 12G SAS HBA is selected, it is factory-installed in a dedicated slot.

Cisco SATA Interposer | UCSC-SATAIN-220M6 Quote Cisco Boot optimized M.2 RAID controller (holds up to 2 M.2 SATA SSDs) | UCS-M2-HWRAID Quote Cisco 12G SAS RAID controller with SuperCap and 4 GB FBWC | UCSC-RAID-220M6 Quote Cisco 12G SAS HBA | UCSC-SAS-220M6 Quote

Drives HDD SAS/SATA (Optional)

By Default the system comes with the AHCI a SATA Interposer which supports up to 8 SATA drives and 2 M.2 Drives. If you have choosen a different drive option above. Your system can hold 10 SAS or SATA drives, Or 6 SAS / SATA drives and 4 NVMe drives.
SED drives can be mixed with the non-SED drives
Please read the manual for installing the drive in the correct slots.

Cisco 2.5" 300GB 15K SAS 12Gbps HDD | UCS-HD300G15K12N Quote Cisco 2.5" 300GB 10K SAS 12Gbps HDD | UCS-HD300G10K12N Quote Cisco 2.5" 900GB 15K SAS 12Gbps HDD | UCS-HD900G15K12N Quote Cisco 2.5" 600GB 10K SAS 12Gbps HDD | UCS-HD600G10K12N Quote Cisco 2.5" 600GB 15K SAS 12Gbps HDD | UCS-HD600G15K12N Quote Cisco 2.5" 1.2TB 10K SAS 12Gbps HDD | UCS-HD12TB10K12N Quote Cisco 2.5" 1.8TB 10K SAS 12Gbps HDD | UCS-HD18TB10K4KN Quote Cisco 2.5" 2.4TB 10K SAS 12Gbps HDD | UCS-HD24TB10K4KN Quote Cisco 2.5" 2.4TB 10K 12Gbps SAS SED HDD | UCS-HD24T10NK9 Quote Cisco 2.5" 1.8TB 10L SAS 12Gbps SED HDD | UCS-HD18T10NK9 Quote Cisco 2.5" 1.2TB 10K SAS 12Gbps SED HDD | UCS-HD12T10NK9 Quote

Drives NVMe (Optional)

Depending on the Chassis type, your system can hold either 4 or 10 NVMe Drives.
If you order any NVMe SFF drives, you must also order two CPUs.
UCSC-C220-M6N | SFF NVMe drives are connected directly to CPU2 and not managed by any drive controller

Cisco 2.5" 375GB NVMe SSD | UCSC- NVMeXPB-I375 Quote Cisco 2.5" 750GB NVMe SSD | UCSC- NVMeXP-I750 Quote Cisco 2.5" 1.9TB U.2 Intel P5500 NVMe High Perf Medium Endurance | UCS- NVMeI4-I1920 Quote Cisco 2.5" 1.6TB U.2 NVMe Intel P5600 High Perf Medium Endurance SSD | UCS- NVMeI4-I1600 Quote Cisco 2.5" 3.2TB U.2 NVMe Intel P5600 High Perf Medium Endurance SSD | UCS- NVMeI4-I3200 Quote Cisco 2.5" 6.4TB U.2 NVMe Intel P5600 High Perf Medium Endurance SSD | UCS- NVMeI4-I6400 Quote Cisco 2.5" 400GB U.2 NVMe Intel P5800X Optane Extreme Perform SSD | UCS- NVMeXP-I400 Quote Cisco 2.5" 800GB U.2 NVMe Intel P5800X Optane Extreme Perform SSD | UCS- NVMeXP-I800 Quote Cisco 2.5" 1.9TB U.2 15mm P5520 HG Perf Med End NVMe | UCS- NVMe4-1920 Quote Cisco 2.5" 3.8TB U.2 NVMe 15mm P5520 HG Perf Med End SSD | UCS- NVMe4-3840 Quote Cisco 2.5" 7.6TB U.2 NVMe 15mm P5520 HG Perf Med End SSD | UCS- NVMe4-7680 Quote Cisco 2.5" 15.3TB NVMe 15mm P5520 HG Perf Med End SSD | UCS- NVMe4-1536 Quote Cisco 2.5" 1.6TB U.2 NVMe 15mm P5620 HG Perf HG End (3X) SSD | UCS- NVMe4-1600 Quote Cisco 2.5" 3.2TB U.2 NVMe 15mm P5620 HG Perf HG End (3X) SSD | UCS- NVMe4-3200 Quote Cisco 2.5" 6.4TB U.2 NVMe 15mm P5620 HG Perf HG End (3X) SSD | UCS- NVMe4-6400 Quote Cisco 2.5" 15.3TB NVMe 15mm P5316 HG Perf Low End SSD | UCS- NVMeQ-1536 Quote Cisco 2.5" 8.0TB U.2 NVMe SSD | UCSC- NVMeHW-I8000 Quote Cisco 2.5" 3.2TB U.2 NVMe Extreme Perf. High Endurance SSD | UCS- NVMeM6-W3200 Quote Cisco 2.5" 7.6TB U.2 NVMe Wd Sn840 Extreme Perf. Value Endurance SSD | UCS- NVMeM6-W7680 Quote Cisco 2.5" 15.3TB U.2 NVMe SSD | UCS- NVMeM6-W15300 Quote

Cisco C220 M6 M.2 Drives (Optional)

By Default the AHCI a SATA Interposer supports up to 2 M.2 Drives.
UCS-M2-HWRAID | Cisco Boot optimized M.2 RAID controller (holds up to two M.2 SATA SSDs)

Cisco C220 M6 Risers (Optional)

The System defaults to automatically include the one half-height riser

Cisco C220 M6 Riser 2 | UCSC-RIS2H-220M6 Quote Cisco C220 M6 Riser 3 | UCSC-RIS3H-220M6 Quote Cisco C220 M6 Riser GPU Kit | UCSC-GPURKIT-C220 Quote Cisco C220 M6 Riser 3 Blank Panel | UCSC-FBRS-C220M6 Quote

mLOM Modular LAN on Motherboard (mLOM) (Optional)

One flexible modular LAN on motherboard (mLOM) slot that can accommodate various interface cards. A modular LAN on motherboard (mLOM) module provides up to two 100 GbE ports. A connector on the front of the chassis provides KVM functionality
UCSC-M-V5Q50GV2 & UCSC-M-V5D200GV2: Can not be mixed with 1400 series VICs

Cisco UCS VIC 1467 quad port 10/25G SFP28 mLOM | UCSC-M-V25-04 Quote Cisco UCS VIC 1477 dual port 40/100G QSFP28 mLOM | UCSC-M-V100-04 Quote Cisco UCS VIC 15428 quad port 10/25/50G MLOM | UCSC-M-V5Q50G Quote Cisco UCS VIC 15238 dual port 40/100/200G MLOM | UCSC-M-V5D200G Quote Cisco UCS VIC 15427 Quad Port CNA MLOM with Secure Boot | UCSC-M-V5Q50GV2 Quote VIC 15237, MLOM, 2x40/100/200G for Rack | UCSC-M-V5D200GV2 Quote

Virtual Interface Card (VICs) (Optional)

VICs can be placed/installed in riser 1 or 3 only using half height riser combination. For full height, you can use either card for the VICs.
Two plug-in PCIe VIC cards can be installed in 2-CPU systems.

Cisco UCS VIC 15235 Dual Port 40/100/200G CNA Adapter | UCSC-P-V5D200G-D Quote Cisco UCS VIC 15425 Quad Port 10/25/50G CNA PCIE | UCSC-P-V5Q50G-D Quote Cisco VIC 1455 VIC – Quad Port 10/25G SFP28 PCIe 3.0 x16 (HHHL) Adapter | UCSC-PCIE-C25Q-04 Quote Cisco UCS VIC 1495 Dual Port 40/100G QSFP28 CNA PCIe 3.0 x16 (HHHL) Adapter | UCSC-PCIE-C100-04 Quote

Network Interface Card (NIC) (Optional)

If UCSC-P-I8Q25GF selected then UCSC-GPURKIT-C220 riser is required.

Intel i350 Quad Port 1GBase-T NIC PCIe 3.0 x8 Adapter | UCSC-PCIE-IRJ45 Quote Intel X710-DA2 Dual Port 10Gb SFP+ NIC PCIe 3.0 x8 (HHHL) Adapter | UCSC-PCIE-ID10GF Quote Intel X710 Quad Port 10Gb SFP+ NIC PCIe 3.0 x8 (HHHL) Adapter | UCSC-PCIE-IQ10GF Quote Cisco Intel X710T2LG Dual Port 10GbE RJ45 NIC Adapter | UCSC-P-ID10GC Quote Cisco Intel X710T4LG Quad Port 10GbE RJ45 NIC Adapter | UCSC-P-IQ10GC Quote Cisco Intel E810XXVDA2 Dual Port 10/25GbE SFP28 NIC Adapter | UCSC-P-I8D25GF Quote Cisco Intel E810XXVDA4L Quad Port 10/25GbE SFP28 NIC Adapter | UCSC-P-I8Q25GF Quote Mellanox CX-5 EN MCX512A-ACAT 2x25/10GbE SFP NIC PCIe 4.0 x8 (HHHL) Adapter | UCSC-P-M5D25GF Quote Intel XL710 Dual Port 40Gb QSFP+ NIC PCIe 3.0 x8 (HHHL) Adapter | UCSC-PCIE-ID40GF Quote Mellanox CX-5 MCX516A-CDAT 2x100GbE QSFP NIC PCIe 4.0 x16 (HHHL) Adapter | UCSC-P-M5D100GF Quote Cisco MCX623106AC-CDAT Dual Port 100GbE QSFP56 w/Crypto Adapter | UCSC-P-M6CD100GF4 Quote Cisco MCX623106AS-CDAT Dual Port 100GbE QSFP56 Adapter | UCSC-P-M6DD100GF Quote Cisco Intel E810CQDA2 Dual Port 100GbE QSFP28 NIC Adapter | UCSC-P-I8D100GF Quote

Smart Network Interface Card (SNIC) (Optional)

Nexus X25 2-port SFP28 SmartNIC (2-channel), KU3P FPGA | NXN-K3P-2X Quote Cisco Nexus K3P-S FPGA SmartNIC 10/25Gbps Dual Port 4GB Adapter | NXN-K3P-2X-4GB Quote Cisco Nexus X100 Dual Port QSFP28 SmartNIC (8-channel), KU3P FPGA | NXN-K3P-8X Quote Nexus X100 Dual Port QSFP28 SmartNIC (8-channel), KU3P FPGA | NXN-K3P-8X-9GB Quote Nexus Dual Port QDD SmartNIC+ (16-channel), VU9P FPGA | NXN-V9P-16X-9GB Quote

Host Bus Adapters (HBA) (Optional)

Cisco QLE2772 Dual Port 32Gb SFP+ HBA Adapter | UCSC-P-Q6D32GF Quote Cisco Emulex LPe35002-M2 Dual Port 32Gb SFP+ HBA Adapter | UCSC-P-B7D32GF Quote Qlogic QLE2692 Dual Port 16G Fibre Channel HBA PCIe 3.0 x8 (HHHL) Adapter | UCSC-PCIE-QD16GF Quote Emulex LPe31002 Dual Port 16G Fibre Channel HBA PCIe 3.0 x8 (HHHL) Adapter | UCSC-PCIE-BD16GF Quote 9500 Series PCIe Gen 4.0 Tri-Mode Storage HBA 12Gb/s SAS/SATA/PCIe (NVMe) | UCSC-9500-8E Quote

Cisco C220 M6 GPU (Optional)

All GPU cards must be procured from Cisco as there is a unique SBIOS ID required by CIMC and UCSM
A GPU can be installed in either full-height PCIe riser 1 or 2 (or both) or can be installed in three half-height riser 1, 2, or 3.

Nvidia T4 16GB Low Profile Single-Width GPU | UCSC-GPU-T4-16 Quote

Rail Kit (Optional)

No Rail Kit Option | UCSC-RAIL-NONE Quote Cisco C220 And C240 M6 Ball Bearing Rail Kit | UCSC-RAIL-M6 Quote Reversible CMA for C220 M6 ball bearing rail kit | UCSC-CMA-C220M6 Quote

Security (Optional)

Trusted Platform Module 2.0 (TPM) | UCSX-TPM-OPT-OUT Quote Trusted Platform Module 2.0 (TPM) | UCSX-TPM-002C $345.00 C220 and C240 M6 Chassis Intrusion Switch | UCSC-INT-SW02 Quote Cisco C220 (M5) Bezel | UCSC-BZL-C220M5 Quote

Power Supply Units

Supports up to 2 PSUs

Cisco 1050W AC Power Supply Unit | UCSC-PSU1-1050W $74.99 Cisco C-Series 1050W Dc Power Supply | UCSC-PSUV2-1050DC Quote Cisco UCS Rack Server 1050W AC Low Line Power Supply | UCSC-PSU1-1050ELV Quote Cisco C-Series Servers 1600W AC Power Supply | UCSC-PSU1-1600W Quote Cisco C-Series Servers 2300W Titanium Power Supply | UCSC-PSU1-2300W Quote

Select Warranty

ECS-1-Year - ECS 1-Year NBD Parts Replacement Warranty *Included as Standard for USA Customers* $1.00 ECS-2-Year - ECS 2-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-3-Year - ECS 3-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-4-Year - ECS 4-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-5-Year - ECS 5-Year NBD Parts Replacement Warranty (Ask for Quote) Quote

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

What's New

(2) Intel Xeon 3rd Gen Scalable Processors
(32) 3200MT/s DDR4 DIMMs
(10) SFF SATA/SAS/NVMe Drives
12Gbps SAS Drives Supported
(3) PCIe 4.0 Slots
(3) GPUs Supported
Dedicated mLOM Slot
Embedded Dual Intel x550 10GBASE-T (LOM) ports
Modular M.2 SATA SSDs for boot
Intel® Optane™ Persistent Memory (PMem)
(8) Hot Swap Fans

Other Versions

Cisco C220 M4 | M5 | M6 | M7
Cisco C240 M4 | M5 | M6

(Click to View)

Ideal for:

Artificial Intelligence (AI)
Big Data Analytics
Cloud Servers
Corporate IT
Data Analytics
Database
Deep Learning (DL)
High-Performance Computing (HPC)
Hyper-Converged infrastructure (HCI)
Machine Learning (ML)
Virtualization
Virtual Machines (VM)
Web Tech
Anything as a service (Xaas)

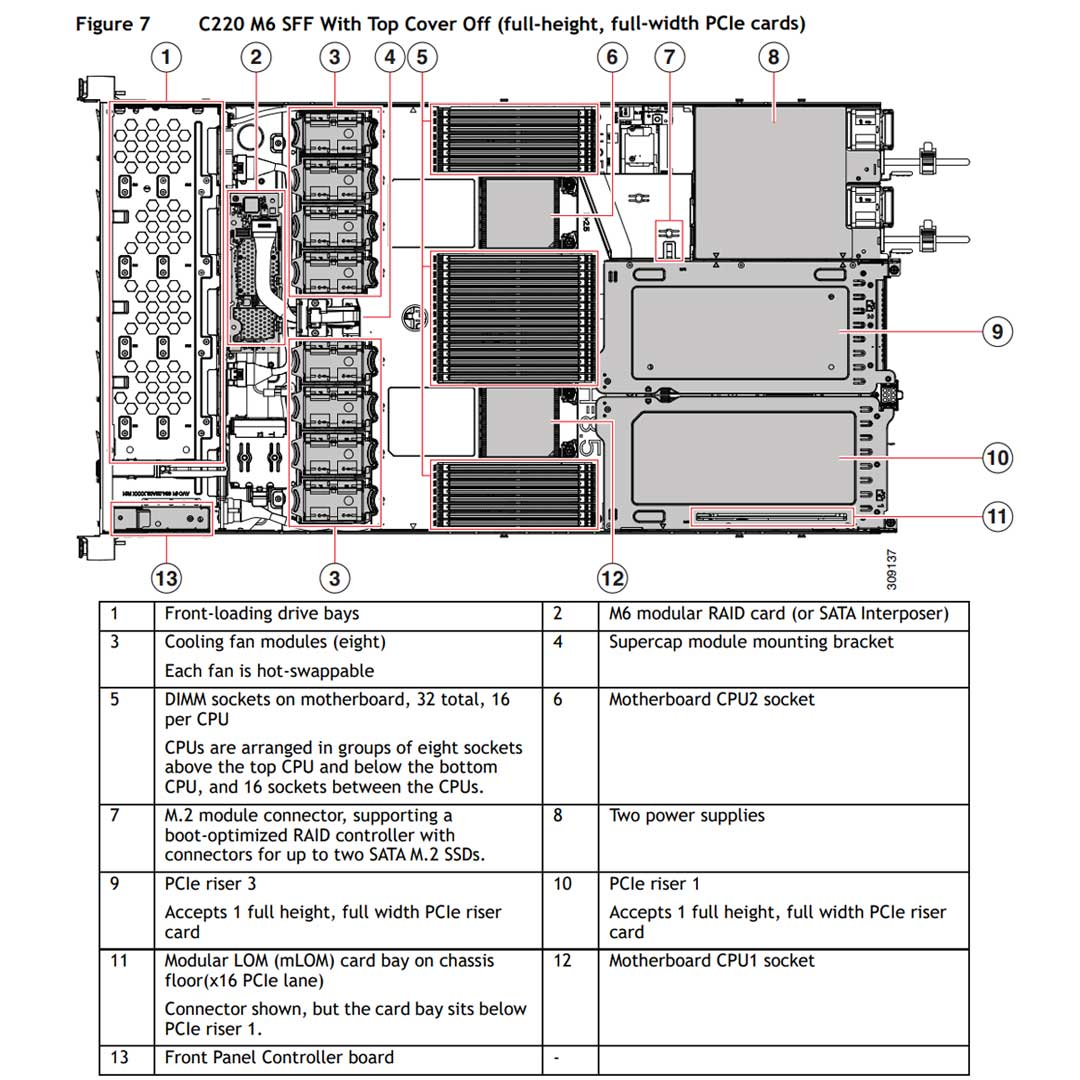

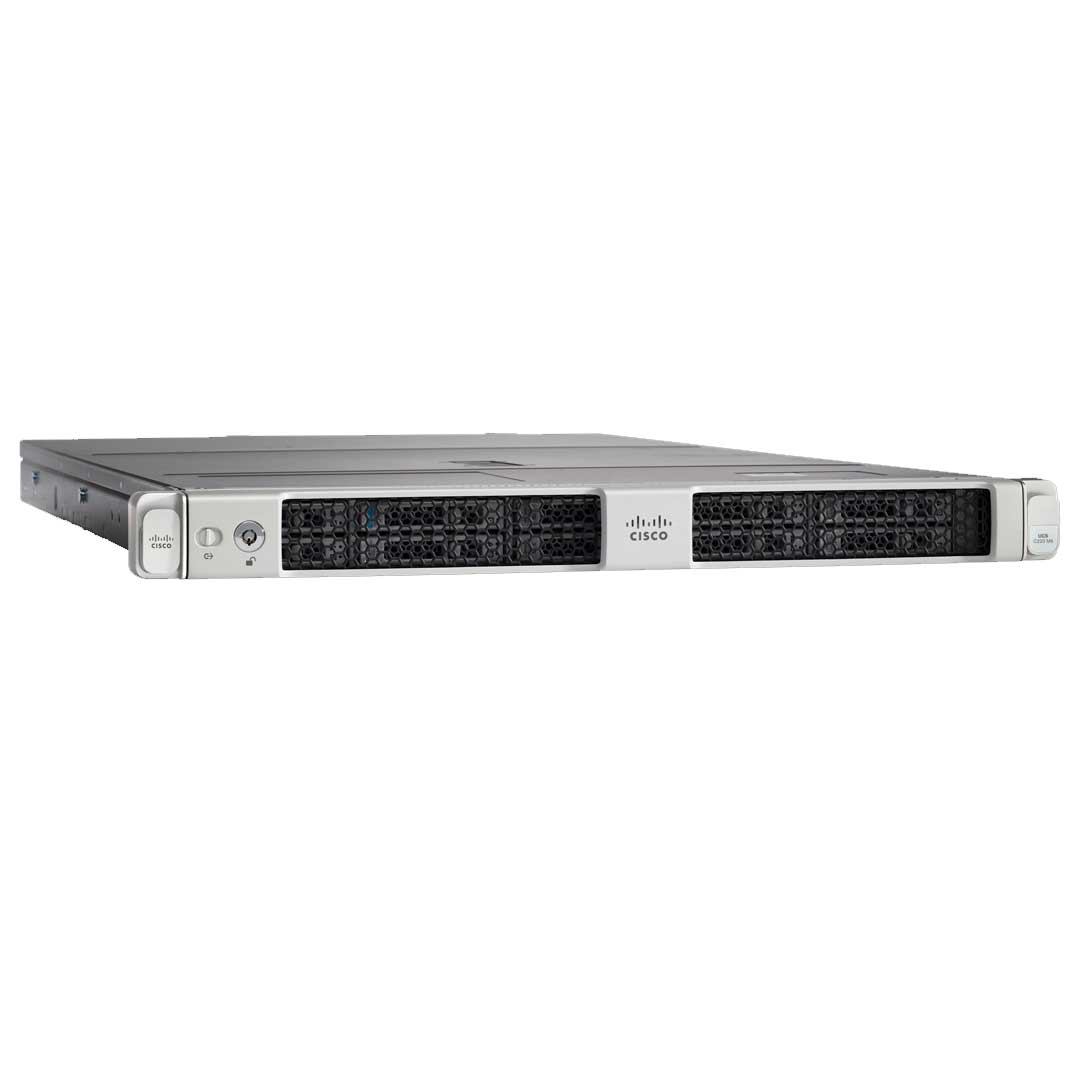

The Cisco UCS C220 M6 SFF Rack Server is a compact, 1U, two-socket server designed for high-performance workloads like AI, machine learning, data analytics, cloud computing, and virtualization. Powered by 3rd Gen Intel Xeon Scalable Processors, it supports up to 10 TB of memory, 10 SAS/SATA/NVMe drives in mixed or NVMe-only setups, and up to 3 GPUs for compute-intensive tasks.

It features PCIe Gen4 expansion and advanced networking with dual 10GBase-T ports. Integrated with Cisco UCS Manager and Cisco Intersight, this versatile and scalable server is ideal for hybrid IT and demanding enterprise workloads.

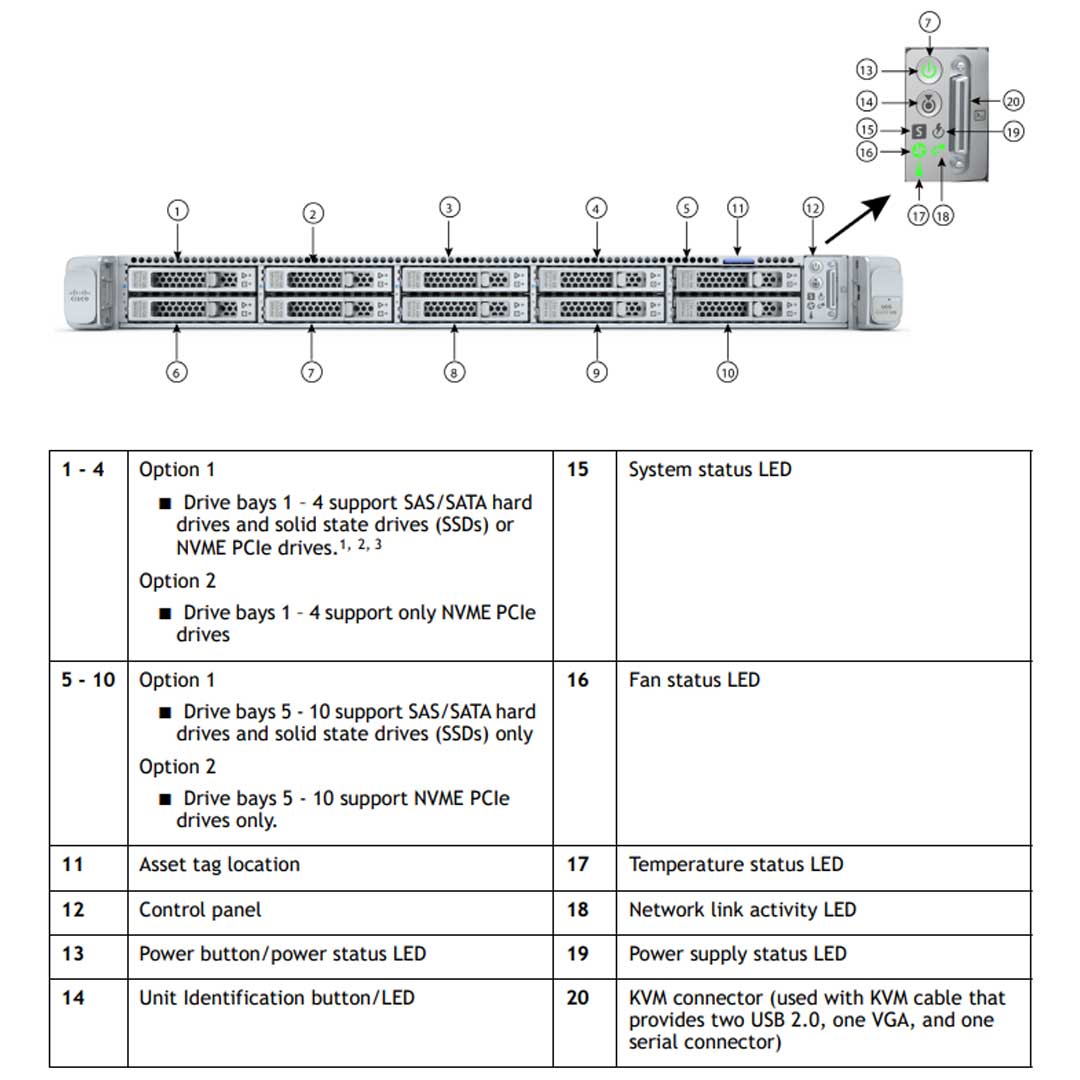

Chassis Options

Cisco C220 M6 10 SFF | UCSC-C220-M6S

Supports SATA/SAS/NVMe Drives

Drive Bays 1-4 allow NVMe & Mixing

default AHCI supports up to (8) SATA-only drives

SAS/SATA drives connected via RAID controller or HBA

Supports M.2 SATA drives for Boot

Cisco C220 M6 10 SFF NVMe | UCSC-C220-M6N

(10) NVMe Drives

All NVMe drives connected via CPU PCIe Gen4

Supports M.2 SATA drives for Boot

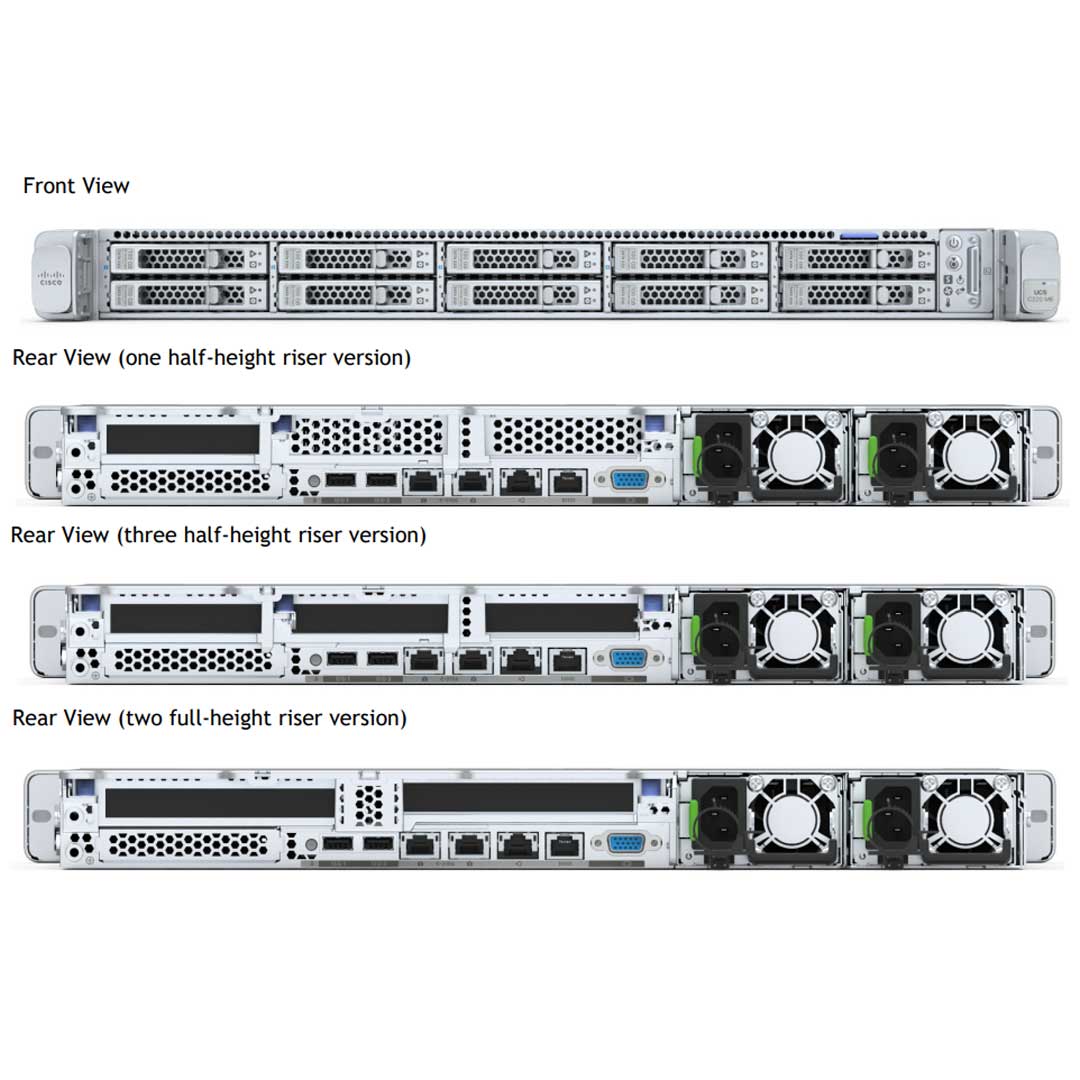

Riser Options

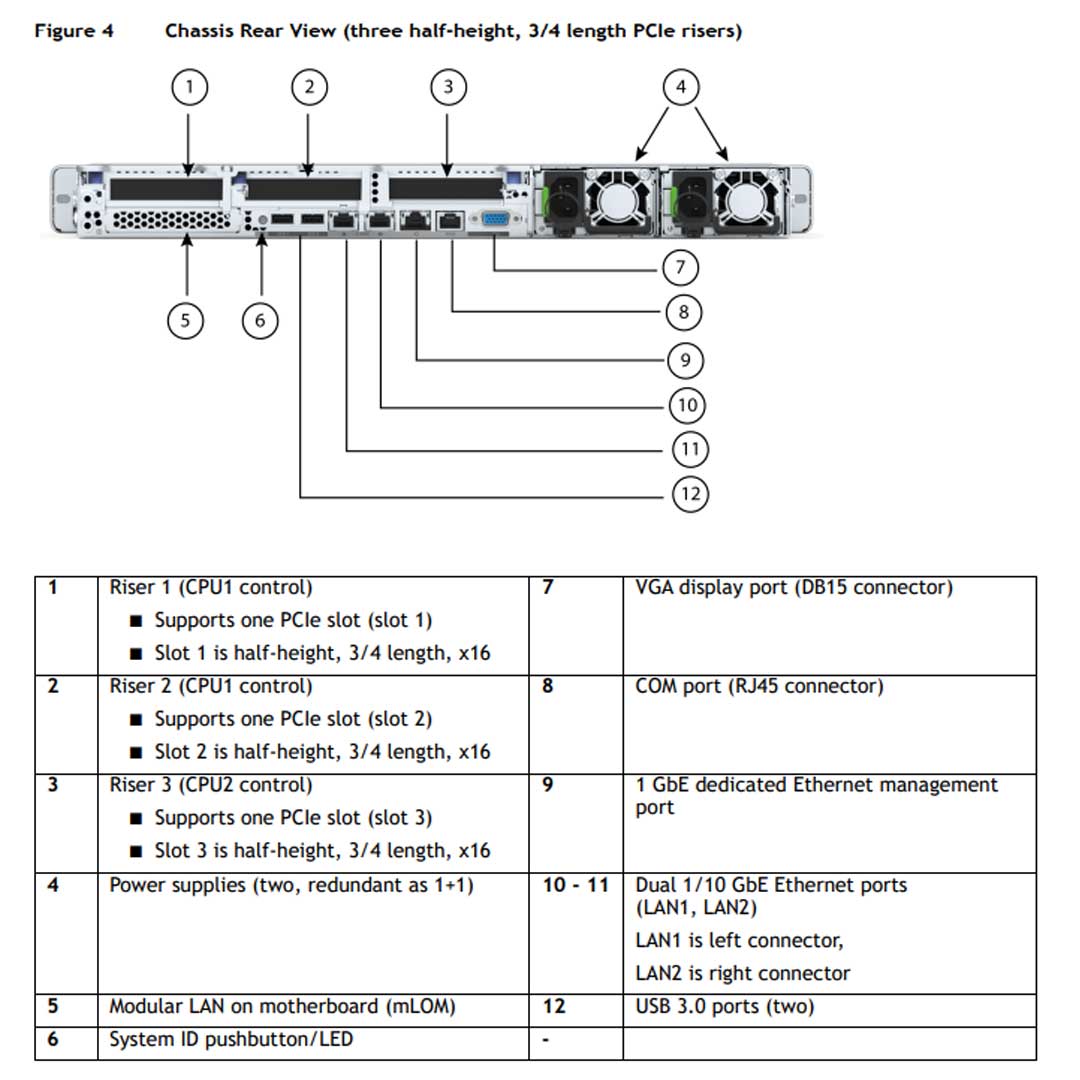

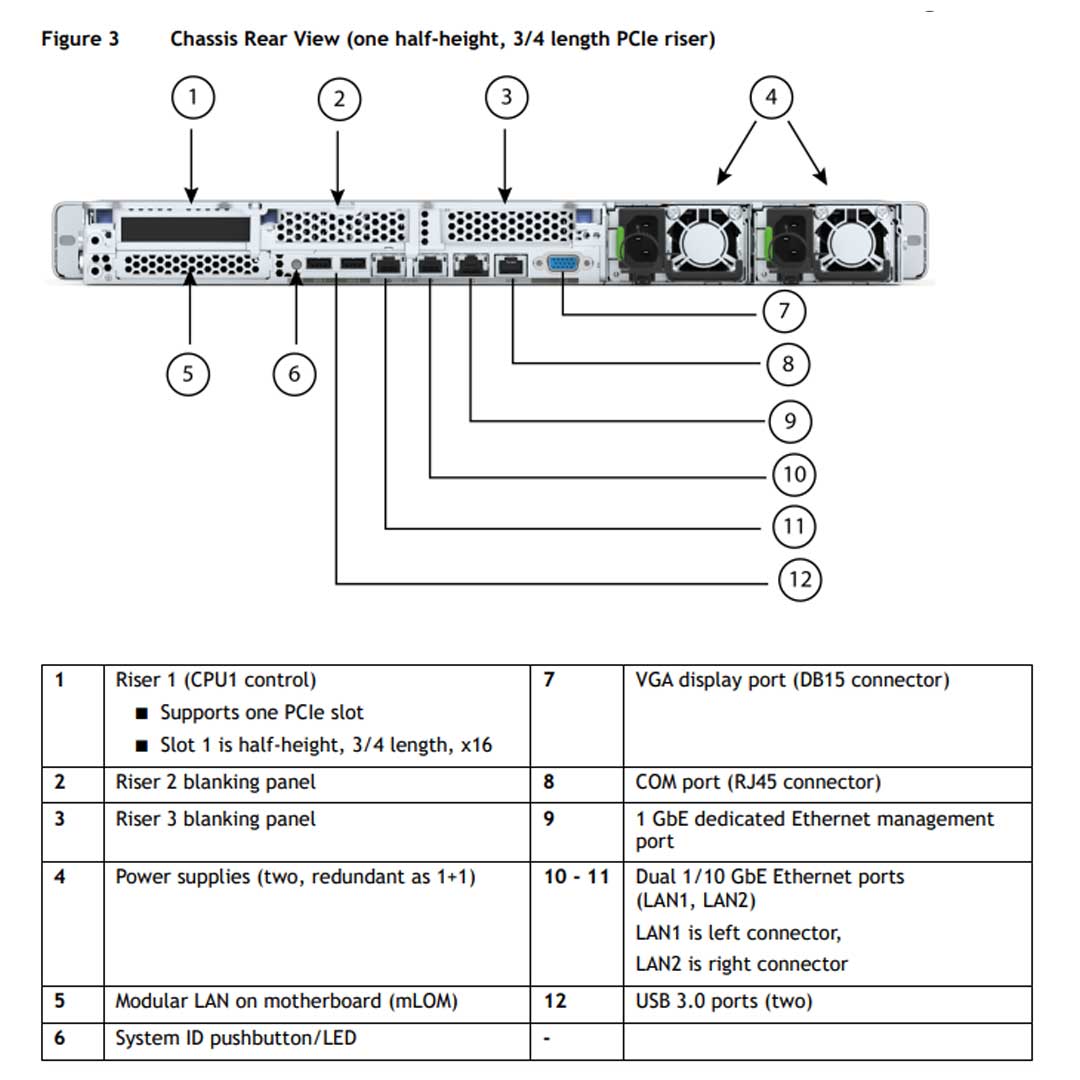

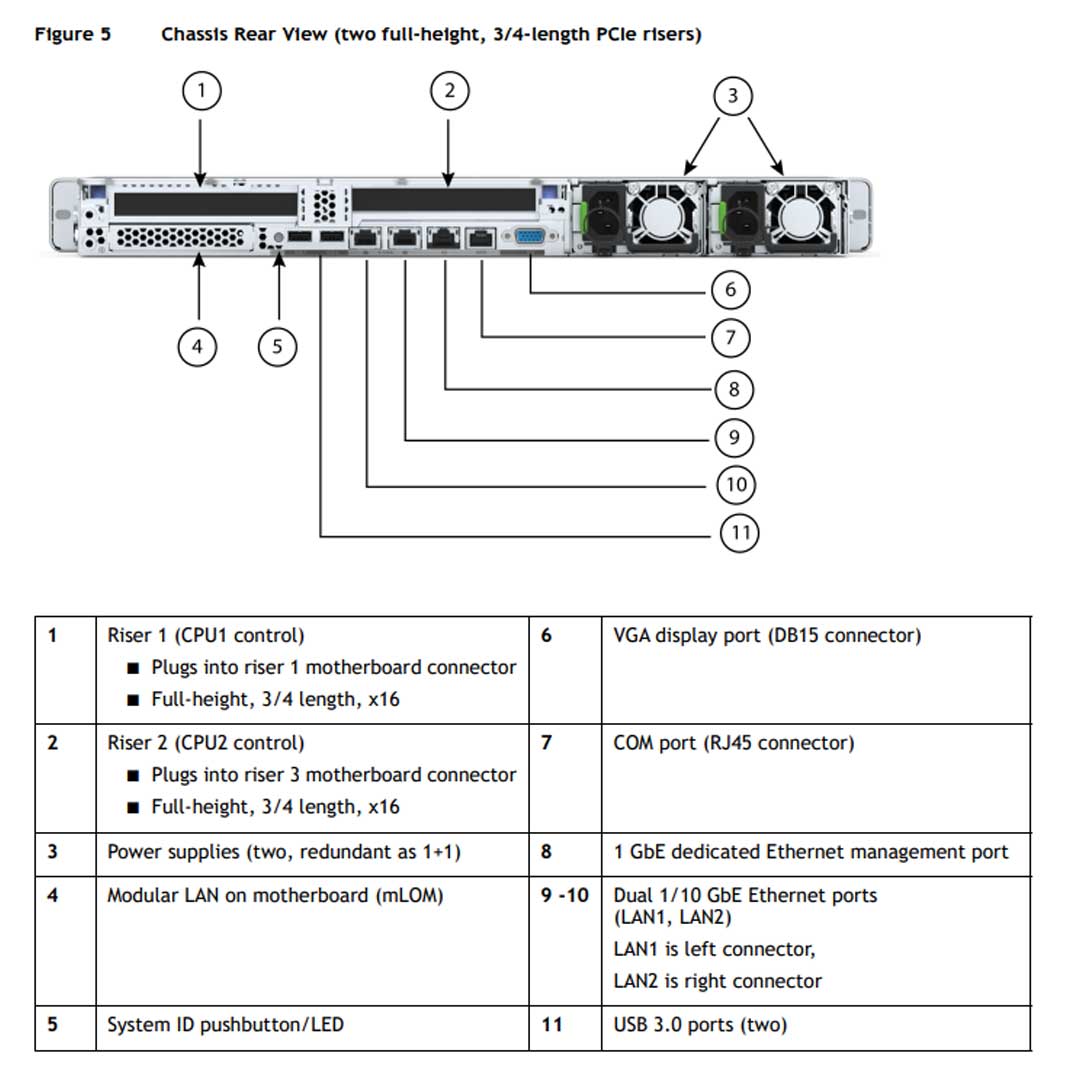

One to three half-height PCIe risers, or One to two full-height PCIe risers are supported. You must have 2 CPUs for Riser 3 to work or for Riser 2 to have a x16 slot for the full height Riser.

Byond the 3 PCIe 4.0 slots there is also 1 dedicated 12-Gbps RAID controller or SAS pass-through HBA slot and 1 dedicated mLOM slot. The UCS C220 M6 server has two LOM ports (10Gbase-T LOM) and a single 1 GbE management port. The Dedicated mLOM slot can flexibly accommodate 10/25/40, and 100-Gbps adapters. The system also has an Embedded Network Interface Cards (NICs) Dual 10GBASE-T Intel x550 Ethernet ports.

Supports up to 3 Nvidia t4 GPUs

Power & Fan Units

Eight hot-swappable fans for front-to-rear cooling. Up to two of the following hot-swappable power supplies:

1050 W (AC)
1050 W (DC)
1600 W (AC)
2300 W (AC)
One power supply is mandatory; one more can be added for 1 + 1 redundancy.

Dimensions & Weight:

Height

1.70 in. (4.3 cm)

Width

(Not including slam latches) 16.9 in.(42.9 cm)

Width

(including slam latches) 18.9 in.(48.0 cm)

Depth

30 in. (76.2 cm)

Weight

1 HDD, 1 CPU, 1 DIMM, and 1 1600 W power supply 22.32 lbs (10.1 kg)
1 HDD, 1 CPU, 1 DIMM, and 1 1600 W power supply 32.38 lbs (14.7 kg)
10 HDDs, 2 CPUs, 32 DIMMs, and 2 1600 W power supplies 32.38 lbs (14.7 kg)
10 HDDs, 2 CPUs, 32 DIMMs, and 2 1600 W power supplies 42.43 lbs (19.3 kg)
