HPE ProLiant Apollo sx40 2SFF 4x SMX2 GPU Server CTO
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

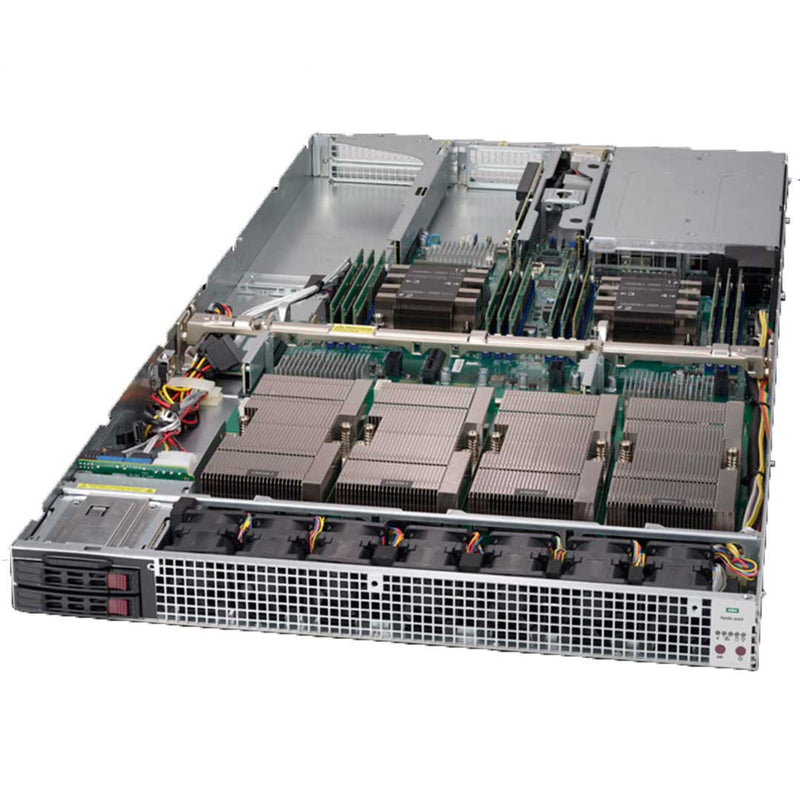

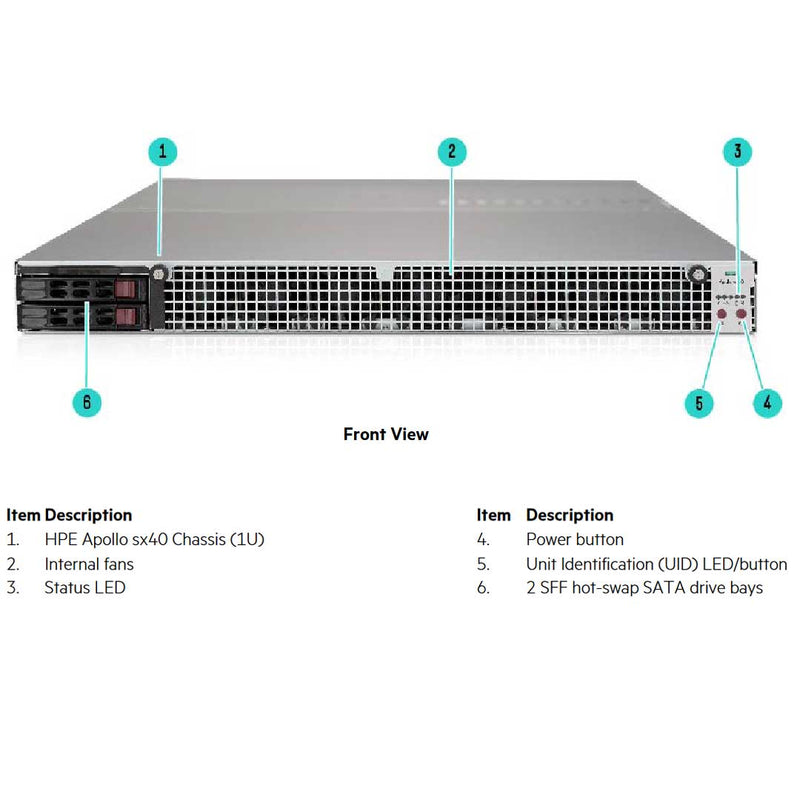

The Apollo sx40 is the SXM2 Version of the GPU Intense servers. The PCIe version is the HPE Apollo pc40 GPU Rack Server. Both servers are similar in that they both have 2 CPUs, 12 DIMMs, 2x 2000W Titanium PSUs, and 4 GPUs. This Apollo sx40 is a 1U form factor with support for 2 SFF Drives in the front. The sx40 Chassis can come with 4 V100 or 4 P100 GPUs and the 2 PSU installed..
NOTE: sx40 configuration with 4 x32GB V100 GPU’s requires that the ambient temperature does not exceed of 25 degrees Celsius12 DIMM Slots Available
(LRDIMM) Max: 1.5TB
(RDIMM) Max: N/A
Maximum Internal Storage
| Product | Total Capacity |
|---|---|
| HPE 1TB SATA 7.2K SFF RW 512n DS HDD | 2x 1 TB |
| HPE 2TB SATA 7.2K SFF RW 512e DS HDD | 2x 2 TB |
| HPE 240GB SATA MU SFF RW DS SSD | 2x 240 GB |
| HPE 480GB SATA MU SFF RW DS SSD | 2x 480 GB |
| HPE 960GB SATA MU SFF RW DS SSD | 2x 960 GB |
| HPE 1.92TB SATA MU SFF RW DS SSD | 2x 1.92 TB |
| HPE 3.84TB SATA RI SFF RW DS SSD | 2x 3.8 TB |
This sx40 has two low-profile PCIe slots and 2 Full-height PCIe slots. With 4 total PCIe slots this server has plenty of room for expansion of any kind. Like the HHHL NVMe PCIe cards.
Networking Abilities
The system comes with two 10GB RJ-45 Ports in the rear with the ability to upgrade and expand the networking abilities. When installing an InfiniBand Adapter you can get up to 100Gb/s.
HPE Apollo sx40 Cooling
The Apollo sx40 comes with 7 fans behind the bezel cooling off the 4x P100 or A100 SXM2 GPUs. There is no other cooling option.
HPE Apollo sx40 PSU
Just like the pc40 Apollo server this sx40 takes 2x 2000W PSU in the rear that come with the chassis.
HPE Apollo sx40 Server Management
Configure and boot your servers securely with industry-standard Unified Extensible Firmware Interface (UEFI).
HPE Insight Cluster Management Utility
HPE Insight Cluster Management Utility (CMU) is a Hewlett Packard Enterprise- licensed and Hewlett Packard Enterprise-supported suite of tools that are used for lifecycle management of hyperscale clusters of Linux systems. CMU includes software for the centralized provisioning, management, and monitoring of nodes. CMU makes the administration of clusters user-friendly, efficient, and effective.
Intelligent Provisioning
Hassle-free server and OS provisioning for 1 or few servers with Intelligent Provisioning.
