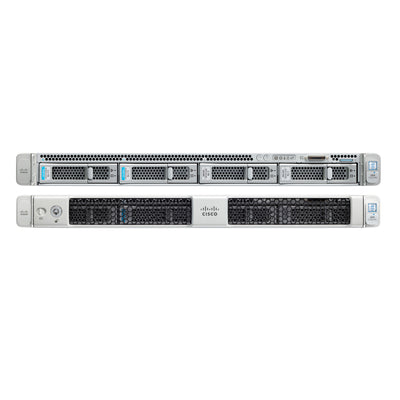

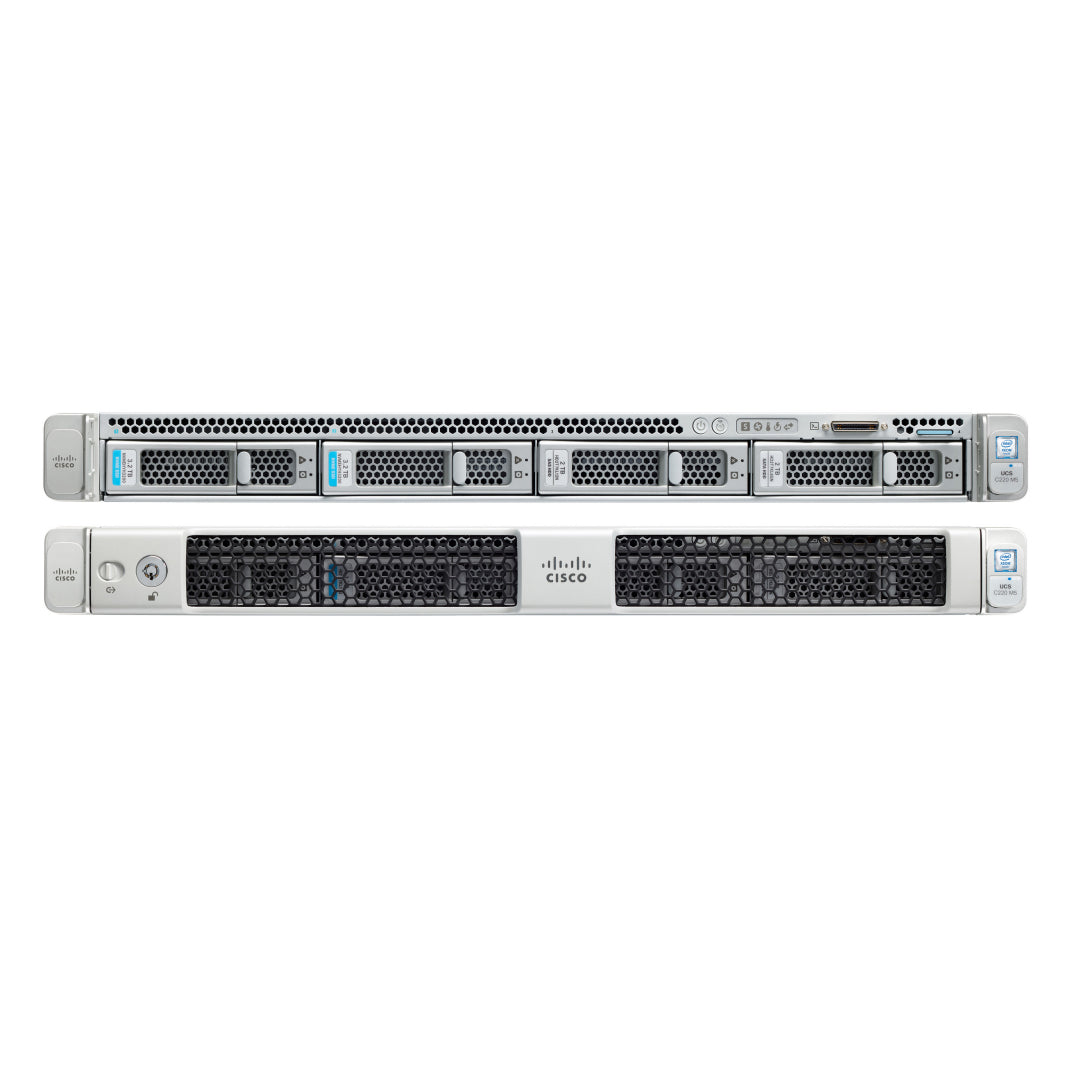

Cisco UCS C220 M5 LFF Rack Servers CTO

Cisco

| CTO Servers |

UCSC-C220-M5-LFF



Configure for Pricing

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Select Chassis

Select Processor

Cisco Recommended

Intel® Xeon® 8000 Series Processors

Intel® Xeon® 6000 Series Processors

Intel® Xeon® 5000 Series Processors

Intel® Xeon® 4000 Series Processors

Intel® Xeon® 3000 Series Processor

Select DIMMs

When memory mirroring is enabled, the memory subsystem simultaneously writes identical data to two channels. I

Select Memory Mirroring

When memory mirroring is enabled, the memory subsystem simultaneously writes identical data to two channels.

Select Drive | SAS HDD (Optional)

Select Drive | HDD SED (Optional)

Select Drive | SSD SATA (Optional)

Select Drive | SSD SAS (Optional)

Select Drive | SSD NVMe (Optional)

Select GPU (Optional)

Select Power Supply

In a server with two power supplies, both power supplies must be identical.

Select Power Cable(s) (Optional)

Select Rail Kit (Optional)

Select Cable Management Arm (CMA) (Optional)

Select Locking Security Bezel (Optional)

Select Cisco SD Card Module (Optional)

Each SD module accommodates two SD cards.

Select M.2 SATA SSDs (Optional)

Select Mini Storage Carrier (Optional)

Each mini storage carrier or boot-optimized RAID controller can accommodate up to two SATA M.2 SSDs

Selecte Internal Micro-SD Card Module (Optional)

Select USB 3.0 Drive (Optional)

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

What's New for Cisco C220 M5
  • (2) Intel Xeon 1st and 2nd Scalable Processors
  • (24) 2400MT/s DDR4 DIMMs
  • Support for Intel® Optane™ Persistent Memory (PMem)
  • (4) LFF SATA/SAS Drives
  • 12Gbps SAS Drives Supported
  • (2) PCIe 3.0 Slots
  • (2) GPUs Supported
  • Dedicated mLOM Slot
  • Embedded 2 x 1 GbE LAN-on-motherboard (LOM)
  • (7) Hot Swap Fans

The Cisco UCS C220 M5 SFF chassis is optimized for high-density storage and performance-driven workloads. Supporting up to 10 SAS/SATA HDDs or SSDs, with the flexibility to include up to two NVMe PCIe SSDs in specific bays, this chassis is ideal for applications requiring low-latency storage, such as AI/ML, big data processing, and virtualization. Its compact design, combined with support for Intel Xeon Scalable processors and high-speed DDR4 memory, makes it suitable for cloud computing, VDI environments, and enterprise-level data analytics, where a mix of performance and scalability is needed.

Other Versions:

Ideal for:

  • Artificial Intelligence (AI)
  • Big Data Analytics
  • Cloud Servers
  • Corporate IT
  • Data Analytics
  • Database
  • Deep Learning (DL)
  • Edge Servers
  • High-Performance Computing (HPC)
  • Hyper-Converged infrastructure (HCI)
  • Machine Learning (ML)
  • Virtual Desktop Interface (VDI)
  • Virtualization
  • Web Tech
  • Anything as a service (Xaas)

CTO Configuration Support

Need help with the configuration? Contact us today!

Chassis Options

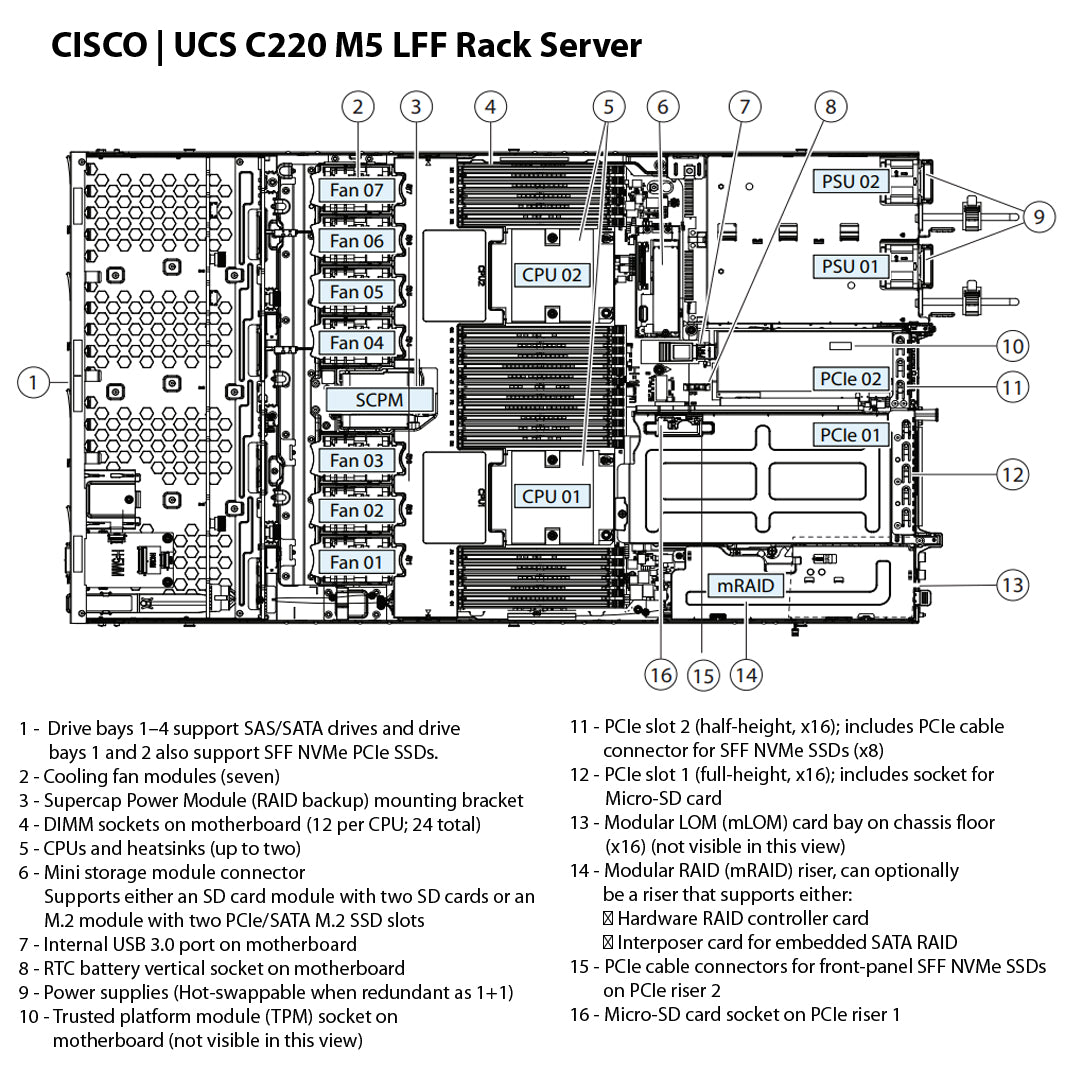

The UCS C220 M5 LFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the addition of the 2nd Generation Intel® Xeon® Scalable Processors, DDR4-3200MHz memory, and the new 512GB Intel® Optane™ Persistent Memory (PMem). With this combination of features, up to 9 TB of memory is possible (12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMem), two 2 PCI Express (PCIe) 3.0 slots, up to four SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs), and one dedicated internal slot for a 12G SAS storage controller card.

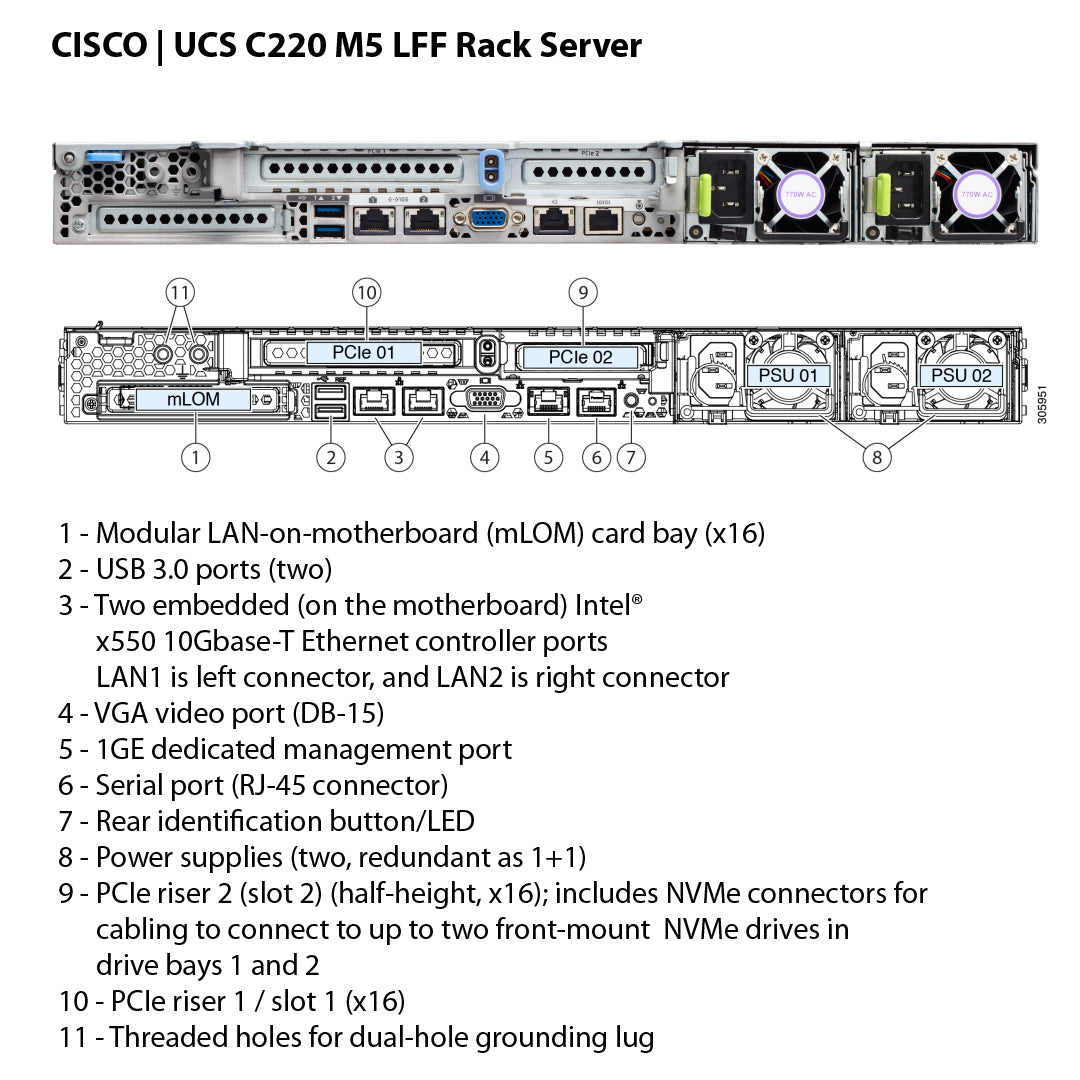

The C220 M5 LFF server includes a dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 10 Gbase-T Intel® x550 embedded (on the motherboard) LOM ports.

The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture, enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
