Quick Specs
Form Factor:
Tower server | 4.5U (Rackable)
Processor | Max: 32 Cores2x Gen 4 Intel Xeon Scalable Processors
Memory | Max: 1TB16 DDR5 RDIMM 4800Mhz
Storage | Max: 360TB12x 3.5" SAS/SATA (HDD/SSD) Max: 180 TB
8x 3.5" SAS/SATA (HDD/SSD) Max: 120 TB
8x 3.5" SAS/ SATA (HDD/SSD) + 8 x 2.5-inch NVMe SSD Max: 240 TB
8x 2.5" SAS/SATA (HDD/SSD) Max: 120 TB
16x 2.5" SAS/SATA (HDD/SSD) Max: 240 TB
24x 2.5" SAS/SATA (HDD/SSD) Max: 360 TB
Boot Optimized Server Storage (BOSS-N1)
IDSDM
Internal USB
S160 (for NVMe drives only)
fPERC H965i, H755N, H755, H355, HBA355i, HBA355e (non-RAID), H840
1 x OCP 3.0
2 x 1GbE LOM on Planar
Note: The system allows both LOM on Planar and OCP card to be installed on the system.
iDRAC9 with Lifecycle Controller
PCIe Slots:Up to six PCIe slots:
• Slot 1: x16 Gen5 FH, FL
• Slot 2: x16 Gen5 FH, FL
• Slot 3: x16 Gen4 FH, HL
• Slot 4: x16 Gen4 FH, HL
• Slot 5: x16 (x8 lanes) Gen4 FH, HL
• Slot 6: x16 Gen4 FH, HL
2x 300 W DW or 6x 75 W SW
Other Versions
(Click to View)
Ideal for:
- Big Data Analytics
- Cloud Servers
- Edge Servers
- Virtualization
Innovate at scale with an expandable tower server for mission-critical business workloads

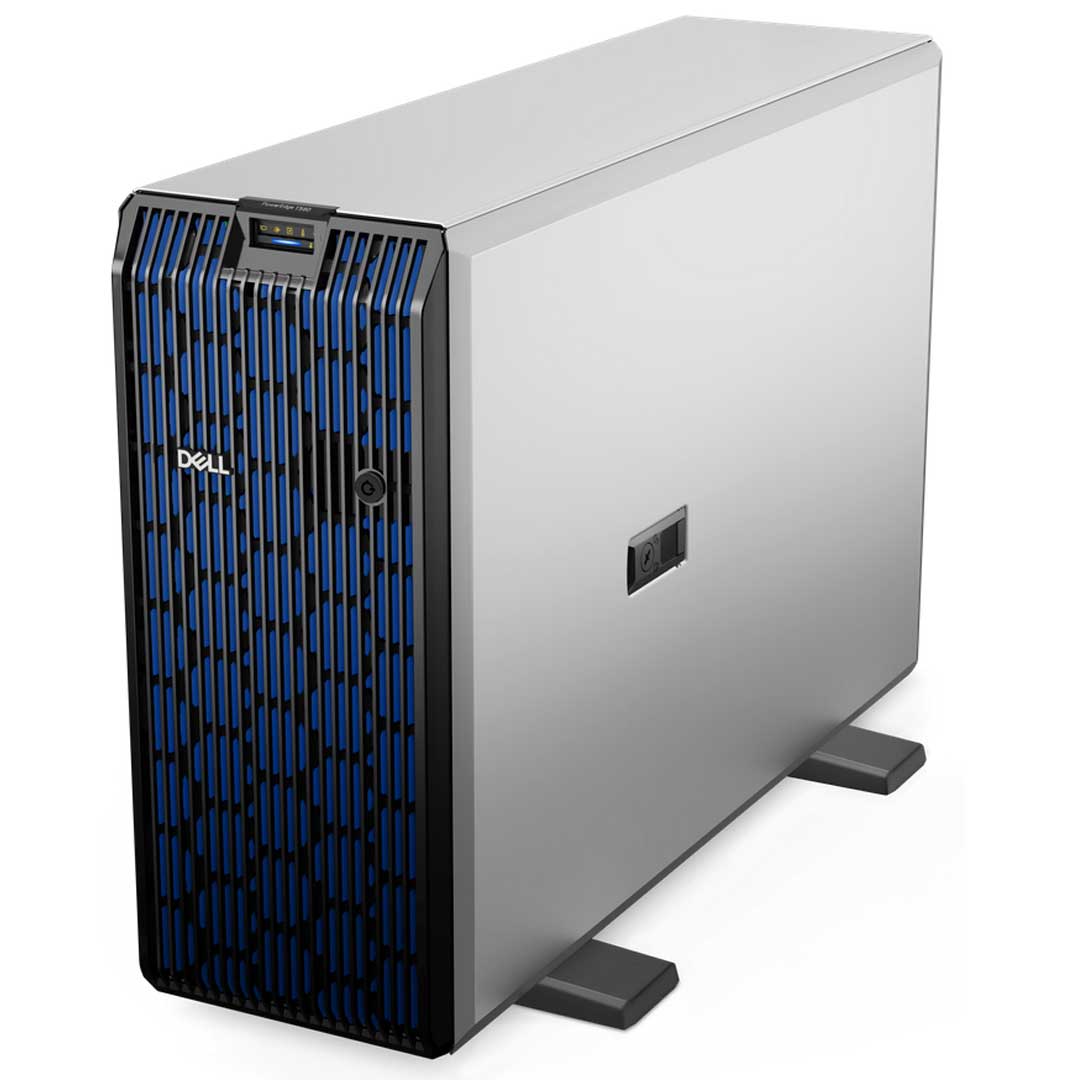

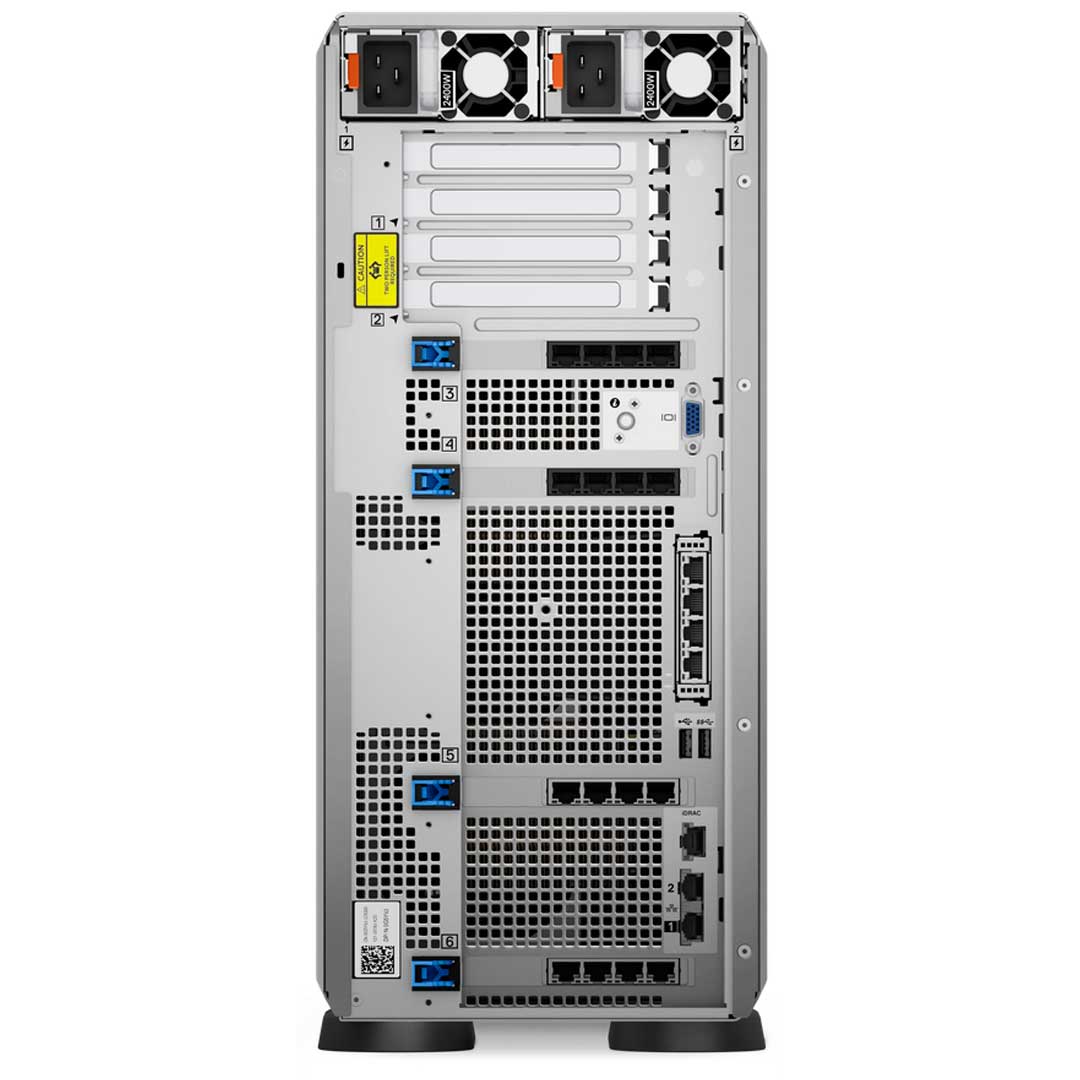

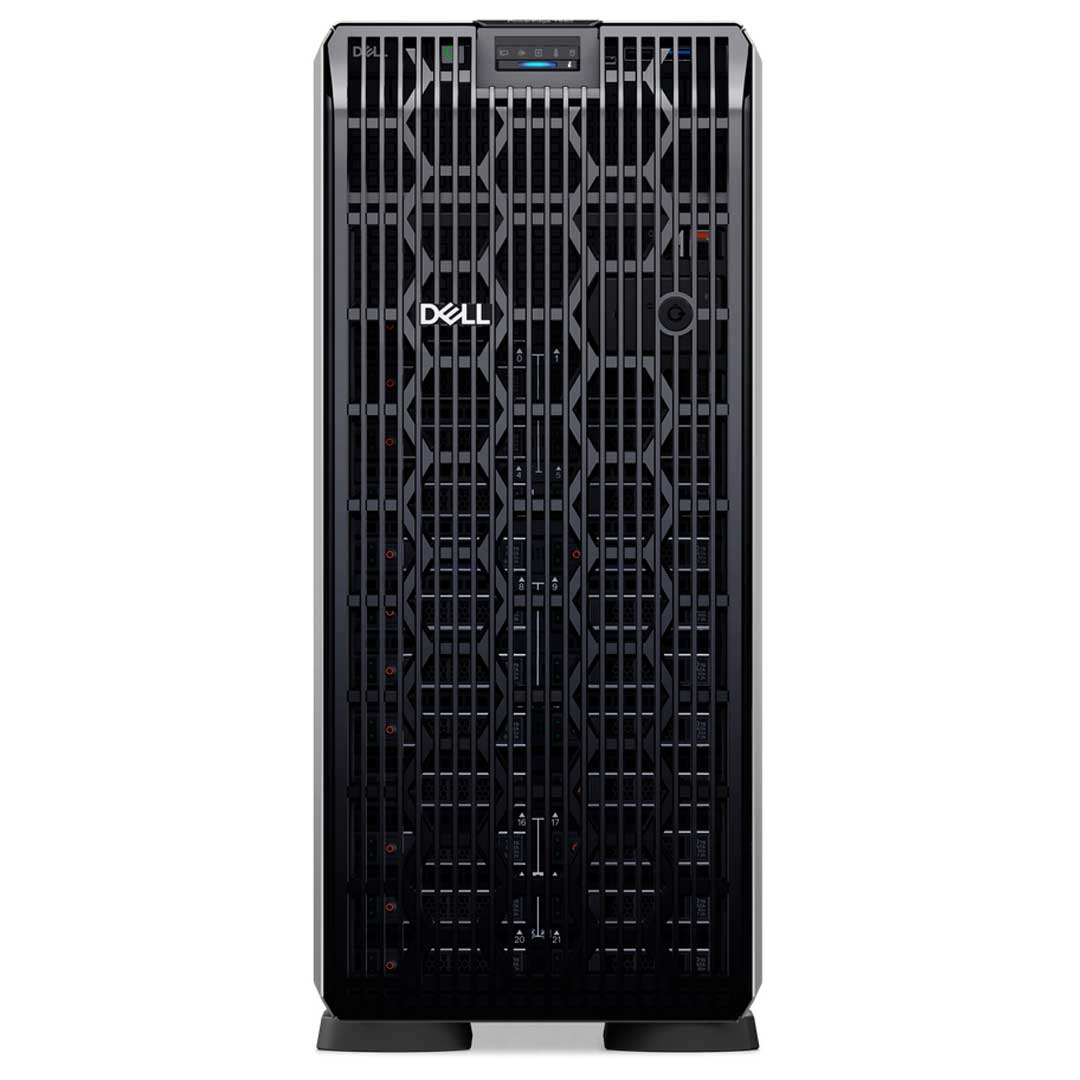

The Dell PowerEdge T560, powered by the 4th Generation Intel® Xeon® Scalable processors, is an enterprise-class tower server that offers advanced technologies with accelerators. It is a purpose-built server with office-friendly acoustics that maximizes next-gen technologies to achieve optimal performance in a small footprint. The Dell PowerEdge T560 is an ideal tower server for traditional corporate IT, virtualization, database and analytics, and inferencing for AI/ML, delivering robust compute performance.
Find your balance
Experience balanced expandability and performance for enterprise-level workloads.
- Database applications with expanded storage with up to 12 x 3.5” drives and faster I/O with PCIe Gen5
- Virtualization and AI inferencing with up to two Intel® Xeon® Scalable processors, DDR5 memory and up to 6 GPUs
- Office settings and applications with easy deployment and quiet acoustics
- Enterprise-level security requirements with cyber-resilience to store, process and analyze data
Made to scale
- Maximize your performance with faster 4th Generation Intel® processors, higher bandwidth DDR5, better performance with PCIe Gen 5 and PERC 12
- Flexible and balanced storage capacity with up to 12 x 3.5’’ or 24 x 2.5’’ drives, allowing a mix of HDD, SSD and NVMe support
- Provide mainstream datacenter level cyber-resiliency to store, process and analyze data in a small footprint
The latest technologies for balanced performance
This all-in-one powerhouse provides ease of management and expandability for growth and performance.
- Provides additional support for database applications with expanded storage with up to 12 x 3.5-inches drives and 24 x 2.5-inches drives allowing for a mix of HDD, SAS4 SSD, and NVMe support.
- Virtualization and AI inferencing capabilities with up to two Xeon Scalable processors, doubled-bandwidth DDR5 memory, double-speed PCIe Gen5, and up to 6 GPUs.
- Achieves enterprise-level security requirements with cyber-resilience to store, process and analyze data.
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations
Chassis Options

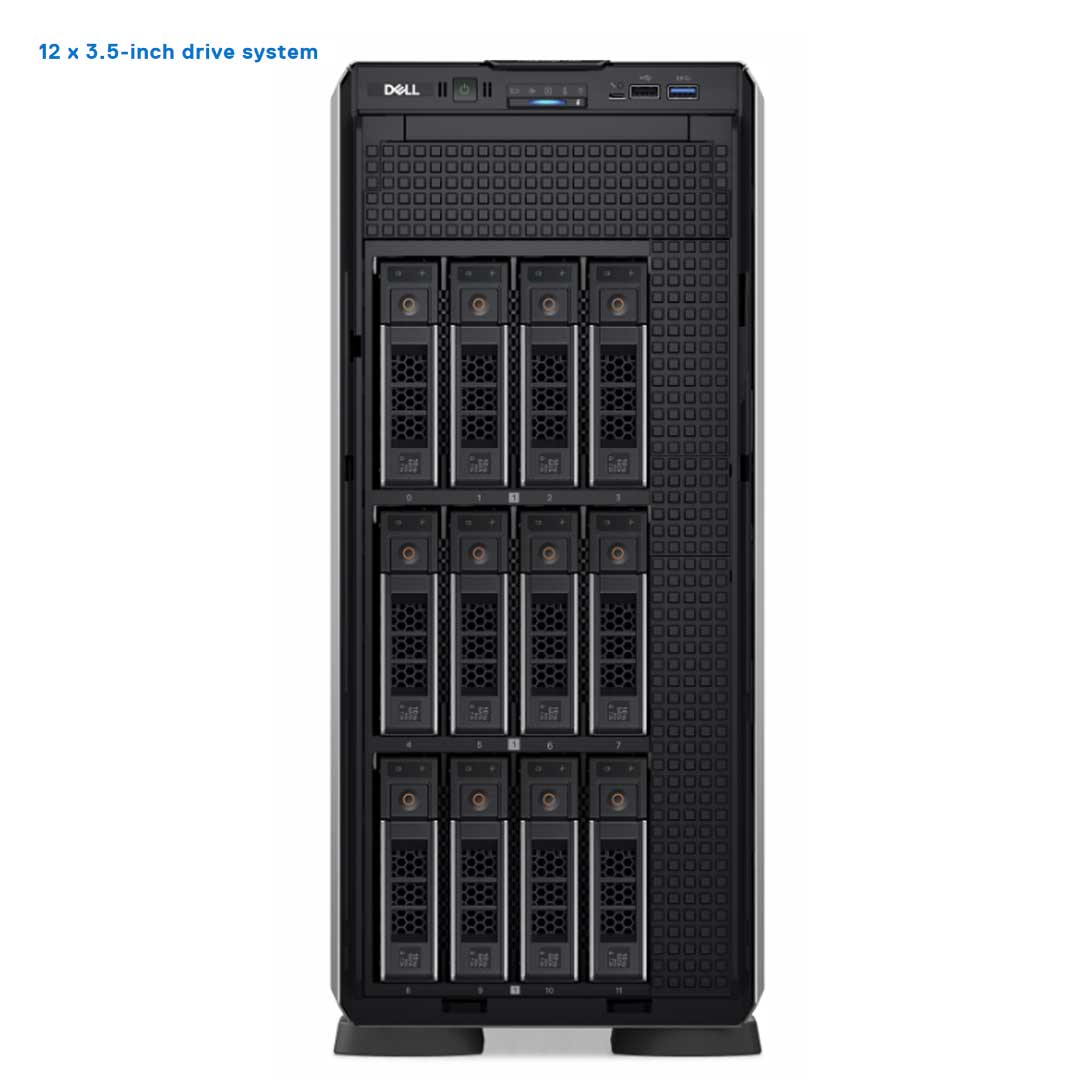

- 12x 3.5" SAS/SATA HDD drives, max 180 TB

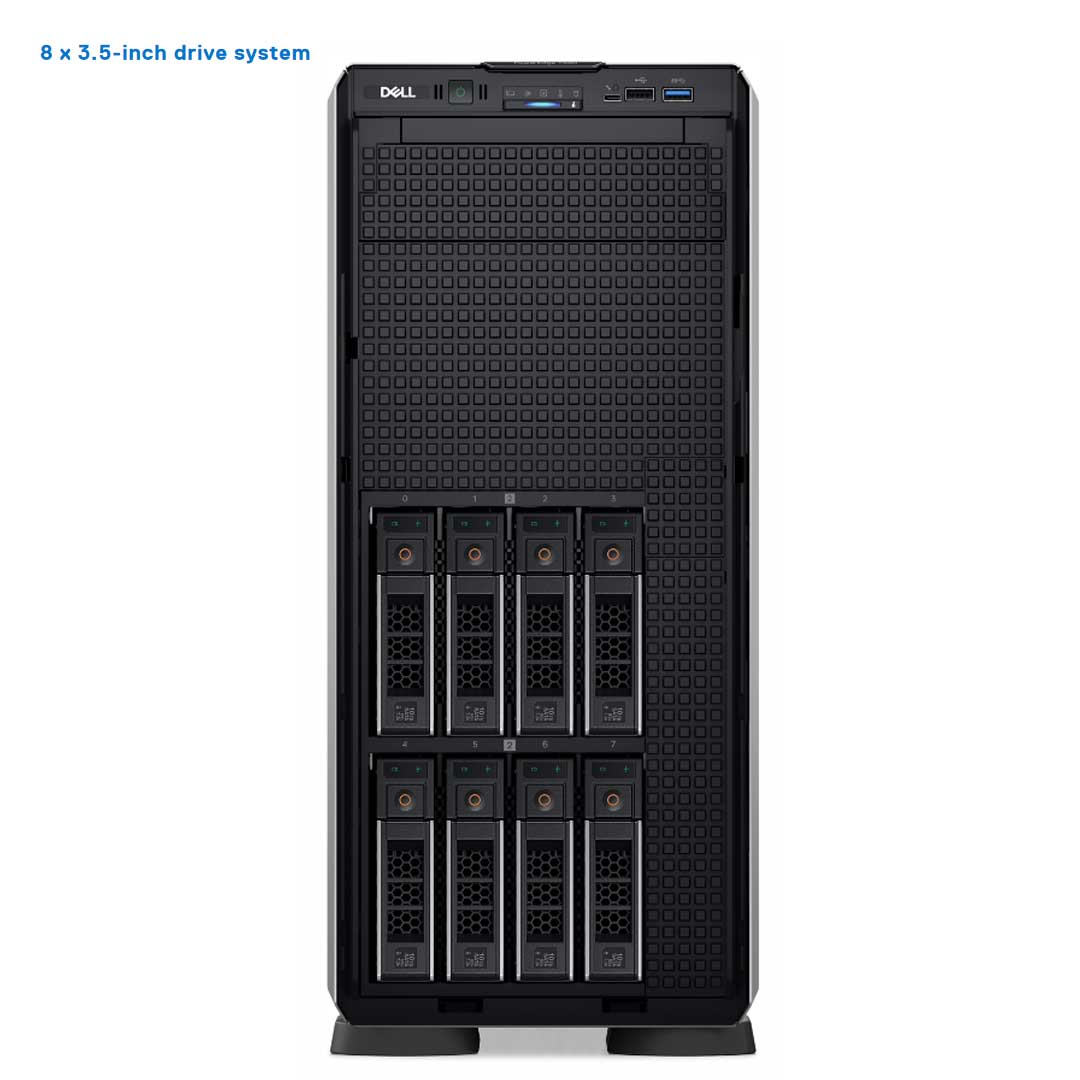

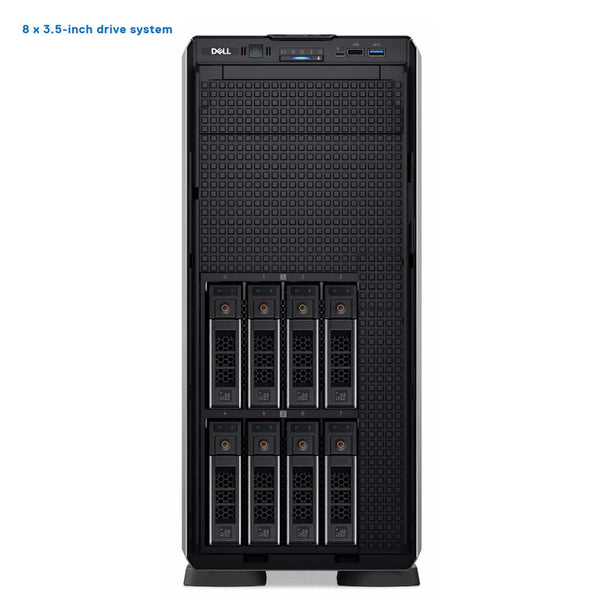

- 8x 3.5" SAS/SATA HDD drives, max 120 TB

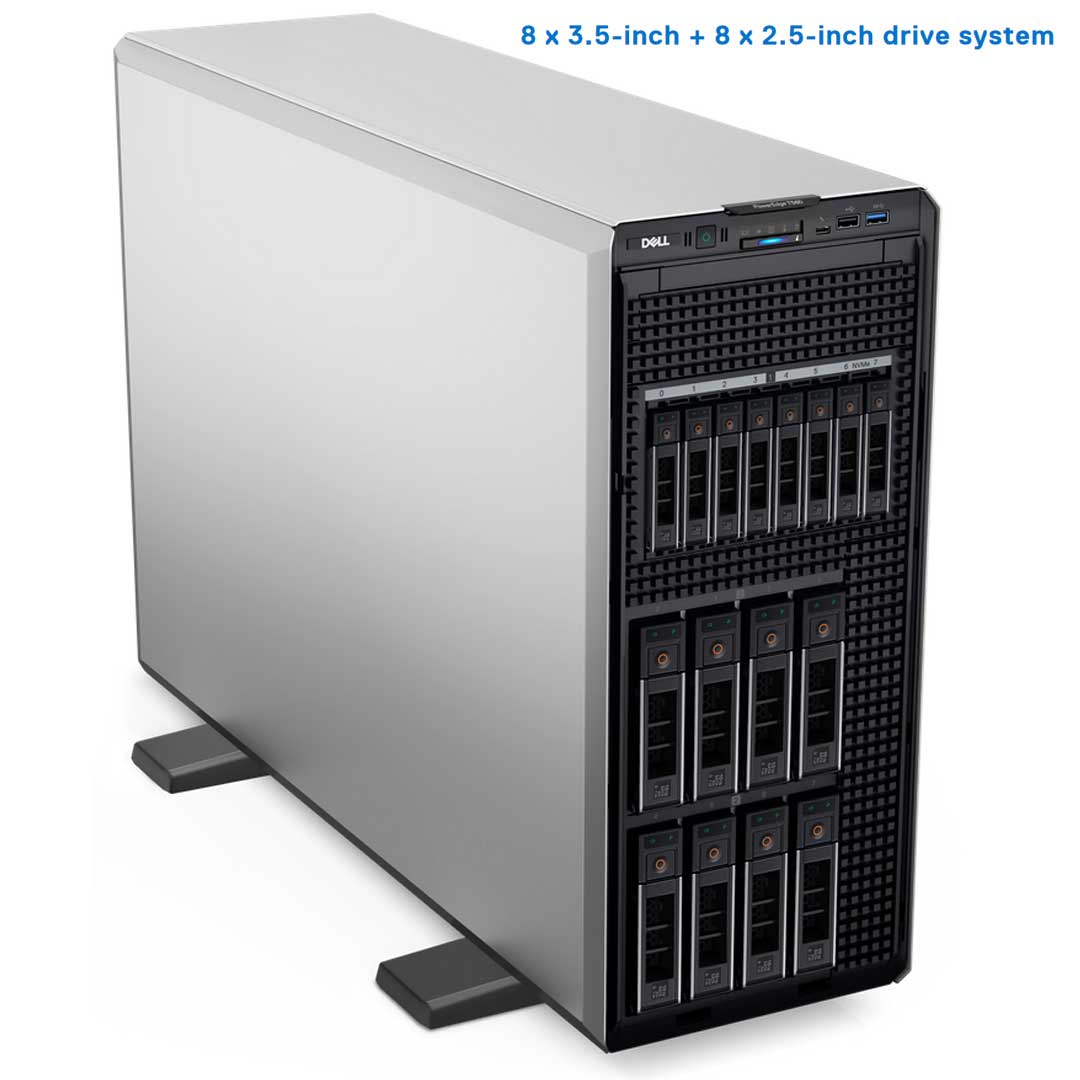

- 8x 3.5" SAS/ SATA HDD + 8 x 2.5-inch NVMe SSD drives, max 240 TB

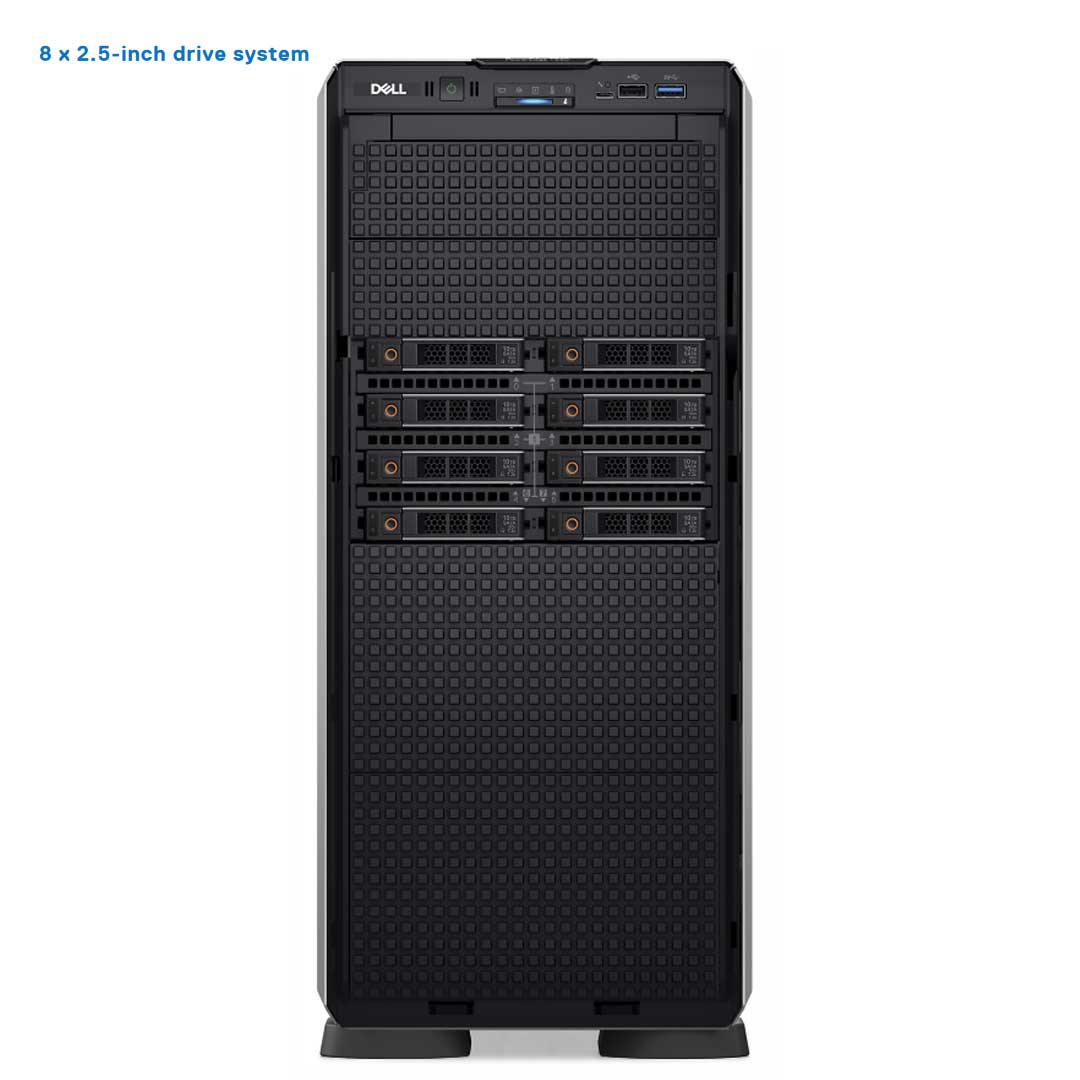

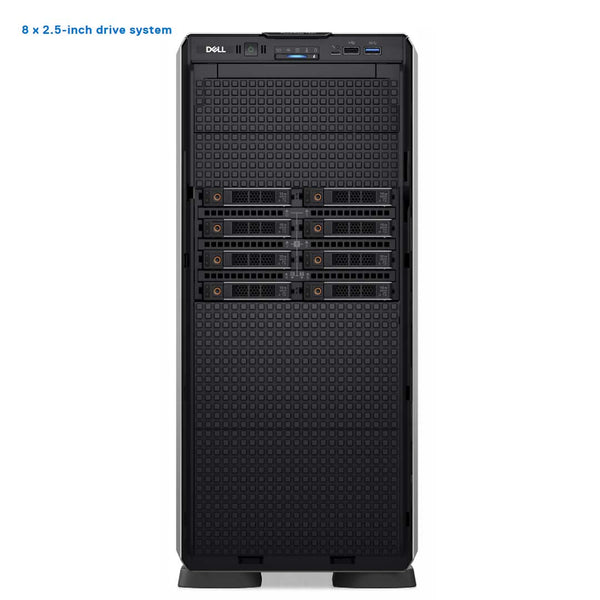

- 8x 2.5" SAS/SATA HDD drives, max 120 TB

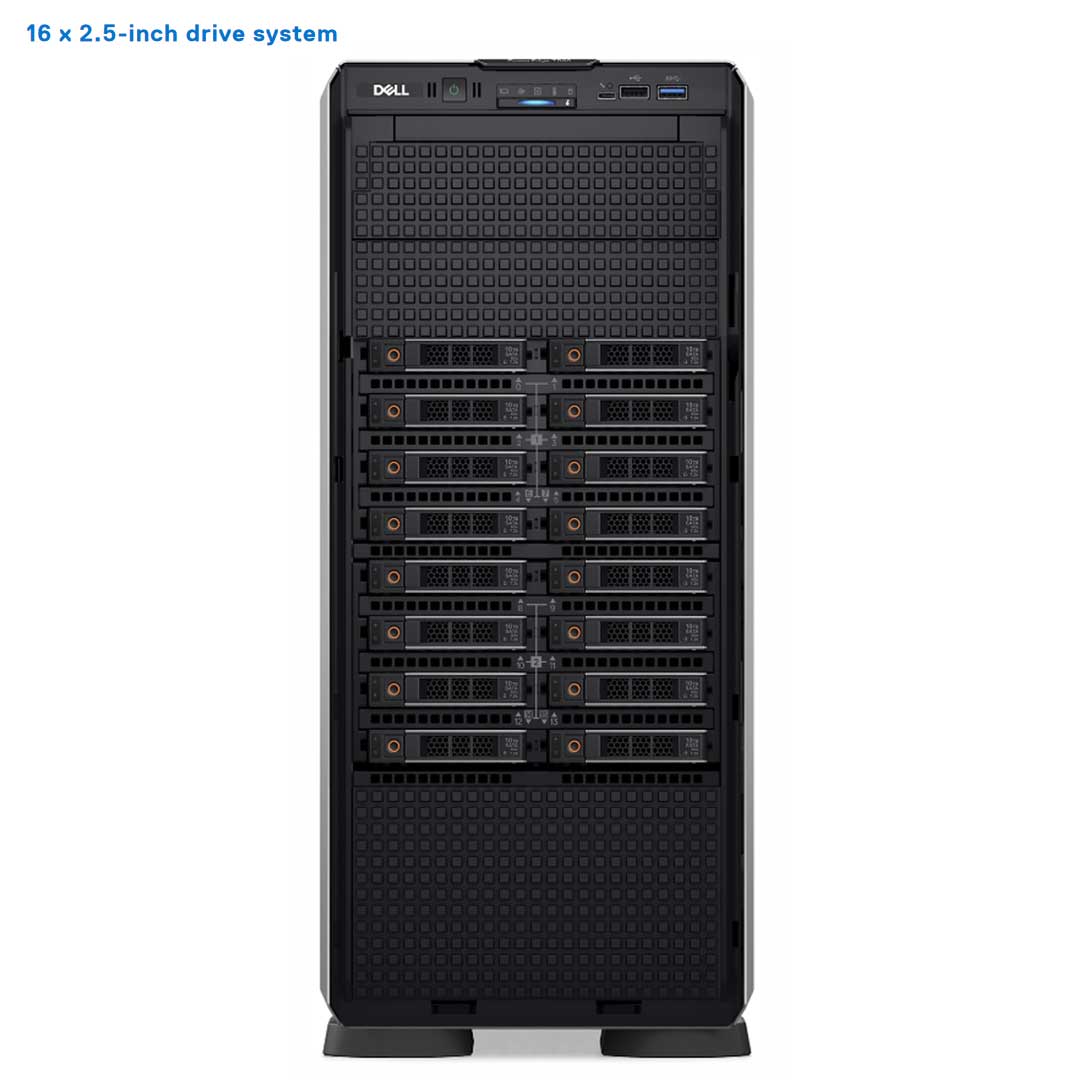

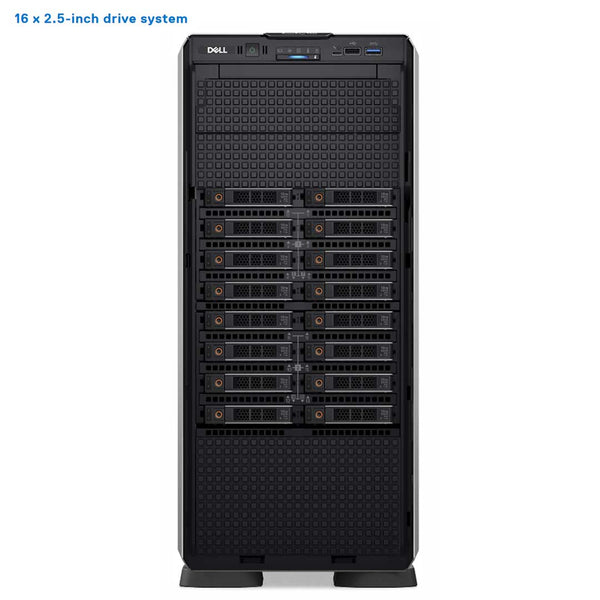

- 16x 2.5" SAS/SATA HDD drives, max 240 TB

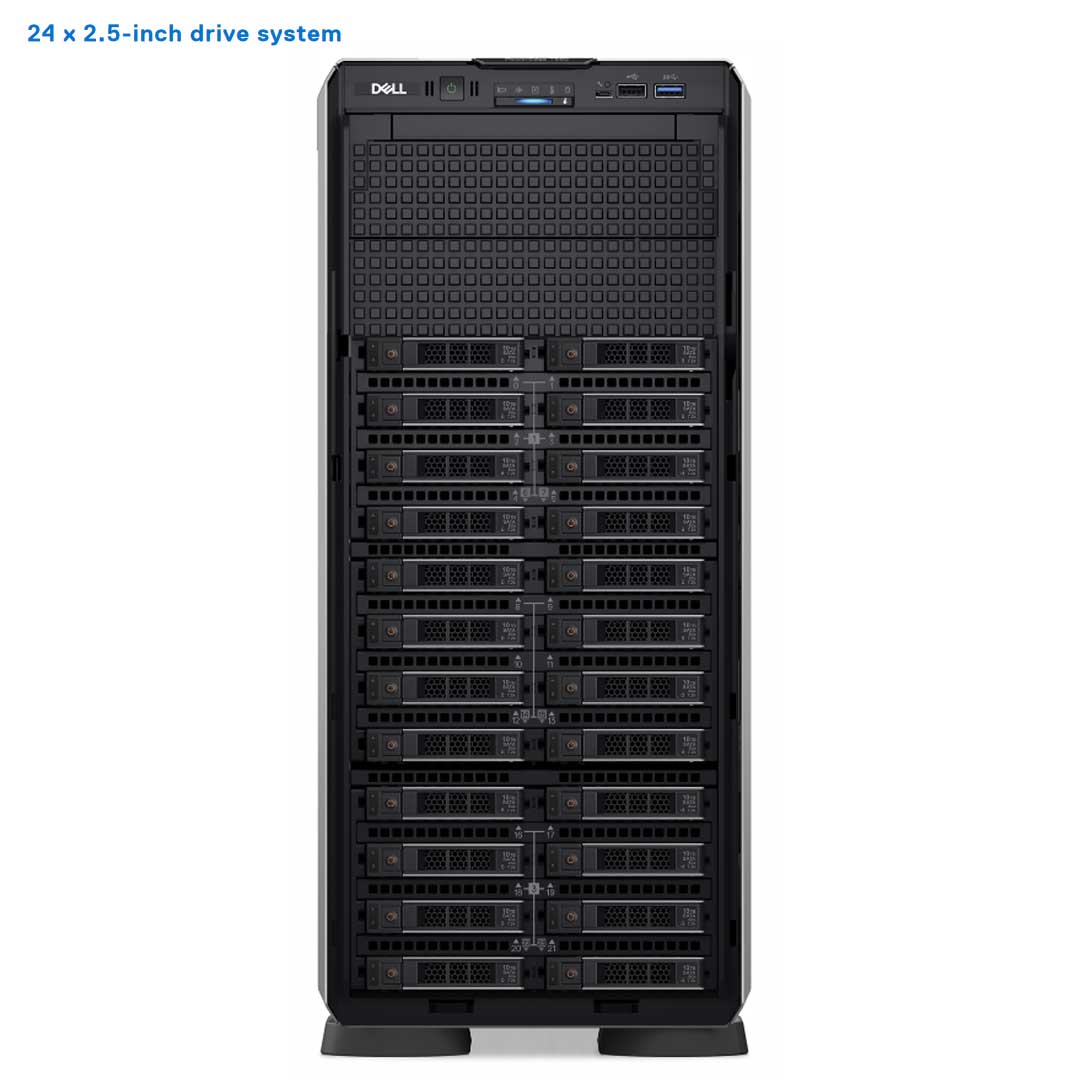

- 24x 2.5" SAS/SATA HDD drives, max 360 TB
Cooling & Fans
If you install a CPU with a TDP over 150W you will need the High-Performance Heat Sink (HPR HSK) if it's 150 or less then the standard heat sink will be installed. All GPU’s need a high-performance heat sink and Fans. Depending on the wattage used by the GPU you will either need 4 or 7 fans installed. You can find more information in the tech manual under the “Thermal Restrictions”
Memory
With a Max of 8 DIMMs per processor and a total of 16 DIMMs per system. Supporting up to 1TB of 4800Mhz DDR5 ECC RDIMM Memory. Keep in mind there is no mixing of DIMMs and a minimum of 1 DIMM must be populated for each installed processor.
| DIMM Capacity (GB) | DIMM Type | Ranks per DIMM | Rated DIMM Speed (MT/s) | Data Width | DIMM Volts (V) |
|---|---|---|---|---|---|
| 16 | RDIMM | 1 | 4800 | x8 | 1.1 |
| 32 | RDIMM | 2 | 4800 | x8 | 1.1 |
| 64 | RDIMM | 2 | 4800 | x4 | 1.1 |
PCIe Configurations

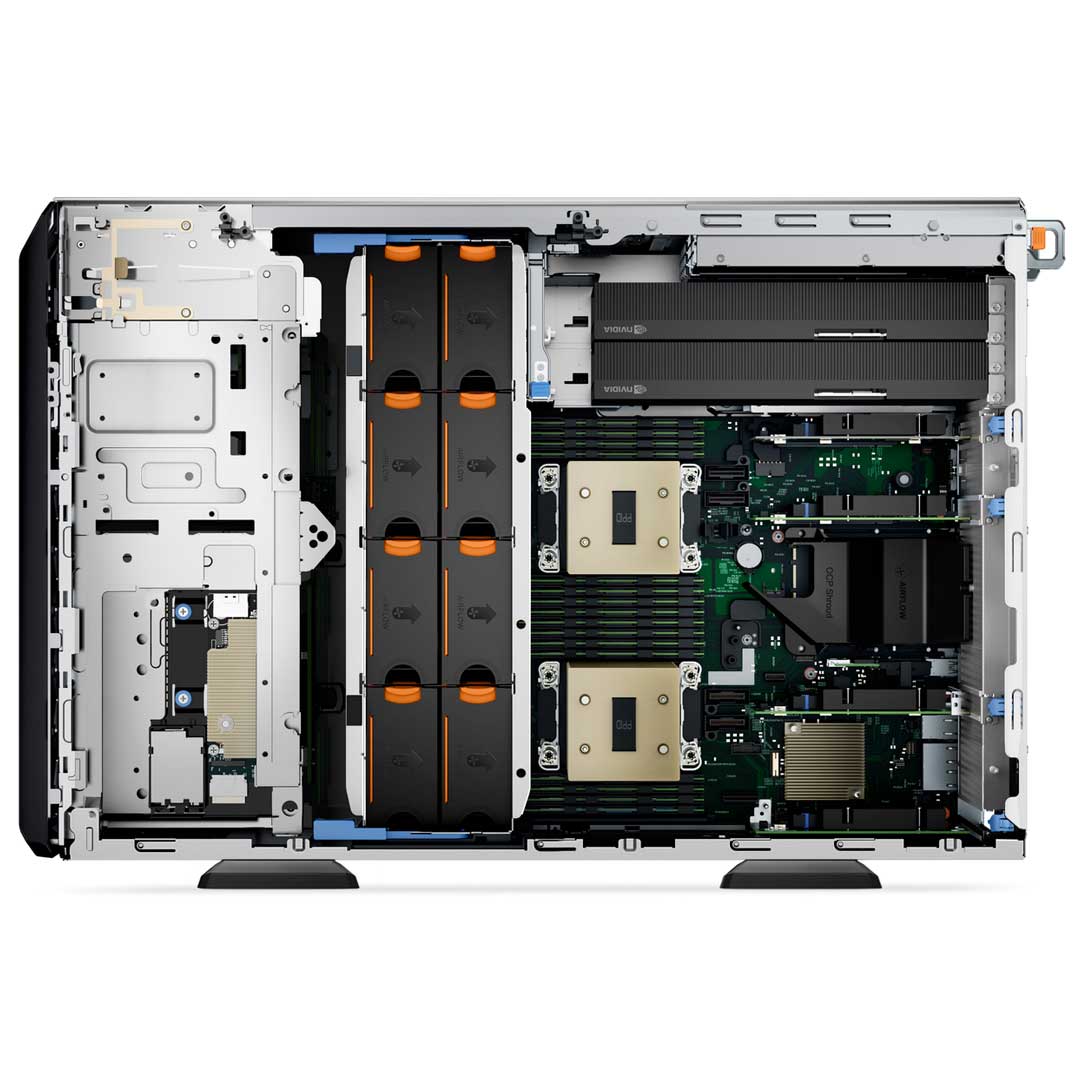

The Dell PowerEdge T560 Tower Sever has up to six PCIe slots. 4 x PCIe Gen4 slots and 2 x PCIe Gen5 slots will accommodate all the expanding configurations you have. The system has 4 PCIe slots on the system board and 2 Riser Cards for GPU support. Riser 1 holds 1 GPU and Riser 2 holds 2 GPUs.
Up to 2 x double-width 300 W or 6 x single-width 75 W. All GPU configurations will need to upgrade the fans from standard to high performance.
| Config No. | Riser configuration | No. of Processors | PERC type supported | Rear storage possible |
|---|---|---|---|---|
| 0 | N/A | 2 | fPERC | No |
| 0-1 | N/A | 2 | fPERC | No |
| 1 | 1 x GPU Riser | 2 | fPERC | No |
| 1-1 | 1 x GPU Riser | 2 | fPERC | No |
| 2 | 2 x GPU Riser | 2 | fPERC | No |
Networking
The Dell PowerEdge T560 comes with an onboard LOM board, 2x1Gb with BCM5720 LAN controller, and 1 optional OCP Mezz 3.0 (supported by x8 PCIe lanes).
The OCP has an Air Shroud that needs to be installed whether or not the OCP card is installed. The OCP card can handle up to 4 Ports at 25Gb for a total of 100Gb of networking capacity on a single OCP 3.0 card.
| Feature | OCP 3.0 |
|---|---|
| Form factor | SFF |
| PCIe Gen | Gen4 |
| Max PCIe width | x8 |
| Max no. of ports | 4 |
| Port type | BT/SFP/SFP+/SFP28/SFP56 |
| Max port speed | 100 GbE |
| NC-SI | Yes |
| SNAPI | Yes |
| WoL | Yes |
| Power consumption | 15 W–150 W |
Storage Controllers
The T560 Tower Server supports PERC 11 / 12 Storage Controllers. The main configuration for this system is to utilize the fPERC for raid so it frees up a PCIe slot for either a GPU or for expanding the networking ability of the server.
The 3.5" and 2.5" backplanes have different spots for the fPERCs. The 3.5" fPERC is on the front of the chassis in a dedicated slot. The 2.5" fPERC sits on the rear of the backplane. For more information about installing the fPERC Storage Controllers, please read the manuals below.
| Performance Level | Controller and Description |
|---|---|
| Entry | S160 (Software RAID: NVMe) |
| Value | H355, HBA355 (internal/external) |
| Value Performance | H755, H755N |
| Premium Performance | H965i, Avenger 1 Memory: 8GB DDR4 NV cache 72-bit memory 2133 MHz Low profile form factors Dual A15 1.2 GHz CPU X8PCIe 3.0, x8 12Gb SAS |
GPU Support
The system has 4 PCIe slots on the system board and 2 Riser Cards for GPU support. Riser 1 holds 1 GPU and Riser 2 holds 2 GPUs.
Up to 2 x double-width 300 W or 6 x single-width 75 W. All GPU configurations will need to upgrade the fans and heat-sinks from standard to high performance.
To find more information please read the manual and look up the "Thermal Restriction Matrix"
Power & Dimensions
Power Supply Units (PSU)
Dell PowerEdge T560 supports 2 hot swap redundant PSUs.
- 2400W Platinum 100—240 VAC or 2400 W 240 VDC
- 1800W Titanium 200—240 VAC or 1800 W 240 VDC
- 1400W Platinum 100—240 VAC or 1400 W 240 VDC
- 1100W Titanium 100—240 VAC or 1100 W 240 VDC
- 1100 LVDC -48 — (-60) VDC
- 800W Platinum 100—240 VAC or 800 W 240 VDC
- 700W Titanium 200—240 VAC or 700 W 240 VDC
- 600W Platinum 100—240 VAC or 600 W 240 VDC
Dimensions
Width: 200.0 mm (7.87 inches)
Height:
464.0 mm (18.26 inches) (with feet)
446.0 mm (17.60 inches) (without feet)
508.8 mm (20.03 inches) (with caster wheels)
Length:
678.2 mm (26.70") (with bezel)
660.6 mm (26") (without bezel)
- 12x 3.5" (SAS/SATA) 48 kg (107.32 lb)
- 8x 3.5" (SAS/SATA) 43.16 kg (95.15 lb)
- 8x 3.5" (SAS/SATA) + 8 x 2.5" NVMe 46.84 kg (103.26 lb)
- 8x 2.5" (SAS/SATA) 39.40 kg (86.86 lb)
- 16x 2.5" (SAS/SATA) 42.02 kg (92.63 lb)
- 24x 2.5" (SAS/SATA) 44.64 kg (98.41 lb)
