Quick Specs
Form Factor:
1U rack server
Processor | Max: 2 to 8 Cores1x Intel Xeon E-2400
Memory | Max: 128 GB4x ECC DDR5 UDIMM 4400 MT/s
Embedded NIC (LOM):2 x 1 GbE LOM

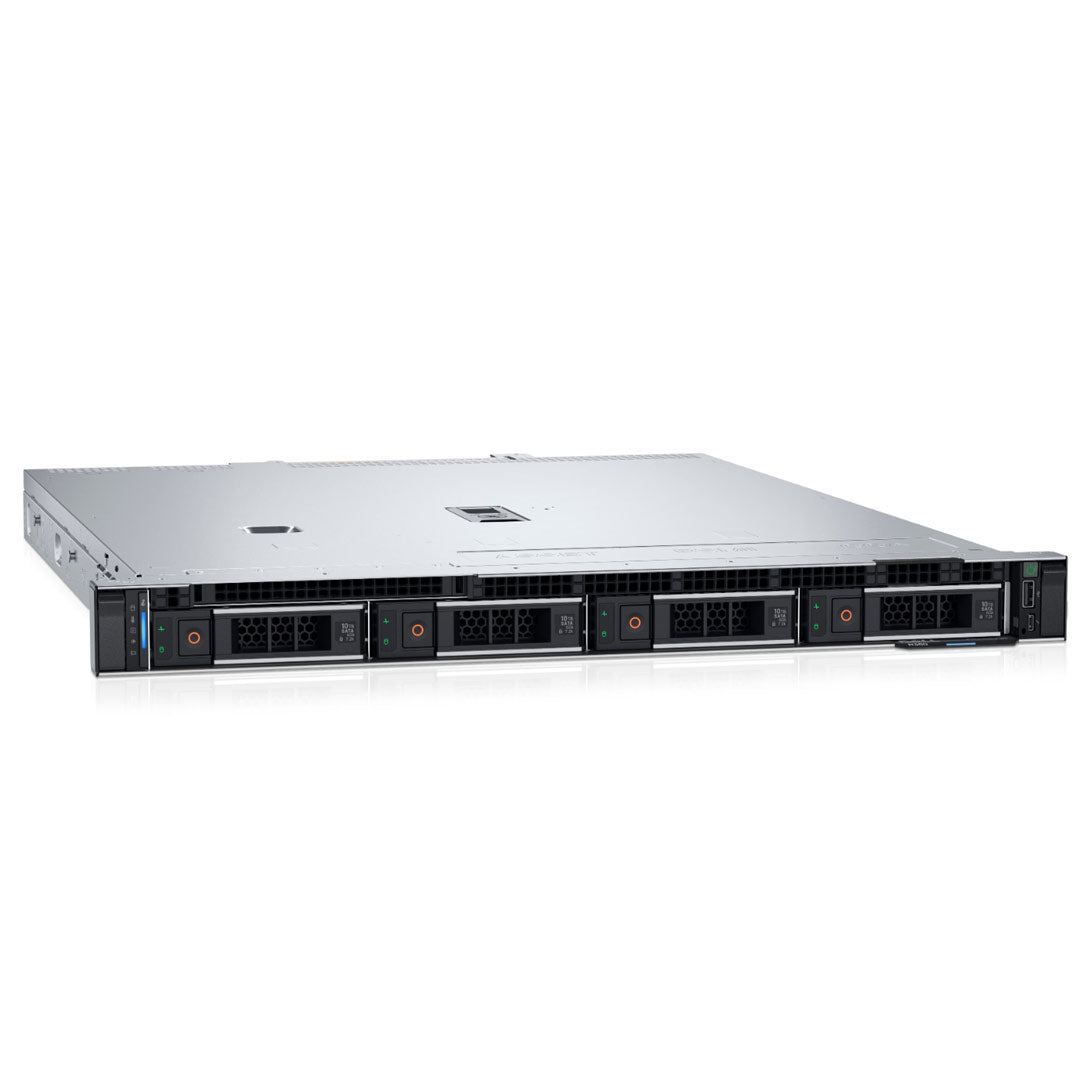

Storage | Max: 64TBUp to 4x 3.5" SAS/SATA (HDD/SSD) Max: 64 TB

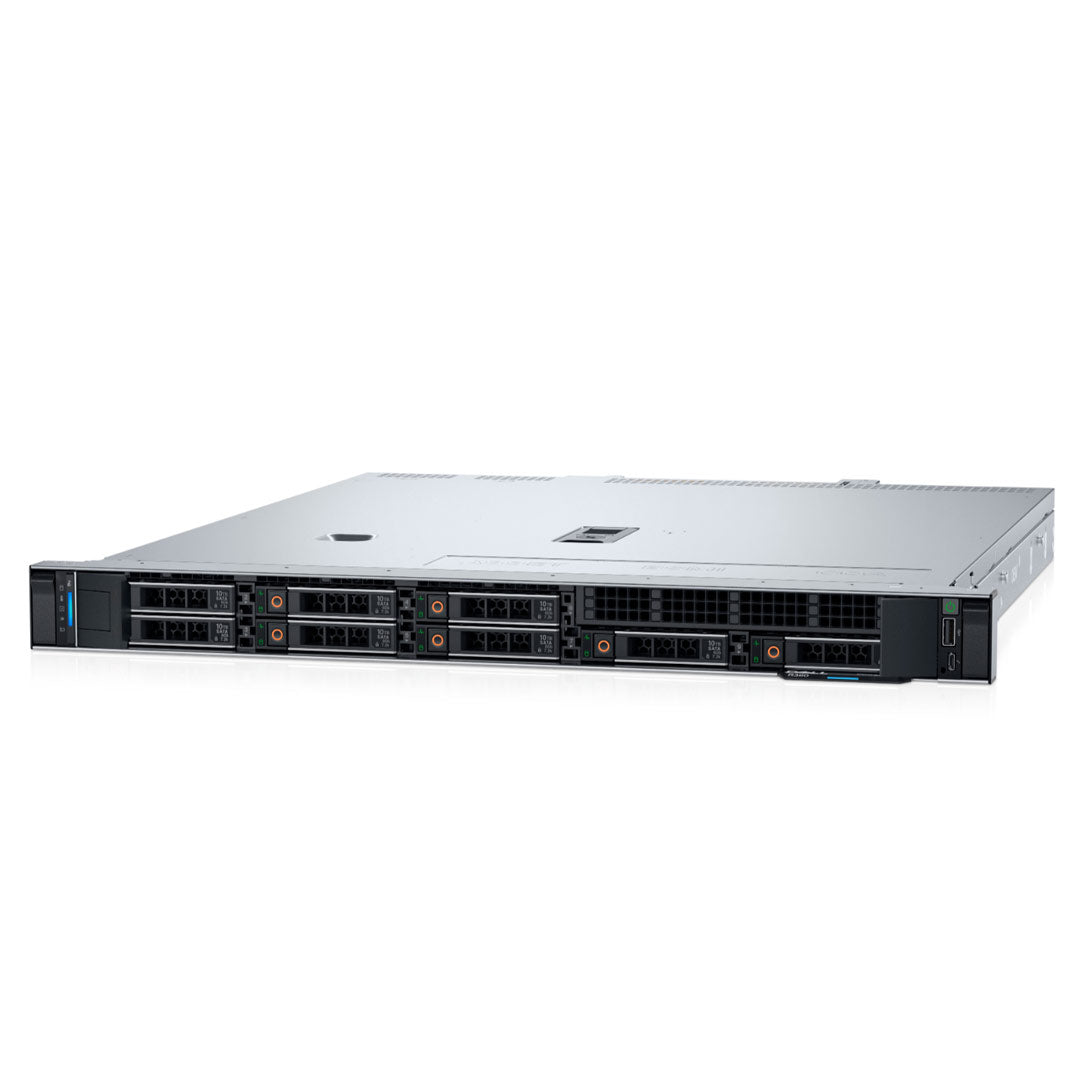

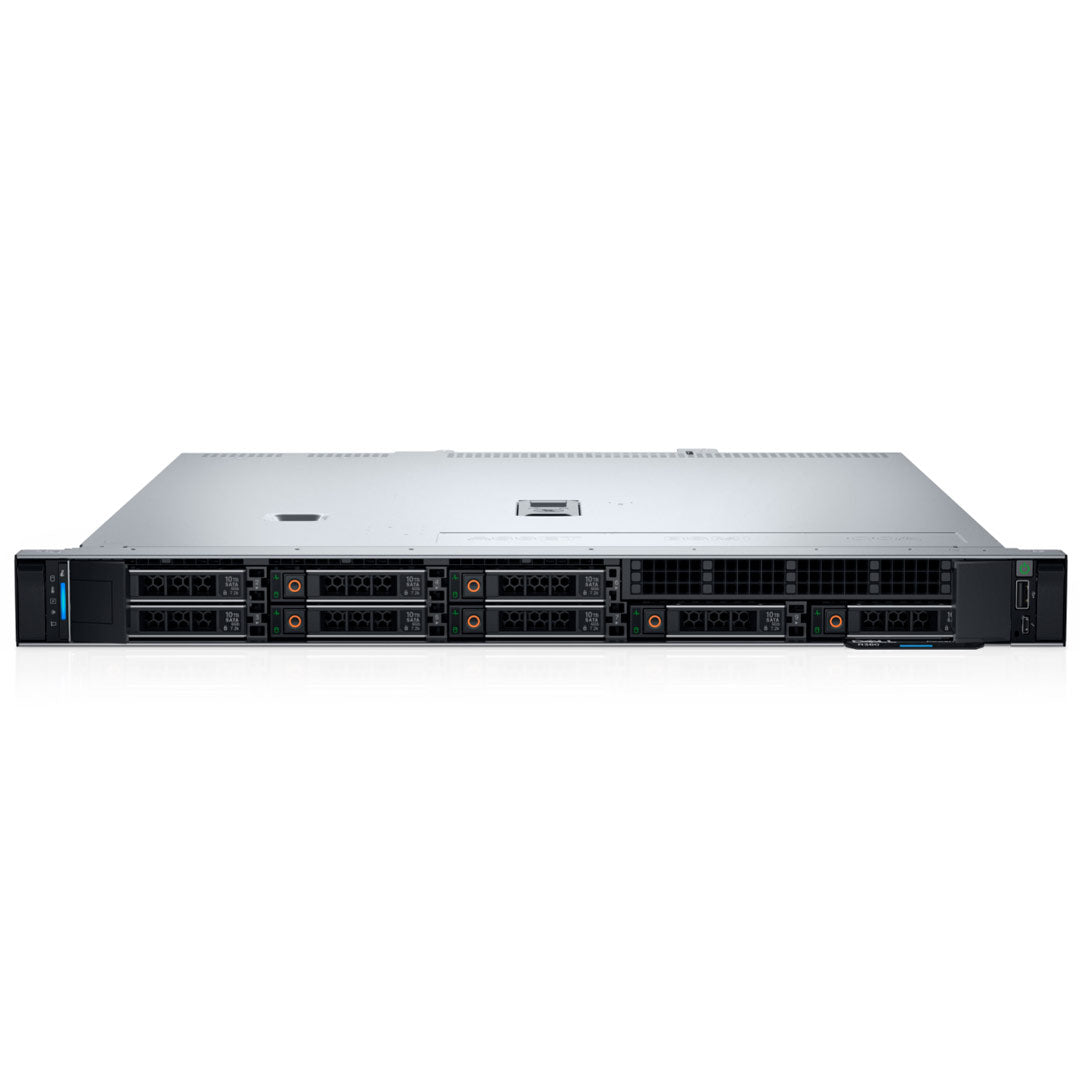

Up to 8x 2.5" SAS/SATA (SSD) Max: 61.44 TB
S160 SW RAID
HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt, HBA355i front, H355 front, H755 front, HBA355e
Up to (2) PCIe Gen4 slots on the Gen4 Riser
--Slot 1: 1 x8 with x8 bandwidth, HL/LP
--Slot 2: 1 x16 with x8 bandwidth, HL/LP
--One dedicated internal PERC Slot
BOSS-N1
Internal USB
iDRAC9 with lifecycle controller
Other Versions
- Dell PowerEdge R310
- Dell PowerEdge R320
- Dell PowerEdge R330
- Dell PowerEdge R340
- Dell PowerEdge R350
- Dell PowerEdge R360
(Click to View)
Ideal for:
- Collaboration and sharing
- Database
- Edge Servers
- Small to mid-sized businesses
The Dell PowerEdge R360 addresses evolving compute demands with an easy to manage rack server designed for businesses looking for affordable enterprise features.
Elevate your enterprise to new heights with PowerEdge R360
Powered by the latest Intel® Xeon® E-2400 processors, Dell PowerEdge R360 is designed for productivity and data intensive applications, making it ideal for your growing business. With 4400/MT DDR5 and advanced NVMe BOSS-N1, it supports reduced latency and seamless scalability to bring the computing capability to the next level. Beyond the computing power, the Dell PowerEdge R360 is equipped with energy-efficient power supply, hot-plug storages, air cooling fans to make it a reliable, responsible, and secure choice.
Enterprise-level GPU support
The PowerEdge R360 supports NVIDIA A2 GPU to meet the growing demand in video and audio computing. It provides cost-effective solutions for ROBO and Near-Edge customers from retail, manufacturing, and logistics. This makes the PowerEdge R360 a powerful and versatile server for small to mid-sized businesses to enable a variety of workloads ranging from business-critical to cloud infrastructure. It is also widely used for point-of-sale transactions and enterprise level requirements for data analysis and virtualization.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
Memory
| DIMM type | Rank | Capacity | DIMM rated voltage and speed | Operating Speed | |
|---|---|---|---|---|---|
| 1 DIMM per channel (DPC) | 2 DIMM per channel (DPC) | ||||
| ECC UDIMM | 1 R | 16 GB | DDR5 (1.1 V), 4800 MT/s | 4400 MT/s | 4000 MT/s |
| 2 R | 32 GB | DDR5 (1.1 V), 4800 MT/s | 4400 MT/s | 3600 MT/s | |
Networking
| Feature | Specifications |
|---|---|
| LOM | 1 Gb x 2 |
| Network Card (optional) | 1 Gb x 4, 10 Gb x 2, 10 Gb x 4 |
Riser
| Configuration No. | Riser Configuration | No. of Processors | PERC type supported (internal slot) | Rear Storage Possible |
|---|---|---|---|---|
| RC0 | 1x PERC - No Riser | 1 | aPERC or fPERC | No |
| RC2 | 1x PERC + 1x Riser (Gen4) | 1 | aPERC or fPERC | No |
Storage Controllers
The Dell PowerEdge R360 comes with a Dedicated Adapter PERC slot. Also, supports Front PERCs on the drive cage. With these two options, you are bound to find the Storage configuration to fit your needs.
When installing a Front PERC, you will need to install the PERC module that provides the correct data signal from the Dedicated PERC slot to the front storage controller. View more by looking up the cableing diagram in the Tech Manual below.
| Model and Form Factors | Interface Support | PCI Support | SAS Connection | Cache Memory Size | Write Back Cache | RAID Levels | Max Drive Support | RAID Support |
|---|---|---|---|---|---|---|---|---|
| PowerEdge Server-Storage Controllers (PERC and SAS HBA) Series 11 | ||||||||
| H755 Adapter | 12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA Gen3 (8 GT/s) NVMe Gen4 (16 GT/s) NVMe |
PCIe Gen 4 | 16 ports- 2x8 Internal | 8 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 16/ controller 50 with SAS Expander | Hardware |
| H755 Front | 12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA Gen3 (8 GT/s) NVMe Gen4 (16 GT/s) NVMe |
PCIe Gen 4 | 16 ports- 2x8 Internal | 8 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 16/ controller 50 with SAS Expander | Hardware |
| HBA355i Adapter | 12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA |
PCIe Gen 4 | 16 ports- 2x8 Internal | N/A | N/A | N/A | 16/ controller 50 with SAS Expander | N/A |
| HBA355i Front | 12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA |
PCIe Gen 4 | 16 ports- 2x8 Internal | N/A | N/A | N/A | 16/ controller 50 with SAS Expander | N/A |
| HBA355e Adapter | 12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA |
PCIe Gen 4 | 16 ports- 4x4 external | N/A | N/A | N/A | 240 | N/A |
| H355 Adapter | 12Gb/s SAS 6Gb/s SAS/SATA |
PCIe Gen 4 | 16 ports- 2x8 Internal | No Cache | No Cache | 0,1,10 | Up to 32 RAID, or 32 Non- RAID | Hardware |
| H355 Front | 12Gb/s SAS 6Gb/s SAS/SATA |
PCIe Gen 4 | 16 ports- 2x8 Internal | No Cache | No Cache | 0,1,10 | Up to 32 RAID, or 32 Non- RAID | Hardware |
| S160 Software RAID | Gen4 (16 GT/s) NVMe | PCIe Gen 4 | N/A | No Cache | No Cache | 0,1,5,10 | Up to 8 | Software RAID - Windows only |
Boot Options

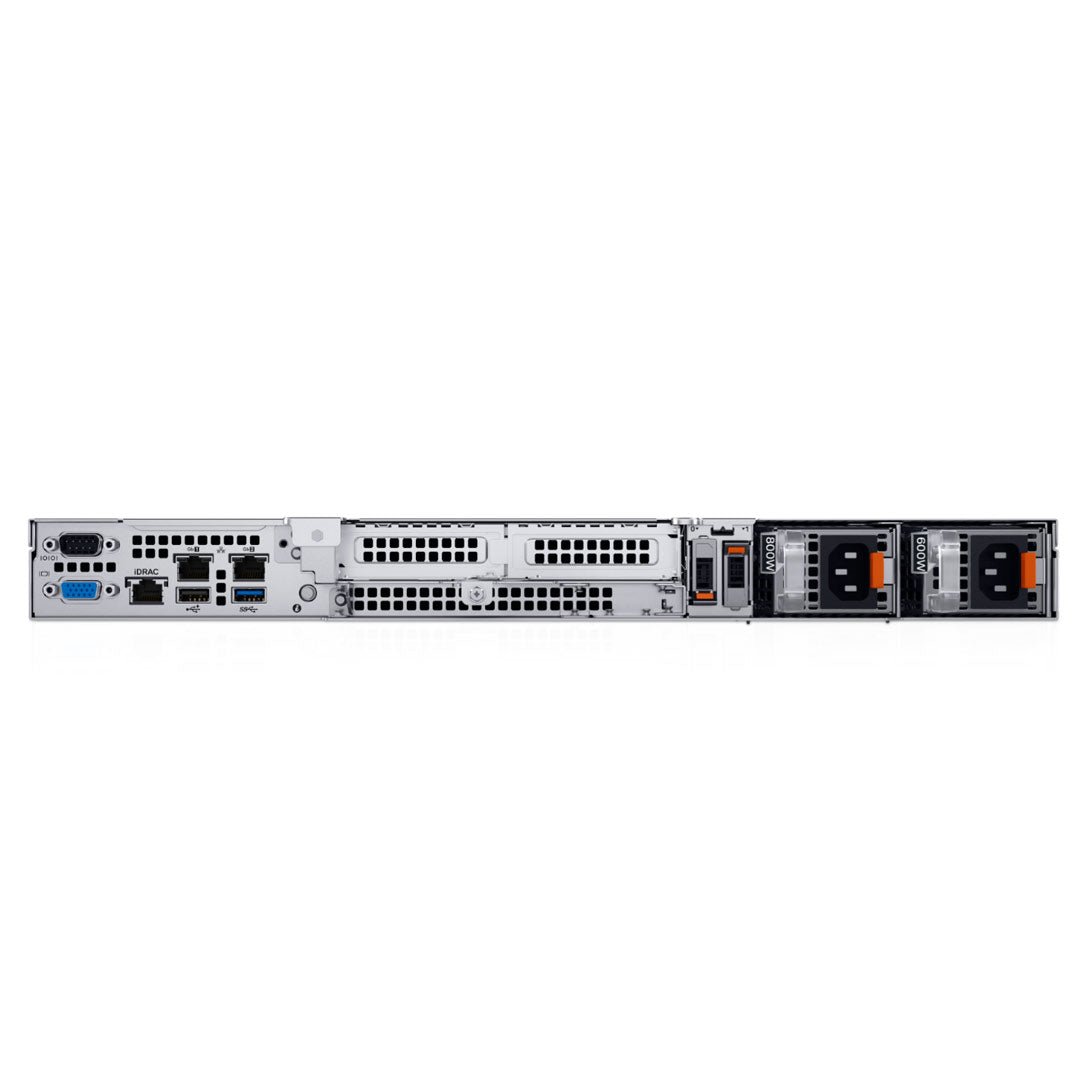

The Dell PowerEdge R360 has two options for Boot with the recommended method being the BOSS-N1 with (2) M.2 NVMe SSD Drives. The Boot Optimized Storage Subsystem (BOSS) is hot-swappable and sits in the rear of the system next to the two 60mm PSUs. The internal USB has a dedicated slot on the system board as well.
Power & Dimensions
Power Supply Units (PSU)
Do Not Mix PSUs.
- 600W Platinum 60mm
- 700W Titanium 60mm
Dimensions & Weight
- Length: 548.06 mm (21.556")
- Width: 482.0 mm (18.976")
- Height: 42.8 mm (1.685")
- Weight: 13.23 kg (29.17lbs)
