What's New
- (2) Intel Xeon 3rd Gen Scalable Processors
- (32) 3200MT/s DDR4 DIMMs
- (10) SFF SATA/SAS/NVMe Drives
- 12Gbps SAS Drives Supported
- (3) PCIe 4.0 Slots
- (3) GPUs Supported
- Dedicated mLOM Slot
- Embedded Dual Intel x550 10GBASE-T (LOM) ports
- Modular M.2 SATA SSDs for boot
- Intel® Optane™ Persistent Memory (PMem)
- (8) Hot Swap Fans
- Cisco C220 M4 | M5 | M6 | M7
- Cisco C240 M4 | M5 | M6
(Click to View)
Ideal for:
- Artificial Intelligence (AI)
- Big Data Analytics
- Cloud Servers
- Corporate IT
- Data Analytics
- Database
- Deep Learning (DL)
- High-Performance Computing (HPC)
- Hyper-Converged infrastructure (HCI)
- Machine Learning (ML)
- Virtualization
- Virtual Machines (VM)
- Web Tech
- Anything as a service (Xaas)

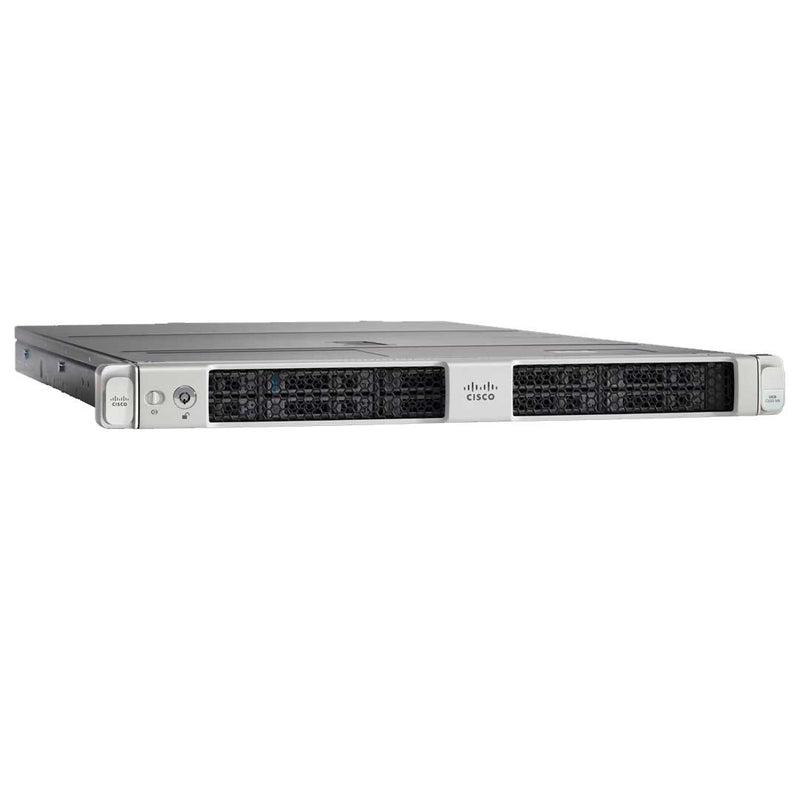

The Cisco UCS C220 M6 SFF Rack Server is a compact, 1U, two-socket server designed for high-performance workloads like AI, machine learning, data analytics, cloud computing, and virtualization. Powered by 3rd Gen Intel Xeon Scalable Processors, it supports up to 10 TB of memory, 10 SAS/SATA/NVMe drives in mixed or NVMe-only setups, and up to 3 GPUs for compute-intensive tasks.
It features PCIe Gen4 expansion and advanced networking with dual 10GBase-T ports. Integrated with Cisco UCS Manager and Cisco Intersight, this versatile and scalable server is ideal for hybrid IT and demanding enterprise workloads.

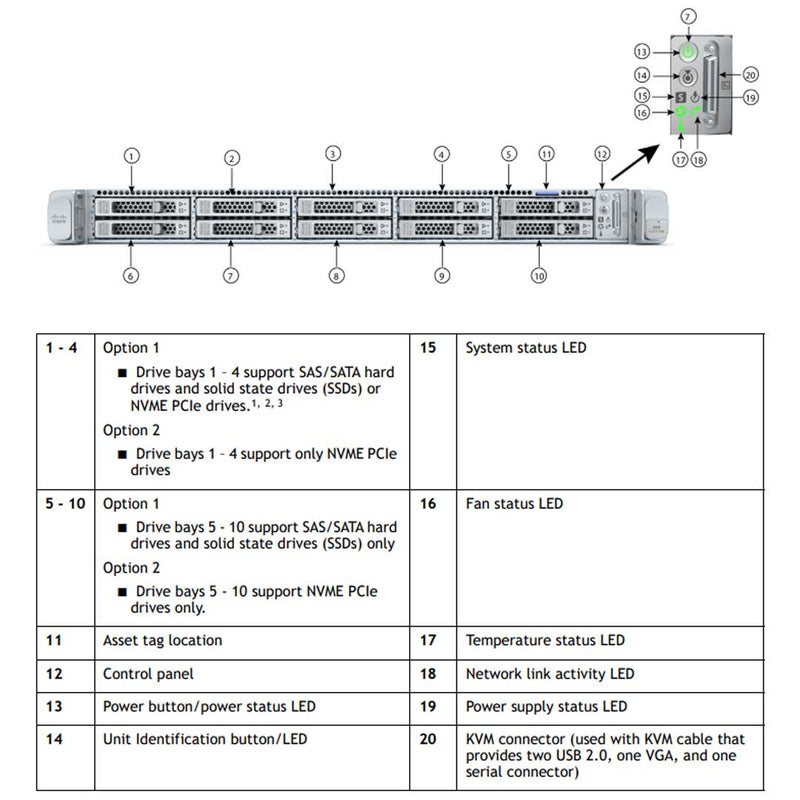

Cisco C220 M6 10 SFF | UCSC-C220-M6S
Supports SATA/SAS/NVMe Drives
Drive Bays 1-4 allow NVMe & Mixing
default AHCI supports up to (8) SATA-only drives
SAS/SATA drives connected via RAID controller or HBA
Supports M.2 SATA drives for Boot
Cisco C220 M6 10 SFF NVMe | UCSC-C220-M6N
(10) NVMe Drives
All NVMe drives connected via CPU PCIe Gen4
Supports M.2 SATA drives for Boot

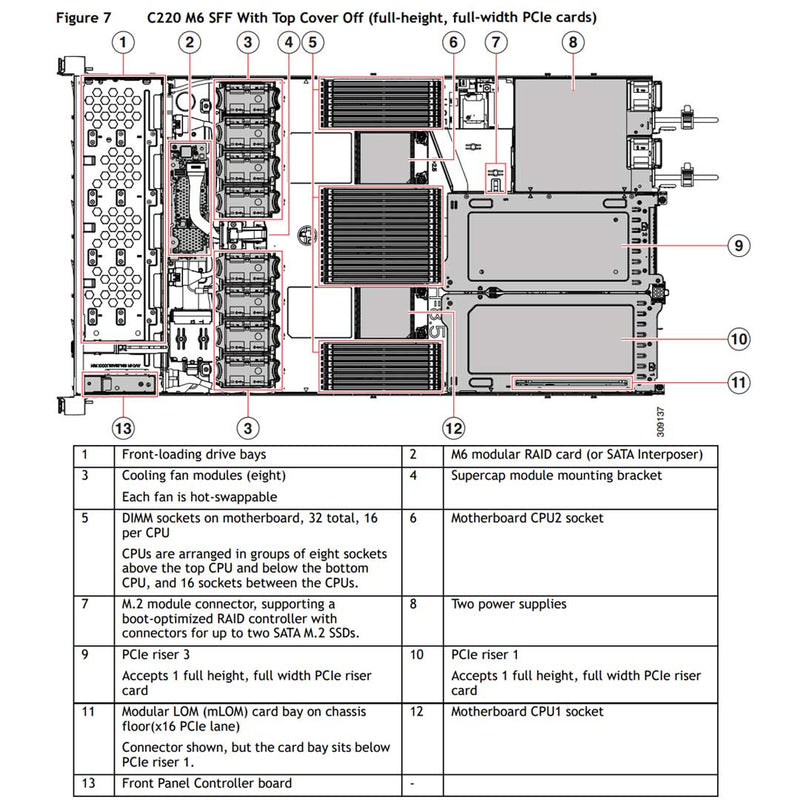

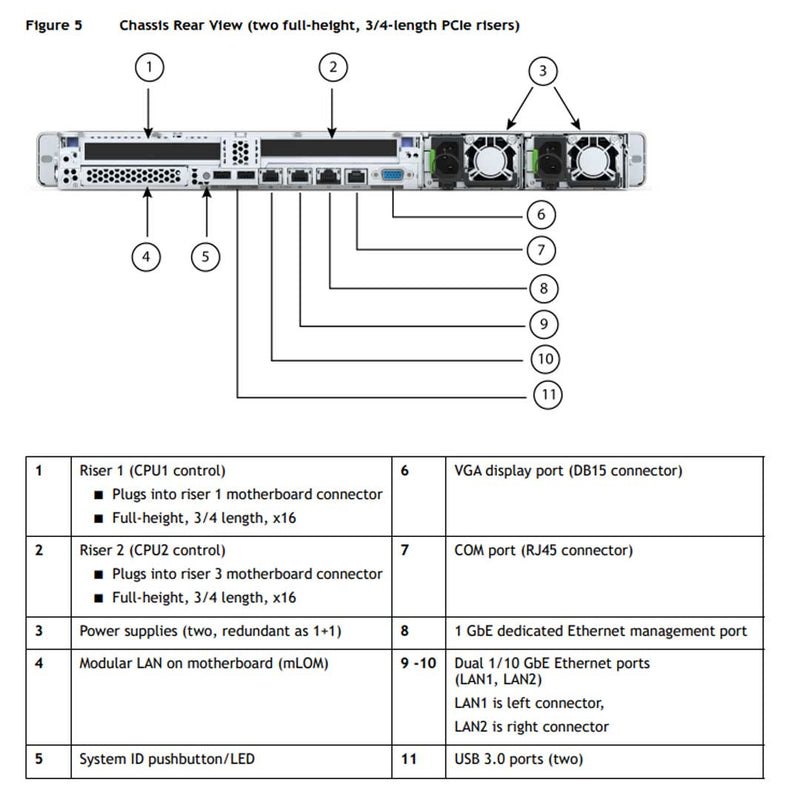

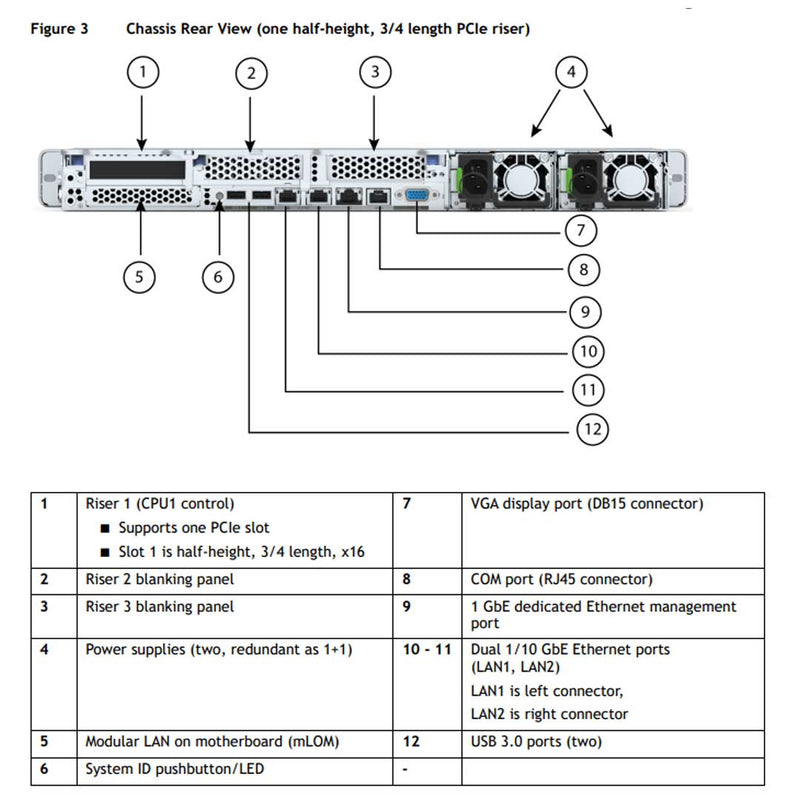

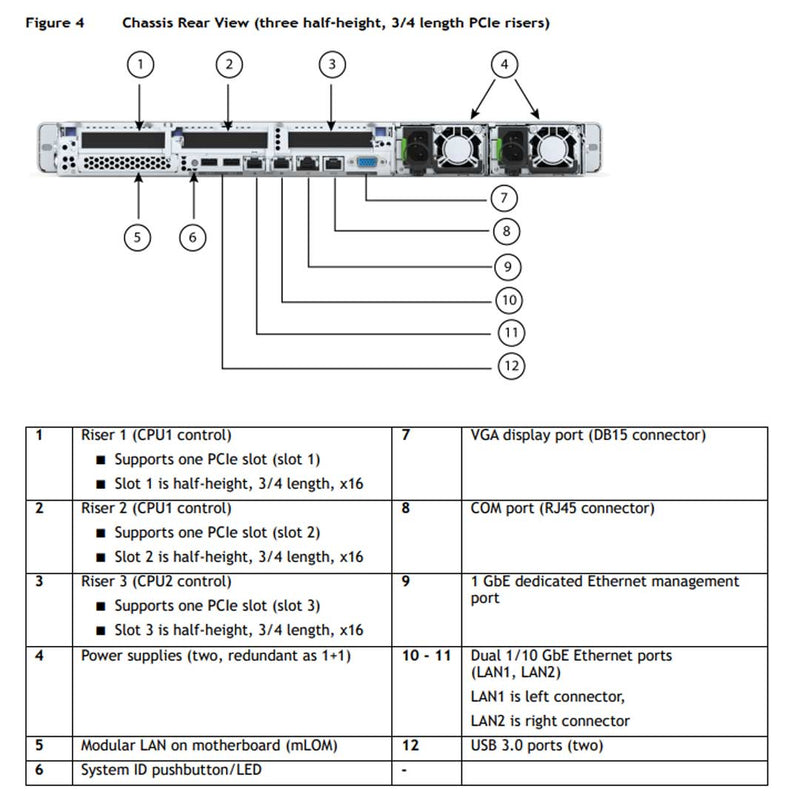

One to three half-height PCIe risers, or One to two full-height PCIe risers are supported. You must have 2 CPUs for Riser 3 to work or for Riser 2 to have a x16 slot for the full height Riser.
Byond the 3 PCIe 4.0 slots there is also 1 dedicated 12-Gbps RAID controller or SAS pass-through HBA slot and 1 dedicated mLOM slot. The UCS C220 M6 server has two LOM ports (10Gbase-T LOM) and a single 1 GbE management port. The Dedicated mLOM slot can flexibly accommodate 10/25/40, and 100-Gbps adapters. The system also has an Embedded Network Interface Cards (NICs) Dual 10GBASE-T Intel x550 Ethernet ports.
Supports up to 3 Nvidia t4 GPUs
Eight hot-swappable fans for front-to-rear cooling. Up to two of the following hot-swappable power supplies:
- 1050 W (AC)
- 1050 W (DC)
- 1600 W (AC)
- 2300 W (AC)
- One power supply is mandatory; one more can be added for 1 + 1 redundancy.
1.70 in. (4.3 cm)
Width(Not including slam latches) 16.9 in.(42.9 cm)
Width(including slam latches) 18.9 in.(48.0 cm)
Depth30 in. (76.2 cm)
- 1 HDD, 1 CPU, 1 DIMM, and 1 1600 W power supply 22.32 lbs (10.1 kg)
- 1 HDD, 1 CPU, 1 DIMM, and 1 1600 W power supply 32.38 lbs (14.7 kg)
- 10 HDDs, 2 CPUs, 32 DIMMs, and 2 1600 W power supplies 32.38 lbs (14.7 kg)
- 10 HDDs, 2 CPUs, 32 DIMMs, and 2 1600 W power supplies 42.43 lbs (19.3 kg)
