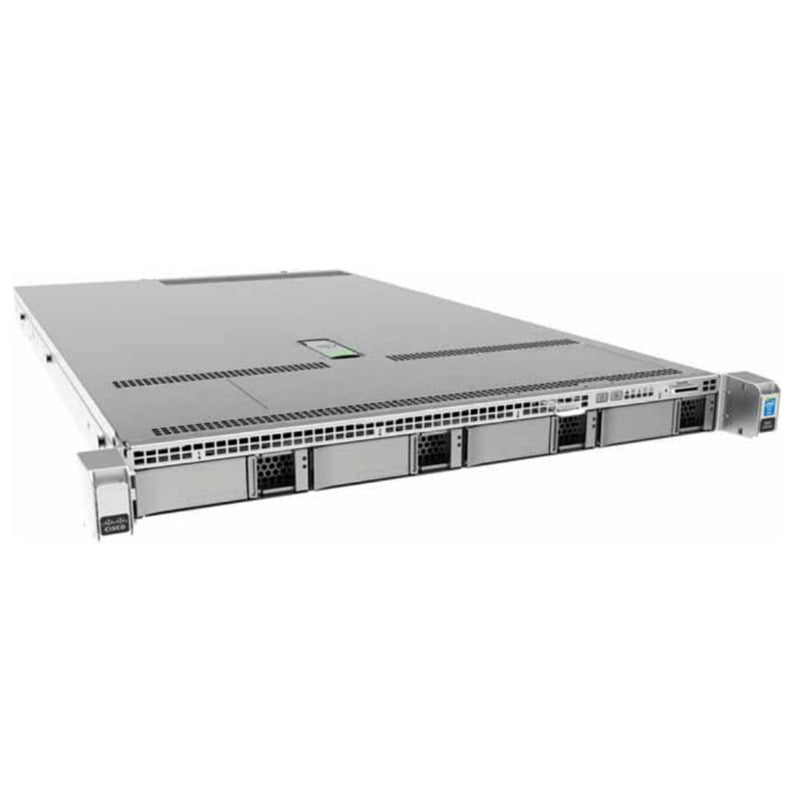

Cisco UCS C220 M4 LFF Rack Servers CTO

Cisco

| CTO Servers |

UCSC-C220-M4-LFF



Configure for Pricing

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Select Chassis

Does not include power supply, CPU, memory, hard disk drives (HDDs), SD cards, rail kit, plug-in PCIe cards.

Intel E5-2600 Processor Family

You can select either one processor or two identical processors

E5-2600 v4 Series Processor Family CPU

Select Security Bezel (Optional)

An optional locking bezel can be mounted to the front of the chassis to prevent unauthorized access to the drives.

Select Memory

Memory is organized with four memory channels per CPU, with up to three DIMMs per channel
More Detail Below

Select Memory Mode (Optional)

Select RAID Controllers (Optional)

For more details on RAID Controllers. Please look below.

Select HDD Drives (Optional)

You must select either a HDD or SSD drive.
3.5-inch large form factor Hot-pluggable Drives come mounted in sleds
Self-encrypting drives (SED) at bottom of list

Select SSD Drives (Optional)

You must select either and HDD or SSD drive.
3.5-inch large form factor Hot-pluggable Drives come mounted in sleds
Self-encrypting drives (SED) at bottom of list

Select PCIe Option Card(s) (Optional)

For more information, please read below.

Select Network Card Accessories (Optional)

Choose Up to Two Twinax Cables for Each Network Card Ordered
Choose Up to Two SFP+ Modules for Each Network Card Ordered

Select Power Supplies

The C220 M4 LFF server accommodates two power supplies.

Select Power Cable(s) (Optional)

You can select a minimum of no power cords and a maximum of two.

Select Rail Kit (Optional)

Select Cable Management Arm (CMA) (Optional)

Select NIC Mode (Optional)

Select Trusted Platform Module (TPM) (Optional)

Trusted Platform Module (TPM) is a computer chip (microcontroller) that can securely store artifacts used to authenticate the platform (server).

Select Flash SD Card Module (Optional)

Install either one or two 64, or 32 GB SD cards
Do not mix SD card sizes

Select USB 3.0 Drive (Optional)

You can order one optional USB 3.0 drive.

Select Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs

What's New for Cisco C220 M4
  • (2) Intel E5-2600 v3 or v4 Processors
  • (24) 2400MT/s DDR4 DIMMs
  • (4) LFF SATA/SAS Drives
  • 12Gbps SAS Drives Supported
  • (2) PCIe 3.0 Slots
  • No GPUs Supported
  • Dedicated mLOM Slot
  • Embedded 2 x 1 GbE LAN-on-motherboard (LOM)
  • (6) Hot Swap Fans

The enterprise-class UFCS C220 M4 LFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the addition of the Intel Xeon E5-2600 v3 and v4 series processor family that deliver significant performance and efficiency gains. In addition, the UCS C220 M4 LFF server provides 24 DIMM slots, up to 4 drives and 2 x 1 GbE LAN-on-motherboard (LOM) ports delivering outstanding levels of density and performance in a compact 1U package.

Other Versions

Ideal for:

  • Cloud Servers
  • Corporate IT
  • Data Analytics
  • Database
  • High-Performance Computing (HPC)
  • Virtual Desktop Interface (VDI)
  • Virtualization
  • Web Tech

CTO Configuration Support

Need help with the configuration? Contact us today!

Chassis Options

The Cisco® UCS C220 M4 rack server is the newest 2-socket, 1U rack server from Cisco, designed for both performance and expandability over a wide range of storage-intensive infrastructure workloads from web serving to distributed database.

The enterprise-class UFCS C220 M4 server extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the addition of the Intel Xeon E5-2600 v3 and v4 series processor family that deliver significant performance and efficiency gains. In addition, the UCS C220 M4 SFF server provides 24 DIMM slots, up to 4 drives and 2 x 1 GbE LAN-on-motherboard (LOM) ports delivering outstanding levels of density and performance in a compact 1U package.

The C220 M4 server includes a modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 1 GbE embedded (on the motherboard) LOM ports. These features combine to provide outstanding levels of internal memory and storage expandability along with exceptional performance.

The Cisco UCS C240 M4 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
