What's New
- (2) Intel Xeon 4th and 5th Scalable Processors
- (32) 5600MT/s DDR5 DIMMs
- Support for Intel® Optane™ Persistent Memory (PMem)
- (10) SFF SATA/SAS Drives
- (3) PCIe 5.0 Slots
- (3) GPUs Supported
- Dedicated mLOM Slot
- Dedicated OCP 3.0 Slot
- Tri-mode RAID support
- Embedded 2 x 1 GbE LAN-on-motherboard (LOM)
- (8) Hot Swap Fans
Other Versions
- Cisco C220 M4 | M5 | M6 | M7
- Cisco C240 M4 | M5 | M6
(Click to View)
Ideal for:
- Artificial Intelligence (AI)
- Big Data Analytics
- Cloud Servers
- Corporate IT
- Data Analytics
- Database
- Deep Learning (DL)
- High-Performance Computing (HPC)
- Machine Learning (ML)
- Virtual Desktop Interface (VDI)
- Virtualization
- Web Tech
- Anything as a service (Xaas)

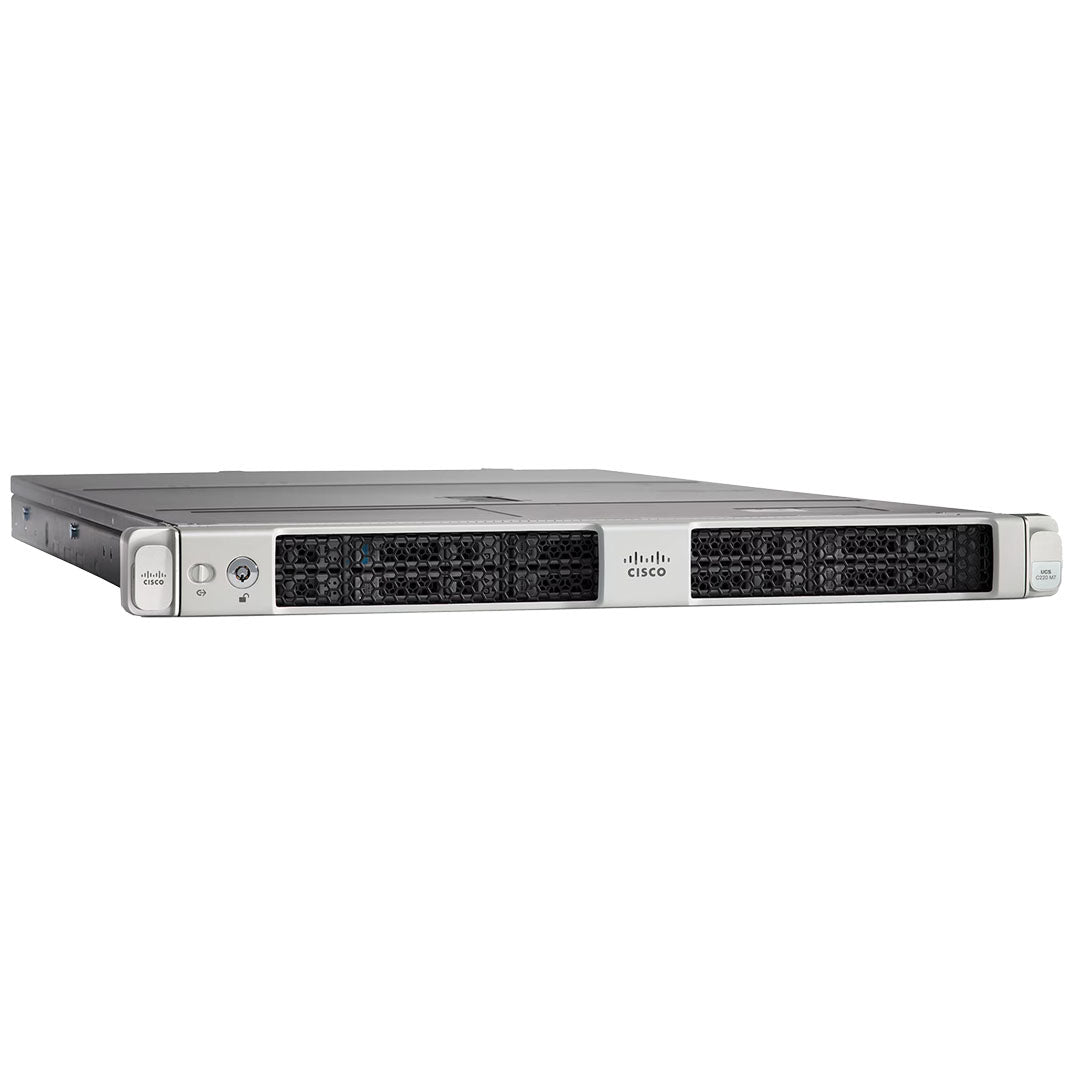

The Cisco UCS C220 M7 Rack Server is a high-density, 1RU, 2-socket server designed for a wide range of demanding workloads, including AI/ML, big data, cloud applications, and virtualization. Powered by up to two 5th Gen Intel Xeon Scalable Processors with up to 60 cores per socket and 32 DDR5 DIMM slots supporting up to 4TB of memory, it delivers exceptional performance for compute-intensive tasks.
This server also features advanced technologies like PCIe Gen5, support for up to three GPUs, and flexible storage options, including up to 10 NVMe drives or SAS/SATA drives with tri-mode RAID support. Ideal for modern IT environments, the C220 M7 combines cutting-edge performance with energy efficiency and scalability to meet the needs of enterprise, cloud, and data analytics workloads.

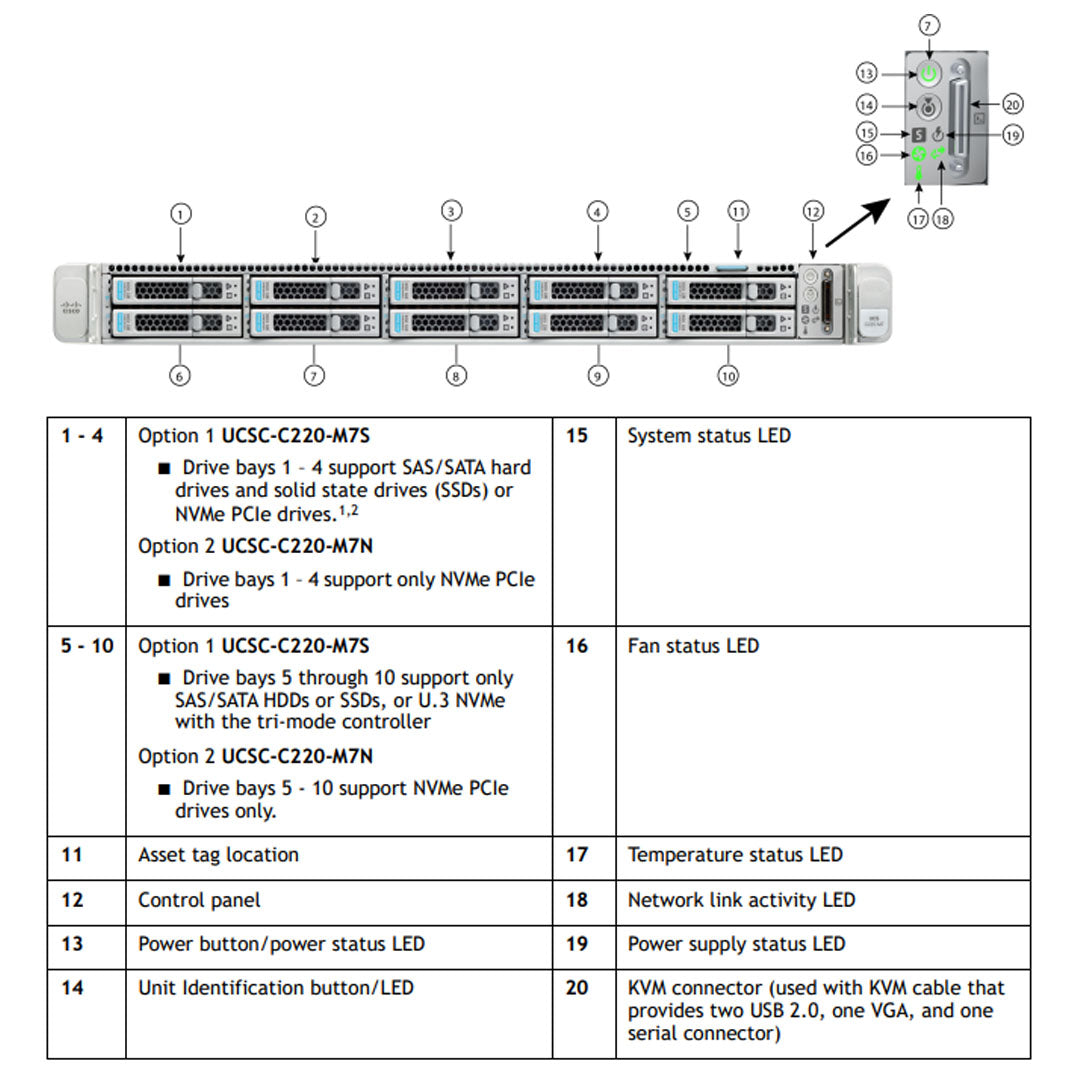

Chassis Options
C220 M7 10x 2.5 SAS/SATA Rack ServerUCSC-C220-M7S
Support 2.5" SAS/SATA/NVMe SSDs
Depending on controller type installed.
C220 M7 10x NVMe Rack ServerUCSC-C220-M7N
Supports 2.5" NVMe SSDs (only) drives.
The Cisco UCS C220 M7 SFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the 5th Gen. Intel® Xeon® Scalable Processors, 16 DIMM slots per CPU for DDR5-5600 Memory DIMMs with DIMM capacity points up to 128GB or 4th Gen. Intel® Xeon® Scalable Processors, 16 DIMM slots per CPU for DDR5-4800 Memory DIMMs with DIMM capacity points up to 128GB.
The UCS C220 M7 SFF server has a single 1GBE management port. A modular LAN on motherboard (mLOM)/OCP 3.0 module provides up to two 100GBE ports. A connector on the front of the chassis provides KVM functionality.
The Cisco UCS C220 M7 SFF server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture, enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
PCIe Riser Options
Riser Options
- Riser 1 (CPU 1)
- R1A | Gen 4 Half Height
- R1B | Gen 5 Half Height
- R1C | Gen 5 Full Height
- Riser 2 (CPU 1)
- R2A | Gen 4 Half Height
- R2B | Gen 5 Half Height
- Riser 3 (CPU 2)
- R3A | Gen 4 Half Height
- R3C | Gen 5 Full Height
Networking Options
OCPDedicated OCP 3.0 Slot
Supports only 1 per server
NIC Mode: Shared OCP, or Shared OCP Extended
The server can accept either an mLOM or an OCP card, but not both in the same slot.
mLOMDedicated mLOM Slot
Supports only 1 per server
NIC Mode: Cisco card MLOM
The server can accept either an mLOM or an OCP card, but not both in the same slot.

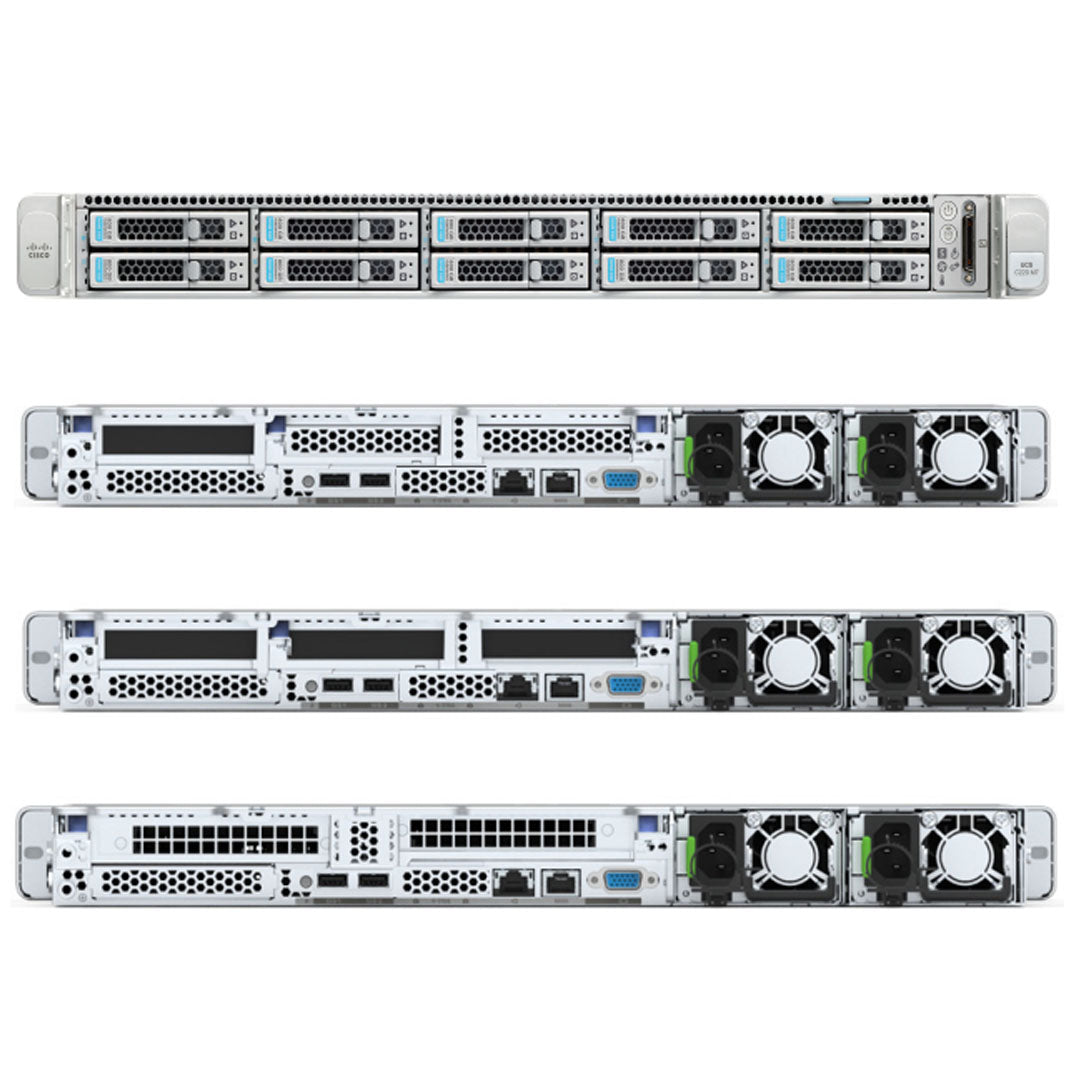

PCIe3 PCIe Riser Options on a 2 Socket Configurations
Full-Height or Half-Height, Gen 4 or Gen 5 PCIe Slots Options
Full-height risers cannot be mixed with half-height risers.
Gen4 and Gen5 risers cannot be mixed with the exception of riser 3
