NetApp FAS8200 8-Node Fabric MetroCluster Filer Head

NetApp

| Filer Head
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Condition: Refurbished ✓ Pulled from working servers & Tested. ✓ 1-year Parts Warranty.

Warranty | Return Policy

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

The NetApp FAS8200 8-Node Fabric MetroCluster is a high-performance storage system designed for large-scale enterprise environments requiring maximum availability and resilience. It features a quad-chassis configuration with eight controllers, delivering 1024GB of memory and eight 64-bit, 16-core processors running at 1.70 GHz. With a total rack height of 12U, the system supports up to 960 drives and a maximum capacity of 21.12PB, ensuring robust scalability for data-intensive workloads.

For connectivity, the system includes sixteen 10Gb RJ45 Ethernet ports, sixteen 10Gb SFP Ethernet ports, and thirty-two UTA2 SFP+ ports supporting both 10Gb and 16Gb speeds. Additionally, it features thirty-two MiniSAS HD ports (12Gb) for high-speed storage expansion. Each controller is equipped with two PCIe slots and remote management capabilities. Compatible disk shelves include DS212C, DS224C, and DS460C, allowing for extensive storage configurations to meet enterprise needs.

The chassis measures 3U in rack height per unit, with dimensions of 5.12 inches in height, 17.6 inches in width, and 28.94 inches in depth, and a maximum weight of 76 lbs. The system supports RAID 4, RAID 6 (RAID-DP), and RAID-TEC for advanced data protection. As an 8-Node Fabric MetroCluster, it utilizes Fibre Channel networking for synchronous mirroring, ensuring all nodes have continuous access to mirrored data for seamless failover and business continuity across multiple locations.

System Config
  • Model: NetApp FAS8200 8-Node
  • Chassis: Quad Chassis
  • Total Rack Height: 12U
  • Controllers: 8-Node Fabric MetroCluster
  • Memory: 1024GB
  • Processor Model: 84x 64-bit 16-core 1.70 Ghz
  • Ethernet Ports: 16 x RJ45 (10Gb) + 16 x SFP (10Gb)
  • UTA2 Ports: 32 x SFP+ (10Gb/16Gb)
  • SAS Ports: 32 x MiniSAS HD (12Gb)
  • PCIe Expansion Slots: 16 x PCIe
  • Max Drives (total): 960
  • Max Capacity: 21,120TB (21.12PB)
  • Disk Shelves: DS212C, DS224C, DS460C
  • Filer Heads: N/A
Dimensions & Weight
  • Chassis Rack Height: 3U
  • Chassis Heights: 5.12" (13 cm)
  • Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
  • Chassis Depth w/ Cable Mgmt: 28.94" (73.5 cm)
  • Chassis Weight: up to 76.0 lb (34.5 kg)

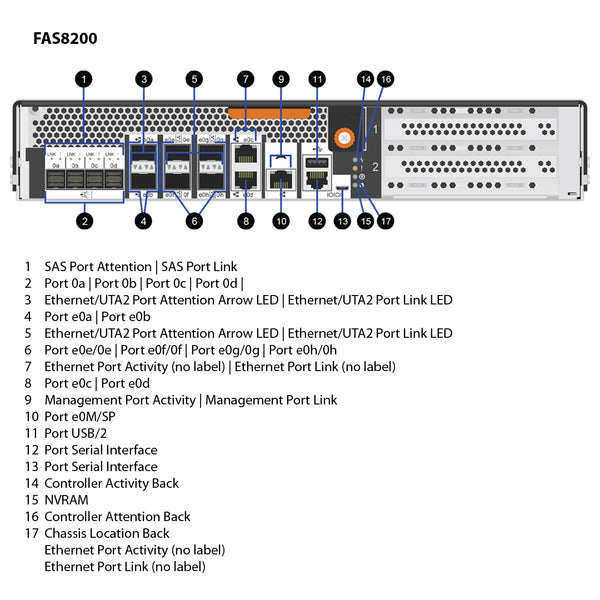

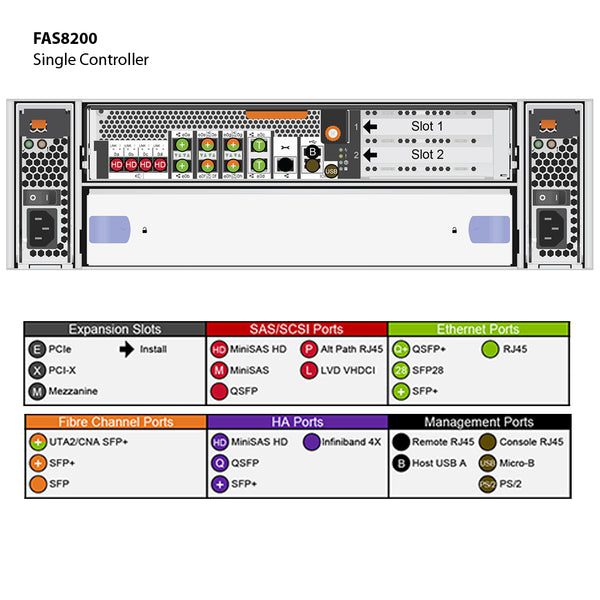

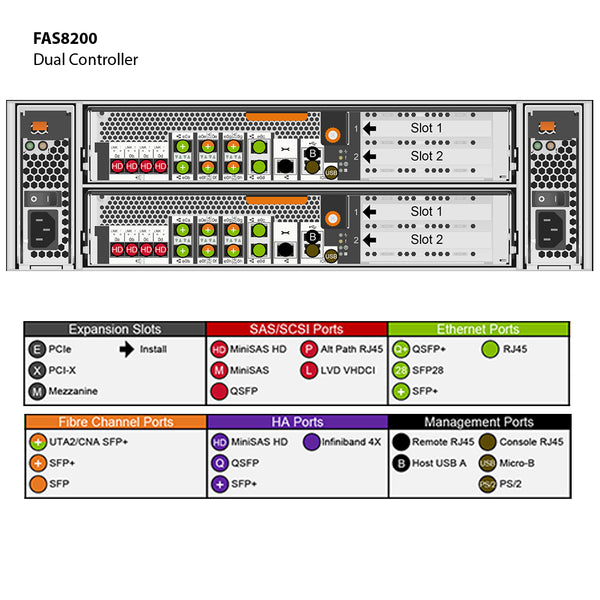

Controller Specs
  • Max Controllers: 2 (Per Chassis)
  • PCI Slot (per): 2 x PCIe
  • Ethernet Ports (per): 2 x RJ45 (10Gb) + 2 x SFP+ (10Gb)
  • Fibre Channel Ports (per): N/A
  • UTA2 Ports (per): 4 x SFP+ (10Gb/16G)
  • SAS Ports (per): 4 x MiniSAS HD (12Gb)
  • Remote Management: Yes
  • Processor Model (per): 2x 64-bit 16-core 1.70 Ghz
  • Memory (Node/Config): 128GB/1024GB
  • NVMEM (Node/Config): 8GB/64GB
Storage
  • Max Number of Internal Drives: 0
  • Max Number Drives (total): 960
  • Max Capacity: 21,120TB (21.12PB)
  • Max # of MSATA Drives: Cluster: 960; DR Group: 480; HA Pair: 240
  • Max # of SATA Drives: Cluster: 960; DR Group: 480; HA Pair: 240
  • Max # of NL-SAS Drives: Cluster: 960; DR Group: 480; HA Pair: 240
  • Max # of SAS Drives: Cluster: 960; DR Group: 480; HA Pair: 240
  • Max # of SSD Drives: Cluster: 960; DR Group: 480; HA Pair: 240
  • Drive Interface: MSATA, SATA, NL-SAS, SAS, SSD
  • RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
  • Max # of DS212C Shelves: 80 external
  • Max # of DS224C Shelves: 40 external
  • Max # of DS460C Shelves: 16 external
Cluster Types
MetroCluster IP MetroCluster IP

Each site has its own drives, data is mirrored, but each site can ONLY access its own drives until a failover happens (NO active cross-access).

Fabric MetroCluster Fabric MetroCluster

Each site has its own drives, data is mirrored, and both sites can actively access all drives at all times (YES active cross-access).

Stretch MetroCluster Stretch MetroCluster

Drives are split between locations (not mirrored), and both sites can access all drives at all times (YES active cross-access).
