NetApp AFF-C190 UTA2 Dual Controller Filer Head (HA)
Thanks for the request. We'll get back to you with in 24 hours.
Condition: Refurbished ✓ Pulled from working servers & Tested. ✓ 1-year Parts Warranty.
Warranty | Return Policy
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
The NetApp AFF-C190 UTA2 is an entry-level all-flash storage system designed for small to mid-sized businesses needing high performance in a compact form factor. It features a 2U chassis with dual controllers in an HA configuration, 64GB of memory, and two 64-bit, 8-core processors running at 1.50 GHz. With support for up to 24 internal 2.5" SSDs, it provides a maximum storage capacity of 23TB, making it ideal for virtualization, databases, and enterprise applications.
The system includes four SFP+ (10Gb) Ethernet ports and eight UTA2 SFP+ (16Gb) ports per chassis, ensuring high-speed connectivity. It also has four MiniSAS HD (12Gb) ports for SAS expansion and supports DS224C disk shelves. With no additional expansion module slots, its connectivity is fixed, making it a cost-effective, efficient storage solution for environments requiring reliable performance.
Measuring 3.35 inches in height, 18.9 inches in width with flanges, and 24.13 inches in depth with cable management, the AFF-C190 UTA2 weighs up to 60.8 lbs. It supports RAID 4, RAID 6 (RAID-DP), and RAID-TEC for robust data protection. With remote management capabilities and all-flash performance, it delivers enterprise-grade reliability in an affordable, easy-to-deploy package.
- Model: NetApp AFF-C190 UTA2
- Chassis: Single Chassis
- Total Rack Height: 2U
- Controllers: Dual Controller (HA)
- Memory: 64GB
- Processor Model: 2x 64-bit 8-core 1.50 Ghz

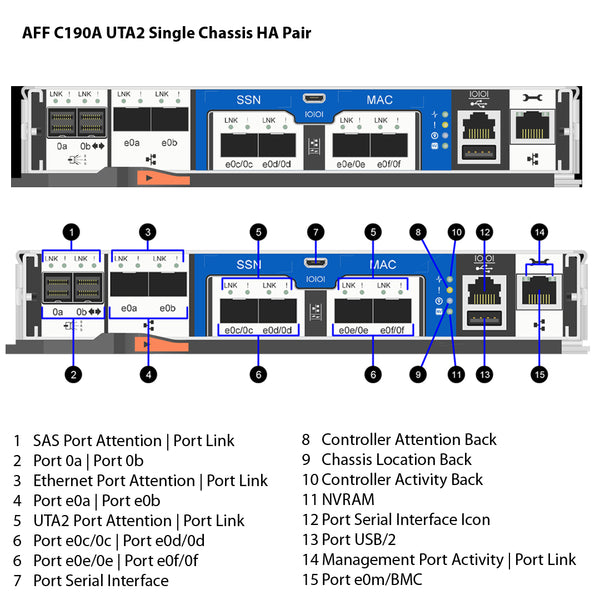

- Ethernet Ports (per): 4 x SFP+ (10Gb)
- UTA2 Ports (per): 8 x SFP+ (16Gb)
- SAS Ports (per): 4 x MiniSAS HD (12Gb)
- Internal Drives (total): 24 x 2.5"
- Max Drives (total): 24
- Max Capacity: 23TB
- Disk Shelves: DS224C
- Filer Heads: N/A
- Chassis Rack Height: 2U
- Chassis Heights: 3.35" (8.5 cm)
- Chassis Width w/ Mounting Flanges: 18.9" (48 cm)
- Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
- Chassis Depth w/ Cable Mgmt: 24.13" (61.3 cm)
- Chassis Depth w/o Cable Mgmt: 19.02" (48.3 cm)
- Chassis Weight: up to 60.8 lb (27.6 kg)
- Max Controllers: 2 (Per Chassis)
- Expansion Module Slot (per): 0
- Ethernet Ports (per): 2 x SFP+ (10Gb)
- Fibre Channel Ports (per): N/A
- UTA2 Ports (per): 2 x SFP+ (16Gb)
- SAS Ports (per): 2 x MiniSAS HD (12Gb)
- Remote Management: Yes
- Processor Model (per): 1x 64-bit 8-core 1.50 Ghz
- Memory (Single/HA): 32GB/64GB
- NVRAM (Single/HA): 4GB/8GB
- Max Number of Internal Drives: 0
- Max Number Drives (total): 24
- Max Capacity: 23TB
- Max # of SSD Drives: 24
- Drive Interface: SSD
- RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
- Max # of DS224C Shelves: 1 internal
