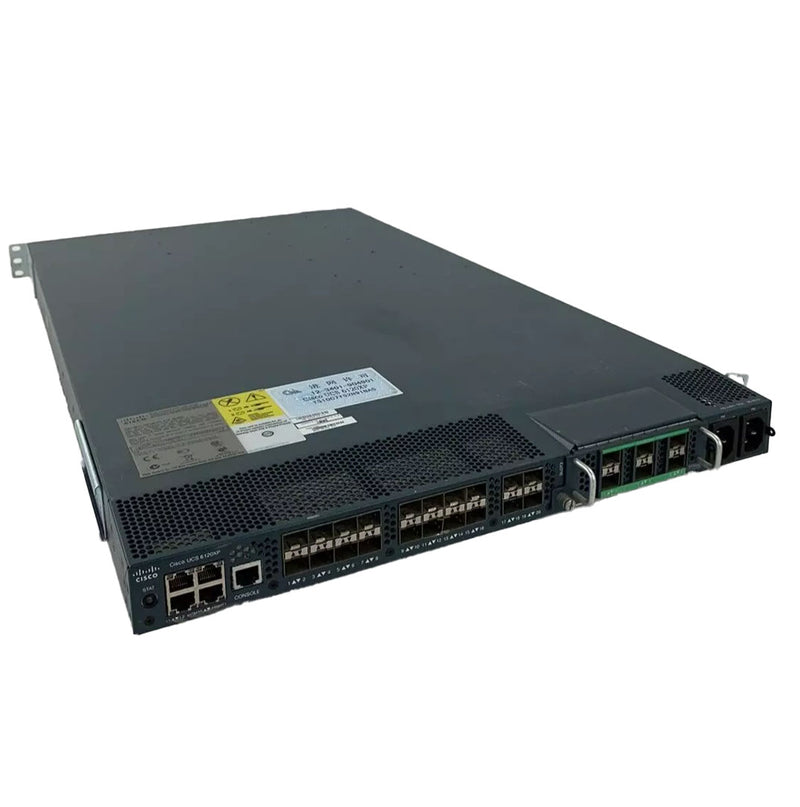

Switch Specs
- Model: Cisco UCS 6120XP
- Ports: 20 fixed ports, expandable to 28 with 1 module
- Port Type: SFP+ 10GbE (up to 8 can be 1GbE SFP)
- Form Factor: 1RU rack-mount
- Throughput: 520 Gbps
- Expansion Slots: 1 expansion bay (comes w/ N10-E0060)
- Management: Integrated UCS Manager
- Redundancy: Dual hot-swappable power supplies (550W)
- Fan Modules: 2 modules, 6 fans each (12 total)
Part Number:
- N10-S6100
Cisco UCS 6100
Data Sheet
The Cisco UCS 6120XP Fabric Interconnect delivers low-latency, lossless 10-Gigabit Ethernet connectivity for unified data center fabric deployments. With 20 fixed SFP+ ports and one expansion slot, it consolidates LAN and SAN traffic into a single high-bandwidth interface, managed through integrated UCS Manager software.
Designed to support UCS B-Series Blade Servers and UCS 5100 chassis, the 6120XP enables flexible networking configurations, reducing cabling and infrastructure complexity. With a compact 1RU form factor and up to 520 Gbps throughput, it’s ideal for environments requiring scalable, efficient 10GbE and Fibre Channel connectivity.
- Provides 10-Gigabit Ethernet and Fibre Channel connectivity
- Consolidates LAN and SAN traffic into a unified fabric
- Supports up to 28 ports with expansion module
- Enables centralized management via UCS Manager
- Delivers up to 520 Gbps total throughput
What It Was Made For:
- UCS B-Series Blade and UCS 5100 deployments
- Data centers consolidating network and storage traffic
- Environments requiring high-bandwidth, low-latency switching
- Organizations seeking simplified cabling and reduced TCO
- Scalable unified fabric infrastructure with modular growth
(N10-E0440)
4- Ports 10GbE SFP+, 4 Fibre Channel 1/2/4G SFP based uplink connections
(N10-E0600)
6-Ports 10GbE SFP+ based uplink connections
(N10-E0080)
8- Ports 4/2/1 G Fibre Channel, SFP-based uplink connections
(N10-E0060)
6- Ports 8/4/2/1 G Fibre Channel uplink connections
We can create custom Turn-Key UCS configurations based on your exact infrastructure needs.
