Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Adapter Specs
- Ports: 4 x RJ-45
- Interface: PCI Express v2.0 x4 (compatible with x4, x8, x16 slots)
- Data Rate: 10/100/1000 Mbps (Half/Full Duplex)
- On-board Memory: 224 KB
- Connector Type: RJ-45
- Cable Type: CAT-5 or better, up to 100m
- Jumbo Frame Support: Up to 9.5 KB
- Features: VLAN tagging, RSS, TCP/IP offload, MSI-X, IEEE 1588, VMDq
- Bracket: Full-height (pre-installed) and low-profile included
- Dimensions: 5.3 in x 2.7 in (13.46 cm x 6.86 cm)
- Power Consumption: 5.0 W @ 3.3 V max
- Operating Temperature: 32° to 131°F (0° to 55°C)
- Operating Systems: Windows Server 2003–2012, RHEL 5/6, SLES 10/11, VMware ESX 4.0 U1, Solaris 10, Citrix, Hyper-V
Part Number:
- 593722-B21

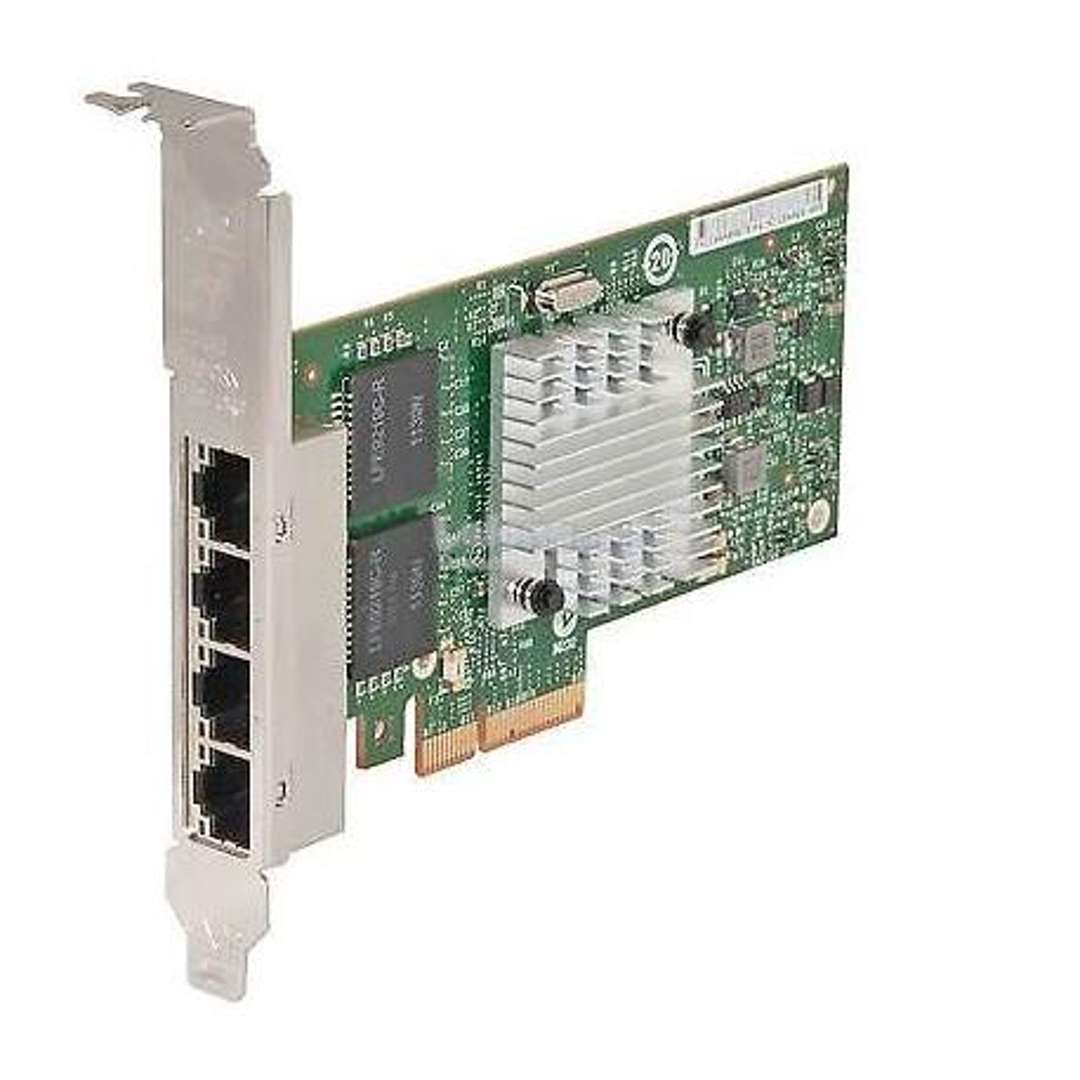

The HP NC365T 4-port Ethernet Server Adapter is a high-density, low-power PCIe Gen 2.0 network adapter designed for enterprise environments requiring maximum port density and performance without sacrificing reliability. It features four independent Gigabit Ethernet ports on a single card, offering up to 4 Gbps of combined throughput. With support for TCP/IP offloading, VLAN tagging, jumbo frames, and Virtual Machine Device Queues (VMDq), this adapter is ideal for virtualized servers, high-throughput applications, and environments demanding precise network segmentation.
This adapter supports both full-height and low-profile slots, ensuring compatibility with a wide range of rackmount and tower server configurations. Enhanced with features like MSI-X interrupt load balancing, IEEE 1588 time synchronization, and Receive Side Scaling (RSS), the NC365T helps reduce CPU overhead while maintaining optimal data flow. Its plug-and-play design and driver support for multiple enterprise operating systems make it a robust and cost-effective choice for IT professionals managing modern data center workloads.
Compatible With:
- HPE DL360
- HPE DL380
- HPE DL385
- HPE DL560
- HPE ML350
- HPE Proliant DL380
(Click to View)
Base Standard Capabilities
| HP NC365T 4-port Ethernet Server Adapter Specifications | |
|---|---|
| Ports | 4 x RJ-45 |
| Interface | PCI Express v2.0 x4 (compatible with x4, x8, x16 slots) |
| Data Rate | 10/100/1000 Mbps (Half and Full Duplex) |
| On-board Memory | 224 KB |
| Jumbo Frame Support | Up to 9.5 KB |
| VLAN Support | IEEE 802.1Q with 802.1p QoS tagging |
| Advanced Features | TCP/IP offload, MSI-X, VMDq, RSS, IEEE 1588 |
| Cable Type | Category 5 (CAT-5) or better |
| Max Cable Distance | 100 meters (328 feet) |
| Form Factor | Low-profile card with full-height and half-height brackets |
| Dimensions (L x W) | 5.3 in x 2.7 in (13.46 cm x 6.86 cm) |
| Power Consumption | 5.0 W @ 3.3 V max |
| Operating Temperature | 32°F to 131°F (0°C to 55°C) |
| Operating Humidity | 10% to 90% non-condensing |
| Non-operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Non-operating Humidity | 5% to 95% non-condensing |
| Operating Systems Supported | Windows Server 2003–2012, RHEL 5/6, SLES 10/11, VMware ESX 4.0 U1, Solaris 10, Citrix, Hyper-V |
| Compliance | RoHS 6/6, IEEE 802.3 family, CE, FCC Class B, VCCI, CSA, UL, EN55022/24 |
