    NetApp FAS6290 Dual Controller Filer Head /w IOXM (HA)


    Price: Request a Quote

    Brand:
    MPN:
    FAS6290A
    Type:
    Filer Head
    Condition:
    ECS Refurbished & Tested

    Request Quote

    Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


    -PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
    -SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

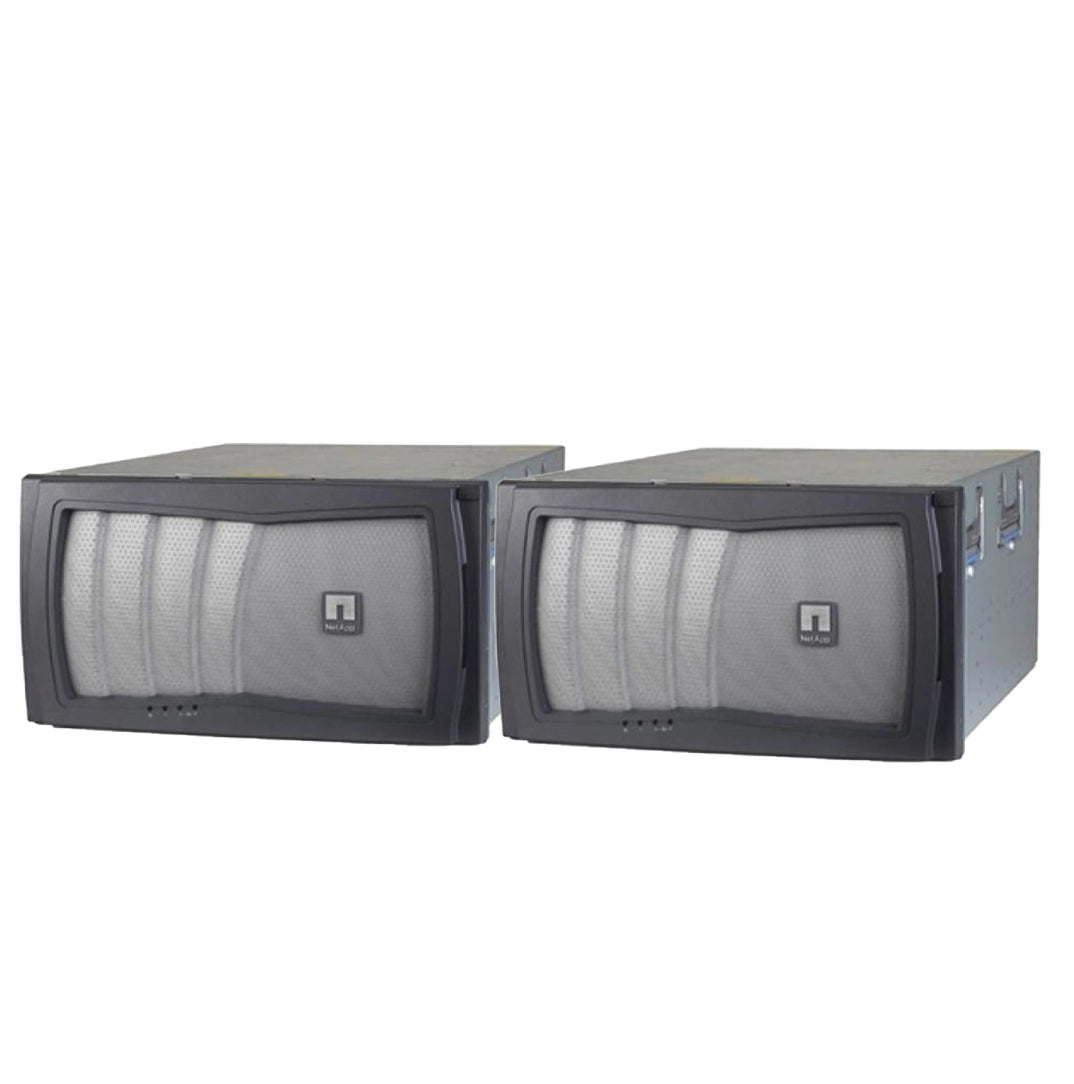

    NetApp FAS6290 Dual Controller Filer Head /w IOXM (HA)

    The NetApp FAS6290 is a high-performance enterprise storage system designed for scalability and reliability. With a dual-chassis configuration and a total rack height of 12U, it features a dual-controller (HA) setup with IOXM for enhanced redundancy. Powered by four 64-bit 6-core 2.93 GHz processors and 192GB of HA memory, it delivers robust processing power for demanding workloads. Connectivity options include 4x 1Gb RJ45 and 8x 10Gb SFP Ethernet ports, along with 8x 8Gb Fibre Channel ports for high-speed data transfer.

    Supporting up to 1440 drives with a maximum storage capacity of 15PB, the FAS6290 provides extensive storage flexibility with compatibility for MSATA, SATA, NL-SAS, SAS, and SSD drives. The system supports RAID 4, RAID 6 (RAID-DP), and RAID-TEC, ensuring data integrity and fault tolerance. With 30 PCIe expansion slots, the system allows for seamless upgrades and expansion, making it an ideal solution for enterprises requiring high availability and scalability.

    The chassis is designed for data center efficiency, measuring 10.18 inches in height, 17.59 inches in width, and 29 inches in depth with cable management, weighing up to 125.4 lbs. It supports multiple disk shelf models, including DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, and DS460C. With remote management capabilities and a highly scalable architecture, the NetApp FAS6290 is a powerful storage solution built to handle enterprise-level storage demands.


    System Config
    • Model: NetApp FAS6290
    • Chassis: Dual Chassis
    • Total Rack Height: 12U
    • Controllers: Dual Controller (HA) w/ IOXM
    • Memory (HA): 192GB
    • Processor Model: 4x 64-bit 6-core 2.93 Ghz
    • Ethernet Ports: 4 x RJ45 (1Gb) + 8 x SFP (10Gb)
    • Fibre Channel Ports: 8 x SFP (8Gb)
    • PCIe Expansion Slots: 30 x PCIe
    • Max Drives (total): 1440
    • Max Capacity: 15,000TB (15PB)
    • Disk Shelves: DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, DS460C
    • Filer Heads: N/A
    Dimensions & Weight
    • Chassis Rack Height: 6U
    • Chassis Heights: 10.18" (25.86 cm)
    • Chassis Width w/o Mounting Flanges: 17.59" (44.68 cm)
    • Chassis Depth w/ Cable Mgmt: 29" (73.66 cm)
    • Chassis Weight: up to 125.4 lb (56.9 kg)
    Controller Specs
    • Max Controllers: 2 (Per Chassis)
    • PCI Slot (per): 15 x PCIe
    • Ethernet Ports (per): 2 x RJ45 (1Gb) + 4 x SFP (10Gb)
    • Fibre Channel Ports (per): 4 x SFP (4Gb)
    • UTA2 Ports (per): N/A
    • SAS Ports (per): N/A
    • Remote Management: Yes
    • Processor Model (per): 2x 64-bit 6-core 2.93 Ghz
    • Memory (Single/HA): 96GB/192GB
    • NVRAM (Single/HA): 4GB/8GB
    Storage
    • Max Number of Internal Drives: 0
    • Max Number Drives (total): 1440
    • Max Capacity: 15,000TB (15PB)
    • Max # of MSATA Drives: 1440
    • Max # of SATA Drives: 1440
    • Max # of NL-SAS Drives: 1440
    • Max # of SAS Drives: 1440
    • Max # of SSD Drives: 240
    • Drive Interface: MSATA, SATA, NL-SAS, SAS, SSD
    • RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
    • Max # of DS212C Shelves: 60 external
    • Max # of DS2246 Shelves: 60 external
    • Max # of DS224C Shelves: 60 external
    • Max # of DS4243 Shelves: 60 external
    • Max # of DS4246 Shelves: 60 external
    • Max # of DS4448 Shelves: 30 external
    • Max # of DS460C Shelves: 24 external

    FAS6290 Parts Lists

    Ask about our NetApp Disk Shelves!
    We can create custom Turn-Key configurations based on your needs!
    Click here to view NetApp Disk Shelves
