    NetApp FAS6220 Dual Controller Filer Head (HA)


    Price: Request a Quote

    Brand:
    MPN:
    FAS6220A
    Type:
    Filer Head
    Condition:
    ECS Refurbished & Tested

    Request Quote

    Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


    -PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
    -SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

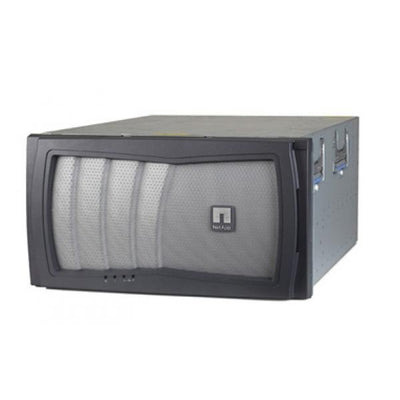

    NetApp FAS6220 Dual Controller Filer Head (HA)

    The NetApp FAS6220 is a high-performance storage system designed for enterprise environments requiring scalability and reliability. With a single chassis configuration and a total rack height of 6U, it features dual controllers in a high-availability (HA) setup, ensuring continuous operation. Powered by four 64-bit 4-core 2.26 GHz processors and 96GB of HA memory, the system delivers robust performance for demanding workloads.

    The FAS6220 offers extensive connectivity options, including 4x 1Gb RJ45 and 8x 10Gb SFP Ethernet ports, along with 8x 8Gb Fibre Channel ports. It supports up to 1200 drives with a maximum storage capacity of 9.6PB, accommodating various drive types such as FC, MSATA, SATA, NL-SAS, SAS, and SSD. The system’s RAID support includes RAID 4 and RAID 6 (RAID-DP), ensuring data protection and redundancy.

    Designed for expandability, the system includes 10 PCIe expansion slots and supports multiple disk shelf models, including DS14-Mk2-AT, DS14-Mk4-FC, DS2246, DS4243, DS4246, and DS4486. The chassis measures 10.18 inches in height, 17.59 inches in width, and 29 inches in depth with cable management. With a maximum weight of 128.5 lbs, the FAS6220 is built to integrate seamlessly into enterprise data center environments.


    System Config
    • Model: NetApp FAS6220
    • Chassis: Single Chassis
    • Total Rack Height: 6U
    • Controllers: Dual Controller (HA)
    • Memory (HA): 96GB
    • Processor Model: 4x 64-bit 4-core 2.26 Ghz

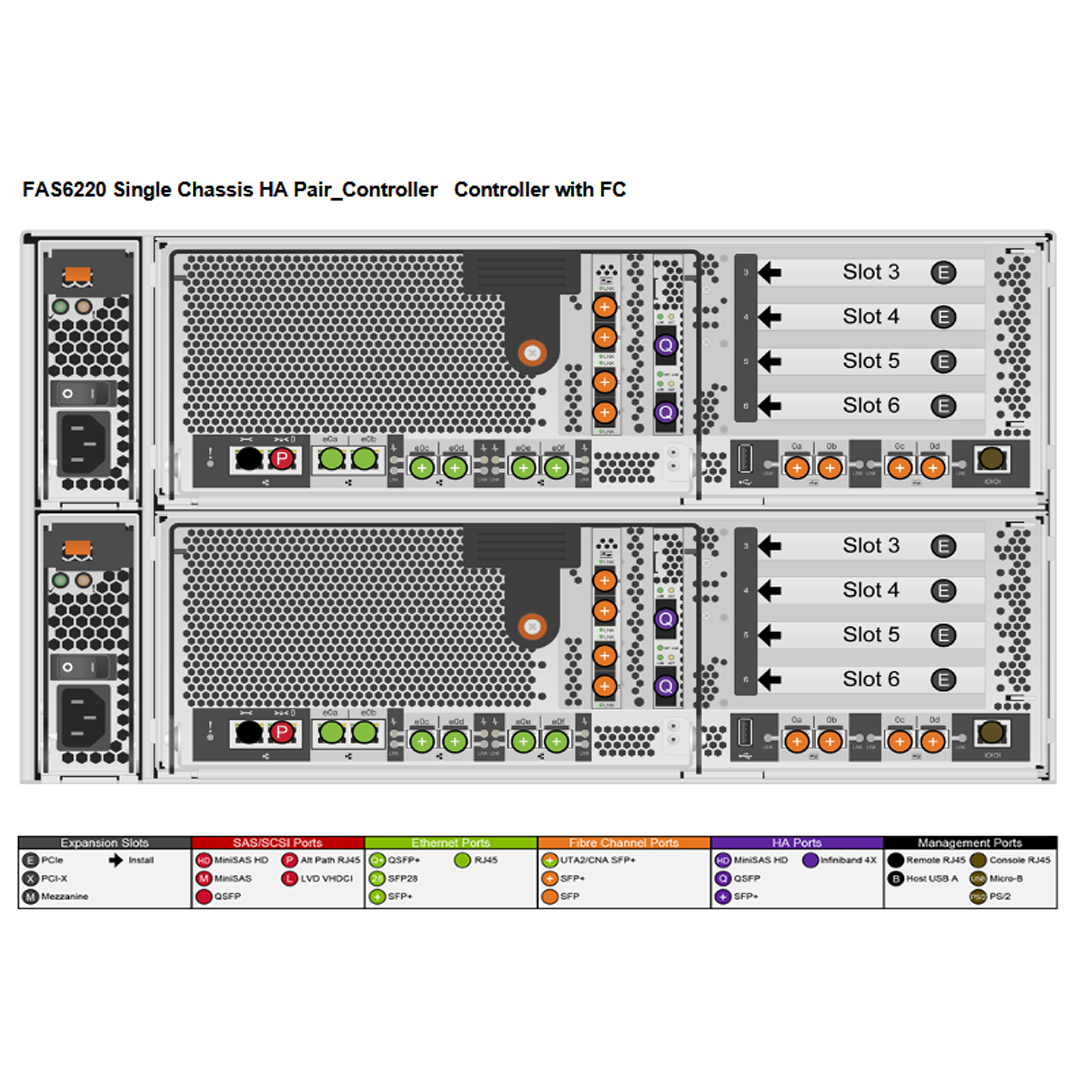

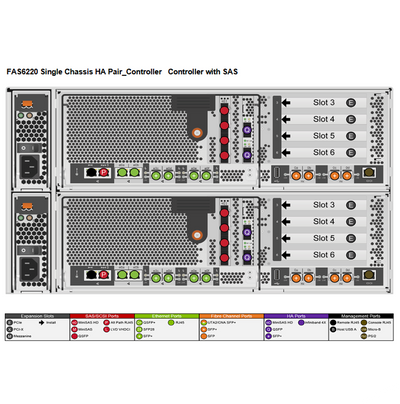

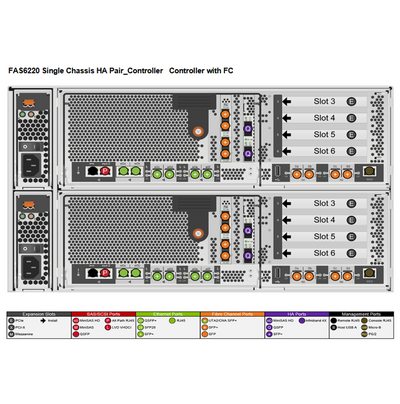

    • Ethernet Ports: 4 x RJ45 (1Gb) + 8 x SFP (10Gb)
    • Fibre Channel Ports: 8 x SFP (8Gb)
    • PCIe Expansion Slots: 10 x PCIe
    • Max Drives (total): 1200
    • Max Capacity: 9,600TB (9.6PB)
    • Disk Shelves: DS14-Mk2-AT, DS14-Mk4-FC, DS2246, DS4243, DS4246, DS4486
    • Filer Heads: N/A
    Dimensions & Weight
    • Chassis Rack Height: 6U
    • Chassis Heights: 10.18" (25.86 cm)
    • Chassis Width w/o Mounting Flanges: 17.59" (44.68 cm)
    • Chassis Depth w/ Cable Mgmt: 29" (73.66 cm)
    • Chassis Weight: up to 128.5 lb (58.3 kg)
    Controller Specs
    • Max Controllers: 2 (Per Chassis)
    • PCI Slot (per): 5 x PCIe
    • Ethernet Ports (per): 2 x RJ45 (1Gb) + 4 x SFP (10Gb)
    • Fibre Channel Ports (per): 4 x SFP (4Gb)
    • UTA2 Ports (per): N/A
    • SAS Ports (per): N/A
    • Remote Management: Yes
    • Processor Model (per): 2x 64-bit 4-core 2.26 Ghz
    • Memory (Single/HA): 48GB/96GB
    • NVRAM (Single/HA): 4GB/8GB
    Storage
    • Max Number of Internal Drives: 0
    • Max Number Drives (total): 1200
    • Max Capacity: 9,600TB (9.6PB)
    • Max # of FC Drives: 1008
    • Max # of MSATA Drives: 1008
    • Max # of SATA Drives: 1008
    • Max # of NL-SAS Drives: 1008
    • Max # of SAS Drives: 1008
    • Max # of SSD Drives: 240
    • Drive Interface: FC, MSATA, SATA, NL-SAS, SAS, SSD
    • RAID: RAID 4, RAID 6 (RAID-DP)
    • Max # of DS14-Mk2-AT Shelves: 72 external
    • Max # of DS14-Mk4-FC Shelves: 72 external
    • Max # of DS2246 Shelves: 50 external
    • Max # of DS4243 Shelves: 50 external
    • Max # of DS4246 Shelves: 50 external
    • Max # of DS4448 Shelves: 25 external

    FAS6220 Parts Lists

    Ask about our NetApp Disk Shelves!
    We can create custom Turn-Key configurations based on your needs!
    Click here to view NetApp Disk Shelves
