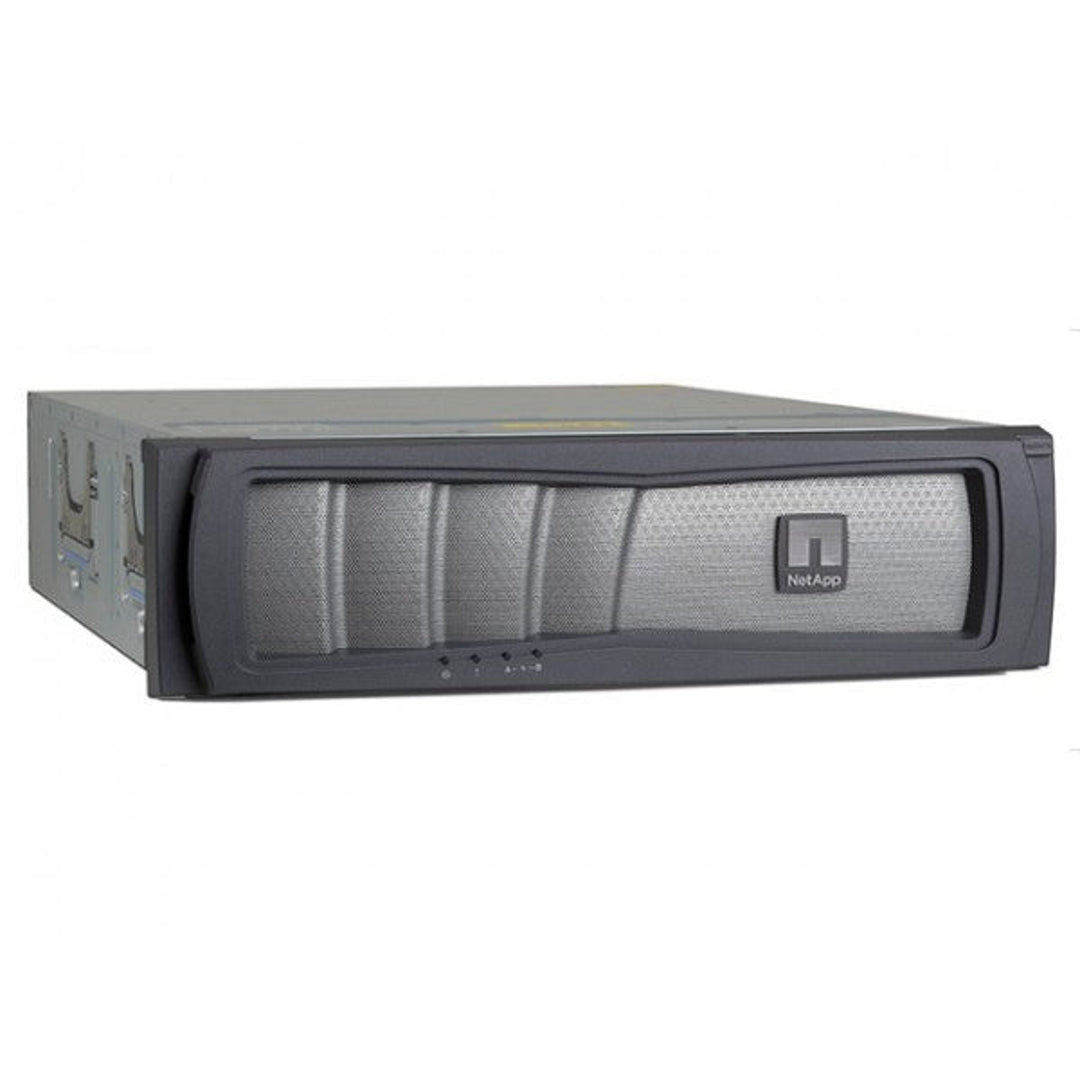

    NetApp FAS3220 Single Controller Filer Head (Stand Alone)


    Price: Request a Quote

    Brand:
    MPN:
    FAS3220
    Type:
    Filer Head
    Condition:
    ECS Refurbished & Tested

    Request Quote

    Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


    -PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
    -SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

    NetApp FAS3220 Single Controller Filer Head (Stand Alone)

    The NetApp FAS3220 is a robust 3U storage system designed for mid-sized enterprises seeking high availability and scalability. Its dual-controller configuration provides up to 24GB of shared memory, delivering dependable performance for diverse workloads while ensuring continuous data access.

    Each controller houses a 64-bit 2.33GHz quad-core processor and supports an array of connectivity options, including 1GbE, 4Gb FC, and 6Gb SAS ports. With RAID 4, RAID-DP, and RAID-TEC protection schemes, the FAS3220 safeguards critical data and allows for future growth through four PCIe expansion slots.

    The system scales to accommodate up to 672 drives, reaching capacities of 7.68PB. Compatible with multiple NetApp disk shelves (DS212C, DS224x, DS424x, DS4486, DS460C), it can flexibly mix drive types—MSATA, NL-SAS, SAS, SATA, and SSD—offering a versatile solution for evolving performance and capacity needs.


    System Config
    • Model: NetApp FAS3220
    • Chassis: Single Chassis
    • Total Rack Height: 3U
    • Controllers: Single Controller (Stand Alone)
    • Memory (HA): 12GB
    • Ethernet Ports: 2 x RJ45 (1Gb)
    • Fibre Channel Ports: 2 x SFP (4Gb)
    • SAS Ports: 2 x QSFP (6Gb)
    • PCIe Expansion Slots: 2 x PCIe
    • Max Drives (total): 672
    • Max Capacity: 7,680TB (7.68PB)
    • Disk Shelves: DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, DS460C
    • Filer Heads: N/A
    Dimensions & Weight
    • Chassis Rack Height: 3U
    • Chassis Heights: 5.12" (13 cm)
    • Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
    • Chassis Depth w/ Cable Mgmt: 23.9" (60.7 cm)
    • Chassis Weight: up to 79.4 lb (36.0 kg)

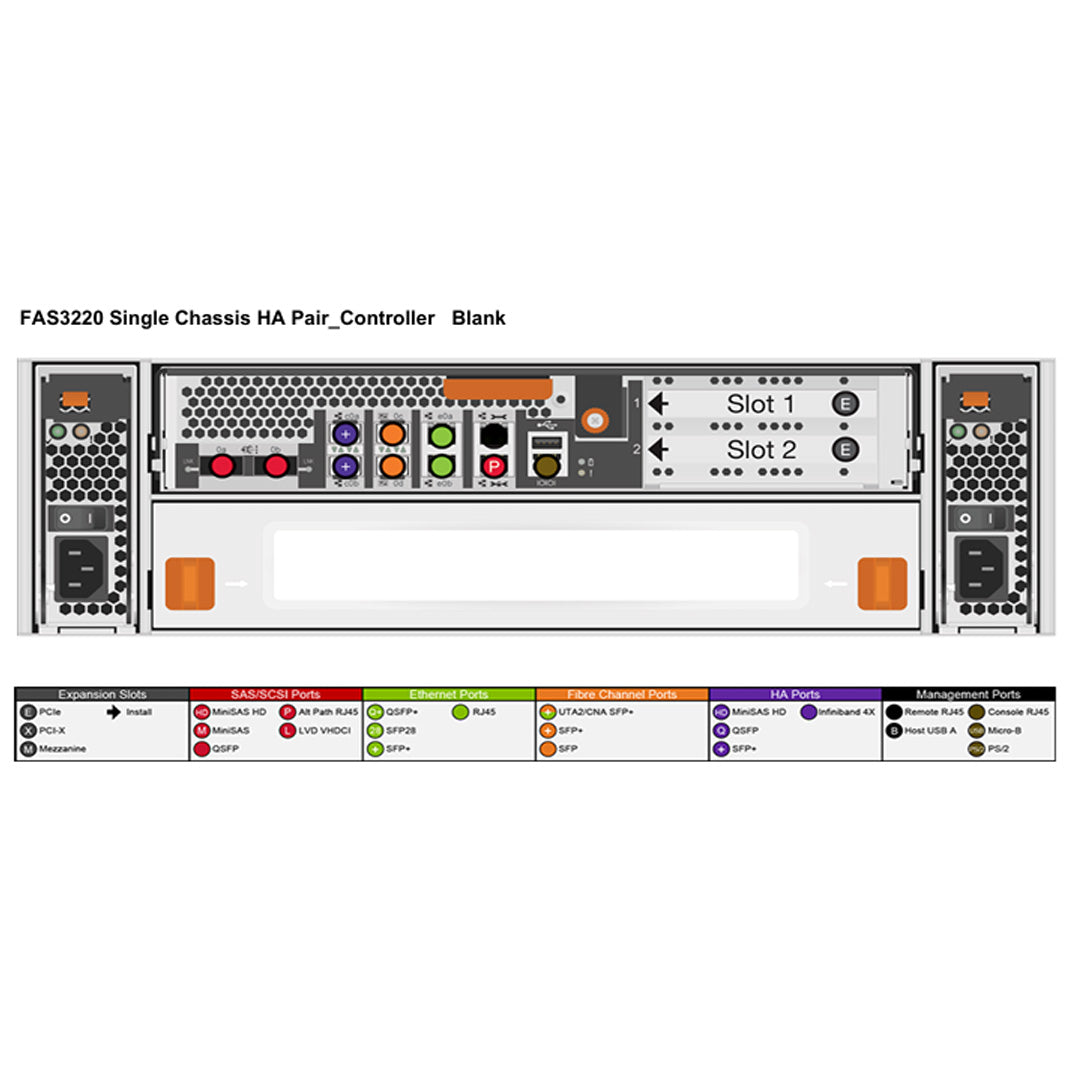

    Controller Specs
    • Max Controllers: 2 (Per Chassis)
    • PCI Slot (per): 2 x PCIe
    • Ethernet Ports (per): 2 x RJ45 (1Gb)
    • Fibre Channel Ports (per): 2 x SFP (4Gb)
    • UTA2 Ports (per): N/A
    • SAS Ports (per): 2 x QSFP (6Gb)
    • Remote Management: Yes
    • Processor Model (per):1x 64-bit 4-core 2.33 Ghz
    • Memory (Single/HA): 12GB/24GB
    • NVRAM (Single/HA): 1GB/3GB
    Storage
    • Max Number of Internal Drives: 0
    • Max Number Drives (total): 480
    • Max Capacity: 2,016TB (2PB)
    • Max Number of MSATA Drives: 480
    • Max Number of NL-SAS Drives: 480
    • Max Number of SAS Drives: 480
    • Max Number of SATA Drives: 480
    • Max Number of SSD Drives: 240
    • Drive Interface: MSATA, NL-SAS, SAS, SATA, SSD
    • RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
    • Max # of DS212C Shelves: 20 external
    • Max # of DS2246 Shelves: 20 external
    • Max # of DS224C Shelves: 20 external
    • Max # of DS4243 Shelves: 20 external
    • Max # of DS4246 Shelves: 20 external
    • Max # of DS4486 Shelves: 10 external
    • Max # of DS460C Shelves: 8 external

    FAS3220 Parts Lists

    Ask about our NetApp Disk Shelves!
    We can create custom Turn-Key configurations based on your needs!
    Click here to view NetApp Disk Shelves

    This Product Is Compatible With The Following Systems:
