Dell PERC 11 HBA355e LP Non-RAID Controller | 6CDMK

Name: Dell PERC 11 HBA355e LP Non-RAID Controller | 6CDMK
Brand: Dell
SKU: 6CDMK
Availability: OutOfStock

Dell

| Adapter

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Models: PCIe Host Bus Adapter
Drive Types: 12 Gb/s SAS, 6 Gb/s SAS/SATA, 3Gb/s SAS/SATA
PCI Support: PCI-e 4.0
SAS Connectors: 16 Port 4x4 External
Cache Memory: N/A
Write Back Cache: N/A
Boot Support: No
Max Drive Support: 240
RAID Support: N/A

Part Number:

6CDMK

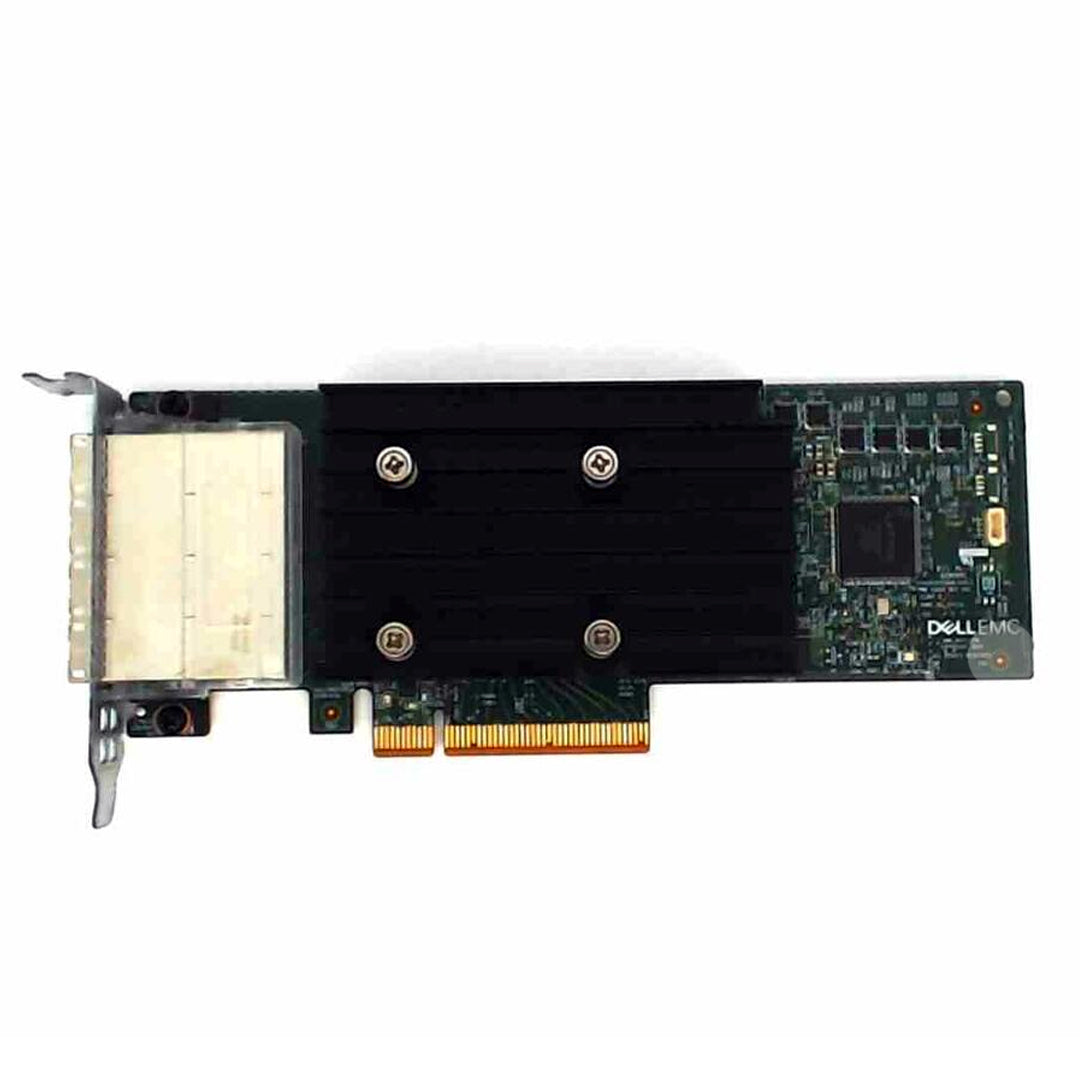

The Dell PERC 11 HBA355e x8 PCI-e Low Profile Non-RAID Controller delivers high-speed connectivity for external SAS/SATA storage devices. Built on PCI-e 4.0 architecture, it supports up to 240 drives through a 16-port 4x4 external configuration, making it ideal for expansive, direct-attached storage setups.

Designed for non-RAID environments, the HBA355e provides reliable performance without the complexity of RAID management. Its low-profile form factor ensures compatibility with a wide range of server chassis, offering maximum throughput for enterprise storage infrastructures that require scalable external drive support.

Compatible With:

Dell C6600
Dell C6620
Dell R250
Dell R340
Dell R350
Dell R440
Dell R450
Dell R540
Dell R550
Dell R650
Dell R650xs
Dell R6515
Dell R6525
Dell R740xd
Dell R750
Dell R750xa
Dell R750xs
Dell R7515
Dell R7525
Dell R940xa
Dell XR5610

(Click to View)

Spec Sheet 4

Model & Form Factors	Interface Support	PCI Support	SAS Connectors	Cache Memory	Write Back Cache	RAID Levels	Max Drive Support	RAID Support
H755N Front (NVMe Only)	Gen3 (8 GT/s) NVMe Gen4 (16 GT/s) NVMe	PCIe Gen 4	2x8 Internal	8GB NV	Flash Backed Cache	0,1,5,6,10,50,60	8/per controller	Hardware
H755 Adapter FH	3 Gbps SATA 6 Gbps SATA/SAS 12 Gbps SATA/SAS Gen3 (8 GT/s) NVMe Gen4 (16 GT/s) NVMe	PCIe Gen 4	2x8 Internal	8GB NV	Flash Backed Cache	0, 1, 5, 6, 10, 50,60	16/controller 50 with SAS Expander *Platform limit	Hardware RAID
H755 Adapter LP		PCIe Gen 4	2x8 Internal	8GB NV	Flash Backed Cache	0, 1, 5, 6, 10, 50,60	16/controller 50 with SAS Expander *Platform limit	Hardware RAID
H755 Front (SAS/SATA Only)	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA	PCIe Gen 4	2x8 Internal	8GB NV	Flash Backed Cache	0,1,5,6,10,50,60	16/controller 50 with SAS Expander *Platform limit	Hardware RAID
H755 MX	3 Gbps SATA 6 Gbps SATA/SAS 12 Gbps SATA/SAS Gen3 (8 GT/s) NVMe Gen4 (16 GT/s) NVMe	PCIe Gen 4	1x8 Internal	8GB NV DDR4 2666MT/s	Flash Backed Cache	0, 1, 5, 6, 10, 50,60	8, Limited by platform	N/A
H750 Adapter FH	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA *SAS/SATA ONLY	PCIe Gen 4	1x8 Internal	8GB NV	Flash Backed Cache	0,1,5,6,10,50,60	8/controller 50 with SAS Expander *Platform limit	Hardware RAID
H750 Adapter LP	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA *SAS/SATA ONLY	PCIe Gen 4	1x8 Internal	8GB NV	Flash Backed Cache	0,1,5,6,10,50,60	8/controller 50 with SAS Expander *Platform limit	Hardware RAID
H355i Adapter FH	12Gb/s SAS 6Gb/s SATA	PCIe Gen 4	2x8 Internal	No Cache	No Cache	0,1,10	Up To 32 RAID or 32 Non-RAID	Hardware
H355i Adapter LP	12Gb/s SAS 6Gb/s SATA	PCIe Gen 4	2x8 Internal	No Cache	No Cache	0,1,10	Up To 32 RAID or 32 Non-RAID	Hardware
H355 Front	12Gb/s SAS 6Gb/s SATA	PCIe Gen 4	2x8 Internal	No Cache	No Cache	0,1,10	Up To 32 RAID >or 32 Non-RAID	Hardware
HBA355 Front (internal)	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA	PCIe Gen 4	2x8 Internal	N/A	N/A	N/A	16/controller 50 with SAS Expander *Platform limit	N/A
HBA355i Adapter FH	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA	PCIe Gen 4	2x8 Internal	N/A	N/A	N/A	16/controller 50 with SAS Expander *Platform limit	N/A
HBA355i Adapter LP	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA	PCIe Gen 4	2x8 Internal	N/A	N/A	N/A	16/controller 50 with SAS Expander *Platform limit	N/A
HBA355e Adapter FH	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA	PCIe Gen 4	4x4 External	N/A	N/A	N/A	240	N/A
HBA355e Adapter LP	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA	PCIe Gen 4	4x4 External	N/A	N/A	N/A	240	N/A
H350 Adapter FH	12Gb/s SAS 6Gb/s SATA	PCIe Gen 4	1x8 Internal	No Cache	No Cache	0,1,10	Up To 32 RAID or 32 Non-RAID	Hardware
H350 Adapter LP	12Gb/s SAS 6Gb/s SATA	PCIe Gen 4	1x8 Internal	No Cache	No Cache	0,1,10	Up To 32 RAID or 32 Non-RAID	Hardware
H350 Mini Mono	12Gb/s SAS 6Gb/s SATA	PCIe Gen 4	2x4 Internal	N/A	N/A	0, 1, 10	Without SAS Expander: 8 drives per controller With SAS Expander: Limited by platform offering	N/A
HBA350i Adapter (internal)	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA	PCIe Gen 4	2x8 Internal	N/A	N/A	N/A	16/controller 50 with SAS Expander *Platform limit	N/A
HBA350 MX (internal)	12Gb/s SAS 6Gb/s SAS/SATA 3Gb/s SAS/SATA	PCIe Gen 4	1x8 Internal	N/A	N/A	N/A	8 *Platform limit	N/A
