SKU: FAS6290

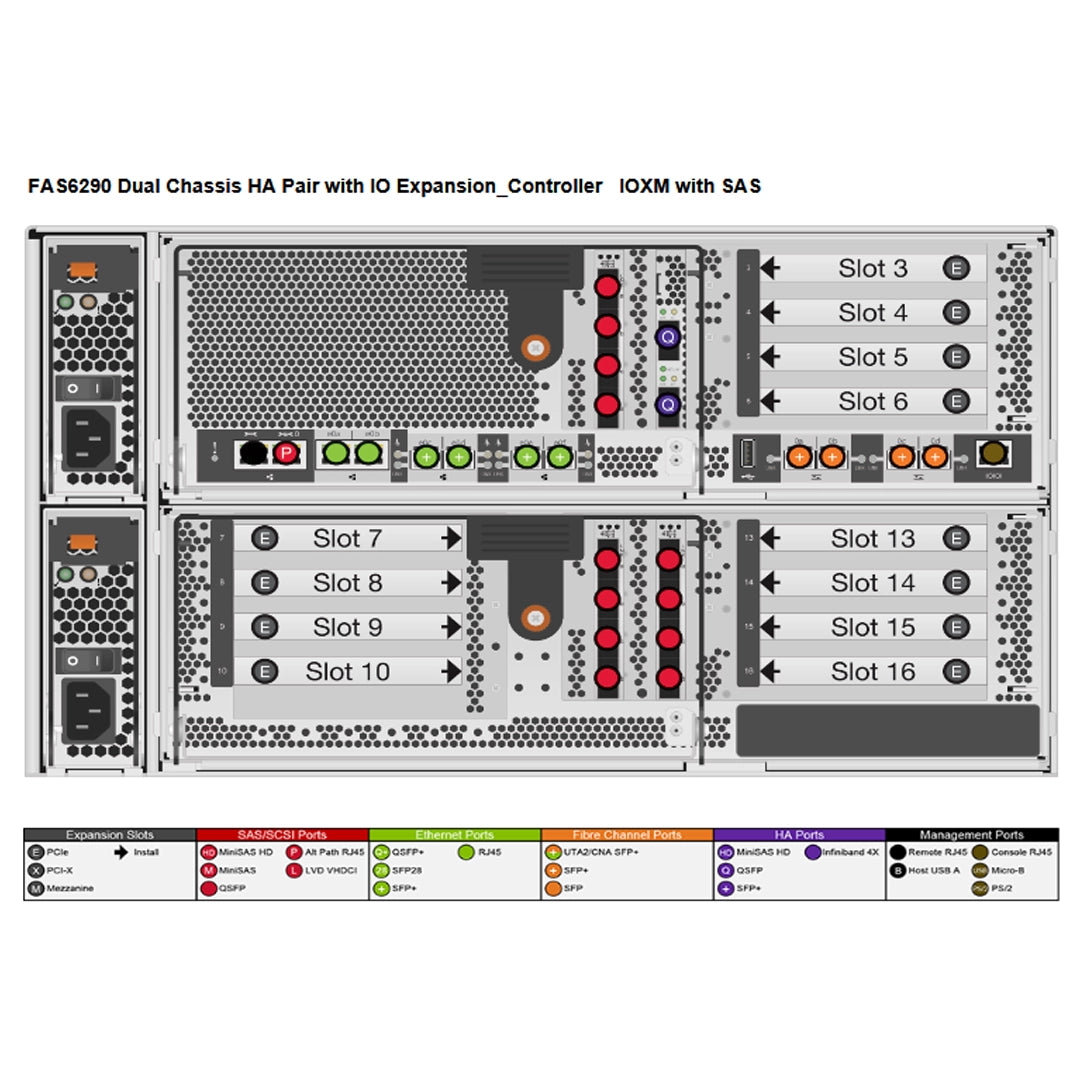

NetApp FAS6290 Single Controller Filer Head /w IOXM (Stand Alone)
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
System Config
- Model: NetApp FAS6290
- Chassis: Single Chassis
- Total Rack Height: 6U
- Controllers: Single Controller (Stand Alone) w/ IOXM
- Memory (HA): 96GB
- Processor Model: 2x 64-bit 6-core 2.93 Ghz
- Ethernet Ports: 2 x RJ45 (1Gb) + 4 x SFP (10Gb)
- Fibre Channel Ports: 4 x SFP (8Gb)
- PCIe Expansion Slots: 15 x PCIe
- Max Drives (total): 1440
- Max Capacity: 15,000TB (15PB)
- Disk Shelves: DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, DS460C
- Filer Heads: N/A
- Chassis Rack Height: 6U
- Chassis Heights: 10.18" (25.86 cm)
- Chassis Width w/o Mounting Flanges: 17.59" (44.68 cm)
- Chassis Depth w/ Cable Mgmt: 29" (73.66 cm)
- Chassis Weight: up to 125.4 lb (56.9 kg)
Controller Specs
- Max Controllers: 2 (Per Chassis)
- PCI Slot (per): 15 x PCIe
- Ethernet Ports (per): 2 x RJ45 (1Gb) + 4 x SFP (10Gb)
- Fibre Channel Ports (per): 4 x SFP (4Gb)
- UTA2 Ports (per): N/A
- SAS Ports (per): N/A
- Remote Management: Yes
- Processor Model (per): 2x 64-bit 6-core 2.93 Ghz
- Memory (Single/HA): 96GB/192GB
- NVRAM (Single/HA): 4GB/8GB
- Max Number of Internal Drives: 0
- Max Number Drives (total): 1440
- Max Capacity: 15,000TB (15PB)
- Max # of MSATA Drives: 1440
- Max # of SATA Drives: 1440
- Max # of NL-SAS Drives: 1440
- Max # of SAS Drives: 1440
- Max # of SSD Drives: 240
- Drive Interface: MSATA, SATA, NL-SAS, SAS, SSD
- RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
- Max # of DS212C Shelves: 60 external
- Max # of DS2246 Shelves: 60 external
- Max # of DS224C Shelves: 60 external
- Max # of DS4243 Shelves: 60 external
- Max # of DS4246 Shelves: 60 external
- Max # of DS4448 Shelves: 30 external
- Max # of DS460C Shelves: 24 external
FAS6290 Parts Lists
View Adapters
View Transceiver(s
View Data Cables
View Power Cables
View Rail KitsAsk about our NetApp Disk Shelves!
We can create custom Turn-Key configurations based on your needs!
Click here to view NetApp Disk Shelves
Compatible With:
- NetApp FAS6290
(Click to View)
