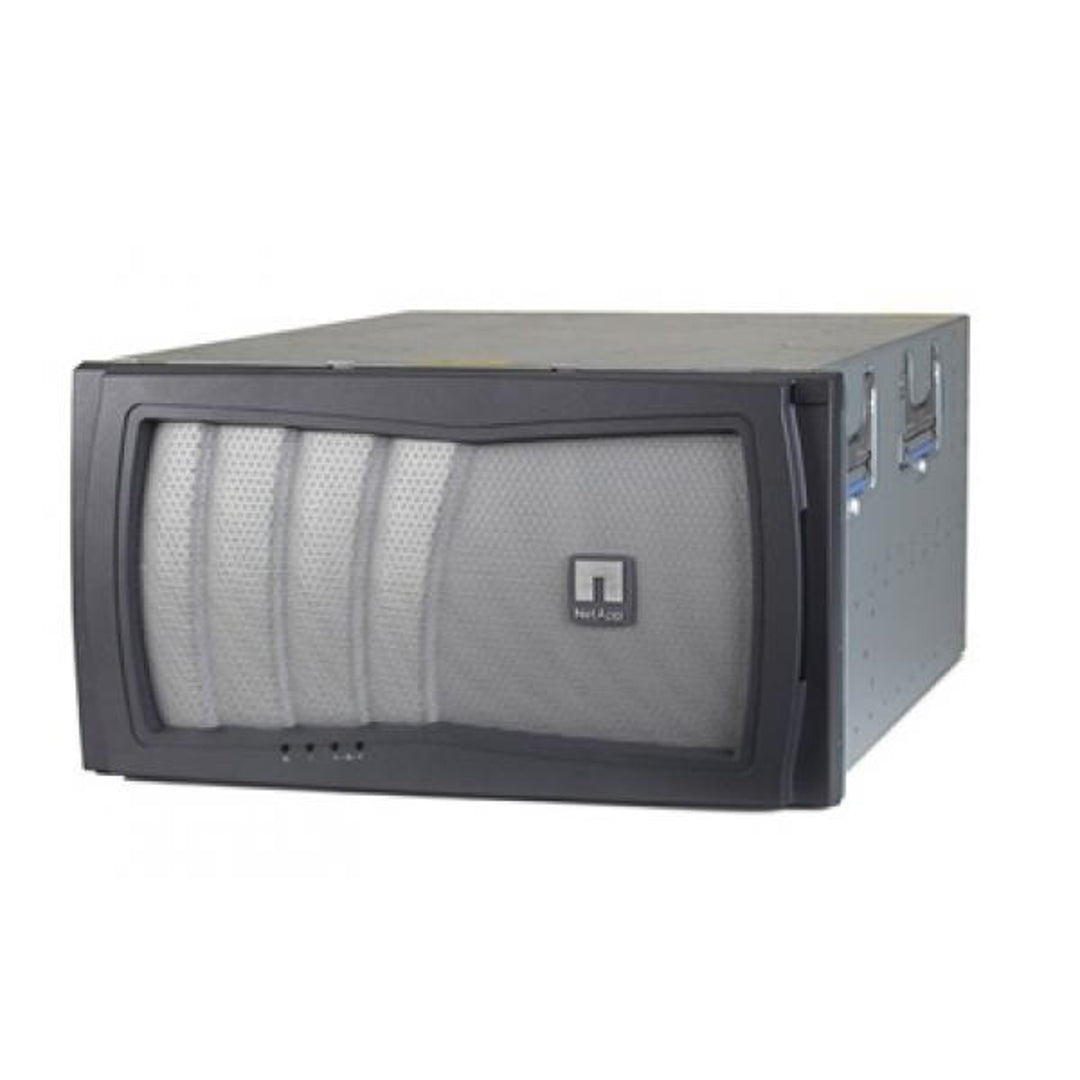

NetApp FAS6280 Single Controller Filer Head /w IOXM (Stand Alone)

Quick Specs

The NetApp FAS6280 is a high-capacity enterprise storage system designed for scalability and reliability. Featuring a single-chassis configuration with a total rack height of 6U, it operates with a high-availability (HA) single-controller setup with IOXM for enhanced performance. Powered by two 64-bit 6-core 2.93 GHz processors and 96GB of HA memory, the system delivers robust data processing capabilities. It includes 2x 1Gb RJ45 and 4x 10Gb SFP Ethernet ports, along with 4x 8Gb Fibre Channel ports for high-speed connectivity.

Supporting up to 1440 drives with a maximum storage capacity of 14.99PB, the FAS6280 provides flexible storage options, accommodating MSATA, SATA, NL-SAS, SAS, and SSD drives. It supports RAID 4, RAID 6 (RAID-DP), and RAID-TEC for enhanced data protection and redundancy. The system includes 15 PCIe expansion slots, ensuring seamless scalability and integration with additional hardware as storage demands grow.

The chassis is designed for efficient deployment, measuring 10.18 inches in height, 17.59 inches in width, and 29 inches in depth with cable management, with a maximum weight of 125.4 lbs. It supports multiple disk shelf models, including DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, and DS460C. Equipped with remote management capabilities and a highly scalable architecture, the NetApp FAS6280 delivers enterprise-grade performance, making it an ideal choice for businesses requiring flexible and powerful storage solutions.

System Config

• Model: NetApp FAS6280
• Chassis: Single Chassis
• Total Rack Height: 6U
• Controllers: Single Controller (HA) w/ IOXM
• Memory (HA): 96GB
• Processor Model: 2x 64-bit 6-core 2.93 Ghz
• Ethernet Ports: 2 x RJ45 (1Gb) + 4 x SFP (10Gb)
• Fibre Channel Ports: 4 x SFP (8Gb)
• PCIe Expansion Slots: 15 x PCIe
• Max Drives (total): 1440
• Max Capacity: 14,992TB (14.99PB)
• Disk Shelves: DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, DS460C
• Filer Heads: N/A

Dimensions & Weight

• Chassis Rack Height: 6U
• Chassis Heights: 10.18" (25.86 cm)
• Chassis Width w/o Mounting Flanges: 17.59" (44.68 cm)
• Chassis Depth w/ Cable Mgmt: 29" (73.66 cm)
• Chassis Weight: up to 125.4 lb (56.9 kg)

---

Controller Specs

• Max Controllers: 2 (Per Chassis)
• PCI Slot (per): 15 x PCIe
• Ethernet Ports (per): 2 x RJ45 (1Gb) + 4 x SFP (10Gb)
• Fibre Channel Ports (per): 4 x SFP (4Gb)
• UTA2 Ports (per): N/A
• SAS Ports (per): N/A
• Remote Management: Yes
• Processor Model (per): 2x 64-bit 6-core 2.93 Ghz
• Memory (Single/HA): 96GB/192GB
• NVRAM (Single/HA): 4GB/8GB

Storage

• Max Number of Internal Drives: 0
• Max Number Drives (total): 1440
• Max Capacity: 14,992TB (14.99PB)
• Max # of MSATA Drives: 1440
• Max # of SATA Drives: 1440
• Max # of NL-SAS Drives: 1440
• Max # of SAS Drives: 1440
• Max # of SSD Drives: 240
• Drive Interface: MSATA, SATA, NL-SAS, SAS, SSD
• RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
• Max # of DS212C Shelves: 60 external
• Max # of DS2246 Shelves: 60 external
• Max # of DS224C Shelves: 60 external
• Max # of DS4243 Shelves: 60 external
• Max # of DS4246 Shelves: 60 external
• Max # of DS4448 Shelves: 30 external
• Max # of DS460C Shelves: 24 external

---
