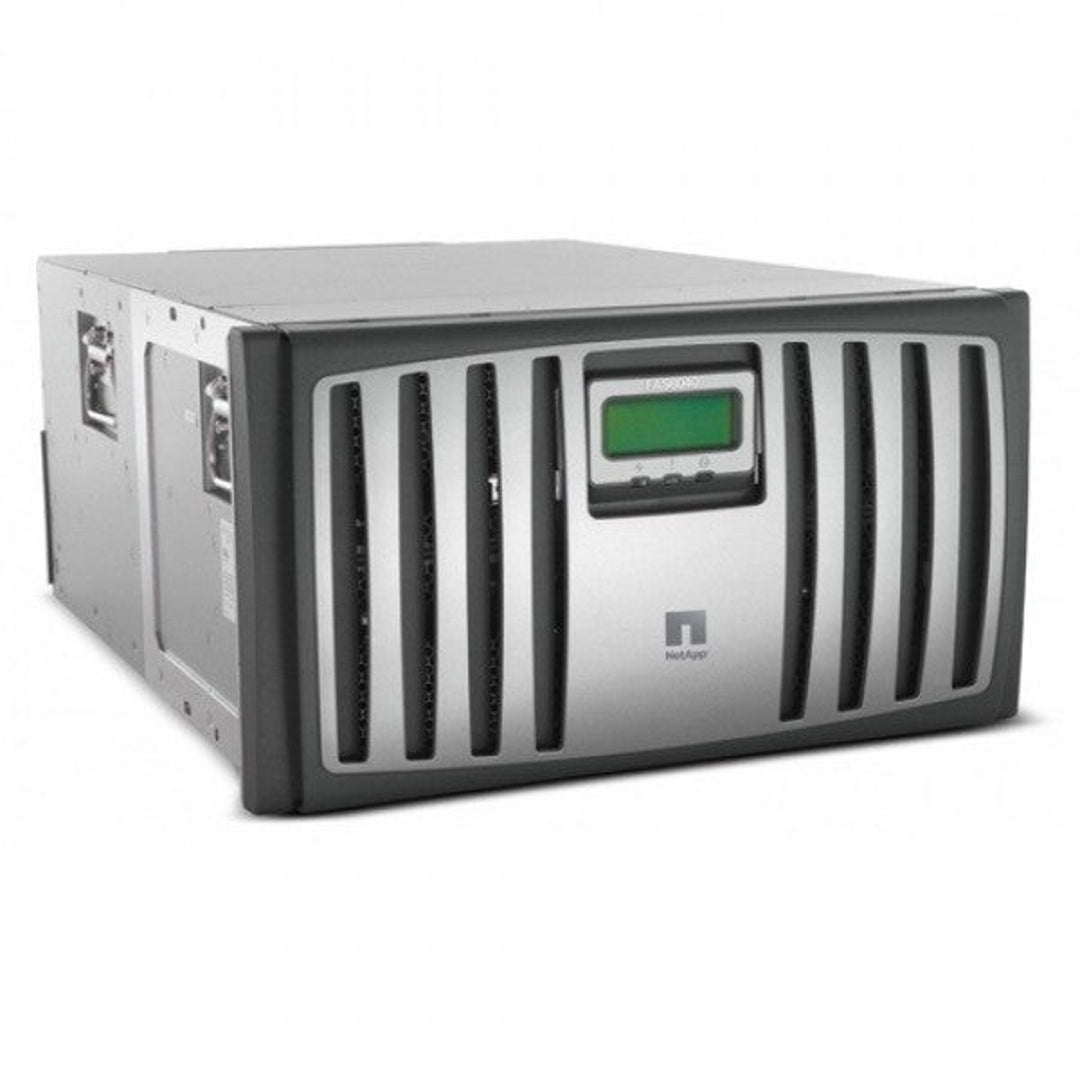

NetApp FAS6030 Single Controller Filer Head (Stand Alone)
Thanks for the request. We'll get back to you with in 24 hours.
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
The NetApp FAS6030 is a 6U, single-chassis storage system designed for mid-tier enterprise environments. Featuring a single controller with dual 64-bit, 2.80GHz processors, it delivers reliable performance for critical workloads. Its architecture supports up to 16GB of system memory and RAID 4 or RAID-DP, providing a dependable framework for data protection.

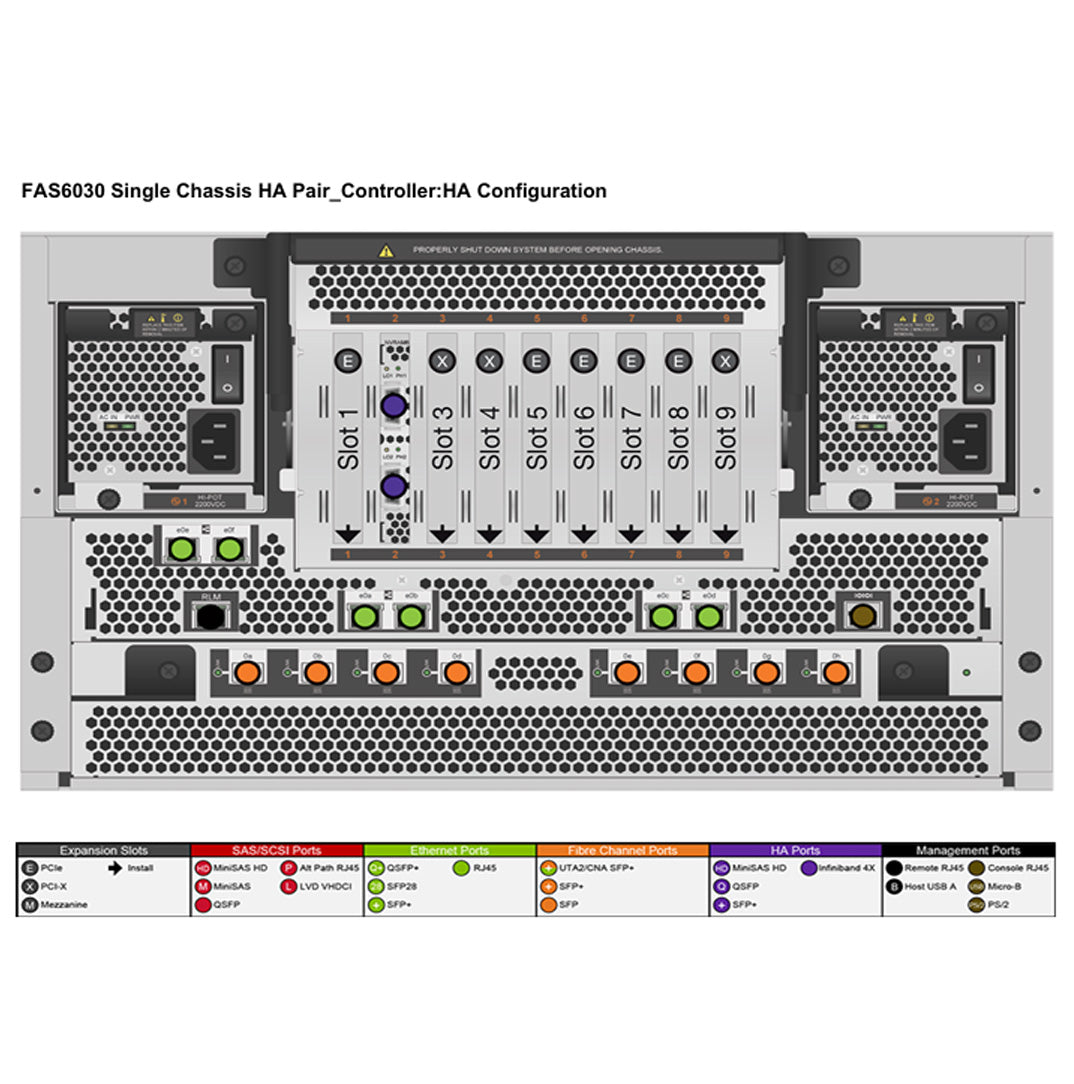

Connectivity options include six 1Gb Ethernet ports and eight Fibre Channel ports, making it adaptable to diverse network infrastructures. With a mix of PCI-X and PCIe expansion slots (three PCI-X + five PCIe), administrators have the flexibility to add additional network or storage interfaces as needed. Remote management capabilities simplify setup, monitoring, and maintenance.
Supporting up to 840 drives and a maximum raw capacity of 3.36PB, the FAS6030 scales to accommodate expanding data demands. It works seamlessly with various NetApp disk shelves—DS14 series, DS2246, DS424x, and DS4486—offering a range of drive interfaces (FC, MSATA, NL-SAS, SAS, SATA, SSD) for tailored performance and capacity. This combination of expandability and reliability makes the FAS6030 a solid choice for organizations seeking a single-controller storage solution.
- Model: NetApp FAS6030
- Chassis: Single Chassis
- Total Rack Height: 6U
- Controllers: Single Controller (Stand Alone)
- Memory (HA): 16GB
- Processor Model: 2x 64-bit 1-core 2.80 Ghz
- Ethernet Ports: 6 x RJ45 (1Gb)
- Fibre Channel Ports: 8 x SFP (2Gb)
- PCIe Expansion Slots: 3 x PCI-X + 5 x PCIe
- Max Drives (total): 840
- Max Capacity: 3,360TB (3.36PB)
- Disk Shelves: DS14-Mk2-AT, DS14-Mk2-FC, DS14-Mk4-FC, DS2246, DS4243, DS4246, DS4486
- Filer Heads: N/A
- Chassis Rack Height: 6U
- Chassis Heights: 10.32" (26.21 cm)
- Chassis Width w/o Mounting Flanges: 17.53" (44.52 cm)
- Chassis Depth w/ Cable Mgmt: 29" (73.66 cm)
- Chassis Weight: up to 121.9 lb (55.3 kg)
Controller Specs
- Max Controllers: 1 (Per Chassis)
- PCI Slot (per): 3 x PCI-X + 5 x PCIe
- Ethernet Ports (per): 6 x RJ45 (1Gb)
- Fibre Channel Ports (per): 8 x SFP (4Gb)
- UTA2 Ports (per): N/A
- SAS Ports (per): N/A
- Remote Management: Yes
- Processor Model (per): 2x 64-bit 1-core 2.80 Ghz
- Memory (Single/HA): 16GB/32GB
- NVRAM (Single/HA): 0GB/1GB
- Max Number of Internal Drives: 0
- Max Number Drives (total): 840
- Max Capacity: 3,360TB (3.36PB)
- Max Number of FC Drives: 840
- Max Number of MSATA Drives: 840
- Max Number of NL-SAS Drives: 840
- Max Number of SAS Drives: 840
- Max Number of SATA Drives: 840
- Max Number of SSD Drives: 240
- Drive Interface: FC, MSATA, NL-SAS, SAS, SATA, SSD
- RAID: RAID 4, RAID 6 (RAID-DP)
- Max # of DS14-Mk2-AT Shelves: 60 external
- Max # of DS14-Mk2-FC Shelves: 60 external
- Max # of DS14-Mk4-FC Shelves: 60 external
- Max # of DS2246 Shelves: 35 external
- Max # of DS4243 Shelves: 35 external
- Max # of DS4246 Shelves: 35 external
- Max # of DS4486 Shelves: 18 external
