Dell EMC PowerSwitch N3132PX-ON 32-Port PoE (ONIE) L3 Switch

• 32 Ports
• 24 RJ45 10/100/1000Mb auto-sensing PoE 60W ports
• 8 RJ45 10/100/1000/2500/5000Mb auto-sensing PoE 60W ports
• Four integrated 10GbE SFP+ ports

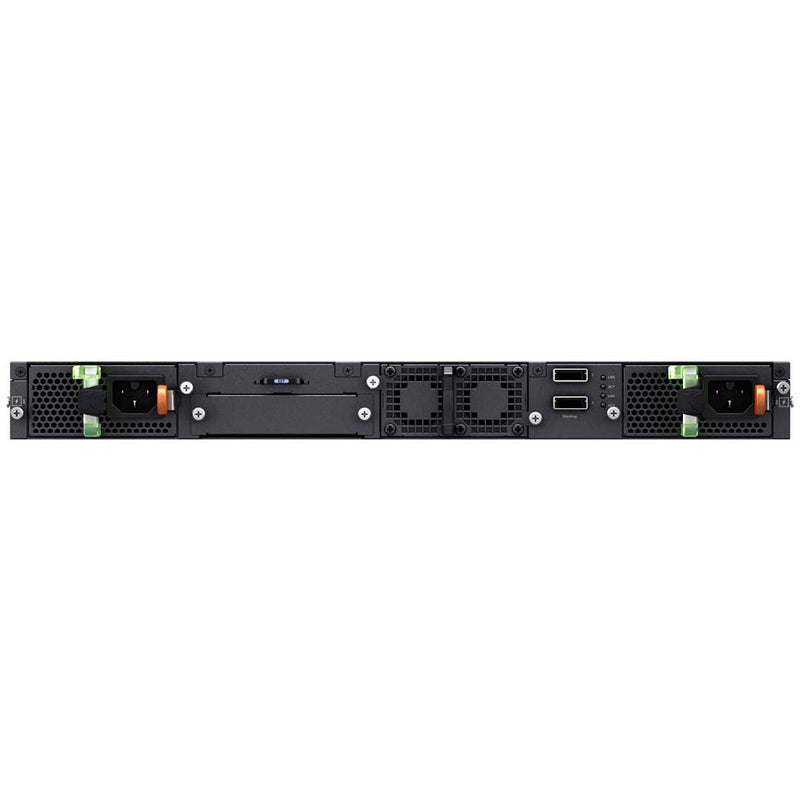

• One hot-swap expansion module bay, for two stacking ports or two QSFP+ 40GbE ports

  • Options:
  • 2-port 10 Gigabit BASE-T RJ-45 hot swappable uplink module
  • 2-port 10 Gigabit SFP+ hot swappable uplink module
  • 2-port 40 Gigabit QSFP+ hot swappable module (N3132PX-ON only)
  • Stacking module (N3132PX-ON only)
• 1x 1100W AC hot swappable with V-Lock,
  (Dual hot-swap power supply bays (optional power supply available))
  • Power Cord Options:
  • C15 to NEMA 5-15, 2M (C15 for POE N-Series only)

Performance

• MAC addresses: 32K
• CPU memory: 2GB for N3132PX-ON
• Comes with Auto-MDI/MDIX
• Static routes: 1,024 (IPv4)/1,024 (IPv6)
• Dynamic routes: 8,160 (IPv4)/4,096 (IPv6)
• Switch fabric capacity: 328Gbps
• Forwarding rate: 428Mpps
• Line-rate Layer 2 switching: All (non-blocking)
• Line-rate Layer 3 routing: All (non-blocking)
• Flash memory: 512MB
• Packet buffer memory: 5MB
• VLAN routing interfaces: 128
• VLANs supported: 4,094
• Max VLAN interfaces with ACLs applied: 24

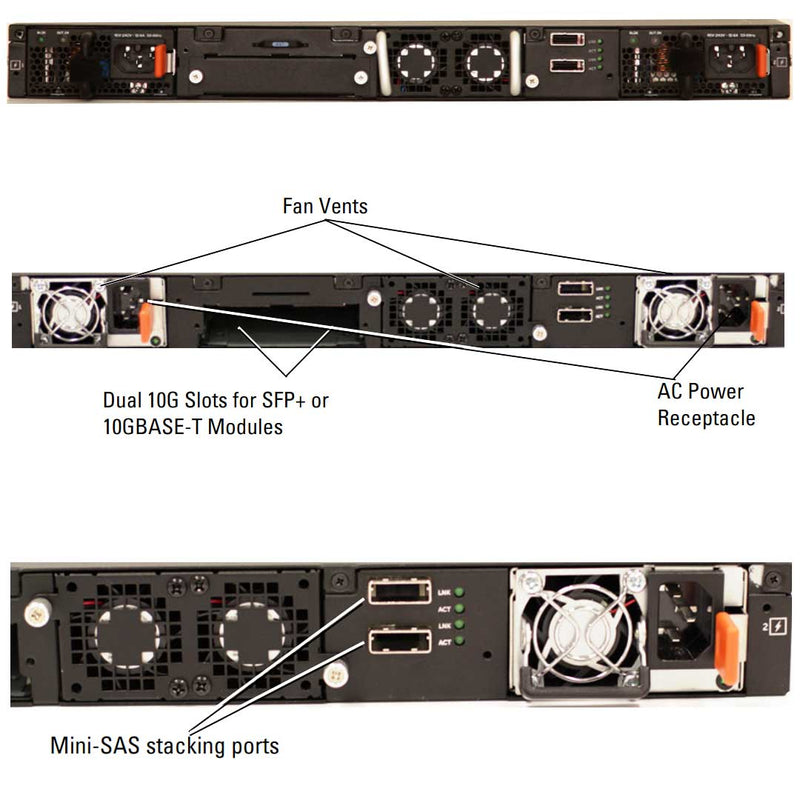

• 2 rear stacking ports (21Gbps) supporting up to 84Gbps (full duplex) (N3132PX-ON requires optional stacking module)
• Select N3000 switches now support the Open Network Install Environment (ONIE), enabling installation of alternate network operating systems.

Modernize network architectures

The N3132PX-ON also includes four integrated 10GbE SFP+ ports, which offer high-speed connectivity for servers and storage devices. The switch also features one hot-swap expansion module bay, which can be used to add two stacking ports or two QSFP+ 40GbE ports.

To further enhance the switch's capabilities, there are several optional modules available, including a 2-port 10 Gigabit BASE-T RJ-45 hot-swappable uplink module, a 2-port 10 Gigabit SFP+ hot-swappable uplink module, and a 2-port 40 Gigabit QSFP+ hot-swappable module (available only for the N3132PX-ON).

Power

The N3132PX-ON also includes one 1100W AC hot-swappable power supply with V-Lock, and there are dual hot-swappable power supply bays available for optional power supply redundancy. The switch comes with a C15 to NEMA 5-15, 2M power cord option (C15 for POE N-Series only).

Energy-efficient, cost-effective 1GbE switches for modernizing and scaling network infrastructure

The N3132PX-ON is a high-performance network switch designed for enterprise-level applications. With 32 ports, this switch provides a high level of connectivity, allowing for seamless data transmission across multiple devices.

The switch features 24 RJ45 10/100/1000Mb auto-sensing PoE 60W ports, which provide power and connectivity to PoE-enabled devices such as IP phones, wireless access points, and security cameras. Additionally, the switch also features 8 RJ45 10/100/1000/2500/5000Mb auto-sensing PoE 60W ports, which provide even higher speeds for devices that require faster connectivity.

For the N3132PX-ON switch ports 1-24 are 1G interfaces, ports 25-32 are Multi-Gig interfaces, ports 33-36 are 10G interfaces and ports 37-38 are 40G interfaces (when a QSFP or a Stacking module is inserted in the back of the switch).
