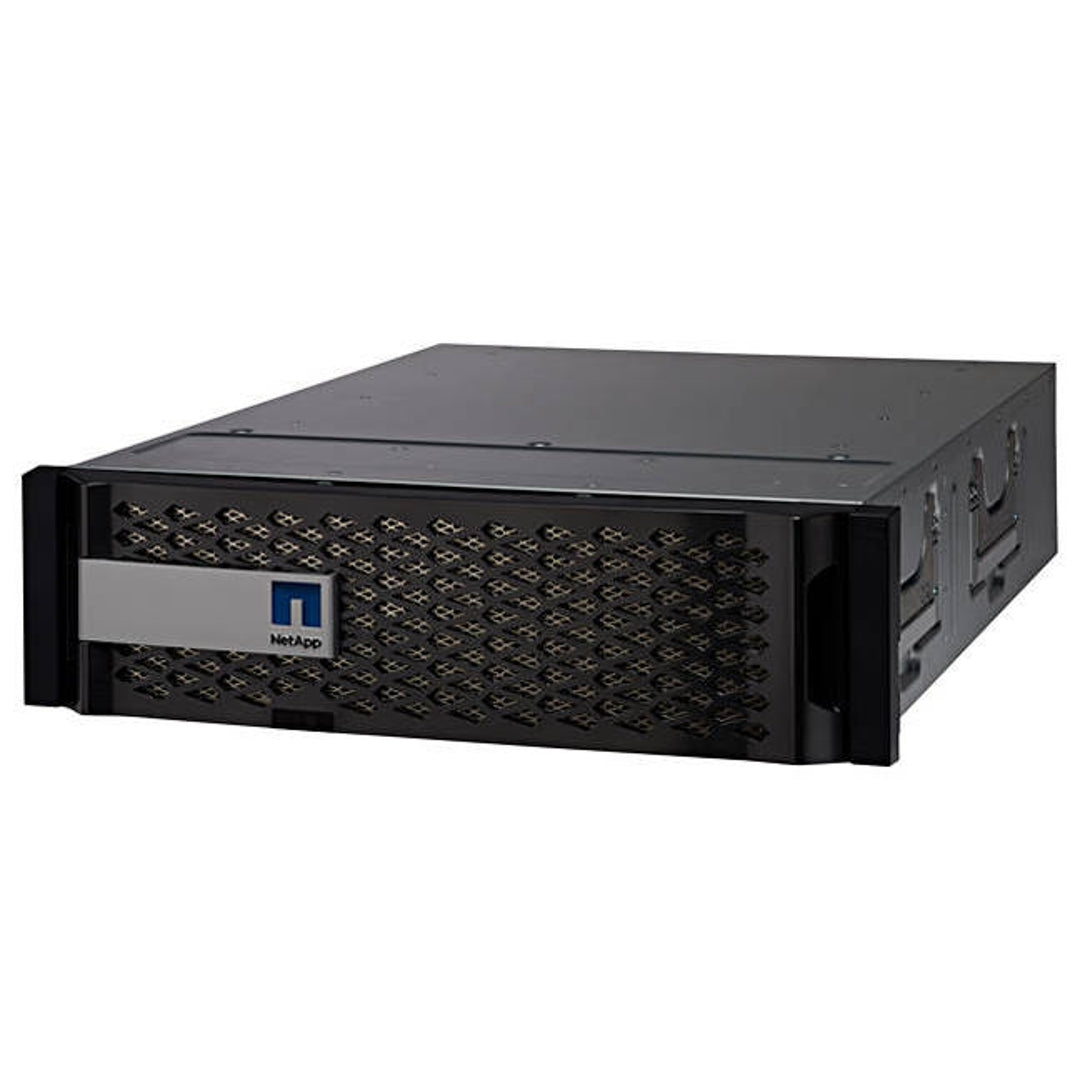

NetApp FAS8020 Single Controller Filer Head (Stand Alone)

Quick Specs

The NetApp FAS8020 is a compact enterprise storage solution designed for efficiency and scalability. Featuring a single-chassis configuration with a total rack height of 3U, it operates as a standalone single-controller system. Powered by a 64-bit 6-core 2.00 GHz processor and 24GB of memory, it delivers reliable performance for small to medium storage deployments. The system includes 2x 1Gb RJ45 and 2x 10Gb SFP Ethernet ports, along with 2x UTA2 (10Gb/16Gb SFP+) and 2x QSFP (6Gb SAS) ports for flexible connectivity options.

With support for up to 480 drives and a maximum storage capacity of 7.68PB, the FAS8020 provides a scalable storage infrastructure, accommodating MSATA, SATA, NL-SAS, SAS, and SSD drives. It supports RAID 4, RAID 6 (RAID-DP), and RAID-TEC for advanced data protection and fault tolerance. The system includes 2 PCIe expansion slots, allowing for additional connectivity and upgrade potential, making it an adaptable solution for enterprise environments with evolving storage needs.

The chassis is designed for easy data center integration, measuring 5.12 inches in height, 17.6 inches in width, and 26.5 inches in depth with cable management, with a maximum weight of 74.1 lbs. It supports multiple disk shelf models, including DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, and DS460C. With remote management capabilities and a space-efficient design, the NetApp FAS8020 offers a reliable and flexible storage solution for businesses requiring high performance in a compact form factor.

System Config

• Model: NetApp FAS8020
• Chassis: Single Chassis
• Total Rack Height: 3U
• Controllers: Single Controller (Stand Alone)
• Memory (HA): 24GB
• Processor Model: 1x 64-bit 6-core 2.00 Ghz
• Ethernet Ports: 2 x RJ45 (1Gb) + 2 x SFP (10Gb)
• UTA2 Ports: 2 x SFP+ (10Gb/16Gb)
• SAS Ports: 2 x QSFP (6Gb)
• PCIe Expansion Slots: 2 x PCIe
• Max Drives (total): 480
• Max Capacity: 7,680TB (7.68PB)
• Disk Shelves: DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, DS460C
• Filer Heads: N/A

Dimensions & Weight

• Chassis Rack Height: 3U
• Chassis Heights: 5.12" (13 cm)
• Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
• Chassis Depth w/ Cable Mgmt: 26.5" (67.3 cm)
• Chassis Weight: up to 74.1 lb (33.6 kg)

---

Controller Specs

• Max Controllers: 2 (Per Chassis)
• PCI Slot (per): 2 x PCIe
• Ethernet Ports (per): 2 x RJ45 (1Gb) + 2 x SFP (10Gb)
• Fibre Channel Ports (per): N/A
• UTA2 Ports (per): 2 x SFP+ (10Gb/16G)
• SAS Ports (per): 2 x QSFP (6Gb)
• Remote Management: Yes
• Processor Model (per): 1x 64-bit 6-core 2.00 Ghz
• Memory (Single/HA): 24GB/48GB
• NVRAM (Single/HA): 4GB/8GB

Storage

• Max Number of Internal Drives: 0
• Max Number Drives (total): 480
• Max Capacity: 7,680TB (7.68PB)
• Max # of MSATA Drives: 480
• Max # of SATA Drives: 480
• Max # of NL-SAS Drives: 480
• Max # of SAS Drives: 480
• Max # of SSD Drives: 240
• Drive Interface: MSATA, SATA, NL-SAS, SAS, SSD
• RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
• Max # of DS212C Shelves: 20 external
• Max # of DS2246 Shelves: 20 external
• Max # of DS224C Shelves: 20 external
• Max # of DS4243 Shelves: 20 external
• Max # of DS4246 Shelves: 20 external
• Max # of DS4448 Shelves: 10 external
• Max # of DS460C Shelves: 8 external

---
