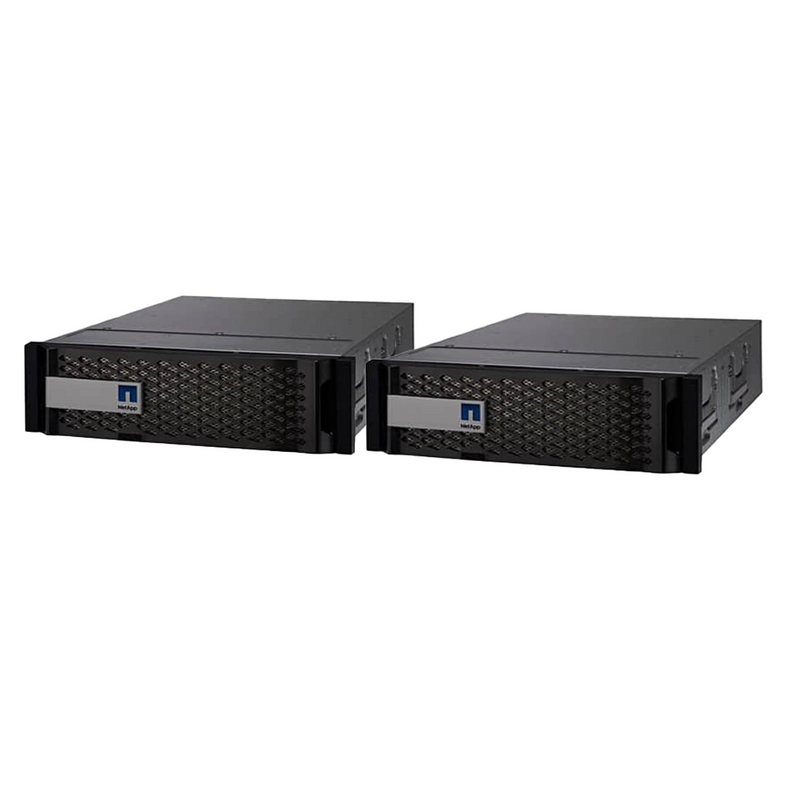

NetApp FAS8200 4-Node MetroCluster IP Filer Head

NetApp FAS8200 4-Node MetroCluster IP Filer Head (FAS8200-4NMCIP)

NetApp FAS8200 4-Node MetroCluster IP Filer Head

Price: Request a Quote

Brand:

NetApp

MPN:

FAS8200-4NMCIP

Type:

Filer Head

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp FAS8200 4-Node MetroCluster IP Filer Head

The NetApp FAS8200 4-Node MetroCluster IP system is a high-availability enterprise storage solution designed for mission-critical environments. It features a dual-chassis configuration with four controllers, providing 512GB of memory and four 64-bit, 16-core processors running at 1.70 GHz. With a total rack height of 6U, it supports up to 480 drives and a maximum storage capacity of 10.56PB, ensuring scalability and data redundancy.

Connectivity options include eight 10Gb RJ45 Ethernet ports, eight 10Gb SFP Ethernet ports, and sixteen UTA2 SFP+ ports supporting both 10Gb and 16Gb speeds. Additionally, the system offers sixteen MiniSAS HD ports (12Gb) for high-speed storage expansion. Each chassis houses two controllers with four PCIe slots per controller, supporting DS212C, DS224C, and DS460C disk shelves for flexible storage configurations.

The chassis measures 5.12 inches in height, 17.6 inches in width, and 28.94 inches in depth, with a maximum weight of 76 lbs. Each node features remote management capabilities and supports RAID 4, RAID 6 (RAID-DP), and RAID-TEC configurations for enhanced data protection. With MetroCluster IP architecture, the FAS8200 4-Node system delivers superior resilience and high availability for enterprise workloads.

System Config

Model: NetApp FAS8200 4-Node
Chassis: Dual Chassis
Total Rack Height: 6U
Controllers: 4-Node MetroCluster IP
Memory: 512GB
Processor Model: 4x 64-bit 16-core 1.70 Ghz
Ethernet Ports: 8 x RJ45 (10Gb) + 8 x SFP (10Gb)
UTA2 Ports: 16 x SFP+ (10Gb/16Gb)
SAS Ports: 16 x MiniSAS HD (12Gb)
PCIe Expansion Slots: 8 x PCIe
Max Drives (total): 480
Max Capacity: 10,560TB (10.56PB)
Disk Shelves: DS212C, DS224C, DS460C
Filer Heads: N/A

Dimensions & Weight

Chassis Rack Height: 3U
Chassis Heights: 5.12" (13 cm)
Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
Chassis Depth w/ Cable Mgmt: 28.94" (73.5 cm)
Chassis Weight: up to 76.0 lb (34.5 kg)

Controller Specs

Max Controllers: 2 (Per Chassis)
PCI Slot (per): 4 x PCIe
Ethernet Ports (per): 4 x RJ45 (10Gb) + 4 x SFP+ (10Gb)
Fibre Channel Ports (per): N/A
UTA2 Ports (per): 8 x SFP+ (10Gb/16G)
SAS Ports (per): 8 x MiniSAS HD (12Gb)
Remote Management: Yes
Processor Model (per): 2x 64-bit 16-core 1.70 Ghz
Memory (Node/Config): 128GB/512GB
NVMEM (Node/Config): 8GB/32GB

Storage

Max Number of Internal Drives: 0
Max Number Drives (total): 480
Max Capacity: 10,560TB (10.56PB)
Max # of MSATA Drives: 480
Max # of SATA Drives: 480
Max # of NL-SAS Drives: 480
Max # of SAS Drives: 480
Max # of SSD Drives: 240
Drive Interface: MSATA, SATA, NL-SAS, SAS, SSD
RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
Max # of DS212C Shelves: 40 external
Max # of DS224C Shelves: 20 external
Max # of DS460C Shelves: 8 external

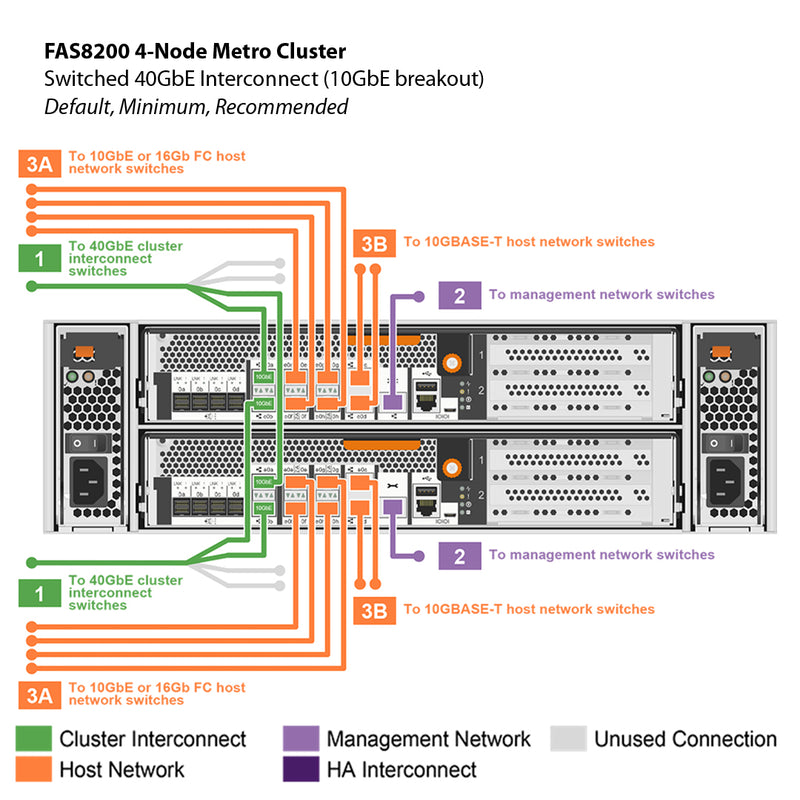

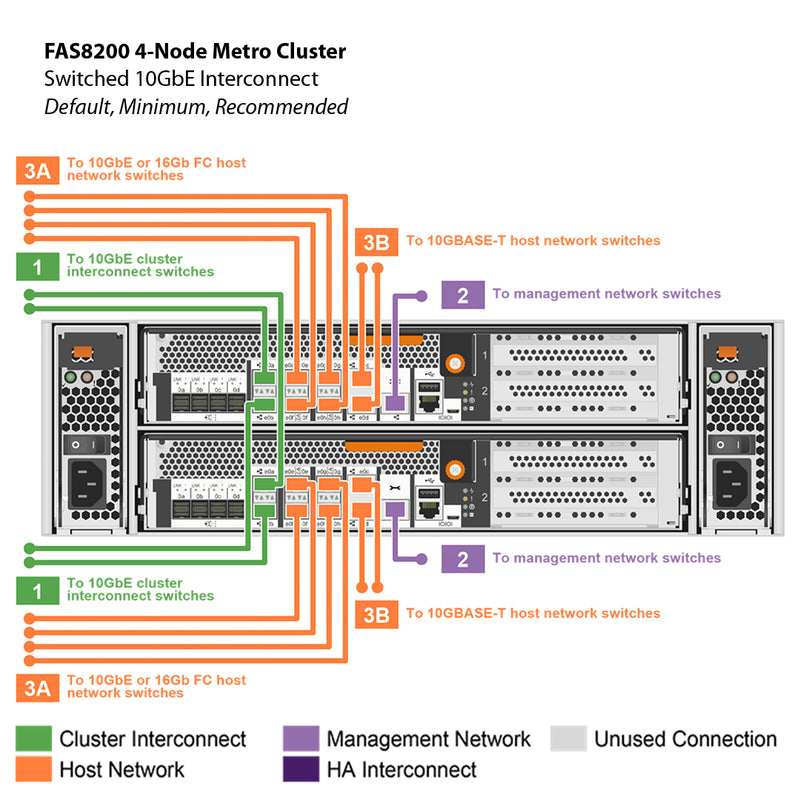

Cluster Types

MetroCluster IP

Each site has its own drives, data is mirrored, but each site can ONLY access its own drives until a failover happens (NO active cross-access).

Fabric MetroCluster

Each site has its own drives, data is mirrored, and both sites can actively access all drives at all times (YES active cross-access).

Stretch MetroCluster

Drives are split between locations (not mirrored), and both sites can access all drives at all times (YES active cross-access).

FAS8200 Parts Lists

View Adapters

View Transceiver(s

View Data Cables

View Power Cables

View Rail Kits

Ask about our NetApp Disk Shelves!
We can create custom Turn-Key configurations based on your needs!
Click here to view NetApp Disk Shelves

This Product Is Compatible With The Following Systems:

NetApp FAS8200

Storage Limits

Max # of Drives (Total)	Max # of Internal Drives	Max # of MSATA Drives	Max # of NL-SAS Drives	Max # of SAS Drives	Max # of SATA Drives	Max # of SSD Drives	Max # of DS212C Shelves	Max # of DS2246 Shelves	Max # of DS224C Shelves	Max # of DS4243 Shelves	Max # of DS4246 Shelves	Max # of DS4486 Shelves	Max # of DS460C Shelves
Supported Shelves/Drives	480	N/A	N/A	480	480	480	480	40 external	20 external	20 external	20 external	20 external	N/A

Capacity Limits

Marketing Max Raw Capacity - Node	HA Pair	Cluster	Effective Capacity - Node	HA Pair	Cluster
N/A	N/A	7680000	N/A	N/A	34087680

Core Cluster Limits

Max SVM's	Max LIF's - NAS	Max Connections - NAS	Max Flexible Volumes - NAS	Max Lock Manager Locked Objects	Max Intercluster LIFs - Node	Min Root Aggregate (MiB) - Node	Min Root Volume (GiB) - Node	Max IPsec Policies	Max Auditing-Enabled SVMs - Cluster
Node:32 HA Pair:64 Cluster:64	Node:256 HA Pair:256 Cluster:N/A	Node:50000 HA Pair(Non-Scalable):50000	Aggregate (Single data Agg. per Node):Detailed Matrix Aggregate (Multiple data Agg. per Node):250 Node:200 HA Pair:500 Cluster:1000	Node:700000 HA Pair:1024000 Cluster:N/A	8	441245.29	350	SVM:N/A Cluster:N/A	25

System Maximums and Limits

Max Nodes per Cluster (NAS / SAN)	Max FabricPool Size	Max Infinite Volume Data Constituent Size	Max FlexGroup Data Constituent Size	Min Root Volume Size	NetApp Volume Encryption
44594	8400 TiB	Not Supported	100 TiB	350 GiB	Supported

Processor

Processor Model	Processor Architecture	Processor Speed	Processor Count (Per Node)	Processor Count (Per Config)	Processor Cores (Per CPU)	Processor Cores (Per Node)	Processor Cores (Per Config)
64-bit 16-core 1.70 Ghz	64 bit	1.70 Ghz	1	4	16	16	64

Memory

NVME (Per Node)	NVME (Per Config)	NVMEM (Per Node)	NVMEM (Per Config)	RAM (Per Node)	RAM (Per Config)
2048 GB	8192 GB	8 GB	32 GB	128 GB	512 GB

Onboard Ports

Ethernet Ports	Fibre Channel	Ports UTA2 Ports	Expansion Slots	SAS Ports
4 x RJ45 (10Gb) / 4 x SFP+ (10Gb)	-	4 x SFP+ (10Gb/16Gb) [1]	4 x PCIe3	8 x MiniSAS HD (12Gb)

Physical Characteristics

Rack Units	Chassis Height	Chassis Width with Mounting Flanges	Chassis Width without Mounting Flanges	Chassis Depth with Cable Mgmt	Chassis Depth without Cable Mgmt	Chassis Weight
6	5.12" (13 cm)	18.98" (48.2 cm)	17.6" (44.7 cm)	28.94" (73.5 cm)	23.94" (60.8 cm)	See Weights by configuration

System Clearance Dimensions

Front Clearance (Cooling)	Front Clearance (Maintenance)	Rear Clearance (Cooling)	Rear Clearance (Maintenance)
5.91" (15 cm)	29.94" (76 cm)	5.91" (15 cm)	20.09" (51 cm)

Environmental Requirements

Operating	Storage	Transit	Acoustic Noise	Input Power Voltage
Tempature: 41 to 113 deg F - 5 to 45 deg C Humidity: 8 to 90 % Altitude: Up to 10000.0 ft - Up to 3048.0 m	Tempature: -40 to 158 deg F - -40 to 70 deg C Humidity: 10 to 95 % Altitude: Up to 40000.0 ft - Up to 12192.0 m	Tempature: -40 to 158 deg F - -40 to 70 deg C Humidity: 10 to 95 % Altitude: Up to 39989.8 ft - Up to 12192 m	Sound Power: 6.9 bels Sound Pressure: 53.1 dBA	100 to 120 200 to 240

Storage OS Requirements

Full OS Matrix	Recommended Version	Minimum OS	Maximum OS
View Full OS Report Below	9.11.1	9.11.1RC1	9.11.1

Storage and Firmware

Full Firmware Matrix	BIOS	BMC
Full Firmware Report Below	11.15*	-

Product Standards Compliance

Full Compliance and Certificates Report	Cert. EMC/EMI	Cert. Safety	Cert. Safety/EMC/EMI	Cert. Safety/EMC/EMI/RoHS	Standard Safety/EMC/EMI	Standard Safety
Compliance and Certificates Report Below	AMCA, FCC, ICES, KC, Morocco, VCCI	BIS, CB, CSA, G_K_U-SoR, IRAM, NOM, NRCS, SONCAP, TBS	EAC, UKRSEPRO	BSMI, CE DoC, UKCA DoC	BS-EN-55024, BS-EN55035, CISPR 32, EN55022, EN55024, EN55032, EN55035, EN61000-3-2, EN61000-3-3, FCC Part 15 Class A, IC more...	ANSI/UL60950-1, ANSI/UL62368-1, BS-EN62368-1, CAN/CSA C22.2 No. 60950-1, CAN/CSA C22.2 No. 62368-1, CNS 14336, EN60825-1 more...

NFS Cluster Limits

Max Export Policies - Cluster	Max Export Rules - Cluster	Max NFSv4 Access Control Entries	Max Client Objects	Max pNFS objects
6/4/1916	70000	1024	Node:102400 HA Pair:102400	Node:1024000 HA Pair:8/13/4703 Cluster:N/A

WAFL Cluster Limits - All Maximums

Size 64-bit Aggregate (TiB)	Size 64-bit Volume (TiB)	File size 64-bit Volume (TiB)	Volume Snapshot Copies	Character length for Snapshot copy names	Hard links - File	inodes/files - Volume	Number of qtrees	Concurrent DataMotion for Volumes ops
800	4/9/1900	16	Volume:255 Node:63750 HA Pair:127500	255	100000	2000000000	Volume:4995 Node:15000 HA Pair:30000 Cluster:N/A	Node:16 HA Pair:16

Quality of Service Cluster Limits

Max Policy Groups - Cluster	Max QoS User Workloads - Cluster
6000	20000

SAN Cluster Limits - All Maximums

# of storage virtual machines (SVMs) - SAN	# of flexible volumes - SAN	# of Flexible Vol with DPO -	# of LUNs	LUN mappings	LUN size (TiB) - LUN	FC queue depth available	# of SAN Hosts (ITNs)	# of LIFS - iSCSI	# of LIFS - FCP	# of igroups	# of Initiators	# of Portsets	# of iSCSI sessions
Node:32 HA Pair:64 Cluster:64	Single data Aggregate:250 Multiple data Aggregates:200 Node:500 HA Pair:1000 Cluster:1000	Node:N/A HA Pair:N/A Cluster:N/A	Valume:1024 Node:6144 HA Pair:12288 Cluster:12288	Node:6144 HA Pair:12288 Cluster:12288	16	2048	Port:256 Node:4096 HA Pair:8192 Cluster:8192	Port:16 Portset:32 Node:128 HA Pair:256 Cluster:256	Port:16 Portset:32 Node:128 HA Pair:256 Cluster:256	Node:2048 HA Pair:4096 Cluster:4096	igroup:256 Node:2048 HA Pair:4096 Cluster:4096	Node:2048 HA Pair:4096 Cluster:4096	Node:4096 HA Pair:8192 Cluster:8192

CIFS Cluster Limits - All Maximums

# of Connected Shares	# of Regular Shares	# of Open files	# of Local users - Cluster	# of Local groups - Cluster	# of Local group members - Cluster
Node:500000 HA Pair:500000	Node:150000 HA Pair:150000 Cluster:N/A	Connection:65536 Node:700000 HA Pair:700000	17500	160000	320000

Data Protection Cluster Limits - All Maximums

NDMP Sessions	Data Protection Mirrors	Load Sharing Mirrors - NAS SVM	Concurrent Snap Mirror / SnapVault transfers - Node	DP Mirror fan-out - Volume	LS Mirror fan-out - NAS SVM	# of Clusters that can be peered - Cluster	Volumes, SnapMirror relationship	SnapMirror Synchronous relationships	Flexible Volumes in SVM DR	SVM Disaster recovery - Cluster
Node:36 HA Pair (Non-Scalable):36	Volume:1 Node:500 HA Pair:1000 Cluster:N/A	2	100	8	2	8	FlexGroup:N/A FlexGroup-Node:N/A HA Pair:N/A Cluster:N/A	Volume:N/A Node:N/A HA Pair (Non-Scalable):N/A	SVM:300 HA Pair:1000	128

NVMe/oF Cluster Limits - All Maximums

# of Storage virtual machines (SVMs), NVMe/oF - Cluster	# of Flexible volumes, NVMe/oF	# of Flexible volumes with DPO, NVMe/oF	# of Namespaces	# of Subsystems	# of Namespace Mappings	Namespace Size	I/O queue depth available - NVMe/FC - Queue	I/O queue count available - NVMe/FC - Controller	Hosts - Subsystem	LIFS, NVMe/oF	# of Controllers - NVMe/FC - Port	I/O Queue Count, NVMe/TCP - Controller	I/O Queue Depth - NVMe/TCP	Controllers, NVMe/TCP - Node
N/A	Node:N/A HA Pair:N/A Cluster:N/A	Node:N/A HA Pair:N/A Cluster:N/A	Volume:N/A Node:N/A HA Pair:N/A Cluster:N/A	Node:N/A Node:N/A	Subsystem:N/A Node:N/A HA Pair:N/A Cluster:N/A	N/A	N/A	N/A	N/A		N/A	N/A	N/A	N/A

FlexCache Cluster Limits - All Maximums Cache

Degree of fan-out - Origin	Origin Volumes	Constituent Volumes	Volumes	Origin ConstituentVolumes
N/A	Node:N/A HA Pair:N/A	Node:N/A HA Pair:N/A	Node:N/A HA Pair:N/A	Node:N/A HA Pair:N/A

S3 Cluster Limits -

Max # of Buckets	Max # of Objects - Bucket	Max # of Users	Max Size of the Bucket (PB) - Vserver
Vserver:N/A Cluster:N/A	N/A	Vserver:N/A Cluster:N/A	N/A

Consistency Groups - All Maximums

Number of Consistency Groups - Cluster	Consistency Groups and Parents Consistency Groups - Cluster	Number of Parent Consistency Groups - Cluster	Child Consistency Groups in a Parent Consistency Groups - Parent Group	Flexible Volumes in a Consistency Group	Flexible Volumes for Child Consistency Groups under a Parent Group	Flexible Volumes in a Child Consistency Group
N/A	N/A	N/A	N/A	N/A	N/A	N/A

Flex Array Specifications

Third Party Array Compatibility	Array LUN Absolute Min Raw Capacity	Array LUN Block Size	Default Array LUN RAID Group Size	Array LUN Max RAID Groups Per Aggregate	Max Array LUN Size	Max Array LUN Raid Group Size	Min Array LUN Size	Min Array LUN Root Vol Size	Min Array LUN RAID Group Size	Min Array LUN Aggregate Size	Array LUN neighborhood Visible Assigned Devices	Array LUN Recommended Min RAW Capacity	Spare Core Array LUN Min Size
Not Supported

Platform LED for FAS8200 4-Node MetroCluster IP

LED Label	LED Name	Type	Status Indicator	Description

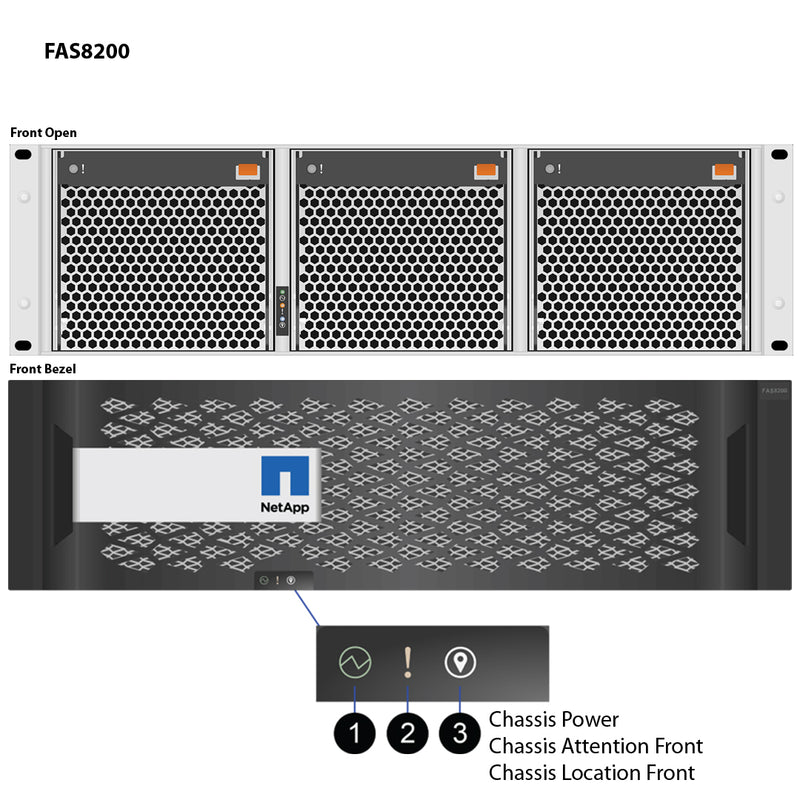

Front View
1	Chassis Power Config	-	On Green	At least one of the two PSUs is delivering power to the system.
-	-	-	Off	Neither PSU is delivering power to the system.
2	Chassis Attention LED, front	-	On Amber	The system halted or a fault occurred in the chassis.
-	-	-	Off	The system is operating normally.
3	Location LED on chassis front	-	On or flashing blue	The LED has been manually activated to aid in physically locating equipment
-	-	-	Off	The LED has not been manually activated to aid in physically locating equipment

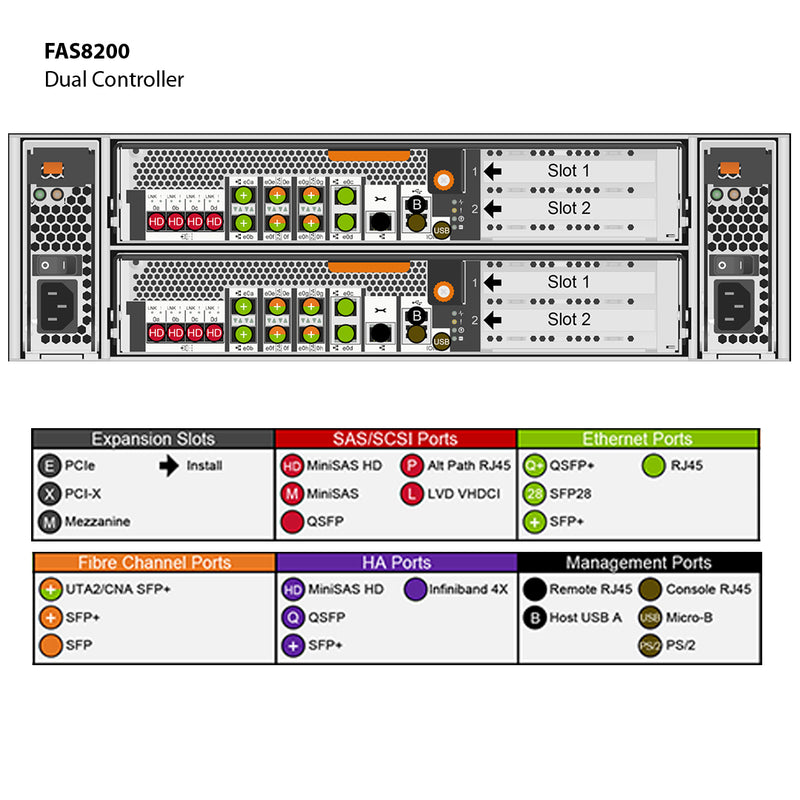

Back View
LED Label	LED Name	Type	Status Indicator	Description
0a	Port SAS 2 LED Onboard Config	Attention	Yellow	SAS link requires attention
-	-	-	Off	SAS link operates as normal
-	-	Link	Green	Link is established on at least one external SAS lane
-	-	-	Off	No link is established on any external SAS lane
0a	Port SAS Onboard Config	Link	Green	Link is established on at least one external SAS lane
-	-	-	Off	No link is established on any external SAS lane
0b	Port SAS 2 LED Onboard Config	Attention	Yellow	SAS link requires attention
-	-	-	Off	SAS link operates as normal
-	-	Link	Green	Link is established on at least one external SAS lane
-	-	-	Off	No link is established on any external SAS lane
0b	Port SAS Onboard Config	Link	Green	Link is established on at least one external SAS lane
-	-	-	Off	No link is established on any external SAS lane
0c	Port SAS 2 LED Onboard Config	Attention	Yellow	SAS link requires attention
-	-	-	Off	SAS link operates as normal
-	-	Link	Green	Link is established on at least one external SAS lane
-	-	-	Off	No link is established on any external SAS lane
0c	Port SAS Onboard Config	Link	Green	Link is established on at least one external SAS lane
-	-	-	Off	No link is established on any external SAS lane
0d	Port SAS 2 LED Onboard Config	Attention	Yellow	SAS link requires attention
-	-	-	Off	SAS link operates as normal
-	-	Link	Green	Link is established on at least one external SAS lane
-	-	-	Off	No link is established on any external SAS lane
0d	Port SAS Onboard Config	Link	Green	Link is established on at least one external SAS lane
-	-	-	Off	No link is established on any external SAS lane
e0a	Port Ethernet SFP Config with arrow LEDs (Attention)	Ethernet Port LED	Amber	Port requires attention
-	-	-	Green	A connection is established to the port.
-	-	-	Off	No connection is established on the port.
-	-	-	Off	Port operates normally
e0b	Port Ethernet SFP Config with arrow LEDs (Attention)	Ethernet Port LED	Amber	Port requires attention
-	-	-	Green	A connection is established to the port.
-	-	-	Off	No connection is established on the port.
-	-	-	Off	Port operates normally
e0c	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0d	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0e/0e	Port Ethernet SFP Config with arrow LEDs (Attention)	Ethernet Port LED	Amber	Port requires attention
-	-	-	Green	A connection is established to the port.
-	-	-	Off	No connection is established on the port.
-	-	-	Off	Port operates normally
e0e/0e	Port UTA2 Arrow LED (FC Personality)	Ethernet Port LED	Green	A connection is established to the port.
-	-	-	Off	No connection is established on the port.
e0f/0f	Port Ethernet SFP Config with arrow LEDs (Attention)	Ethernet Port LED	Amber	Port requires attention
-	-	-	Green	A connection is established to the port.
-	-	-	Off	No connection is established on the port.
-	-	-	Off	Port operates normally
e0f/0f	Port UTA2 Arrow LED (FC Personality)	Ethernet Port LED	Green	A connection is established to the port.
-	-	-	Off	No connection is established on the port.
e0g/0g	Port Ethernet SFP Config with arrow LEDs (Attention)	Ethernet Port LED	Amber	Port requires attention
-	-	-	Green	A connection is established to the port.
-	-	-	Off	No connection is established on the port.
-	-	-	Off	Port operates normally
e0g/0g	Port UTA2 Arrow LED (FC Personality)	Ethernet Port LED	Green	A connection is established to the port.
-	-	-	Off	No connection is established on the port.
e0h/0h	Port Ethernet SFP Config with arrow LEDs (Attention)	Ethernet Port LED	Amber	Port requires attention
-	-	-	Green	A connection is established to the port.
-	-	-	Off	No connection is established on the port.
-	-	-	Off	Port operates normally
e0h/0h	Port UTA2 Arrow LED (FC Personality)	Ethernet Port LED	Green	A connection is established to the port.
-	-	-	Off	No connection is established on the port.
e0M/SP	Port Remote Management Config	-	Blinking amber	Traffic is flowing over the connection.
-	-	-	Green	A link is established between the port and some upstream device.
-	-	-	Off	No link is established.
-	-	-	Off	No traffic is flowing over the connection.

Supported Shelves Drives for FAS8200 4-Node MetroCluster IP

Part No.	Capacity	RPM	Drive Type	Encryption	Root-Data Partitioning	Root-Data-Data Partitioning	Storage Pool Partitioning	Max Drive Count	FlexArray
DS212C with IOM12B / IOM12 / IOM12B / IOM12 shelf modules
X302A-R5	1TB	7.2K	SATA	No	No	No	No	480	No
X306A-R5	2TB	7.2K	SATA	No	No	No	No	480	No
X308A-R5	3TB	7.2K	SATA	No	No	No	No	480	No
X318A-R6	8TB	7.2K	NL-SAS	No	No	No	No	480	No
X336A-R6	4TB	7.2K	NL-SAS	No	No	No	No	480	No
X339A	2TB	7.2K	NL-SAS	No	No	No	No	480	No
X380A	10TB	7.2K	NL-SAS	No	No	No	No	480	No
X388A	16TB	7.2K	NL-SAS	No	No	No	No	480	No
X477A-R6	4TB	7.2K	NL-SAS	No	No	No	No	480	No
X488A-R5	900GB	10K	SAS	No	No	No	No	480	No
X489A-R6	1.2TB	10K	SAS	No	No	No	No	480	No
X490A-R6	1.8TB	10K	SAS	No	No	No	No	480	No
X363A-R6	3.84TB	N/A	SSD	No	No	No	No	480	No
X364A	3.84TB	N/A	SSD	No	No	No	No	480	No
X374A	960GB	N/A	SSD	No	No	No	No	480	No
X448A-R6	200GB	N/A	SSD	No	No	No	No	480	No
X449A-R6	800GB	N/A	SSD	No	No	No	No	480	No
X575A-R6	400GB	N/A	SSD	No	No	No	No	480	No
X576A-R6	1.6TB	N/A	SSD	No	No	No	No	480	No
DS224C with IOM12B / IOM12 / IOM12B / IOM12 shelf modules
X341A-R6	900GB	10K	SAS	No	No	No	No	480	No
X342A-R6	1.2TB	10K	SAS	No	No	No	No	480	No
X343A-R6	1.8TB	10K	SAS	No	No	No	No	480	No
X421A-R5	450GB	10K	SAS	No	No	No	No	480	No
X422A-R5	600GB	10K	SAS	No	No	No	No	480	No
X423A-R5	900GB	10K	SAS	No	No	No	No	480	No
X425A-R6	1.2TB	10K	SAS	No	No	No	No	480	No
X426A-R6	1.8TB	10K	SAS	No	No	No	No	480	No
X319A	7.6TB	N/A	SSD	No	No	No	No	480	No
X356A-R6	3.84TB	N/A	SSD	No	No	No	No	480	No
X357A	3.84TB	N/A	SSD	No	No	No	No	480	No
X359A	30.6TB	N/A	SSD	No	No	No	No	480	No
X371A	960GB	N/A	SSD	No	No	No	No	480	No
X438A-R6	400GB	N/A	SSD	No	No	No	No	480	No
X439A-R6	1.6TB	N/A	SSD	No	No	No	No	480	No
X446A-R6	200GB	N/A	SSD	No	No	No	No	480	No
X446B-R6	200GB	N/A	SSD	No	No	No	No	480	No
X447A-R6	800GB	N/A	SSD	No	No	No	No	480	No
X670A	15.3TB	N/A	SSD	No	No	No	No	480	No
DS460C with IOM12 / IOM12B / IOM12B / IOM12 shelf modules
X375A	4TB	7.2K	NL-SAS	No	No	No	No	480	No
X376A	8TB	7.2K	NL-SAS	No	No	No	No	480	No
X377A	10TB	7.2K	NL-SAS	No	No	No	No	480	No
X379A	960GB	N/A	SSD	No	No	No	No	80	No
X387A	16TB	7.2K	NL-SAS	No	No	No	No	480	No
DS2246 with IOM6 / IOM12 / IOM12B / IOM12B / IOM6 / IOM12 shelf modules
X341A-R6	900GB	10K	SAS	No	No	No	No	480	No
X342A-R6	1.2TB	10K	SAS	No	No	No	No	480	No
X343A-R6	1.8TB	10K	SAS	No	No	No	No	480	No
X421A-R5	450GB	10K	SAS	No	No	No	No	480	No
X422A-R5	600GB	10K	SAS	No	No	No	No	480	No
X423A-R5	900GB	10K	SAS	No	No	No	No	480	No
X425A-R6	1.2TB	10K	SAS	No	No	No	No	480	No
X426A-R6	1.8TB	10K	SAS	No	No	No	No	480	No
X356A-R6	3.84TB	N/A	SSD	No	No	No	No	480	No
X357A	3.84TB	N/A	SSD	No	No	No	No	480	No
X371A	960GB	N/A	SSD	No	No	No	No	480	No
X438A-R6	400GB	N/A	SSD	No	No	No	No	480	No
X439A-R6	1.6TB	N/A	SSD	No	No	No	No	480	No
X446A-R6	200GB	N/A	SSD	No	No	No	No	480	No
X446B-R6	200GB	N/A	SSD	No	No	No	No	480	No
X447A-R6	800GB	N/A	SSD	No	No	No	No	480	No
DS4246 with IOM6 / IOM12B / IOM12B / IOM12 / IOM6 / IOM12 shelf modules
X302A-R5	1TB	7.2K	SATA	No	No	No	No	480	No
X306A-R5	2TB	7.2K	SATA	No	No	No	No	480	No
X308A-R5	3TB	7.2K	SATA	No	No	No	No	480	No
X316A-R6	6TB	7.2K	NL-SAS	No	No	No	No	480	No
X318A-R6	8TB	7.2K	NL-SAS	No	No	No	No	480	No
X336A-R6	4TB	7.2K	NL-SAS	No	No	No	No	480	No
X380A	10TB	7.2K	NL-SAS	No	No	No	No	480	No
X477A-R6	4TB	7.2K	NL-SAS	No	No	No	No	480	No
X488A-R5	900GB	10K	SAS	No	No	No	No	480	No
X489A-R6	1.2TB	10K	SAS	No	No	No	No	480	No
X490A-R6	1.8TB	10K	SAS	No	No	No	No	480	No
X363A-R6	3.84TB	N/A	SSD	No	No	No	No	480	No
X374A	960GB	N/A	SSD	No	No	No	No	480	No
X441A-R5	100GB	N/A	SSD	No	No	No	No	480	No
X442A-R5 [2]	100GB	N/A	SSD	No	No	No	No	480	No
X448A-R6	200GB	N/A	SSD	No	No	No	No	480	No
X449A-R6	800GB	N/A	SSD	No	No	No	No	480	No
X575A-R6	400GB	N/A	SSD	No	No	No	No	480	No
X576A-R6	1.6TB	N/A	SSD	No	No	No	No	480	No
DS4243 [1] with IOM6 / IOM12 shelf modules
X302A-R5	1TB	7.2K	SATA	No	No	No	No	480	No
X306A-R5	2TB	7.2K	SATA	No	No	No	No	480	No
X308A-R5	3TB	7.2K	SATA	No	No	No	No	480	No
Footnote:
1The DS4243 shelf requires an upgrade to IOM6 or IOM12 Expander Modules for support with FAS26x0, FAS8200, and FAS9000 platforms.
2This drive does not support the sanitization feature.

Supported RAID Configurations - FAS8200 4-Node MetroCluster IP

Drive Type	Drive Capacity Min	Drive Capacity Max	Minimum	Default	Maximum
Data Aggregate
RAID4
NL-SAS	0 TB	8 TB	3	7	7
SAS	0 TB	5.999 TB	3	8	14
SATA	0 TB	5.999 TB	3	7	7
SSD	0 TB	30.6 TB	3	8	14
RAID-DP
NL-SAS	0 TB	5.999 TB	5	14	20
NL-SAS	6 TB	10 TB	5	14	14
SAS	0 TB	5.999 TB	5	16	28
SATA	0 TB	5.999 TB	5	14	20
SSD	0 TB	30.6 TB	5	24	28
RAID-TEC
NL-SAS	0 TB	16 TB	7	21	29
SAS	0 TB	8 TB	7	24	29
SATA	0 TB	8 TB	7	21	29
SSD	0 TB	30.6 TB	7	25	29
Root Aggregate
RAID4
NL-SAS	0 TB	8 TB	2	-	7
SAS	0 TB	5.999 TB	2	-	14
SATA	0 TB	5.999 TB	2	-	7
SSD	0 TB	30.6 TB	2	-	14
RAID-DP
NL-SAS	0 TB	5.999 TB	3[1]	-	20
NL-SAS	6 TB	16 TB	3[1]	-	14
SAS	0 TB	5.999 TB	3[1]	-	28
SATA	0 TB	5.999 TB	3[1]	-	20
SSD	0 TB	30.6 TB	3[1]	-	28
RAID-TEC
NL-SAS	0 TB	16 TB	7	-	29
SAS	0 TB	8 TB	7	-	29
SATA	0 TB	8 TB	7	-	29
SSD	0 TB	30.6 TB	7	-	29
SAS	0 TB	8 TB	7	-	29
SATA	0 TB	8 TB	7	-	29
SSD	0 TB	30.6 TB	7	-	29
Footnote:
1The minimum number of disks in a RAID-DP group is three: at least one data disk, one regular parity disk, and one double-parity (dParity) disk. However, for non-root aggregates with only one RAID group, you must have at least 5 disks (three data disks and two parity disks).

Supported Adapter Cards - FAS8200 4-Node MetroCluster IP

Priority	Category	Bus Type	Mktg Part No.	Mfg Part No	Description	Plug Type	Optical Module Included?	Cables	Supported Protocol(s)	Min ONTAP	Max Qty [1]	Priority Slot Assignment
1	MetroCluster	PCIe3	X1116A [2]	111-03853	Ethernet 25Gb	111-03853	2p 25GbE iWARP SFP28	SFP28	Ethernet 25Gb	View	Ethernet 25Gb	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
2	Networking	PCIe3	X1144A	111-03380	Ethernet 40Gb,Ethernet 40Gb w/4x10Gb breakout	111-03380	2p 40GbE NIC Cu\|Op	QSFP+	Ethernet 40Gb,Ethernet 40Gb w/4x10Gb breakout	View	Ethernet 40Gb,	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
3	Networking	PCIe	X1117A-R6 [3]	111-01232,111-00754	Ethernet 10Gb	111-01232,	2p 10GbE NIC Cu\|Op	SFP+	Ethernet 10Gb	View	Ethernet 10Gb	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
4	Networking (Target)	PCIe	X1143A-R6	111-00910	Ethernet 10Gb,Fibre Channel 4/8/16 Gb	111-00910	2p 16Gb\|10Gb UTA2 Cu\|Op	SFP+	Ethernet 10Gb,Fibre Channel 4/8/16 Gb	View	Ethernet 10Gb,	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
5	Networking	PCIe	X1120A-R6	111-01688	Ethernet 1/10 Gb	111-01688	2p 10GBASE-T NIC Cu	RJ45	Ethernet 1/10 Gb	View	Ethernet 1/10 Gb	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
6	Block Access (Target)	PCIe3	X1134A [4]	111-03249	Fibre Channel 8/16/32 Gb	111-03249	2p 32Gb FC SFP+ Op (Target Only)	SFP+	Fibre Channel 8/16/32 Gb	View	Fibre Channel 8/16/32 Gb	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
7	Block Access (Target)	PCIe	X1143A-R6	111-00910	Ethernet 10Gb,Fibre Channel 4/8/16 Gb	111-00910	2p 16Gb\|10Gb UTA2 Cu\|Op	SFP+	Ethernet 10Gb,Fibre Channel 4/8/16 Gb	View	Ethernet 10Gb,	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
8	Block Access (Target)	PCIe3	X1133A-R6 [5]	111-02451	Fibre Channel 4/8/16 Gb	111-02451	4p 16Gb FC SFP+ Op	SFP+	Fibre Channel 4/8/16 Gb	View	Fibre Channel 4/8/16 Gb	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
9	Block Access (Target)	PCIe	X1132A-R6 [5]	111-00481	Fibre Channel 2/4/8 Gb	111-00481	4p 8Gb FC Op	SFP	Fibre Channel 2/4/8 Gb	View	Fibre Channel 2/4/8 Gb	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
10	Performance Acceleration	M.2 PCIe	X3311A [6]	111-03066		111-03066	Flash Cache,1.0TB,NVMe			N/A		9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
11	Block Access (Target)	PCIe	X1130A-R6	111-00416	Fibre Channel 1/2/4 Gb	111-00416	4p 4Gb FC Op	LC	Fibre Channel 1/2/4 Gb	View	Fibre Channel 1/2/4 Gb	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
12	Networking	PCIe	X1049C-R6	111-01034	Ethernet 10/100/1000 Mb	111-01034	4p 1GbE NIC Cu	RJ45	Ethernet 10/100/1000 Mb	View	Ethernet 10/100/1000 Mb	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
13	Networking	PCIe	X1048A-R6	111-00909	Ethernet 10/100/1000 Mb	111-00909	4p 1GbE NIC Op	LC	Ethernet 10/100/1000 Mb	View	Ethernet 10/100/1000 Mb	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
14	Storage (Initiator)	PCIe3	X2071A	111-03801	SAS 6/12 Gb	111-03801	4p 12Gb SAS miniSAS HD Cu\|Op	MiniSAS HD	SAS 6/12 Gb	View	SAS 6/12 Gb	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
15	Storage (Initiator)	PCIe	X2069-R6	111-02026	SAS 3/6/12 Gb	111-02026	4p 12Gb SAS Cu\|Op	QSFP	SAS 3/6/12 Gb	View	SAS 3/6/12 Gb	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
16	Tape (Initiator)	PCIe	X1143A-R6 [7]	111-00910	Ethernet 10Gb,Fibre Channel 4/8/16 Gb	111-00910	2p 16Gb\|10Gb UTA2 Cu\|Op	SFP+	Ethernet 10Gb,Fibre Channel 4/8/16 Gb	View	Ethernet 10Gb,	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
17	Tape (Initiator)	PCIe3	X1133A-R6 [7]	111-02451	Fibre Channel 4/8/16 Gb	111-02451	4p 16Gb FC SFP+ Op	SFP+	Fibre Channel 4/8/16 Gb	View	Fibre Channel 4/8/16 Gb	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
18	Tape (Initiator)	PCIe	X1132A-R6	111-00481	Fibre Channel 2/4/8 Gb	111-00481	4p 8Gb FC Op	SFP	Fibre Channel 2/4/8 Gb	View	Fibre Channel 2/4/8 Gb	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
19	Tape (Initiator)	PCIe3	X2071A	111-03801	SAS 6/12 Gb	111-03801	4p 12Gb SAS miniSAS HD Cu\|Op	MiniSAS HD	SAS 6/12 Gb	View	SAS 6/12 Gb	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
20	Tape (Initiator)	PCIe	X2069-R6	111-02026	SAS 3/6/12 Gb	111-02026	4p 12Gb SAS Cu\|Op	QSFP	SAS 3/6/12 Gb	View	SAS 3/6/12 Gb	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
21	Tape (Initiator)	PCIe	X2054A-R6	111-00285	Fibre Channel 1/2/4 Gb	111-00285	4p 4Gb FC Op	LC	Fibre Channel 1/2/4 Gb	View	Fibre Channel 1/2/4 Gb	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
21	Tape (Initiator)	PCIe	X1132A-R6	111-00481	Fibre Channel 2/4/8 Gb	111-00481	4p 8Gb FC Op	SFP	Fibre Channel 2/4/8 Gb	View	Fibre Channel 2/4/8 Gb	9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
22	Tape (Initiator)	PCIe3	X2071A	111-03801	SAS 6/12 Gb	111-03801	4p 12Gb SAS miniSAS HD Cu\|Op	MiniSAS HD	SAS 6/12 Gb	View	SAS 6/12 Gb	9.1P10, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
23	Tape (Initiator)	PCIe	X2069-R6	111-02026	SAS 3/6/12 Gb	111-02026	4p 12Gb SAS Cu\|Op	QSFP	SAS 3/6/12 Gb	View	SAS 3/6/12 Gb	9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
24	Tape (Initiator)	PCIe	X2054A-R6	111-00285	Fibre Channel 1/2/4 Gb	111-00285	4p 4Gb FC Op	LC	Fibre Channel 1/2/4 Gb	View	Fibre Channel 1/2/4 Gb	9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
Footnote:
[1] Values shown for max quantity are per controller. HA configurations will support 2x the values shown.
[2] For MetroCluster IP configurations using Cisco 3232C only the X-QSFP-4SFP25G-CU2M cable is supported.
[3] Install X6569-R6 SFP+ or twinax cable.
[4] Target mode adapter only. Foreign LUN import (FLI) requires initiator mode.
[5] Ports configurable as targets or initiators.
[6] The FAS8200 base configuration ships with a 1TB NVMe Flash Cache adapter configured on each node. This can be upgraded to 2TB per node (4TB per HA pair)

Supported Connections for FAS8200 4-Node MetroCluster IP

Configuration Type	Port Configuration	Image	Cluster Ports per Node	Switch Ports per Node
Cluster Interconnect
Switched 10GbE Interconnect	Default, Minimum, Recommended	View Image	2	2
Switched 40GbE Interconnect (10GbE breakout)	Default, Minimum, Recommended	View Image	2	1
Metro Cluster-over-IP Connection
Switched 25GbE	Shared MetroCluster/HA 25GbE	N/A	2	2
Switched 100GbE (4x25GbE breakout)	Shared MetroCluster/HA 25GbE	N/A	2	2

Platform Mixing Rules - FAS8200 4-Node MetroCluster IP

Platform Configuration Type	Maximum Nodes (NAS) [1]	Maximum Nodes (SAN) [1]	Min ONTAP Version for Platform Mixing
FAS - Legacy EOA Configuration(s)
FAS8200-4NMCIP	2 Nodes	2 Nodes	9.5RC1
Footnote:
1Maximum number of nodes within a cluster is determined by platform which supports the fewest number of nodes

Product Standard Compliance - FAS8200 4-Node MetroCluster IP

Standard	Description
Certifications EMC/EMI
AMCA	Australia and New Zealand (EMC covered by ACMA DoC)
FCC	Federal Communications Commission (EMI Declaration of Conformity covering United States and Canada)
ICES	ICES
KC	Korea Communications Commission (EMC certificate for South Korea)
Morocco	Morocco Declaration of Conformity
VCCI	EMI Certificate for Japan
Certifications safety
BIS	Bureau of Indian Standard (Safety cert for India)
CB	Certificate Body issued safety certificate covering International
CSA	Canadian Standards Association issued Safety certificate covering North America
G_K_U-SoR	Safety certificate for Gabon, Kenya and Uganda
IRAM	Instituto Argentino de Normalización y Certificación (safety certificate for Argentina)
NOM	Norma Oficial Mexicana (Safety cert for Mexico)
NRCS	National Regulator for Compulsory Specifications (Safety cert for South Africa)
SONCAP	Standards Organisation of Nigeria Conformity Assessment Programme (Safety cert for Nigeria)
TBS	Tanzanian Bureau of Standards (Safety certificate for Tanzania)
Certifications Safety/EMC/EMI
EAC	Euro Asia Conformity (EMC and Safety Cert) covering (Russia, Kazakhstan, Belarus, Armenia, Kyrgyzstan Countries)
UKRSEPRO	EMC/Safety certificate for Ukraine
Certifications Safety/EMC/EMI/RoHS
BSMI	Certificate for Taiwan
CE DoC	European Union Declaration of Conformity
UKCA DoC	UK Declaration of Conformity
Standards EMC/EMI
BS-EN-55024	EMC standard for Great Britain
BS-EN55035	EMC standard for Great Britain
CISPR 32	EMI
EN55022	EMC Standard fo European Union
EN55024	EMC Standard fo European Union
EN55032	EMI Standard fo European Union
EN55035	EMC Standard for European Union
EN61000-3-2	EMC Standard for European Union
EN61000-3-3	EMC Standard for European Union
FCC Part 15 Class A	EMI standard for United States
ICES-003	EMI Standard for Canada
KS C 9832	EMI Standard for South Korea
KS C 9835	EMC Standard for South Korea
Standards Safety
ANSI/UL60950-1	Safety standard for United States
ANSI/UL62368-1	Safety standard for United States
BS-EN62368-1	Safety standard for Great Britain
CAN/CSA C22.2 No. 60950-1	Safety Standard for Canada
CAN/CSA C22.2 No. 62368-1	Safety Standard for Canada
CNS 14336	Safety Standard for Taiwan
EN60825-1	Laser Safety standard for European Union
EN62368-1	Safety standard for European Union
IEC 62368-1	Safety Standard for International
IEC60950-1	Safety standard for International
IS 13252(part 1)	Safety Standard for India

Supported OS Version - FAS8200 4-Node MetroCluster IP

OS Major Version	Supported OS Version	Supported Milestones	Recommend Version
Currently Supported OS
ONTAP 9.11.1	9.11.1, 9.11.1RC1	End of Full Support: 31-Jul-2025 End of Limited Support: 31-Jul-2027 End of Self-Service Support: 31-Jul-2030	9.11.1
ONTAP 9.10.1	9.10.1P5, 9.10.1P6, 9.10.1P4, 9.10.1P3, 9.10.1P2, 9.10.1P1, 9.10.1, 9.10.1RC1	End of Full Support: 31-Jan-2025 End of Limited Support: 31-Jan-2027 End of Self-Service Support: 31-Jan-2030	9.10.1P6
ONTAP 9.9.1	9.9.1P11, 9.9.1P10, 9.9.1P9, 9.9.1P8, 9.9.1P7, 9.9.1P6, 9.9.1P5, 9.9.1P4, 9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1	End of Full Support: 30-Jun-2024 End of Limited Support: 30-Jun-2026 End of Self-Service Support: 30-Jun-2029	9.9.1P11, 9.9.1P10, 9.9.1P9
ONTAP 9.8	9.8P13, 9.8P12, 9.8P11, 9.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4, 9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1	End of Full Support: 31-Dec-2023 End of Limited Support: 31-Dec-2025 End of Self-Service Support: 31-Dec-2028	9.8P13, 9.8P12
ONTAP 9.7	9.7P19, 9.7P18, 9.7P17, 9.7P16, 9.7P15, 9.7P14, 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1	End of Full Support: 31-Jan-2023 End of Limited Support: 31-Jan-2025 End of Self-Service Support: 31-Jan-2028	9.7P19
EOS OS
ONTAP 9.7	9.7P19, 9.7P18, 9.7P17, 9.7P16, 9.7P15, 9.7P14, 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1	End of Full Support: 31-Jan-2023 End of Limited Support: 31-Jan-2025 End of Self-Service Support: 31-Jan-2028	9.7P19
ONTAP 9.6	9.6P18, 9.6P17, 9.6P16, 9.6P15, 9.6P14, 9.6P13, 9.6P12, 9.6P11, 9.6P10, 9.6P9, 9.6P8, 9.6P7, 9.6P6, 9.6P5, 9.6P4, 9.6P3, 9.6P2, 9.6P1, 9.6, 9.6RC2, 9.6RC1	End of Full Support: 30-Jun-2022 End of Limited Support: 30-Jun-2024 End of Self-Service Support: 30-Jun-2027	9.6P18
Definitions:
[1]End of Full Support: The date marking the end of Full Support for a particular feature version of a NetApp system software and the beginning of Limited Support. Abbreviated as EOES.
[2]End of Limited Support: The date marking the end of Limited Support for a particular feature version of a product and transition to Self-Service Support. Abbreviated as EOVS.
[3]End of Self-Service Support: NetApp does not provide support for a version of a software product, but related documentation is still available on the NetApp Support Site. NetApp customers are expected to utilize documentation to resolve issues.

Supported Power Cords for FAS8200 4-Node MetroCluster IP

Marketing Part No.	End 1 / End 2	Length	Description
Non-Cabinet Power Cords
X-50617-00	IEC60320-C20 / IEC60320-C13	2.00 m	Power Cords,In-Cabinet,2m,C20-C13,E-Series
X800B-R6	CEE 7/7 (Schuko) / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6	BS1363 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800D-R6	JIS-C-8303 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/125V
X800E-R6	NEMA 5-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/125V
X800F-R6	AS/NZS 3112 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6	SEV 1011 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6	IRAM 2073 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6	GB2099 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6	DHCR107-2-D1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6	SANS 164-1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6	SI32 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6	CEI 23-16 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Italy,10A/250V
X800P-R6	NEMA 6-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/250V
X800T-R6	CNS 10917-3 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V
X800VB-R6	NBR14136 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Brazil,10A/250V
X800W-R6	CNS10917/CNS690 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6	JIS-C-830 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X-52197-00-R6	IEC60320-C14 / IEC60320-C13	2.00 m	Pwr Cord,In-Cabinet, C14-C13,E-Series, 2M
X1558A-R6	IEC60320-C14 / IEC60320-C13	1.20 m	Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35	IEC60320-C14 / IEC60320-C13	0.89 m	Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43	IEC60320-C14 / IEC60320-C13	1.09 m	Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64	IEC60320-C14 / IEC60320-C13	1.63 m	Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6	IEC60320-C14 / IEC60320-C13	0.68 m	Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

Onboard Ports Configuration: FAS8200 4-Node MetroCluster IP

Port Address	Description	Supported Protocols	Port Icon	Port Type
0a	Serial-Attached SCSI	SAS 6/12 Gb	SAS	MiniSAS HD
0b	Serial-Attached SCSI	SAS 6/12 Gb	SAS	MiniSAS HD
0c	Serial-Attached SCSI	SAS 6/12 Gb	SAS	MiniSAS HD
0d	Serial-Attached SCSI	SAS 6/12 Gb	SAS	MiniSAS HD
e0a [1]	Ethernet	Ethernet 10Gb	Ethernet	SFP+
e0b [1]	Ethernet	Ethernet 10Gb	Ethernet	SFP+
e0c	Ethernet	Ethernet 10Gb Base-T (1000/10000 Mb)	Ethernet	RJ45
e0d	Ethernet	Ethernet 10Gb Base-T (1000/10000 Mb)	Ethernet	RJ45
e0e/0e [2]	Unified Target Adapter 2	Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb	Ethernet/Fibre Channel	SFP+
e0f/0f [2]	Unified Target Adapter 2	Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb	Ethernet/Fibre Channel	SFP+
e0g/0g [2]	Unified Target Adapter 2	Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb	Ethernet/Fibre Channel	SFP+
e0h/0h [2]	Unified Target Adapter 2	Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb	Ethernet/Fibre Channel	SFP+
e0M/SP [3]	Management	Ethernet 10/100/1000 Mb	Wrench	RJ45
Serial Interface	Serial Console	RS-232 115200bps	Serial Interface	RJ45
Serial Interface	USB Serial Console	RS-232 115200bps	USB 2.0	USB 2.0 Micro-B
USB/2	Storage Host Port	USB 2.0	USB 2.0	USB Type A
Footnote:
[1] See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements
[2] Connecting tape drives or tape libraries to the FC or UTA2 ports requires the use of a FC switch.
[3] e0M is default management port

Supported Platform Configurations - FAS8200 4-Node MetroCluster IP

Platform Configuration	Description	Chassis Configuration	Chassis Count	Controller Count (per chassis)	IOXM Count (per chassis)	Rack Units (Per System)	Weight (Per Chassis)	Min ONTAP
HA Pair
FAS8200A	FAS8200 Single Chassis HA Pair	CC	1	2	0	3	76.00 lb (34.473 kg)	9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
MetroCluster
FAS8200-2NBSMC	FAS8200 2-Node Stretch MetroCluster, Fiber Bridge	Cb-HA	2	1	0	6	65.80 lb (29.846 kg)	9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8200-2NDSMC	FAS8200 2-Node Stretch MetroCluster, Optical SAS	Cb-HA	2	1	0	6	65.80 lb (29.846 kg)	9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8200-2NFMC	FAS8200 2-Node Fabric MetroCluster	Cb-HA	2	1	0	6	65.80 lb (29.846 kg)	9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8200-4NFMC	FAS8200 4-Node Fabric MetroCluster	CC-CC	2	2	0	6	76.00 lb (34.473 kg)	9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8200-4NMCIP	FAS8200 4-Node MetroCluster IP	CC-CC	2	2	0	6	76.00 lb (34.473 kg)	9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8200-8NFMC	FAS8200 8-Node Fabric MetroCluster	2x(CC-CC)	4	2	0	12	76.00 lb (34.473 kg)	9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
FAS8200-8NMCIP	FAS8200 8-Node MetroCluster IP	2x(CC-CC)	4	2	0	12	76.00 lb (34.473 kg)	9.9.1RC1, 9.10.1RC1, 9.11.1RC1

Platform Memory Specifications - FAS8200 4-Node MetroCluster IP

Part Number	Description	Mfg Part Number	Non-Volatile	Qty	Capacity (GB)	NVRAM/NVMEM Used Capacity (GB)	RAM Used Capacity (GB)
X93142A	DIMM,32GB	107-00176	no	16	32	32	512

Supported Rail Kit for FAS8200 4-Node MetroCluster IP

Marketing Part No.	Manufacturing Part No.	Description
NetApp System Cabinet Rail Kits
X8783A-R6	111-01110	Rail Kit III, NetApp Cabinet, R6
X87880A	111-03887	Rail Kit 4,Cabinet
Third-Party Cabinet Rail Kits
X-02659-00	113-00232	Kit,4-Post,Square or Round-Hole, 24"-32" Rail
X5515A-R6	111-00232	Kit,2-Post (Round) or 4-Post (Square), 24"-32" Rail
X5529A-R6	111-00310	Kit,4-Post,Swift,Square-Hole, 24"-32" Rail

Field Replacement Unit Parts - FAS8200 4-Node MetroCluster IP

Marketing Part No.	Manufacturing Part No.	Description
Adapter Card
X1048A-EN-R6-C	111-00909	NIC 4-Port Optical GbE PCIe,EN,-C
X1048A-R6	111-00909	NIC 4-Port Optical GbE PCIe
X1048A-R6-C	111-00909	NIC 4-Port Optical GbE PCIe,-C
X1049C-R6	111-01034	NIC 4-Port Copper GbE II PCIe
X1049C-R6-C	111-01034	NIC 4-Port Copper GbE II PCIe,-C
X1116A [1]	111-03853	NIC 2-Port Bare Cage 25Gb SFP28 PCIe
X1116A-C [1]	111-03853	NIC 2-Port Bare Cage 25Gb SFP28 PCIe,-C
X1116A-N-C [1]	111-03853	NIC 2-Port Bare Cage 25Gb SFP28 PCIe,-C
X1117A-EN-R6-C [2]	111-00754, 111-01232	NICII 2-Port Bare Cage SFP+ 10GbE PCIe,EN,-C
X1117A-N-C [2]	111-00754, 111-01232	NICII 2-Port Bare Cage SFP+ 10GbE PCIe,-C
X1117A-R6 [2]	111-00754, 111-01232	NICII 2-Port Bare Cage SFP+ 10GbE PCIe
X1117A-R6-C [2]	111-00754, 111-01232	NICII 2-Port Bare Cage SFP+ 10GbE PCIe,-C
X1120A-N-C [3]	111-01688	NIC II 2-Port RJ45 10GBASE-T PCIe,-C
X1120A-R6 [3]	111-01688	NIC II 2-Port RJ45 10GBASE-T PCIe
X1120A-R6-C [3]	111-01688	NIC II 2-Port RJ45 10GBASE-T PCIe,-C
X1130A-EN-R6-C	111-00416	HBA 4-Port FCP Target 4Gb PCIe,EN,-C
X1130A-R6	111-00416	HBA 4-Port FCP Target 4Gb PCIe
X1132A-EN-R6-C [4]	111-00481	ADPT 4-Port FCP 8Gb Target Adapter PCIe,EN,-C
X1132A-R6 [4]	111-00481	ADPT 4-Pt FC 8Gb Target-Init PCIe
X1132A-R6-C [4]	111-00481	ADPT 4-Pt FC 8Gb Target-Init PCIe,-C
X1133A-N-C [4] [5] [6]	111-02451	HBA,4-Port FCP Trgt/Init 16Gb PCIe w/SFP+,-C
X1133A-R6 [4] [5] [6]	111-02451	HBA,4-Port FCP Trgt/Init 16Gb PCIe w/SFP+
X1133A-R6-C [4] [5] [6]	111-02451	HBA,4-Port FCP Trgt/Init 16Gb PCIe w/SFP+,-C
X1134A [7]	111-03249	HBA,2-Port FCP Target 32Gb PCIe w/SFP+
X1134A-C [7]	111-03249	HBA,2-Port FCP Target 32Gb PCIe w/SFP+,-C
X1134A-N-C [7]	111-03249	HBA,2-Port FCP Target 32Gb PCIe w/SFP+,-C
X1143A-N-C [6] [8] [9] [10] [11] [12] [13]	111-00910	ADPT 2-Pt UTA2,10GbE,16Gb FC BareCage SFP+,-C
X1143A-R6 [6] [8] [9] [10] [11] [12] [13]	111-00910	ADPT 2-Pt UTA2,10GbE,16Gb FC BareCage SFP+
X1143A-R6-C [6] [8] [9] [10] [11] [12] [13]	111-00910	ADPT 2-Pt UTA2,10GbE,16Gb FC BareCage SFP+,-C
X1144A [14] [15]	111-03380	NIC 2-Port Bare Cage 40GbE QSFP+ PCIe
X1144A-C [14] [15]	111-03380	NIC 2-Port Bare Cage 40GbE QSFP+ PCIe,-C
X1144A-N-C [14] [15]	111-03380	NIC 2-Port Bare Cage 40GbE QSFP+ PCIe,-C
X2054A-EN-R6-C	111-00285	HBA 4-Port Optical 4Gb Disk PCIe,EN,-C
X2054A-R6	111-00285	HBA 4-Port Optical 4Gb Disk PCIe
X2069-R6	111-02026	HBA,4-Port SAS 3/6/12Gbps QSFP PCIe
X2069-R6-C	111-02026	HBA,4-Port SAS 3/6/12Gbps QSFP PCIe,-C
X2071A	111-03801	HBA,4-Port HD-miniSAS,12Gb,PCIe
X2071A-C	111-03801	HBA,4-Port HD-miniSAS,12Gb,PCIe,-C
X2071A-N-C	111-03801	HBA,4-Port HD-miniSAS,12Gb,PCIe,-C
X3311A [16]	111-03066	SUB ASSY,NVME,FLASH,1.0TB
Battery
X1847	271-01847	Lithium System Battery CR2032
X1847-R6	271-01847	Lithium System Battery CR2032,R6
X3150A	111-02490	BATT,4CELL,HiAh,HOLDER,FAS8200,A300
Bezel
X80104A	111-02492	Bezel,Sub Assembly,FAS8200
Boot Media
X3320A	501-01119	DRIVE,SSD,128GB,mSATA
Cable Management Guide
X3321A	111-02659	SUB ASSY,SM,BKT,CBL MGMNT SET,FAS8200,A300
Chassis
X3160A	111-02491	CHAS ASSY,W/MIDPLANE,NO FAN/PSU,FAS8200
Controller Blank
X3118-R6	111-00597	Blanking Panel,SYS CNTRL,32XX,8020,A300,8200
X3118-R6-C	111-00597	Blanking Panel,SYS CNTRL,32XX,-C,8020
Data Cable
X-QSFP-4SFP10G-CU3M	112-00602	Cable,Cisco,QSFP/4xSFP10G,CU Passive,3m
X-QSFP-4SFP10G-CU3M-C	112-00602	Cable,Cisco,QSFP/4xSFP10G,CU Passive,3m,-C
X-QSFP-4SFP10G-CU3M-N-C	112-00602	Cable,Cisco,QSFP/4xSFP10G,CU Passive,3m,-C
X-QSFP-4SFP10G-CU5M	112-00603	Cable,Cisco,QSFP/4xSFP10G,CU Passive,5m
X-QSFP-4SFP10G-CU5M-C	112-00603	Cable,Cisco,QSFP/4xSFP10G,CU Passive,5m,-C
X-QSFP-4SFP10G-CU5M-N-C	112-00603	Cable,Cisco,QSFP/4xSFP10G,CU Passive,5m,-C
X-QSFP-4SFP25G-CU2M	112-00619	Cable,Dir Attach CU 100G QSFP/4x25G SFP,2m
X-QSFP-4SFP25G-CU2M-C	112-00619	Cable,Dir Attach CU 100G QSFP/4x25G SFP,2m,-C
X-QSFP-4SFP25G-CU2M-N-C	112-00619	Cable,Dir Attach CU 100G QSFP/4x25G SFP,2m,-C
X-QSFP-4SFP25G-CU5M	112-00667	Cable,Dir Attach CU 100G QSFP/4x25G SFP,5m
X-QSFP-H40G-CU1M-R6	112-00307	Cable,Cisco 40GB Twinax Copper QSFP+ 1M
X-QSFP-H40G-CU1M-R6-C	112-00307	Cable,Cisco 40GB Twinax Copper QSFP+ 1M,-C
X-QSFP-H40G-CU1M-R6-N-C	112-00307	Cable,Cisco 40GB Twinax Copper QSFP+ 1M,-C
X-QSFP-H40G-CU3M-R6	112-00604	Cable,Cisco 40GB Twinax Copper QSFP+ 3M
X-QSFP-H40G-CU3M-R6-C	112-00604	Cable,Cisco 40GB Twinax Copper QSFP+ 3M,-C
X-QSFP-H40G-CU3M-R6-N-C	112-00604	Cable,Cisco 40GB Twinax Copper QSFP+ 3M,-C
X-QSFP-H40G-CU5M-R6	112-00604, 112-00605	Cable,Cisco 40GB Twinax Copper QSFP+ 5M
X-QSFP-H40G-CU5M-R6-C	112-00605	Cable,Cisco 40GB Twinax Copper QSFP+ 5M,-C
X-QSFP-H40G-CU5M-R6-N-C	112-00605	Cable,Cisco 40GB Twinax Copper QSFP+ 5M,-C
X-SFP-H10GB-CU1M-R6	112-00210	Cable,10GBase Copper SFP+ 1m
X-SFP-H10GB-CU1M-R6-C	112-00210	Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU1M-R6-N-C	112-00210	Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU3M-R6	112-00211	Cable,10GBase Copper SFP+ 3m
X-SFP-H10GB-CU3M-R6-C	112-00211	Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU3M-R6-N-C	112-00211	Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU5M-R6	112-00212	Cable,10GBase Copper SFP+ 5m
X-SFP-H10GB-CU5M-R6-C	112-00212	Cable,10GBase Copper SFP+ 5m,-C
X-SFP-H10GB-CU5M-R6-N-C	112-00212	Cable,10GBase Copper SFP+ 5m,-C
X1983-1-R6	112-00210	Cable,Twinax CU,SFP+,1M,X1962/X1963/X1967
X1983-3-R6	112-00211	Cable,Twinax CU,SFP+,3M,X1962/X1963/X1967
X1983-5-R6	112-00212	Cable,Twinax CU,SFP+,5M,X1962/X1963/X1967
X6536-R6	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op
X6536-R6-C	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6536-R6-N-C	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6537-R6	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op
X6537-R6-C	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X6537-R6-N-C	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X65420	112-00508	Cable,ASSY,USB 2.0 MICRO-B,USB-A,2M
X6546-R6	112-00074	Cable,Cntlr-Shelf/Switch,30m,LC/SC,Op
X6547-R6	112-00073	Cable,Cntlr-Shelf/Switch,5m,LC/SC,Op
X6553-R6	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op
X6553-R6-C	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6553-R6-N-C	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6554-R6	112-00189	Cable,Cntlr-Shelf/Switch,15m,LC/LC,Op
X6554-R6-C	112-00189	Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6
X6554-R6-N-C	112-00189	Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6,-C
X6557-EN-R6-C	112-00176	Cbl,SAS Cntlr-Shelf/Shelf-Shelf/HA,0.5m,EN,-C
X6557-R6	112-00176	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,0.5m
X6557-R6-C	112-00176	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,0.5m,-C
X6558-EN-R6-C	112-00177	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,2m,-C
X6558-R6	112-00177	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,2m
X6558-R6-C	112-00177	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,2m,-C
X6559-EN-R6-C	112-00178	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,5m,-C
X6559-R6	112-00178	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,5m
X6559-R6-C	112-00178	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,5m,-C
X6560-R6	112-00194	Cable,Ethernet,0.5m RJ45 CAT6
X6560-R6-C	112-00194	Cable,Ethernet,0.5m RJ45 CAT6,-C
X6560-R6-N-C	112-00194	Cable,Ethernet,0.5m RJ45 CAT6
X6561-R6	112-00195	Cable,Ethernet,2m RJ45 CAT6
X6561-R6-C	112-00195	Cable,Ethernet,2m RJ45 CAT6,-C
X6561-R6-N-C	112-00195	Cable,Ethernet,2m RJ45 CAT6,-C
X6562-R6	112-00196	Cable,Ethernet,5m RJ45 CAT6
X6562-R6-C	112-00196	Cable,Ethernet,5m RJ45 CAT6,-C
X6562-R6-N-C	112-00196	Cable,Ethernet,5m RJ45 CAT6,-C
X6566B-05-N-C	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-05-R6	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M
X6566B-05-R6-C	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-2-N-C	112-00299	Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-2-R6	112-00299	Cable,Direct Attach CU SFP+ 10G,2M
X6566B-2-R6-C	112-00299	Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-3-N-C	112-00300	Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-3-R6	112-00300	Cable,Direct Attach CU SFP+ 10G,3M
X6566B-3-R6-C	112-00300	Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-5-N-C	112-00301	Cable,Direct Attach CU SFP+ 10G,5M,-C
X6566B-5-R6	112-00301	Cable,Direct Attach CU SFP+ 10G,5M
X6566B-5-R6-C	112-00301	Cable,Direct Attach CU SFP+ 10G,5M,-C
X6577-R6	112-00238	Cable,Ethernet,30m RJ45 CAT6
X6577-R6-C	112-00238	Cable,Ethernet,30m RJ45 CAT6,-C
X6577-R6-N-C	112-00238	Cable,Ethernet,30m RJ45 CAT6,-C
X6584-R6	112-00290	Cable,Ethernet,1m RJ45 CAT6
X6584-R6-C	112-00290	Cable,Ethernet,1m RJ45 CAT6,-C
X6584-R6-N-C	112-00290	Cable,Ethernet,1m RJ45 CAT6,-C
X6585-R6	112-00291	Cable,Ethernet,3m RJ45 CAT6
X6585-R6-C	112-00291	Cable,Ethernet,3m RJ45 CAT6,-C
X6585-R6-N-C	112-00291	Cable,Ethernet,3m RJ45 CAT6,-C
X6590-R6	112-00242	Cable,SAS Cntlr-Shelf/Shelf-Shelf,10m
X6591-R6	112-00243	Cable,SAS Cntlr-Shelf/Shelf-Shelf,20m
X6592-R6	112-00246	Cable,Ethernet,10m RJ45 CAT6
X6592-R6-N-C	112-00246	Cable,Ethernet,10m RJ45 CAT6,-C
X6593-R6	112-00247	Cable,Ethernet,20m RJ45 CAT6
X6593-R6-C	112-00247	Cable,Ethernet,20m RJ45 CAT6,-C
X6593-R6-N-C	112-00247	Cable,Ethernet,20m RJ45 CAT6,-C
X6594-R6	112-00256	Cable,SAS Cntlr-Shelf/Shelf-Shelf,HA,1m
X6594-R6-C	112-00256	Cable,SAS Cntlr-Shelf/Shelf-Shelf,HA,1m,-C
X6595-R6	112-00255	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,3m
X6595-R6-C	112-00255	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,3m,-C
X66000A-R6	112-00265	Cable,Storage,SAS-OM4,6G,QSFP,1m
X66000A-R6-C	112-00265	Cable,Storage,SAS-OM4,6G,QSFP,1m,-C
X66001A-R6	112-00266	Cable,Storage,SAS-OM4,6G,QSFP,2m
X66001A-R6-C	112-00266	Cable,Storage,SAS-OM4,6G,QSFP,2m,-C
X66002A-R6	112-00267	Cable,Storage,SAS-OM4,6G,QSFP,3m
X66002A-R6-C	112-00267	Cable,Storage,SAS-OM4,6G,QSFP,3m,-C
X66003A-R6	112-00268	Cable,Storage,SAS-OM4,6G,QSFP,5m
X66003A-R6-C	112-00268	Cable,Storage,SAS-OM4,6G,QSFP,5m,-C
X66004A-R6	112-00269	Cable,Storage,SAS-OM4,6G,QSFP,7m
X66005A-R6	112-00270	Cable,Storage,SAS-OM4,6G,QSFP,15m
X66006A-R6	112-00271	Cable,Storage,SAS-OM4,6G,QSFP,30m
X66007A-R6	112-00280	Cable,Storage,SAS-OM4,6G,QSFP,50m
X66008A-R6	112-00260	Cable,LT 150m-PatchP,OM4,6G,QSFP,LC,5m
X66008A-R6-C	112-00260	Cable,LT 150m-PatchP,OM4,6G,QSFP,LC,5m,-C
X66009A-R6	112-00261	Cable,LT 150m-PatchP,OM4,6G,QSFP,LC,30m
X66009A-R6-C	112-00261	Cable,LT 150m-PatchP,OM4,6G,QSFP,LC,30m,-C
X66010A-R6	112-00263	Cable,<150m-PatchP,OM4,6G,QSFP,SC,5m
X66011A-R6	112-00264	Cable,<150m-PatchP,OM4,6G,QSFP,SC,30m
X66012A-R6	112-00278	Cable,<150m-PatchP,OM4,6G,QSFP-MTRJ,5m
X66013A-R6	112-00279	Cable,<150m-PatchP,OM4,6G,QSFP-MTRJ,30m
X66014A-R6	112-00272	Cable,LT 500m-PatchP,OS1,6G,QSFP,LC,5m
X66014A-R6-C	112-00272	Cable,LT 500m-PatchP,OS1,6G,QSFP,LC,5m,-C
X66015A-R6	112-00273	Cable,LT 500m-PatchP,OS1,6G,QSFP,LC,30m
X66015A-R6-C	112-00273	Cable,LT 500m-PatchP,OS1,6G,QSFP,LC,30m,-C
X66016A-R6	112-00274	Cable,<500m-PatchP,OS1,6G,QSFP,SC,5m
X66017A-R6	112-00276	Cable,<500m-PatchP,OS1,6G,QSFP,SC,30m
X66018A-R6	112-00281	Cable,<500m-PatchP,OS1,6G,QSFP-MTRJ,5m
X66019A-R6	112-00282	Cable,<500m-PatchP,OS1,6G,QSFP-MTRJ,30m
X66020A-R6	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m
X66020A-R6-C	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C
X66021A-R6	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m
X66021A-R6-C	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C
X66022A-R6	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m
X66022A-R6-C	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C
X66030A	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66030A-K-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N	112-00435	Cable,12Gb,Mini SAS HD,0.5m
X66030A-N-C	112-00435	Cable,12Gb,Mini SAS HD,0.5m,-C
X66031A	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-C	112-00436	Cable,12Gb,Mini SAS HD,1m,-C
X66031A-K-N	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-N	112-00436	Cable,12Gb,Mini SAS HD,1m
X66031A-N-C	112-00436	Cable,12Gb,Mini SAS HD,1m,-C
X66032A	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-C	112-00437	Cable,12Gb,Mini SAS HD,2m,-C
X66032A-K-N	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-N	112-00437	Cable,12Gb,Mini SAS HD,2m
X66032A-N-C	112-00437	Cable,12Gb,Mini SAS HD,2m,-C
X66033A	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-C	112-00438	Cable,12Gb,Mini SAS HD,3m,-C
X66033A-K-N	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-N	112-00438	Cable,12Gb,Mini SAS HD,3m
X66033A-N-C	112-00438	Cable,12Gb,Mini SAS HD,3m,-C
X66034A	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-C	112-00439	Cable,12Gb,Mini SAS HD,5m,-C
X66034A-K-N	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-N	112-00439	Cable,12Gb,Mini SAS HD,5m
X66034A-N-C	112-00439	Cable,12Gb,Mini SAS HD,5m,-C
X66040A	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-C	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66040A-K-N	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N-C	112-00449	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66041A	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-C	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66041A-K-N	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N-C	112-00450	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66042A	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-C	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66042A-K-N	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N-C	112-00451	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66043A	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-C	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66043A-K-N	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N-C	112-00452	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66044A	112-00453	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,15m
X66045A	112-00454	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,30m
X66046A	112-00455	Cable,12Gb,SAS Opt,AOC,Mini SAS HD,50m
X66047A	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m
X66047A-C	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66047A-N-C	112-00456	Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66048A	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m
X66048A-C	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66048A-N-C	112-00457	Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66100-1	112-00542	Cable,Direct Attach CU QSFP,40Gb,1m
X66100-1-C	112-00542	Cable,Direct Attach CU QSFP,40Gb,1m,-C
X66100-1-K-N	112-00542	Cable,Direct Attach CU QSFP,40Gb,1m
X66100-1-N	112-00542	Cable,Direct Attach CU QSFP,40Gb,1m
X66100-1-N-C	112-00542	Cable,Direct Attach CU QSFP,40Gb,1m,-C
X66100-3	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m
X66100-3-C	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m,-C
X66100-3-K-N	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m
X66100-3-N	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m
X66100-3-N-C	112-00543	Cable,Direct Attach CU QSFP,40Gb,3m,-C
X66100-5	112-00544	Cable,Direct Attach CU QSFP,40Gb,5m
X66100-5-C	112-00544	Cable,Direct Attach CU QSFP,40Gb,5m,-C
X66100-5-K-N	112-00544	Cable,Direct Attach CU QSFP,40Gb,5m

Supported Firmware Matrix - FAS8200 4-Node MetroCluster IP

Major OS Version	OS Version	Firmeware
BIOS
ONTAP 9.11.1	9.11.1	11.15*
ONTAP 9.11.1	9.11.1RC1	11.16, 11.15*
ONTAP 9.10.1	9.10.1P5-P6	11.16, 11.15*
ONTAP 9.10.1	9.10.1P3-P4, 9.10.1P2, 9.10.1P1	11.16, 11.15, 11.13*
ONTAP 9.10.1	9.10.1, 9.10.1RC1	11.16, 11.15, 11.13, 11.11*
ONTAP 9.9.1	9.9.1P11, 9.9.1P10	11.16, 11.15*
ONTAP 9.9.1	9.9.1P8-P9, 9.9.1P7	11.16, 11.15, 11.13*
ONTAP 9.9.1	9.9.1P4-P6, 9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1	11.16, 11.15, 11.13, 11.11*
ONTAP 9.8	9.8P13	11.16, 11.15*
ONTAP 9.8	9.8P11-P12	11.16, 11.15, 11.13*
ONTAP 9.8	9.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4	11.16, 11.15, 11.13, 11.11*
ONTAP 9.8	9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1	11.16, 11.15, 11.13, 11.11, 11.9*
ONTAP 9.7	9.7P19, 9.7P17-P18, 9.7P16, 9.7P15, 9.7P14	11.16, 11.15, 11.13, 11.11*
ONTAP 9.7	9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8	11.16, 11.15, 11.13, 11.11, 11.9*
ONTAP 9.7	9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1	11.16, 11.15, 11.13, 11.11, 11.9, 11.7*
ONTAP 9.6	9.6P18, 9.6P17, 9.6P16, 9.6P15	11.16, 11.15, 11.13, 11.11*
ONTAP 9.6	9.6P13-P14, 9.6P12	11.16, 11.15, 11.13, 11.11, 11.9*
ONTAP 9.6	9.6P10-P11	11.16, 11.15, 11.13, 11.11, 11.9, 11.7*
ONTAP 9.6	9.6P9, 9.6P7-P8, 9.6P5-P6, 9.6P4, 9.6P3	11.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5*
ONTAP 9.6	9.6P2, 9.6, 9.6P1, 9.6RC2, 9.6RC1	11.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5*
ONTAP 9.5	9.5P19, 9.5P18	11.16, 11.15, 11.13, 11.11*
ONTAP 9.5	9.5P17, 9.5P16, 9.5P15	11.16, 11.15, 11.13, 11.11, 11.9*
ONTAP 9.5	9.5P14	11.16, 11.15, 11.13, 11.11, 11.9, 11.7*
ONTAP 9.5	9.5P13, 9.5P12, 9.5P10-P11, 9.5P9, 9.5P8, 9.5P7, 9.5P6, 9.5P5, 9.5P4, 9.5P2-P3, 9.5P1, 9.5, 9.5RC1	11.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5, 11.4*
Footnote:
[1]* Indicates that firmware is bundled with Storage OS Version

Product Certificates - FAS8200 4-Node MetroCluster IP

Certificate Name	Geo / Region / Country	Associated Products
Battery Pack safety reports
Lithium Battery Safety Doc-Section II/Section IB Shipments,Inventus Power Product Model#271-00046AWB	Global	Platforms : AFF A300, AFF A700, FAS8200, FAS9000
EMI and Safety certificates
Lithium Battery Safety Doc-Section II/Section IB Shipments,Inventus Power Product Model#271-00046AWB	Global	Platforms : AFF A300, AFF A700, FAS8200, FAS9000
Declaraion of Similarity NAF-1601	Global	Platforms : AFF A300, FAS8200
NAF-1601 G-K-U-SoR	Gabon,Kenya,SaudiArabia,Uganda	Platforms : AFF A300, FAS8200
NAF-1601 (Jabil Mexico) BIS	BIS - India	Platforms : AFF A300, FAS8200
NAF-1601 (Jabil Singapore) BIS	BIS - India	Platforms : AFF A300, FAS8200
NAF-1601 60950-CB	CB - International	Platforms : AFF A300, FAS8200
NAF-1601 62368-CB-3rd_Edition	CB - International	Platforms : AFF A300, FAS8200
NAF-1601 ACMA	ACMA - Australia, New Zealand	Platforms : AFF A300, FAS8200
NAF-1601 BSMI	BSMI - Taiwan	Platforms : AFF A300, FAS8200
NAF-1601 CSA	CSA - United States, Canada	Platforms : AFF A300, FAS8200
NAF-1601 CE DoC	CE - European Union DoC	Platforms : AFF A300, FAS8200
NAF-1601 EAC	EAC - Armenia, Belarus, Kazakhstan, Kyrgyzstan, Russia	Platforms : AFF A300, FAS8200
NAF-1601 FCC	FCC - United States	Platforms : AFF A300, FAS8200
NAF-1601 IRAM	IRAM - Argentina	Platforms : AFF A300, FAS8200
NAF-1601 KC	KC - South Korea	Platforms : AFF A300, FAS8200
NAF-1601 Morocco	Morocco	Platforms : AFF A300, FAS8200
NAF-1601 NOM	NOM - Mexico	Platforms : AFF A300, FAS8200
NAF-1601 NRCS	NRCS - South Africa (Safety)	Platforms : AFF A300, FAS8200
NAF-1601 SONCAP	SONCAP - Nigeria	Platforms : AFF A300, FAS8200
NAF-1601 TBS	TBS - Tanzania	Platforms : AFF A300, FAS8200
NAF-1601 UKRSepro	UKRSepro - Ukraine	Platforms : AFF A300, FAS8200
NAF-1601 VCCI	VCCI - Japan	Platforms : AFF A300, FAS8200
NAF-1601 UKCA DOC	UKCA -United Kingdom	Platforms : AFF A300, FAS8200
NAF-1601 62368-CB-2nd_Edition	CB - International	Platforms : AFF A300, FAS8200
PSU 80+ Platinum Certificates
NAF-1601 62368-CB-2nd_Edition	CB - International	Platforms : AFF A300, FAS8200
DCJ14602-01 Energy Star Report	Global	PSU : X5729A
Voluntary Product Accessibility Template
DCJ14602-01 Energy Star Report	Global	PSU : X5729A

Size, Weight, Acoustic, Power FAS8200 4-Node MetroCluster IP

Associated Part No.	Configuration	Rack Units	Weight	Sound Power	Sound Pressure	Line Voltage Actual (Min to Max)	Amps Typical	Amps Worst	Watts Typical	Watts Worst	BTU / Hr Typical	BTU / Hr Worst
FAS8200
FAS8200A	FAS8200 2 PCM	3	76.0 lb (34.5 kg)	6.9 Bels	53.1 dBA	100 (100 to 120)	5.65	6.49	553	636	1888	2171
FAS8200A	FAS8200 2 PCM	3	76.0 lb (34.5 kg)	6.9 Bels	53.1 dBA	200 (200 to 240)	2.77	3.19	542	624	1850	2130

Category: 6u, 8-pcie-slots, bus-pci-e, chassis_amount_2, controller_amount_single, drive-capacity-10-56pb, drive-count-480, fas8200, memory-512gb, netapp, protocol-ethernet, protocol-fibre-channel, protocol-iscsi, protocol-sas, single, speed-10gb, speed-12gb, speed-16gb

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground
- Shipping time: 2-7 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-10 business days
- Excludes weekends, holidays or weather delays.
3 Business Days
- Shipping time: 3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 3-6 business days
- Excludes weekends, holidays or weather delays.
2 Business Days
- Shipping time: 2 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-5 business days
- Excludes weekends, holidays or weather delays.
Overnight / Next Business Day
- Shipping time: 1 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 1-4 business days
- Excludes weekends, holidays or weather delays.

International Shipments

International Economy
- Shipping time: 4-6 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 5-9 business days
- Excludes weekends, holidays or weather delays.
International Priority
- Shipping time: 1-3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-6 business days
- Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

Leave a Message

NetApp FAS8200 4-Node MetroCluster IP Filer Head

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp FAS8200 4-Node MetroCluster IP Filer Head

Product Specs

Storage Limits

Capacity Limits

Core Cluster Limits

System Maximums and Limits

Processor

Memory

Onboard Ports

Physical Characteristics

System Clearance Dimensions

Environmental Requirements

Storage OS Requirements

Storage and Firmware

Product Standards Compliance

NFS Cluster Limits

WAFL Cluster Limits - All Maximums

Quality of Service Cluster Limits

SAN Cluster Limits - All Maximums

CIFS Cluster Limits - All Maximums

Data Protection Cluster Limits - All Maximums

NVMe/oF Cluster Limits - All Maximums

FlexCache Cluster Limits - All Maximums Cache

S3 Cluster Limits -

Consistency Groups - All Maximums

Flex Array Specifications

Platform LED for FAS8200 4-Node MetroCluster IP

Supported Shelves Drives for FAS8200 4-Node MetroCluster IP

Supported RAID Configurations - FAS8200 4-Node MetroCluster IP

Supported Adapter Cards - FAS8200 4-Node MetroCluster IP

Supported Connections for FAS8200 4-Node MetroCluster IP

Platform Mixing Rules - FAS8200 4-Node MetroCluster IP

Product Standard Compliance - FAS8200 4-Node MetroCluster IP

Supported OS Version - FAS8200 4-Node MetroCluster IP

Supported Power Cords for FAS8200 4-Node MetroCluster IP

Onboard Ports Configuration: FAS8200 4-Node MetroCluster IP

Supported Platform Configurations - FAS8200 4-Node MetroCluster IP

Platform Memory Specifications - FAS8200 4-Node MetroCluster IP

Supported Rail Kit for FAS8200 4-Node MetroCluster IP

Field Replacement Unit Parts - FAS8200 4-Node MetroCluster IP

Supported Firmware Matrix - FAS8200 4-Node MetroCluster IP

Product Certificates - FAS8200 4-Node MetroCluster IP

Size, Weight, Acoustic, Power FAS8200 4-Node MetroCluster IP

Shipping Information

ECS Warranty Information

About Express Computer Systems

Related Items

Your Recently Viewed Items

Subscribe

Shop with Confidence
