Home / 12Gb / Dell PERC 11 HBA355i SAS 12Gb x8 PCI-E Non-RAID Controller LP | 7GRF6
SKU: 7GRF6

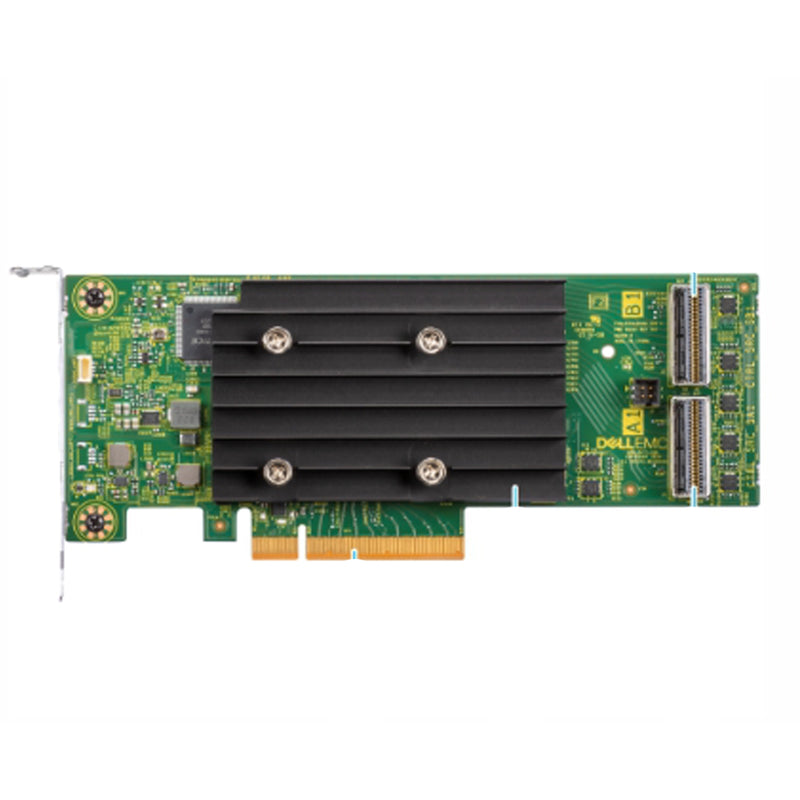

Dell PERC 11 HBA355i SAS 12Gb x8 PCI-E Non-RAID Controller LP | 7GRF6

Dell

| Adapter
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Adapter Specs

  • Models: PCIe Host Bus Adapter
  • Drive Types: 12 Gb/s SAS6 Gb/s SAS/SATA3Gb/s SAS/SATA
  • PCI Support: PCI-e 4.0
  • SAS Connectors: 16 Port 2x8 Internal
  • Cache Memory: N/A
  • Write Back Cache: N/A
  • Boot Support: Yes
  • Max Drive Support: 16/controller50 with SAS Expander *Platform limit
  • RAID Levels: Non-RAID
  • RAID SupportNon-RAID

Part Numbers:

  • 7GRF6
HBA355 Series 11 Options

HBA355i Adapter View PERC

  • Enclosures per port 0Cache: N/ARAID Level: N/ANon-RAID: YesPCIe: Gen 4
      • Supported Drives: 12 Gb/s SAS
      • 6 Gb/s SAS/SATA
      • 3 Gbps SAS/SATA
      • Max SAS/SATA disks:
        • 16 drives per controller
        • w/ SAS Expander 50
    • : Limited by platform offerings

  • Max NVMe drives:
    • Not Supported
    • Max physical disks:
      • 50 with SAS Expander*Platform limit

    • HBA355e Adapter View PERC

  • Enclosures per port 8 (Single Path)Ports: 16 Ports 4x4RAID Level: YesNon-RAID: N/APCIe: Gen 4
      • Supported Drives: 12 Gb/s SAS
      • 6 Gb/s SAS/SATA
      • 3 Gbps SAS/SATA
      • Max SAS/SATA disks:
        • 240
        • Max NVMe drives:
          • Not Supported
          • Max physical disks:
            • 240

    • HBA355 Front View PERC

  • Enclosures per port 0Cache: N/ARAID Level: N/ANon-RAID: YesPCIe: Gen 4
      • Supported Drives: 12 Gb/s SAS
      • 6 Gb/s SAS/SATA
      • 3 Gb/s SAS/SATA
      • Max SAS/SATA disks:
        • 16 drives per controller
        • w/ SAS Expander 50
    • : Limited by platform offerings

  • Max NVMe drives:
    • Not Supported
    • Max physical disks:
      • 50 *Platform limit
    • Compatible With:
    • Dell C6520
    • Dell C6525
    • Dell R250
    • Dell R350
    • Dell R450
    • Dell R550
    • Dell R650
    • Dell R650xs
    • Dell R6525
    • Dell R750
    • Dell R750xa
    • Dell R750xs
    • Dell R7525

    (Click to View)

    Spec Sheet 4

    Model & Form Factors Interface Support PCI Support SAS Connectors Cache Memory Write Back Cache RAID Levels Max Drive Support RAID Support
    H755N Front (NVMe Only) Gen3 (8 GT/s) NVMe
    Gen4 (16 GT/s) NVMe    		 PCIe Gen 4 2x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 8/per controller Hardware
    H755 Adapter FH 3 Gbps SATA
    6 Gbps SATA/SAS
    12 Gbps SATA/SAS
    Gen3 (8 GT/s) NVMe
    Gen4 (16 GT/s) NVMe    		 PCIe Gen 4 2x8 Internal 8GB NV Flash Backed Cache 0, 1, 5, 6, 10, 50,60 16/controller
    50 with SAS Expander
    *Platform limit    		 Hardware RAID
    H755 Adapter LP
    H755 Front (SAS/SATA Only) 12Gb/s SAS
    6Gb/s SAS/SATA
    3Gb/s SAS/SATA    		 PCIe Gen 4 2x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 16/controller
    50 with SAS Expander
    *Platform limit    		 Hardware RAID
    H755 MX 3 Gbps SATA
    6 Gbps SATA/SAS
    12 Gbps SATA/SAS
    Gen3 (8 GT/s) NVMe
    Gen4 (16 GT/s) NVMe    		 PCIe Gen 4 1x8 Internal 8GB NV DDR4 2666MT/s Flash Backed Cache 0, 1, 5, 6, 10, 50,60 8, Limited by platform N/A
    H750 Adapter FH 12Gb/s SAS
    6Gb/s SAS/SATA
    3Gb/s SAS/SATA
    *SAS/SATA ONLY    		 PCIe Gen 4 1x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 8/controller
    50 with SAS Expander
    *Platform limit    		 Hardware RAID
    H750 Adapter LP
    H355i Adapter FH 12Gb/s SAS
    6Gb/s SATA    		 PCIe Gen 4 2x8 Internal No Cache No Cache 0,1,10 Up To 32 RAID
    or 32 Non-RAID    		 Hardware
    H355i Adapter LP
    H355 Front 12Gb/s SAS
    6Gb/s SATA    		 PCIe Gen 4 2x8 Internal No Cache No Cache 0,1,10 Up To 32 RAID
    >or 32 Non-RAID    		 Hardware
    HBA355 Front (internal) 12Gb/s SAS
    6Gb/s SAS/SATA
    3Gb/s SAS/SATA    		 PCIe Gen 4 2x8 Internal N/A N/A N/A 16/controller
    50 with SAS Expander
    *Platform limit    		 N/A
    HBA355i Adapter FH 12Gb/s SAS
    6Gb/s SAS/SATA
    3Gb/s SAS/SATA    		 PCIe Gen 4 2x8 Internal N/A N/A N/A 16/controller
    50 with SAS Expander
    *Platform limit    		 N/A
    HBA355i Adapter LP
    HBA355e Adapter FH 12Gb/s SAS
    6Gb/s SAS/SATA
    3Gb/s SAS/SATA    		 PCIe Gen 4 4x4 External N/A N/A N/A 240 N/A
    HBA355e Adapter LP
    H350 Adapter FH 12Gb/s SAS
    6Gb/s SATA    		 PCIe Gen 4 1x8 Internal No Cache No Cache 0,1,10 Up To 32 RAID
    or 32 Non-RAID    		 Hardware
    H350 Adapter LP
    H350 Mini Mono 12Gb/s SAS
    6Gb/s SATA    		 PCIe Gen 4 2x4 Internal N/A N/A 0, 1, 10 Without SAS Expander:
    8 drives per controller

    With SAS Expander:
    Limited by platform offering     		N/A
    HBA350i Adapter (internal) 12Gb/s SAS
    6Gb/s SAS/SATA
    3Gb/s SAS/SATA    		 PCIe Gen 4 2x8 Internal N/A N/A N/A 16/controller
    50 with SAS Expander
    *Platform limit    		 N/A
    HBA350 MX (internal) 12Gb/s SAS
    6Gb/s SAS/SATA
    3Gb/s SAS/SATA    		 PCIe Gen 4 1x8 Internal N/A N/A N/A 8
    *Platform limit    		 N/A
